Description

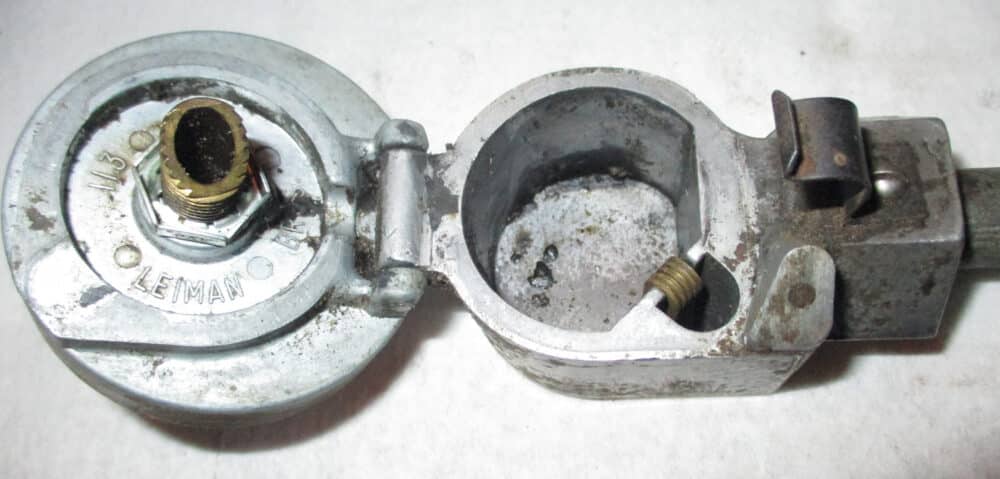

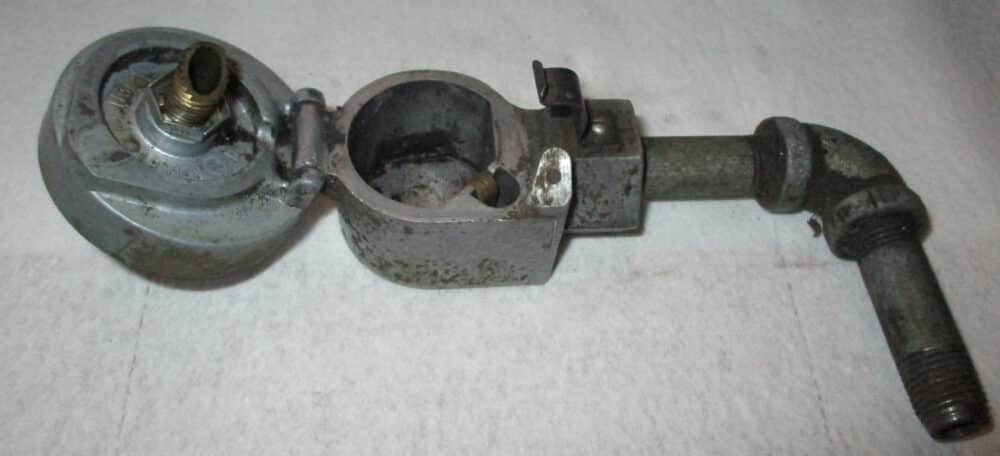

USED This is a Cast Aluminum Oiler Base With Cap. The Base dimensions are 1-3/4″ outside diameter by 1″ inside diameter by 1-1/4″ high by 2-1/2″ wide by 1″ deep with a 1-1/4″ Hexagon Hub on the inlet end. The inlet has an inside diameter of 9/16″ with 9/16-18 Thread. There is a clip inside the oiler base. The clip dimensions are 3/16″ wide by 3/4″ long by 1/16″ thick with a space of 1/16″ between each side (space like a close-pin). There is a spring clip attached to the hexagon hub. The spring clip is 3/4″ high by 3/8″ wide by 1/64″ thick. The Cap dimensions are 2-1/8″ outside diameter by 1-3/4″ inside diameter by 3/4″ high by 3/8″ deep. The threaded Nipple (in cap) has an outside diameter of 3/8″ by 1/4″ inside diameter with 3/8-24 threads. The Nipple has a 45° angle cut on one end. There are two galvanized pipes and a 90° elbow attached to the Oiler Base. The galvanized pipes have a 9/16″ outside diameter by 5/16″ inside diameter by 2″ long. The 90° galvanized elbow is female/female and has an inside diameter of 9/16″ with 9/16″-18 Thread.
The manufacturer is unknown. The part number may be E113.
Additional information
| Weight | .69 lbs |
|---|---|
| Dimensions | 3 × 4 × 2 in |
| Brand |
