Description

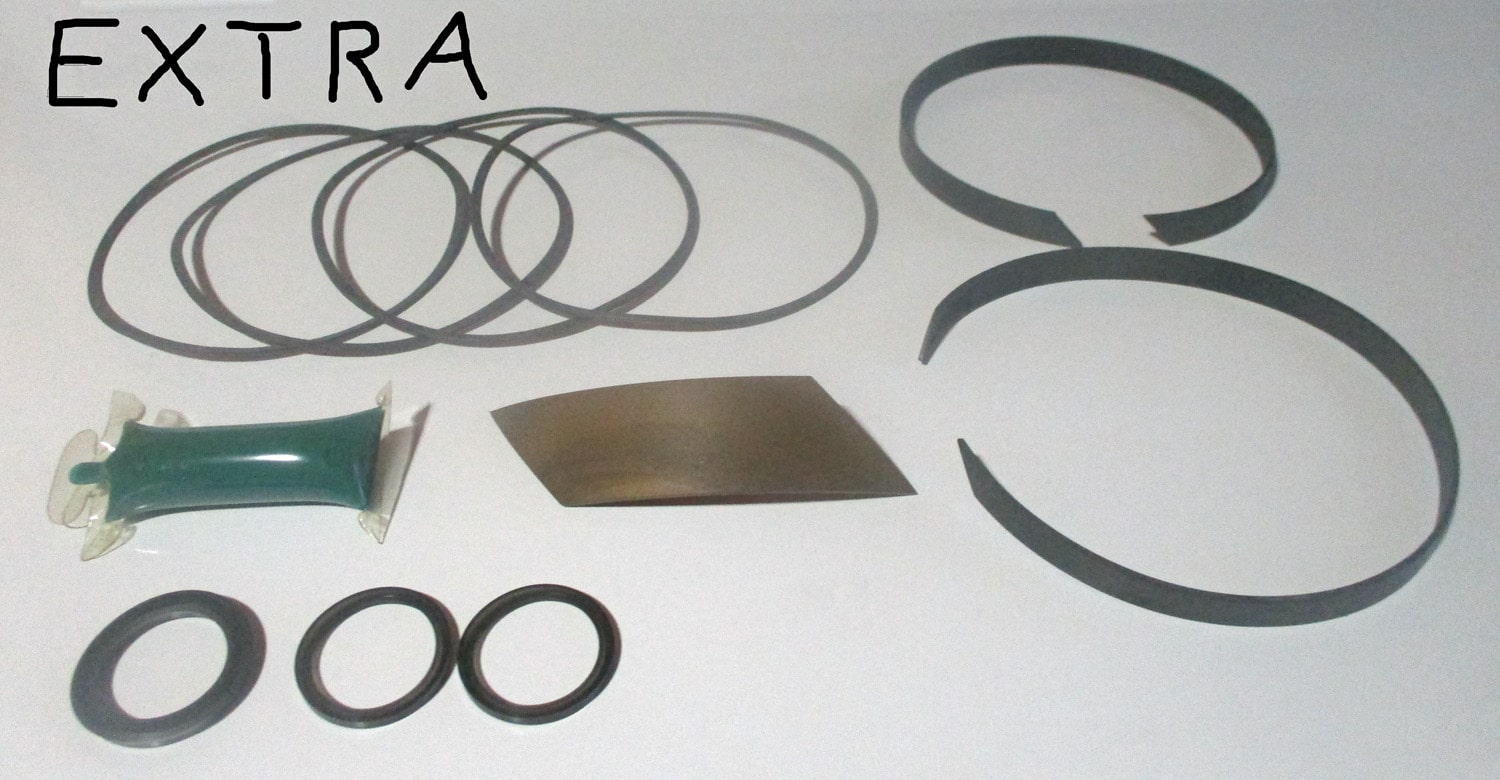

NEW This 3 1/4″ cylinder seal kit for a piston table rod with extra parts is made of plastic, rubber, and a paper material. The unit measures:

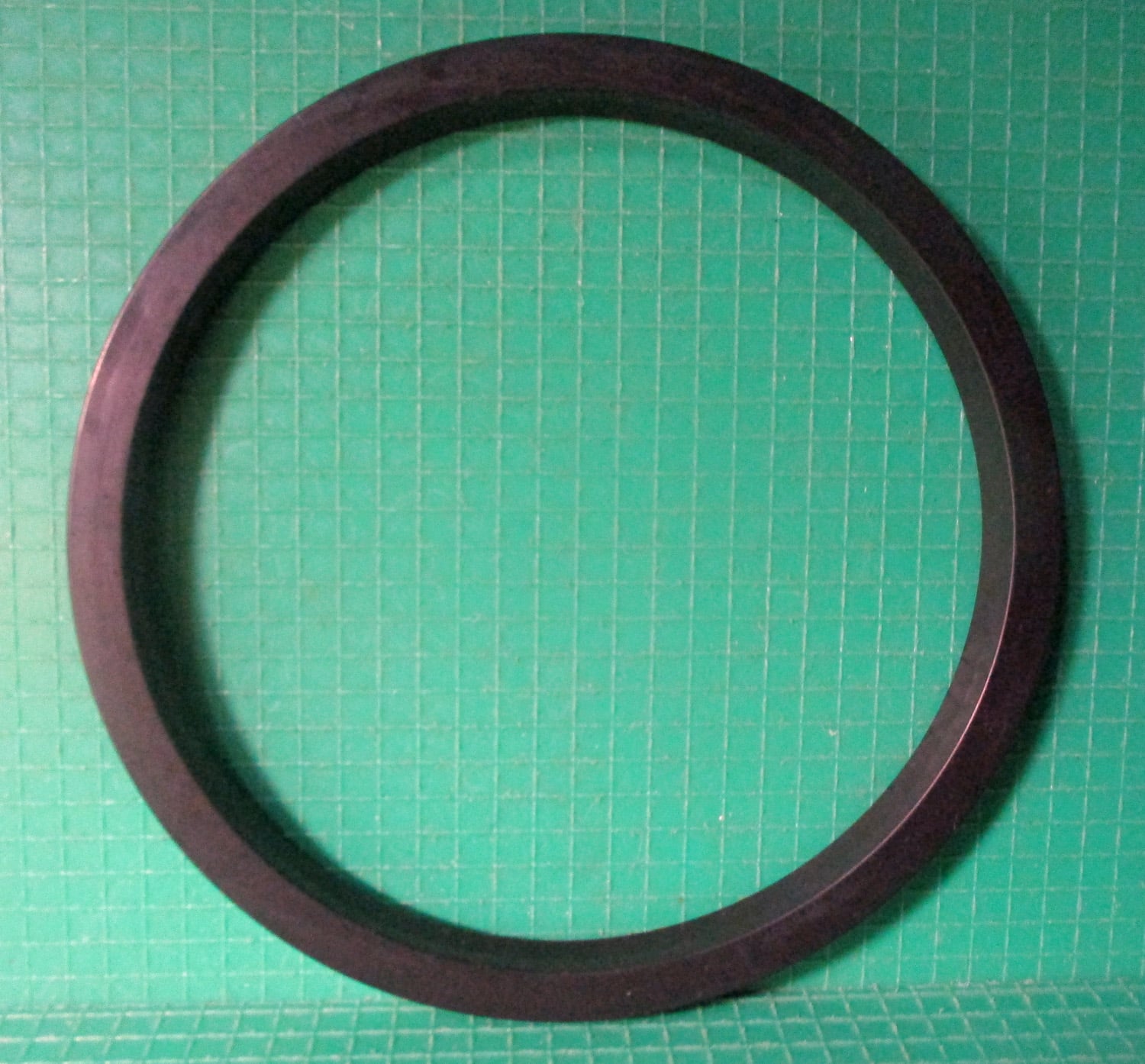

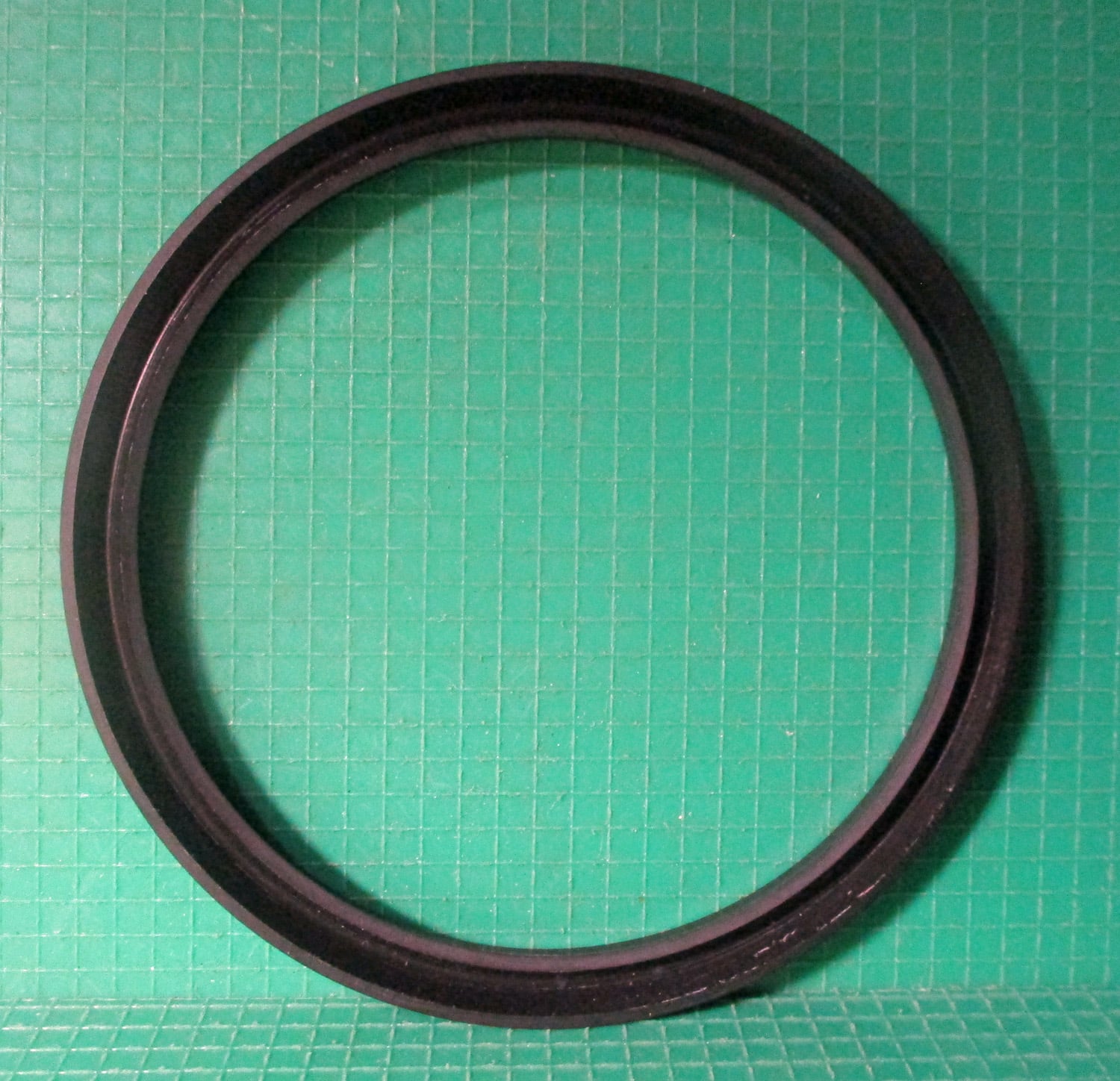

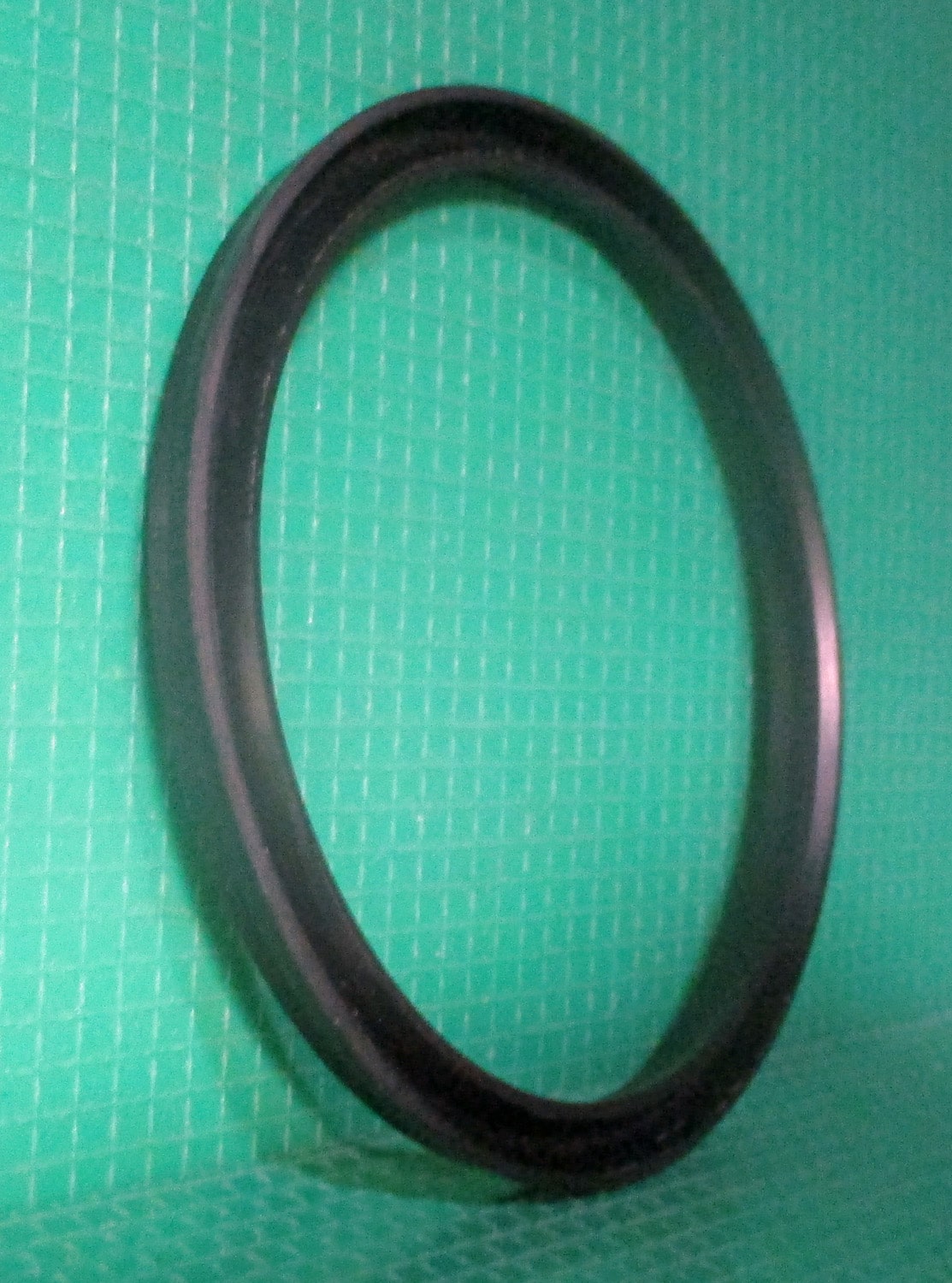

The four largest gaskets have an outer diameter of 4 1/16″, an inner diameter of 3 1/2″, and are 1/4″ high. The groove is 3/16″ wide by 3/16″ deep.

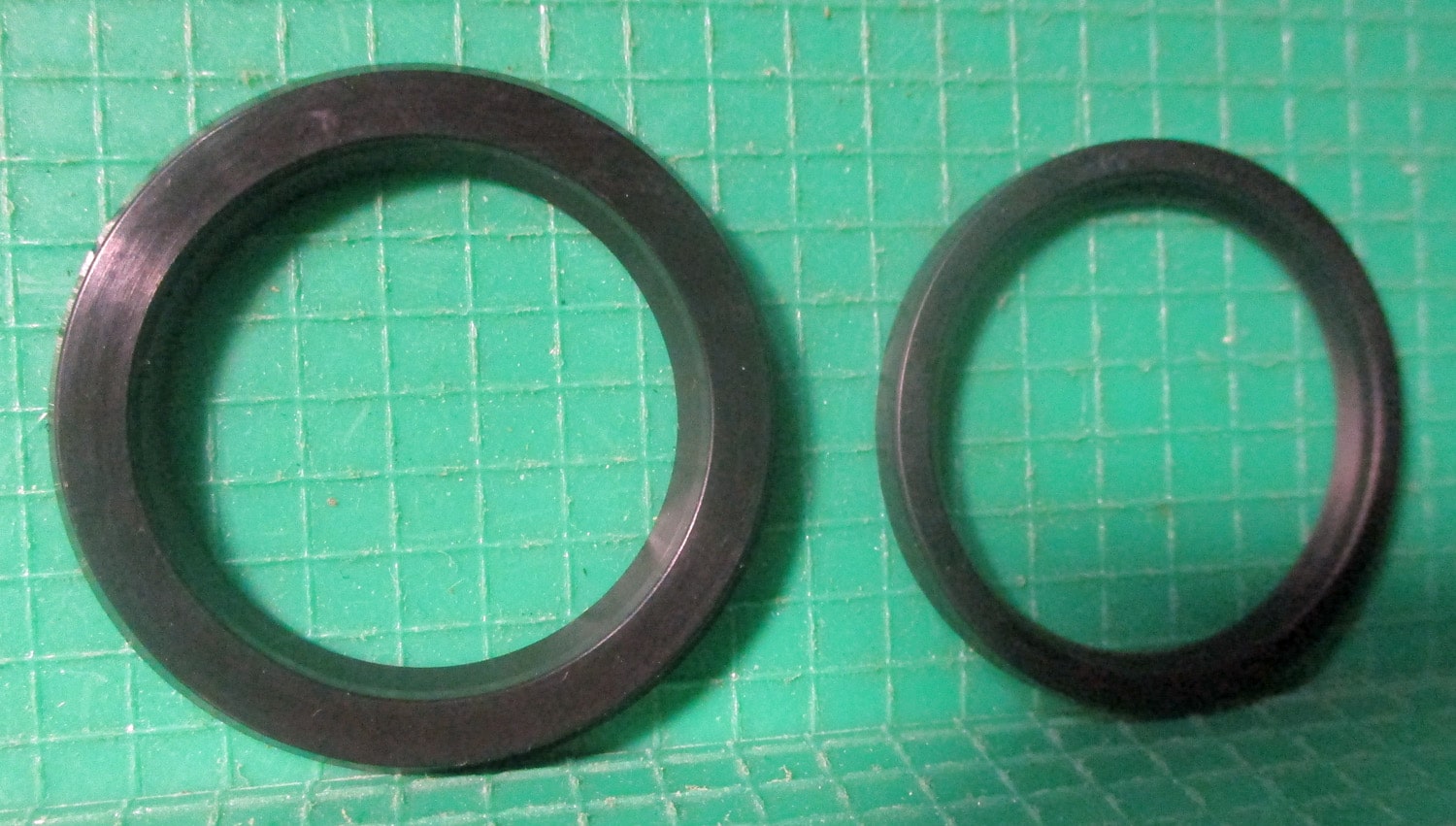

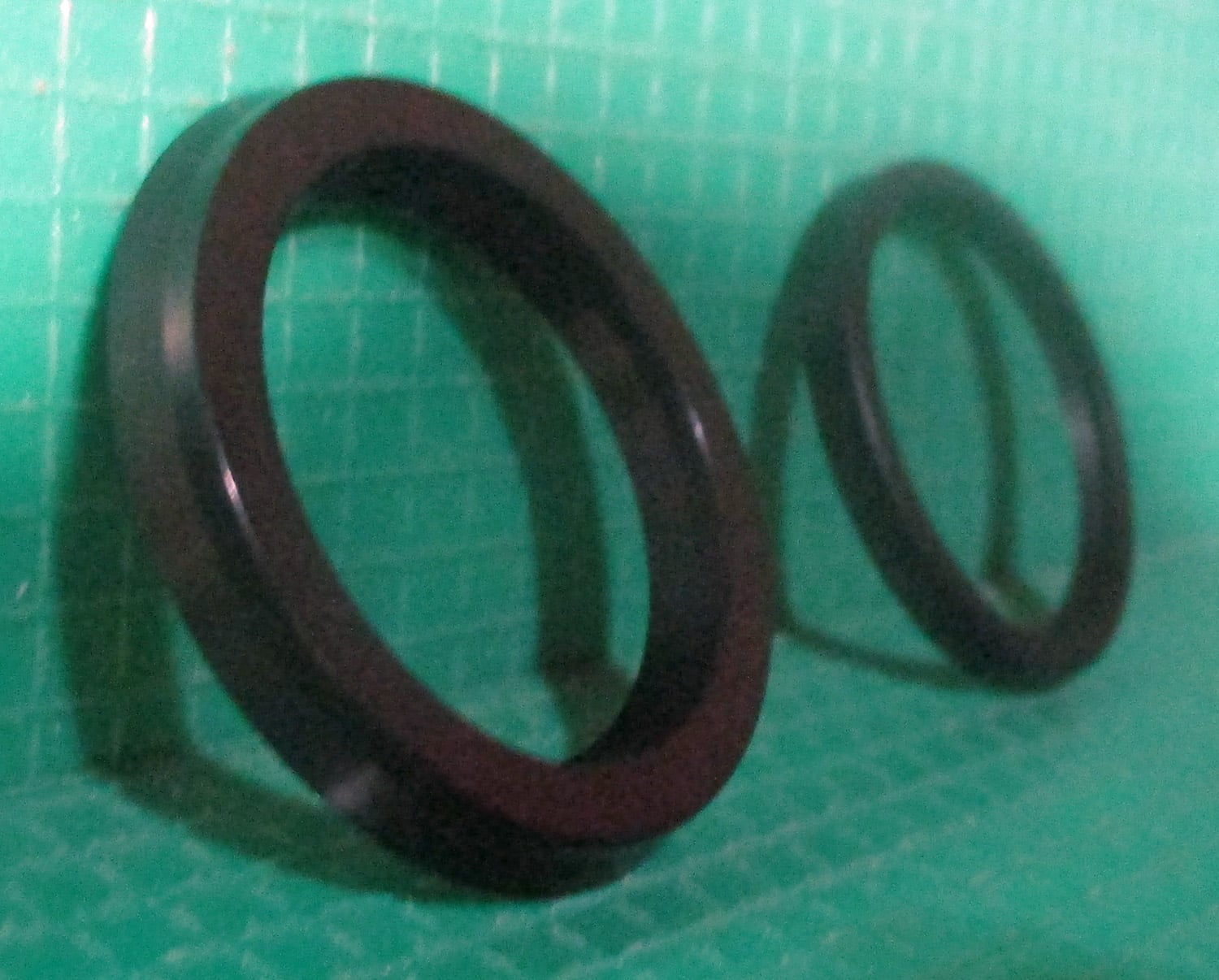

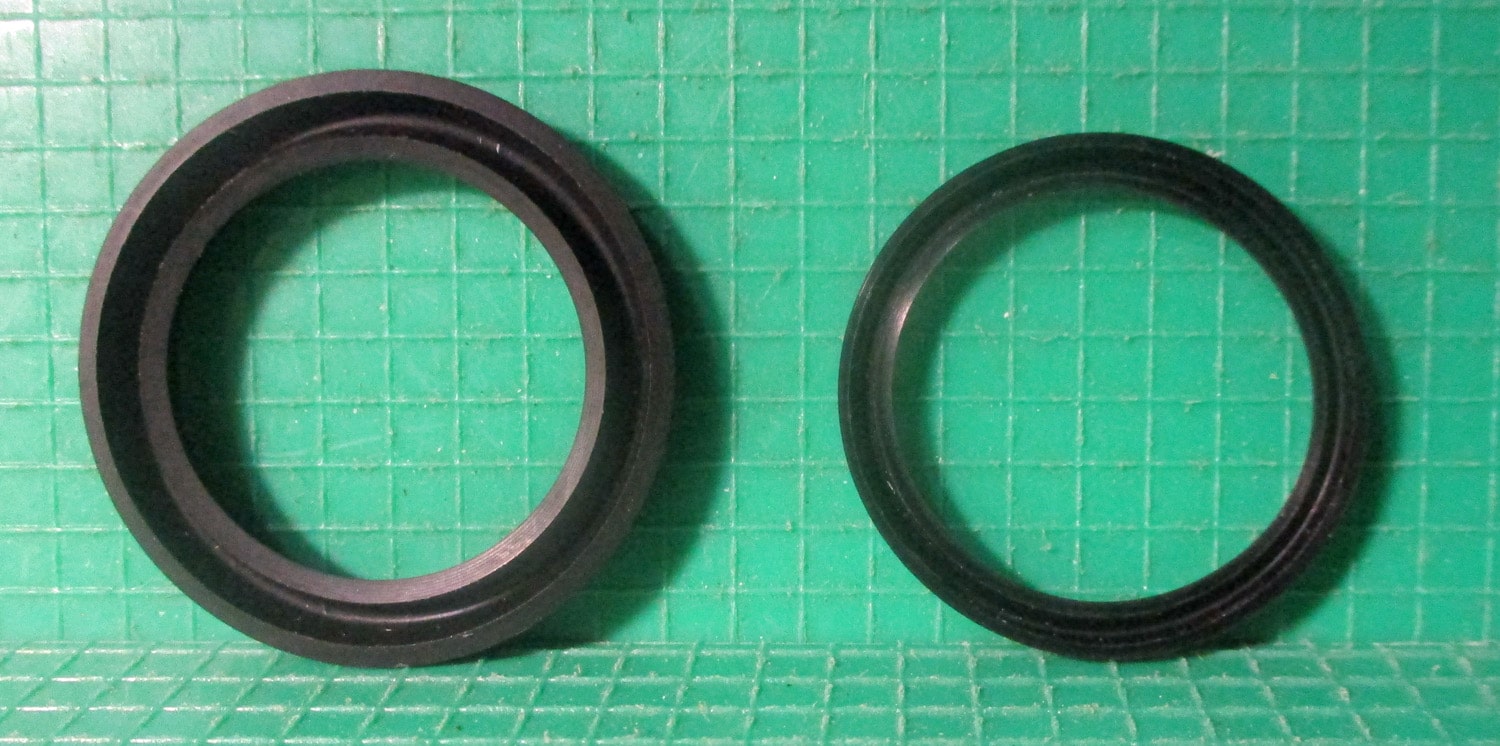

The two medium size gaskets have an outer diameter of 1 5/16″, an inner diameter of 1″, and are 3/16″ high. The groove is 3/32″ wide by 3/32″ deep.
The two smallest gaskets have an outer diameter of 1 3/16″, an inner diameter of 1 1/32″, and are 1/8″ high. The groove is 1/16″ wide by 1/16″ deep.

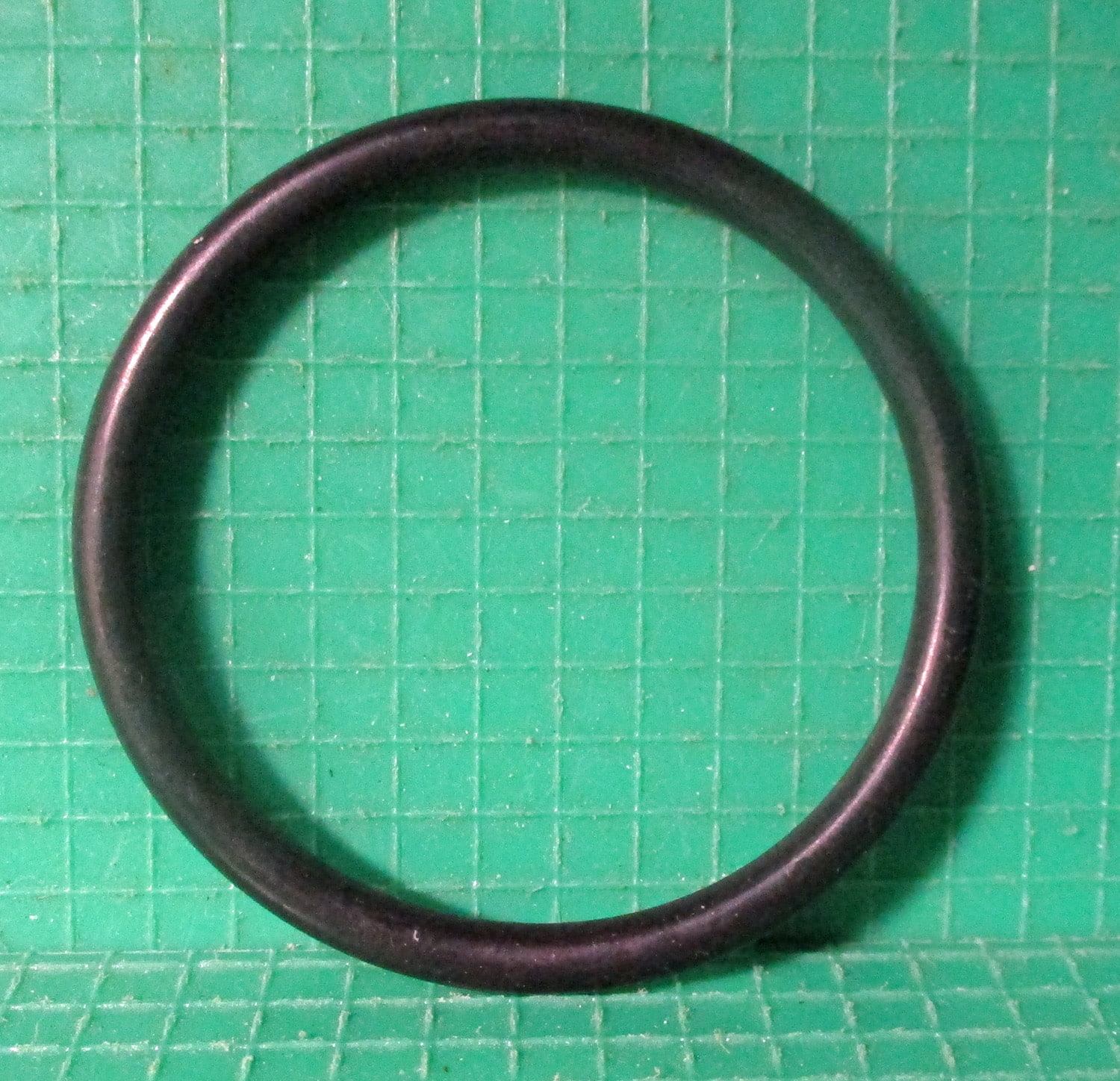

The two O rings have an outer diameter of 1 3/4″, an inner diameter of 1 1/2″, and are 1/8″ thick.

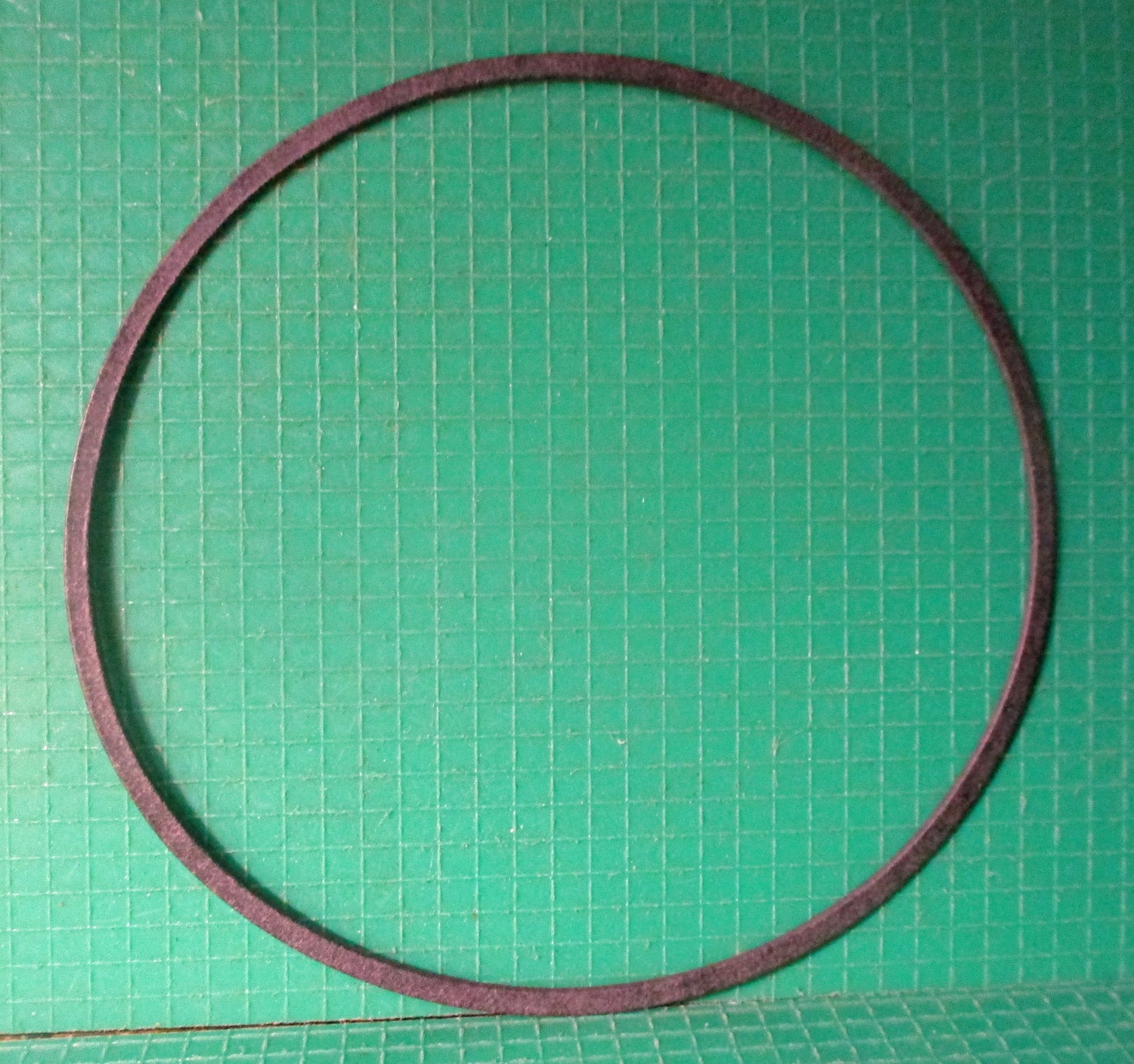

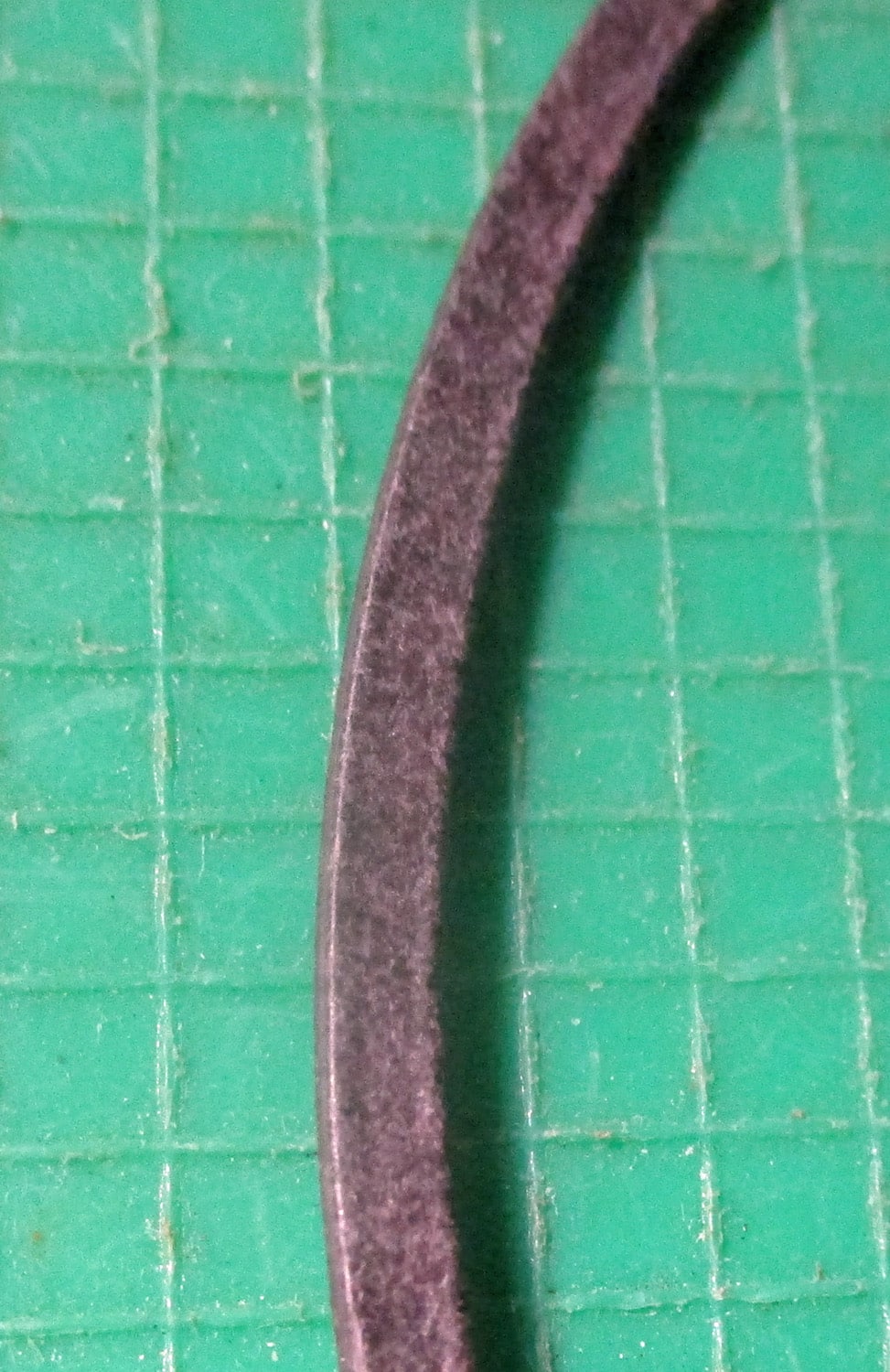

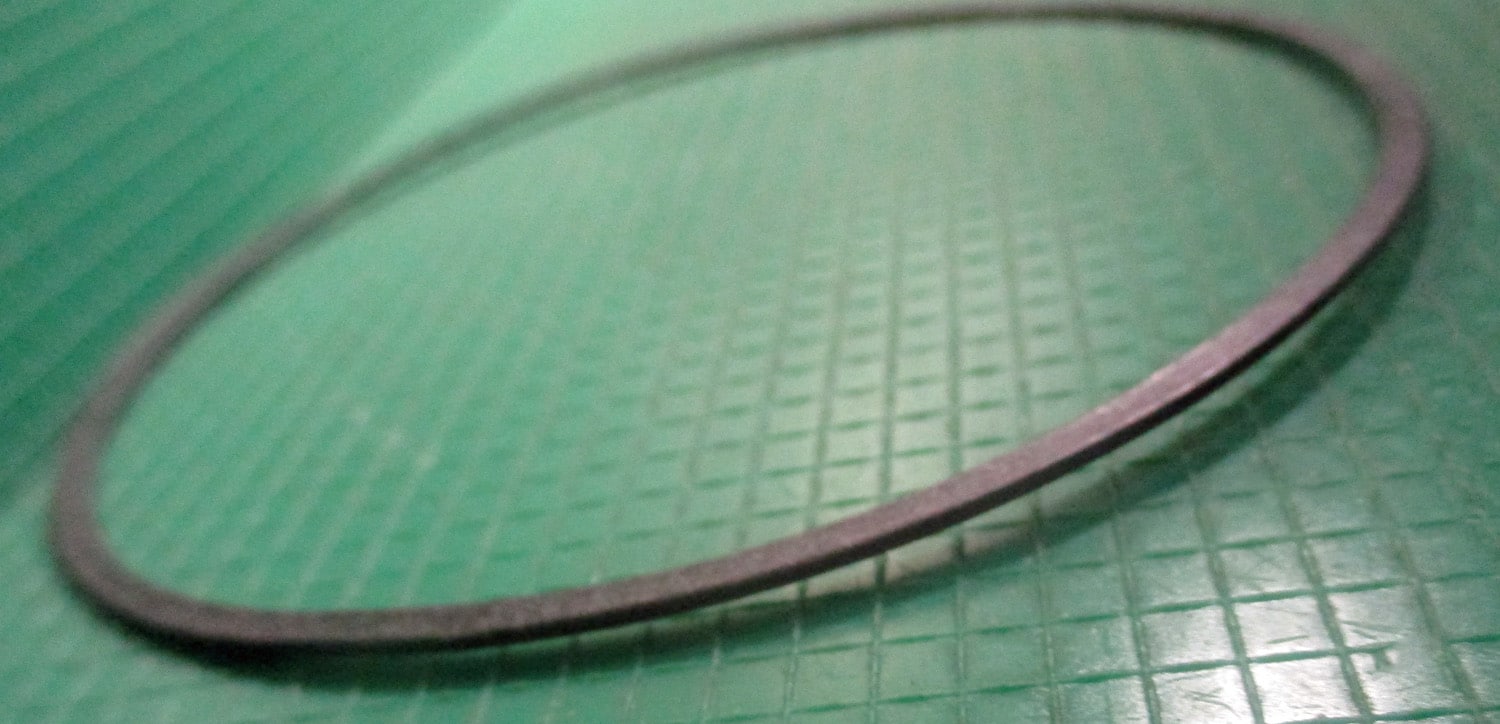

The four shims have an outer diameter of 4 5/16″, an inner diameter of 4 1/8″, are 3/32″ wide, and 1/64″ thick.

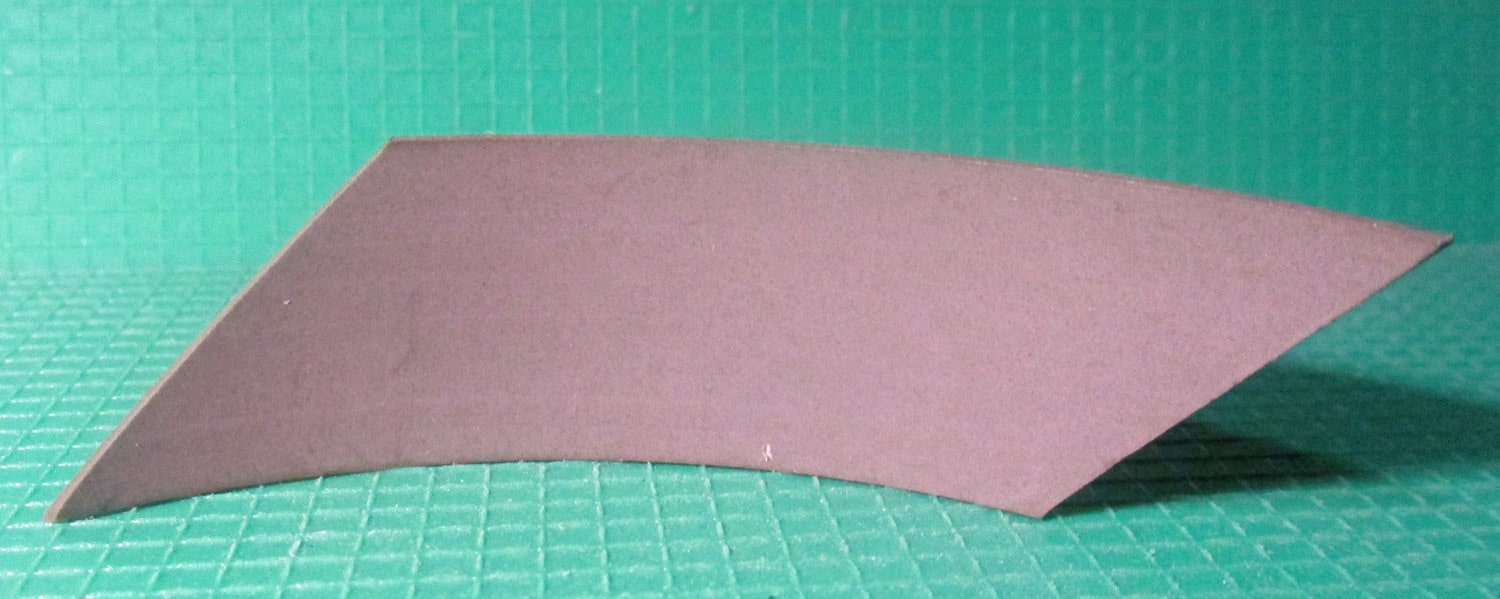

The two shorter plastic strips are 4″ long by 1″ wide by 1/16″ thick.

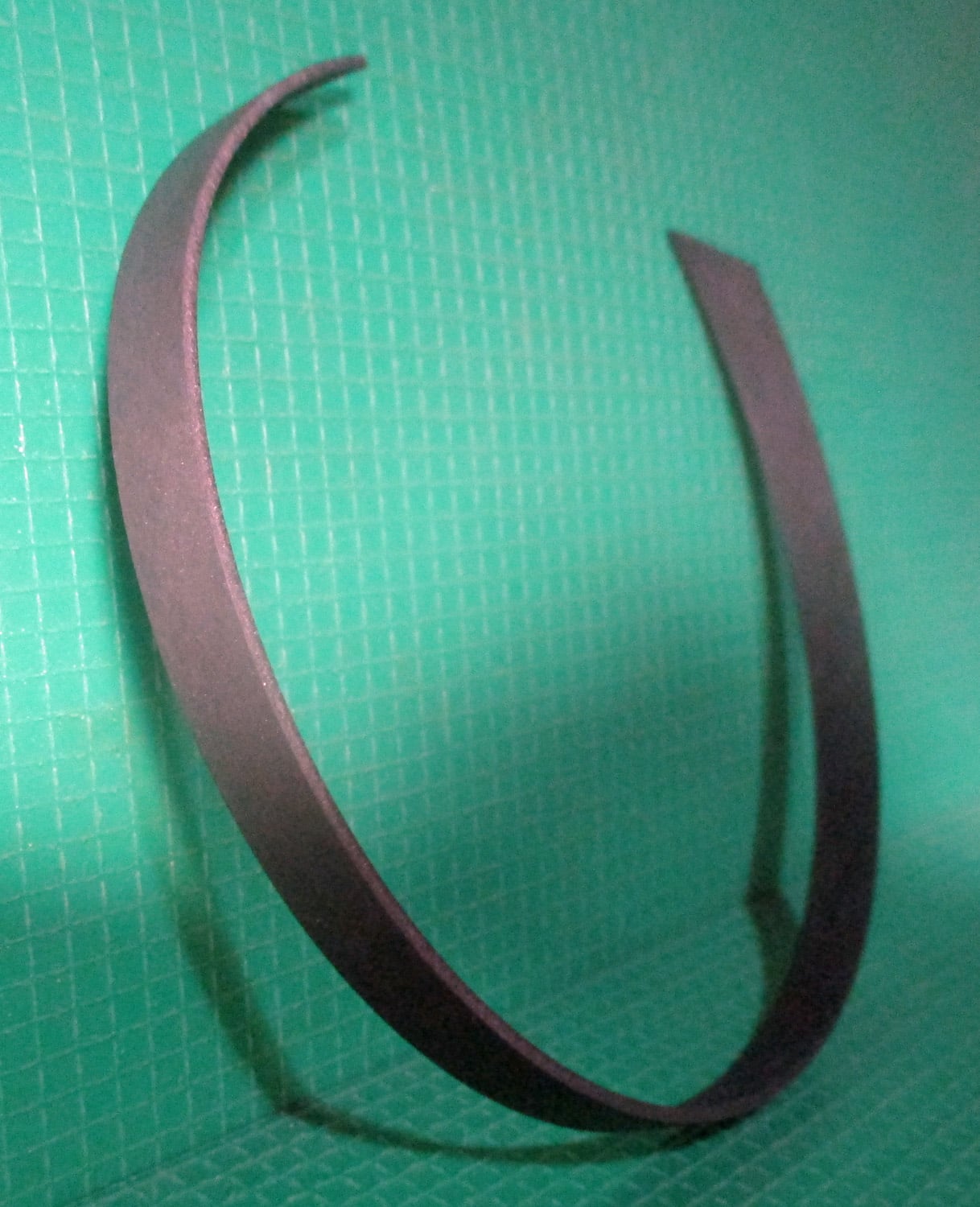

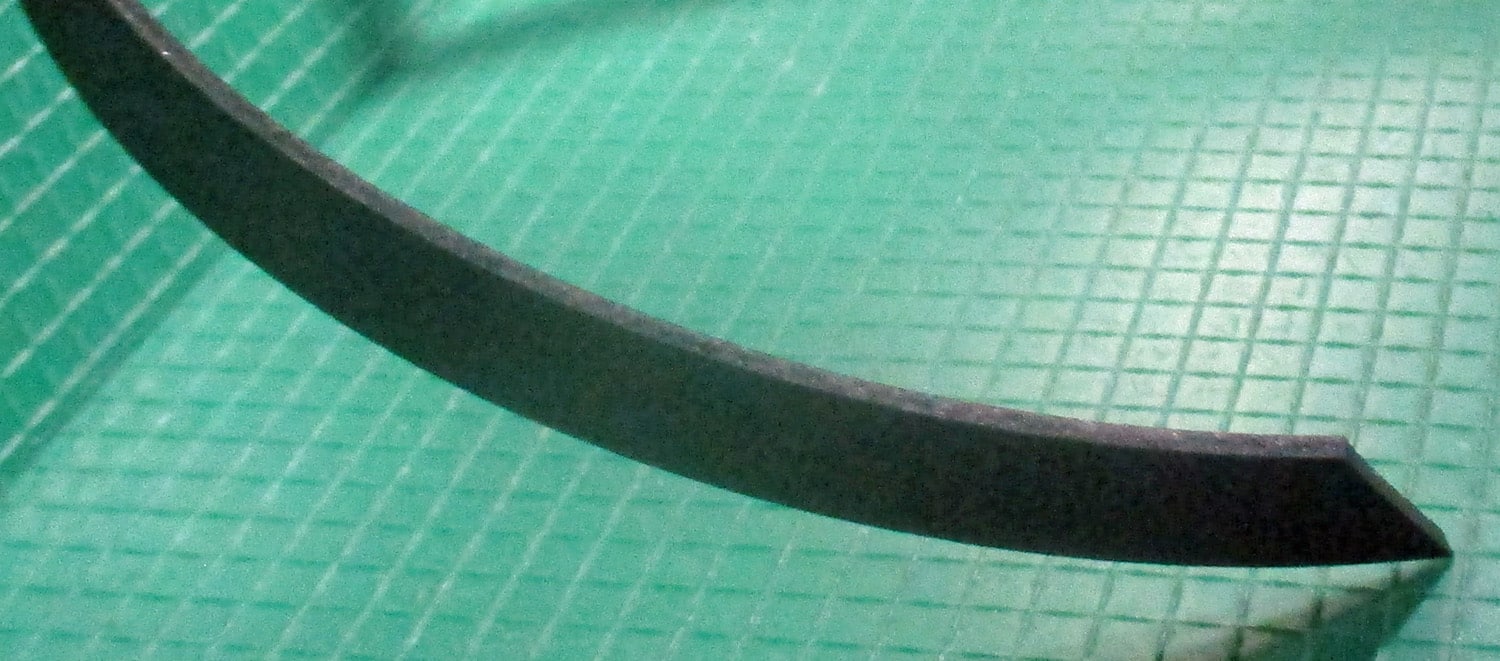

The two longer plastic strips are 12 7/16″ long by 11/32″ wide by 1/16″ thick.
The DeLaval part number is 831132378.
Additional information
| Weight | .40 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
| Brand |
