Description
NEW This is an agitator kit made of plastic, metal, and stainless steel. It measures:
The larger connector is 2 13/16″ long by 1 3/16″ long at it’s the widest point. The threaded end of the connector has an outer diameter of 5/8″ with an inner diameter of 9/16″. The other end of the connector has an outer diameter of 1/2″ with an inner diameter of 7/16″.
The smaller connector is 1 1/2″ tall by 1 3/16″ long at it’s the widest point. The threaded end of the connector has an outer diameter 11/16″ with an inner diameter of 9/16″. The other end of the connector has an outer diameter of 1/2″ with an inner diameter of 7/16″.

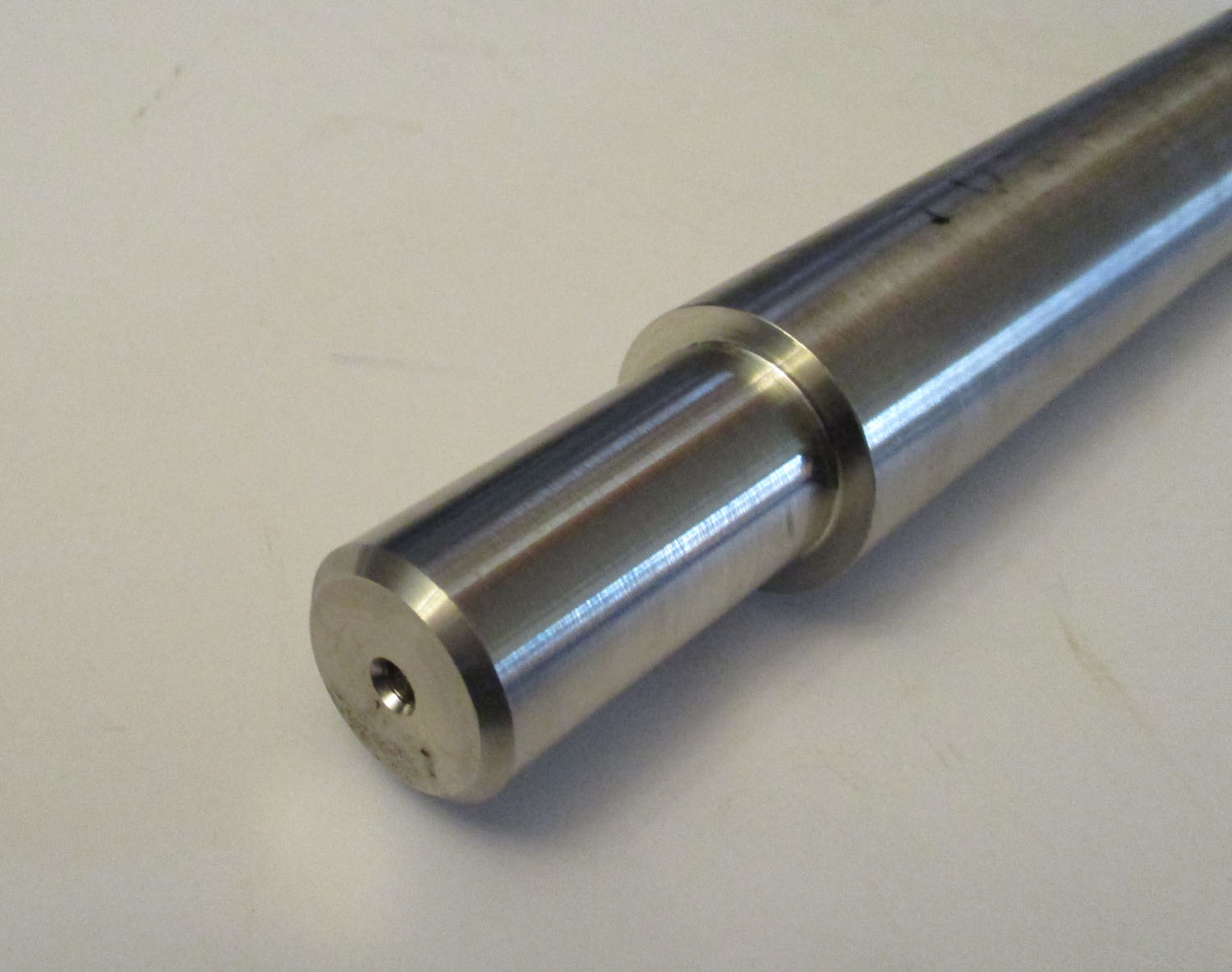

The shaft adaptor is 8 1/8″ long. The larger end of the shaft adaptor has an outer diameter of 7/8″. The smaller end of the shaft adaptor has an outer diameter of 5/8″ with an inner diameter of 1/8″. The two holes on the shaft adaptor have an inner diameter of 3/16″.
The roll pins are two different sizes. The single roll pin with the slit is 1 1/2″ long, with an outer diameter of 1/4″. The two other roll pins are 1 1/2″ long with an outer diameter of 3/16″. The butt connectors that come with the roll pins are size 16-14.
The 1/2″ conduit measures 30″ long.

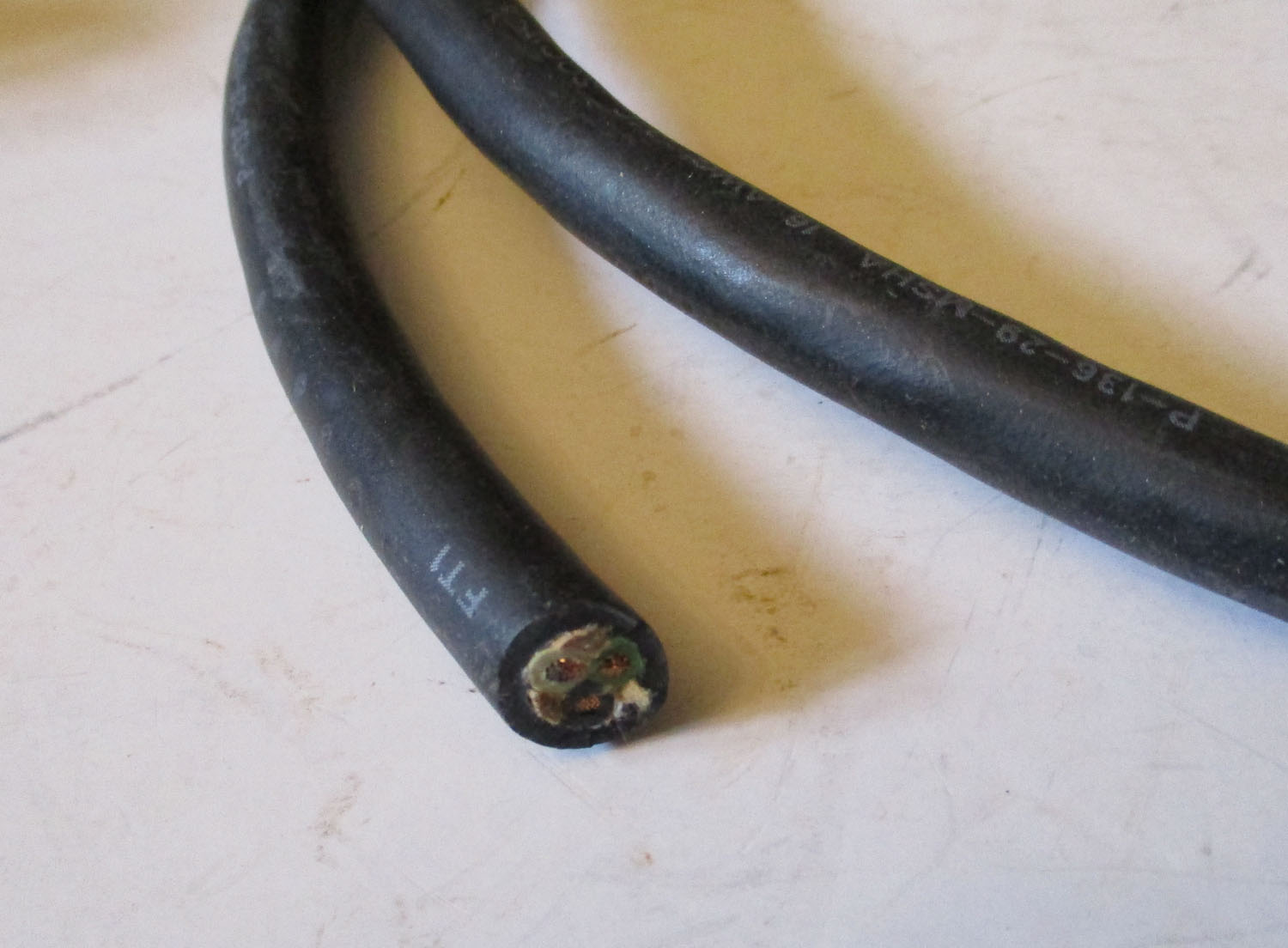

The wire measures 37 1/2″ long.

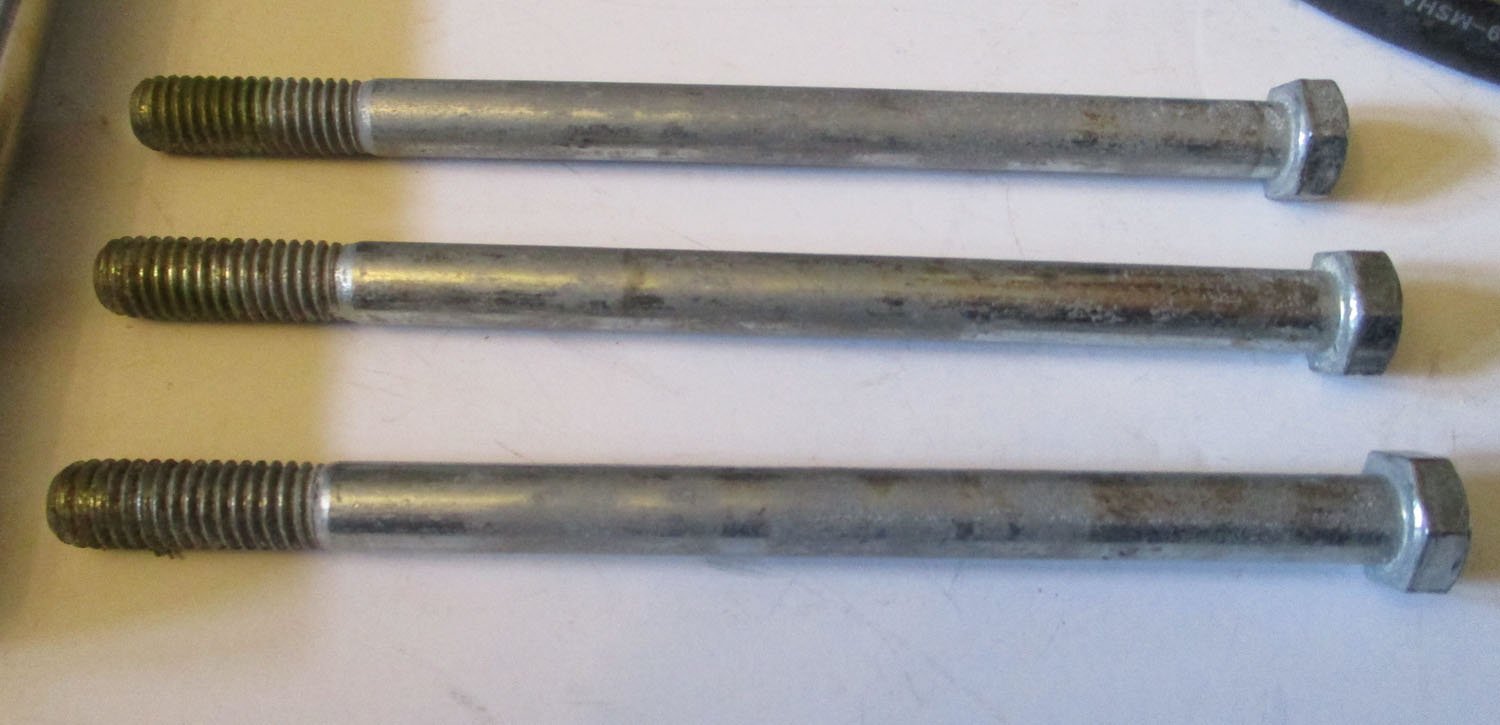

The three bolts measure 5 3/4″ long. They have a thread size of 3/8-16, with the thread itself measuring 15/16″ long. The hexagonal head of the bolts is 7/16″ wide.
The Mueller part number is 8800911.
Additional information
| Weight | 3.00 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| Brand |
