Air Shift Valve w/Air Connectors Main photo

Shift Valve, MAC 45A-AA1-DDAA-1BA w/Air Connectors

Name: Shift Valve, MAC 45A-AA1-DDAA-1BA w/Air Connectors
SKU: DQA-000-003R 27NS03
Price: 75 USD
Availability: InStock

$75.00

USED Shift Valve, MAC 45A-AA1-DDAA-1BA w/Air Connectors

1 in stock

SKU: DQA-000-003R 27NS03Categories: Detachers, Reversing and Shift Valves

Description

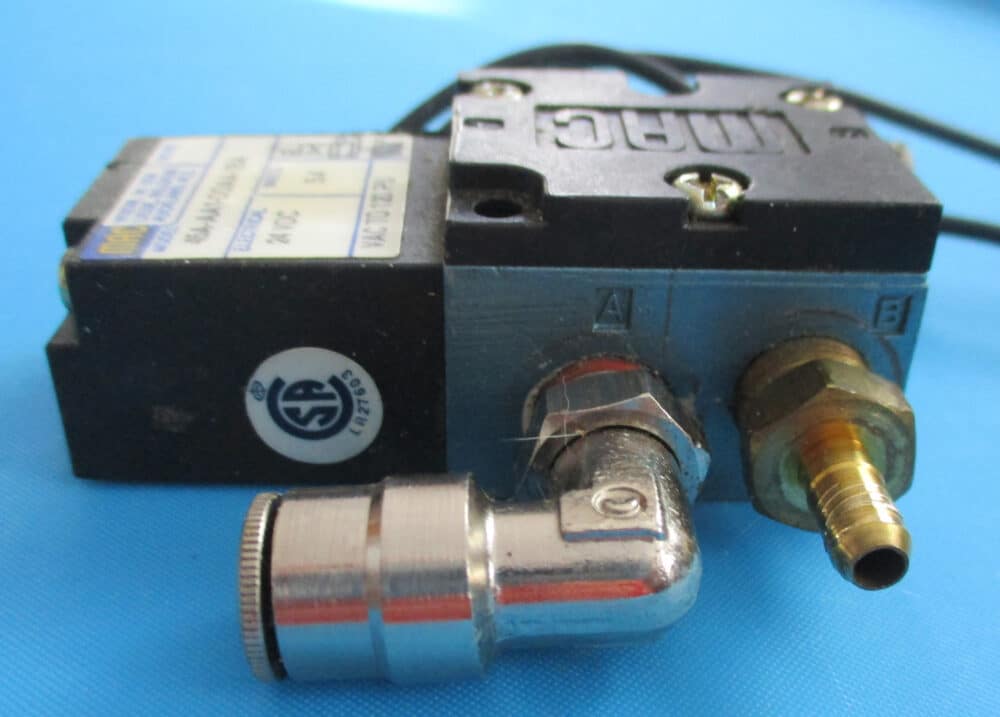

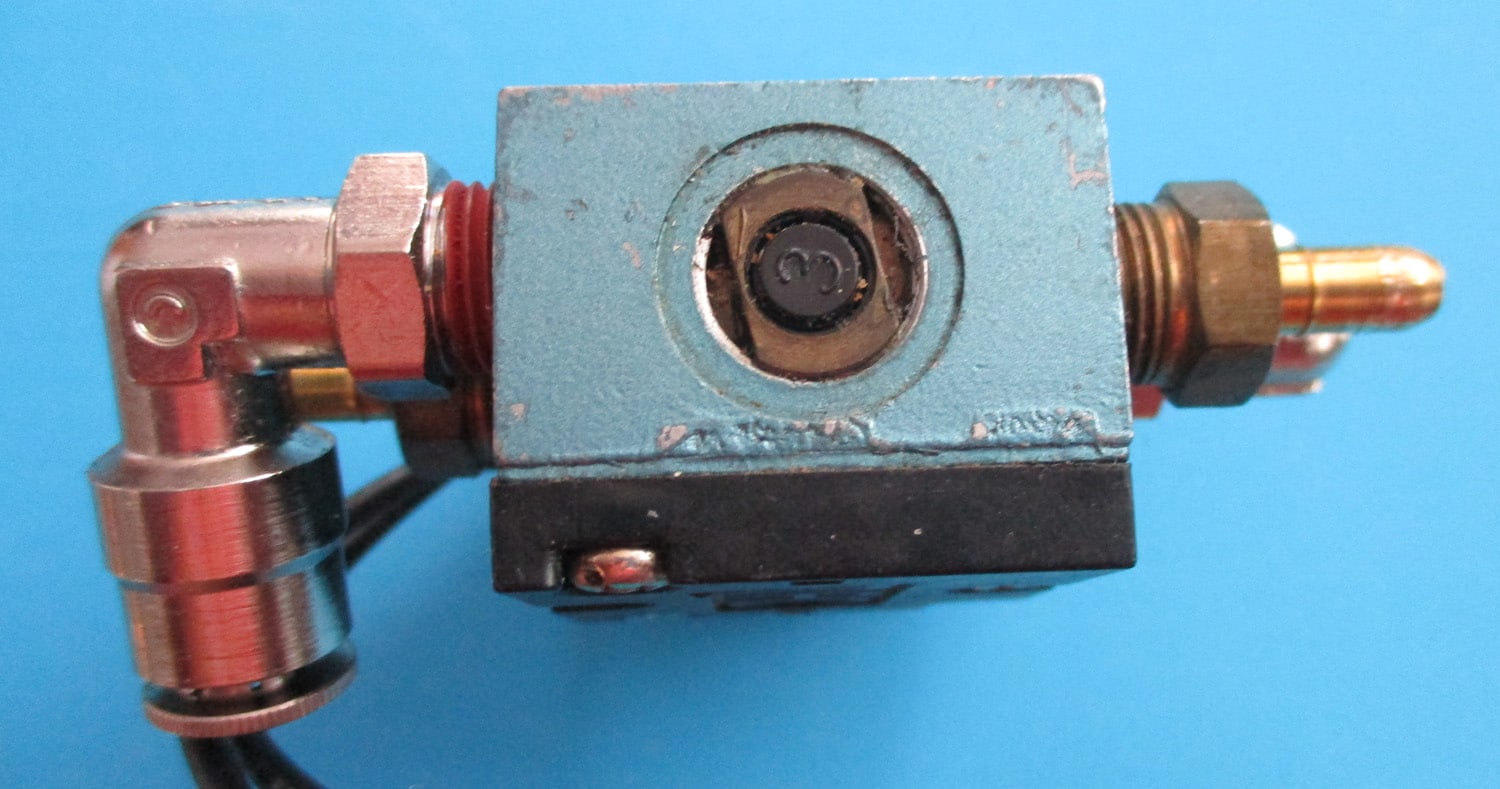

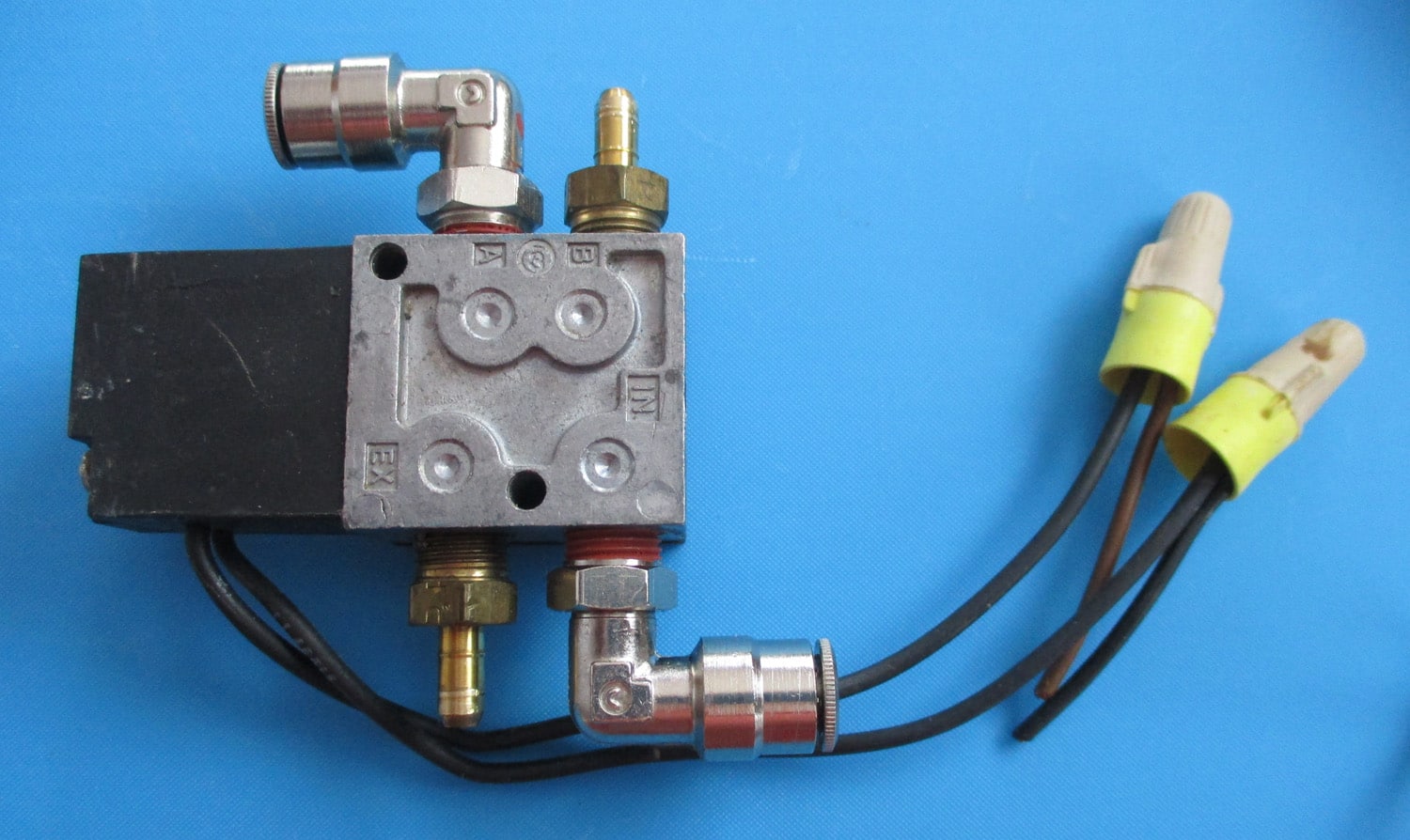

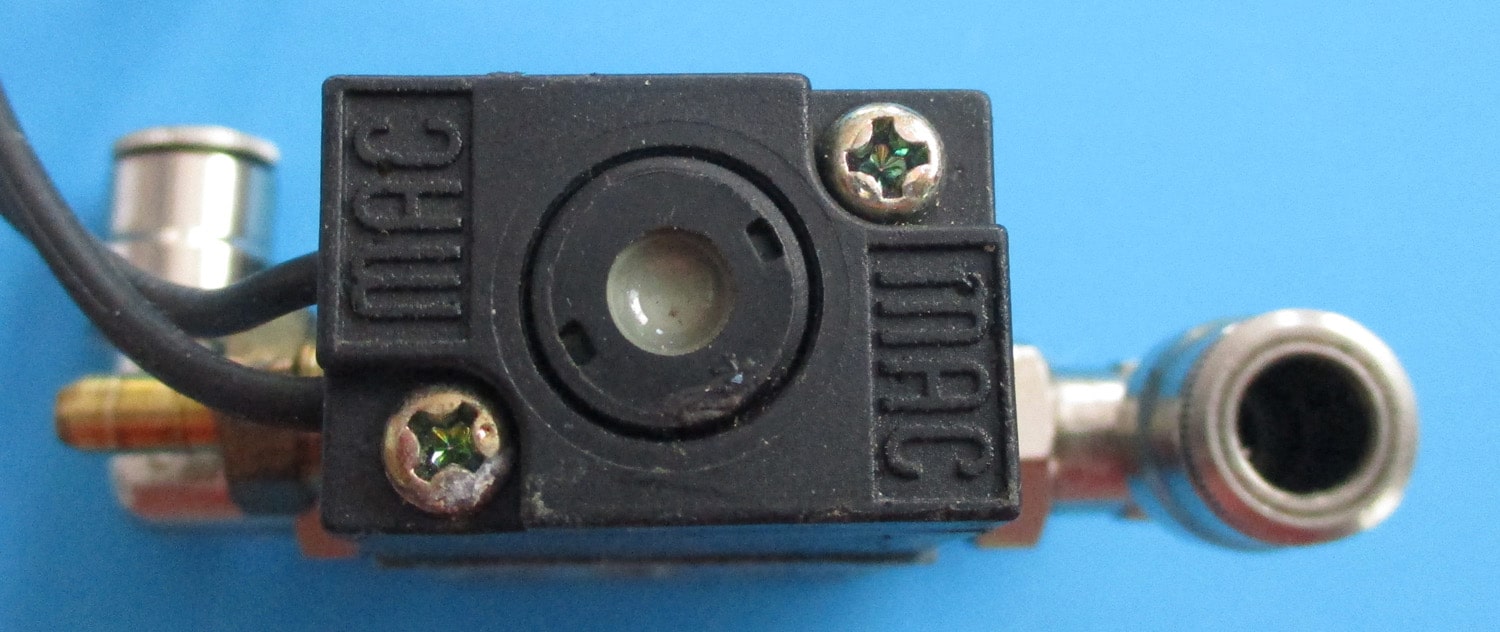

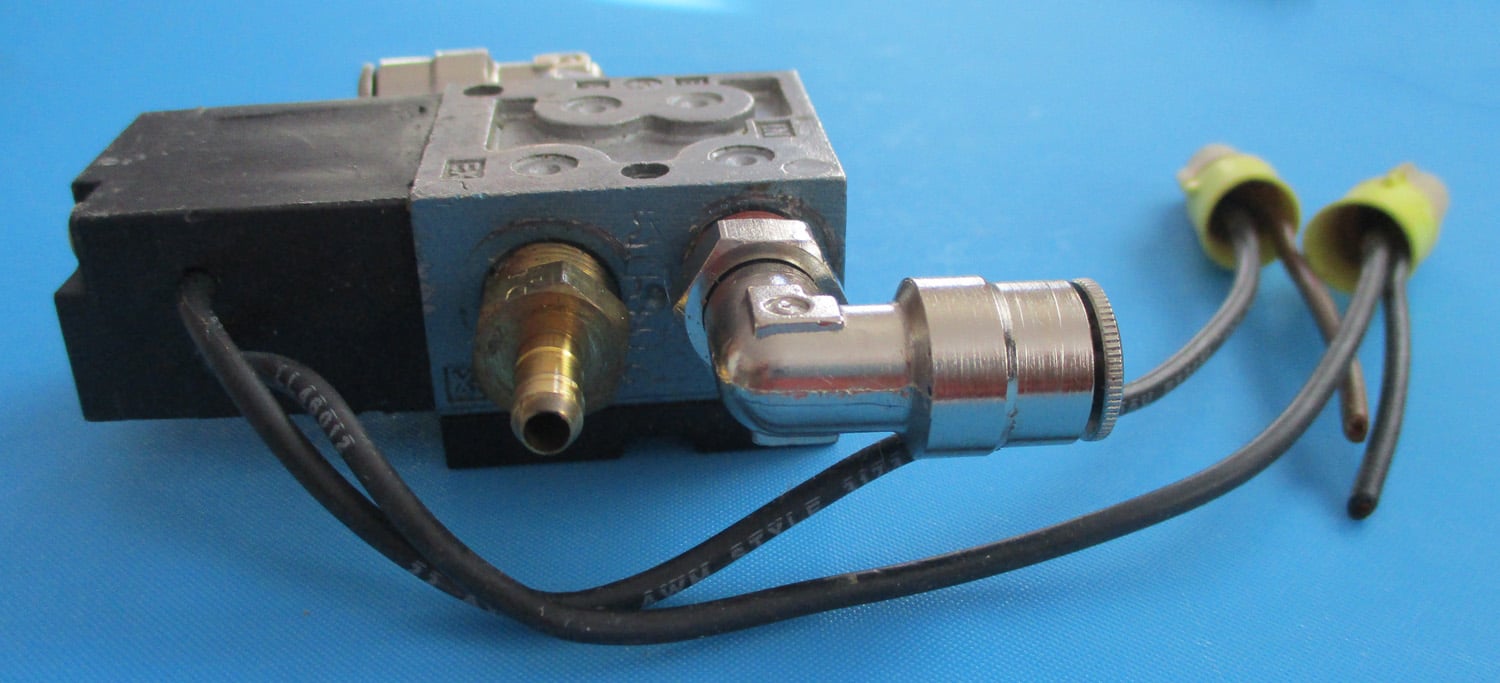

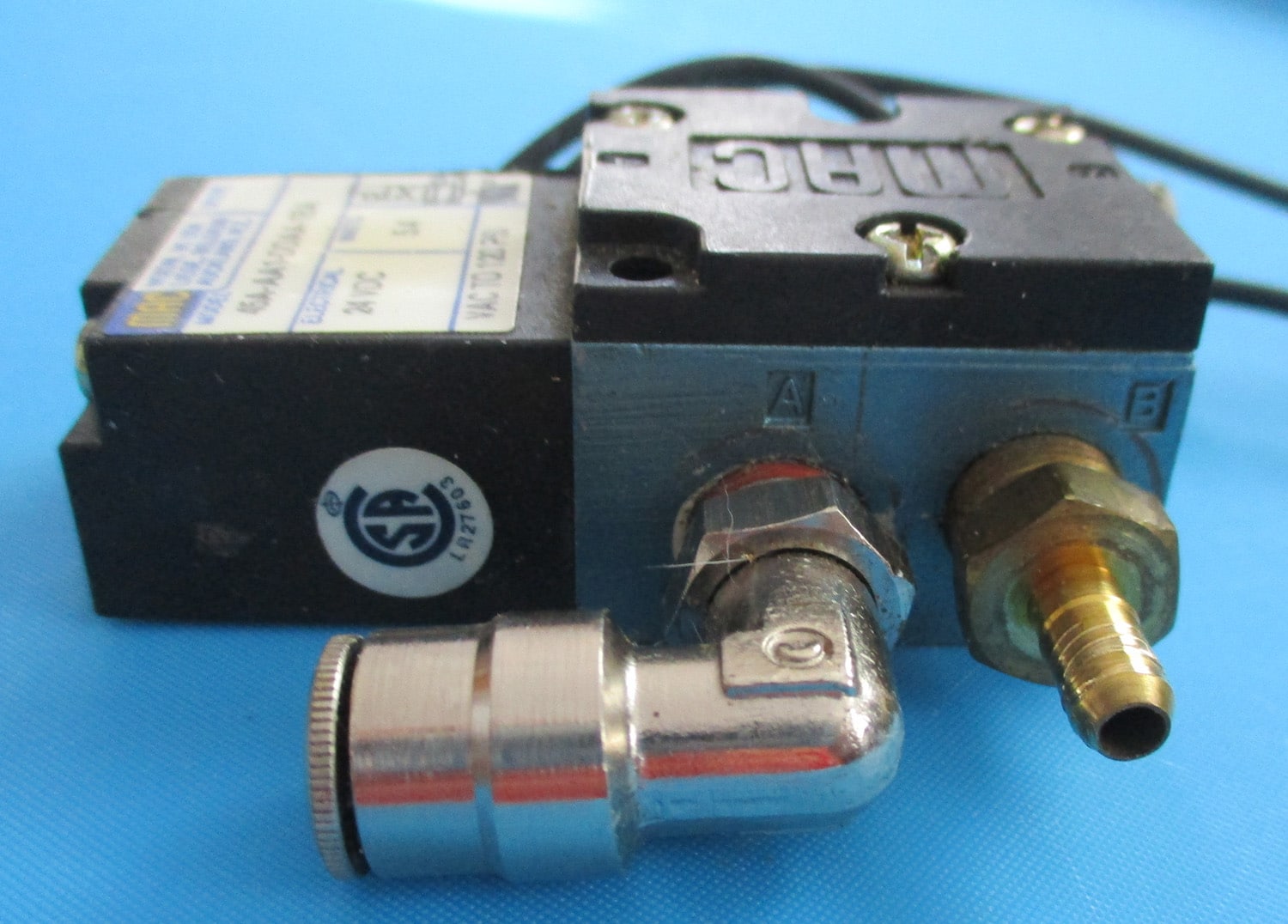

USED This plastic and metal MAC air shift valve is 2 7/16″ long and 15/16″ high. The plastic body is 1-3/16″ wide and the total width, including the air connectors, is 3″. The brass connectors are 13/16″ long, including the slip-fit barbed nipples. The nipples are 3/8″ long with a 3/16″ outside diameter and a 1/8″ inside diameter. The air connectors are 15/16″ high and 1-1/16″ long with a 1/2″ outside diameter and a 1/4″ inside diameter. The plastic-covered wires are 6″ long.

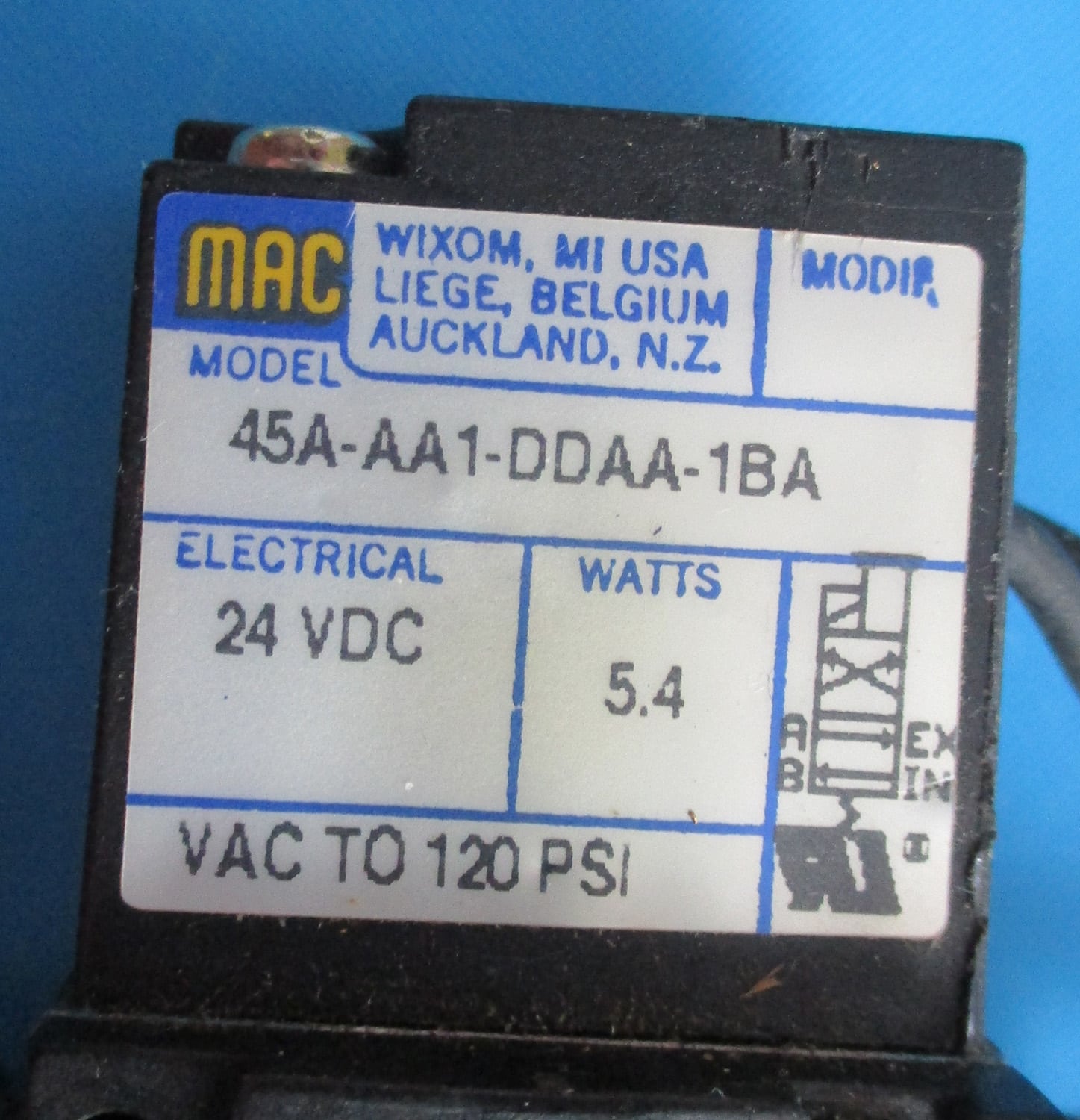

The specifications are:

24 volts DC

5.4 Watts

VAC to 120 pounds per square inch.

The MAC part number is 45A-AA1-DDAA-1BA.

Additional information

Weight	.38 lbs
Dimensions	3 × 4 × 2 in
MAC	MAC
