Block Manifold 1/2-20 THD SZ #6-32 THD SZ

Block, Manifold, 1/2-20 THD SZ

Name: Block, Manifold, 1/2-20 THD SZ - Dairy Equipment Parts
SKU: AHY-000-005N 93SSW
Price: 50.00 USD
Availability: InStock

$50.00

NEW Block, Manifold, 1/2-20 THD SZ

1 in stock

SKU: AHY-000-005N 93SSWCategories: Pneumatic

Description

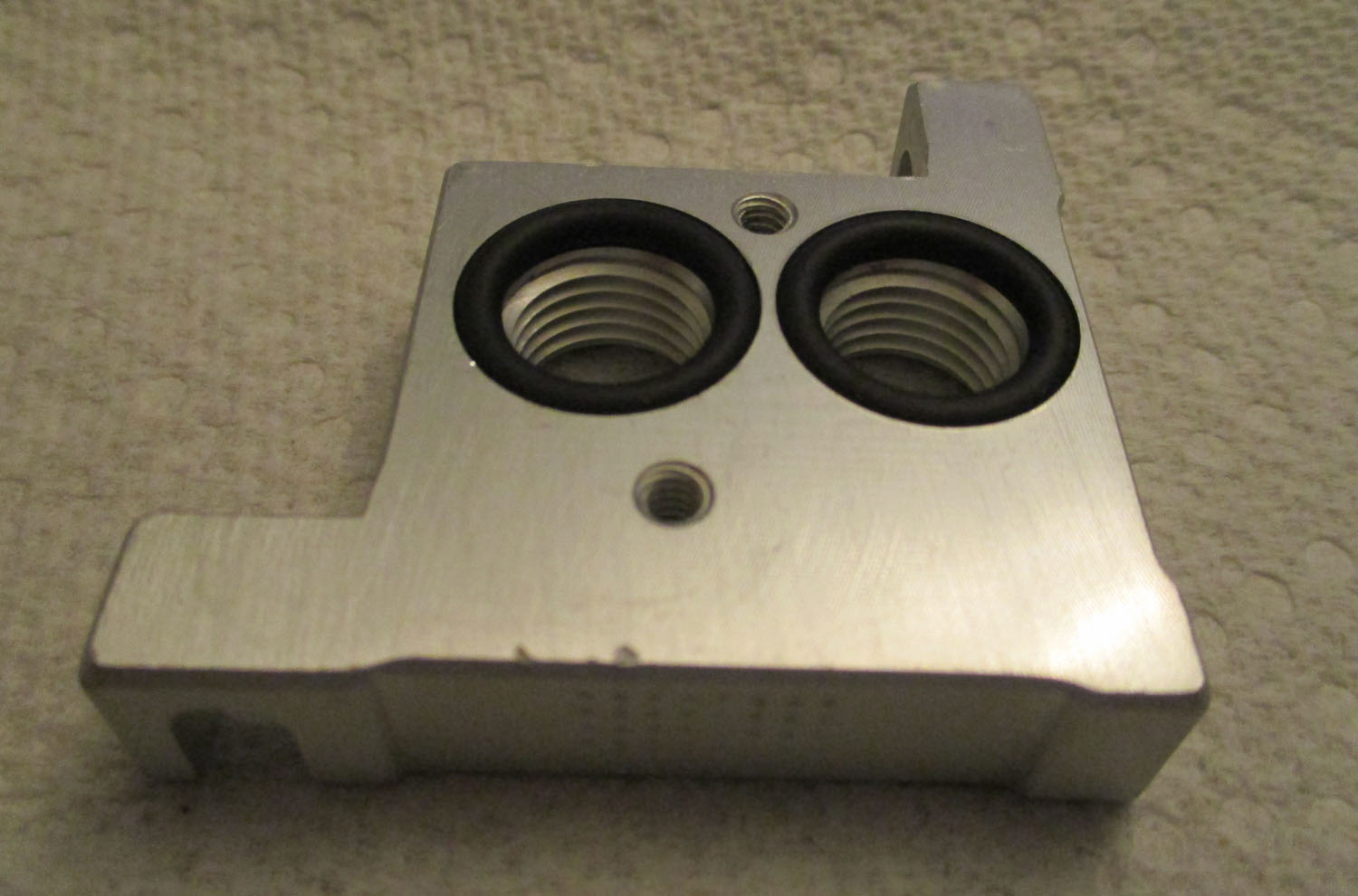

NEW This metal, rubber, and aluminum manifold block measures:

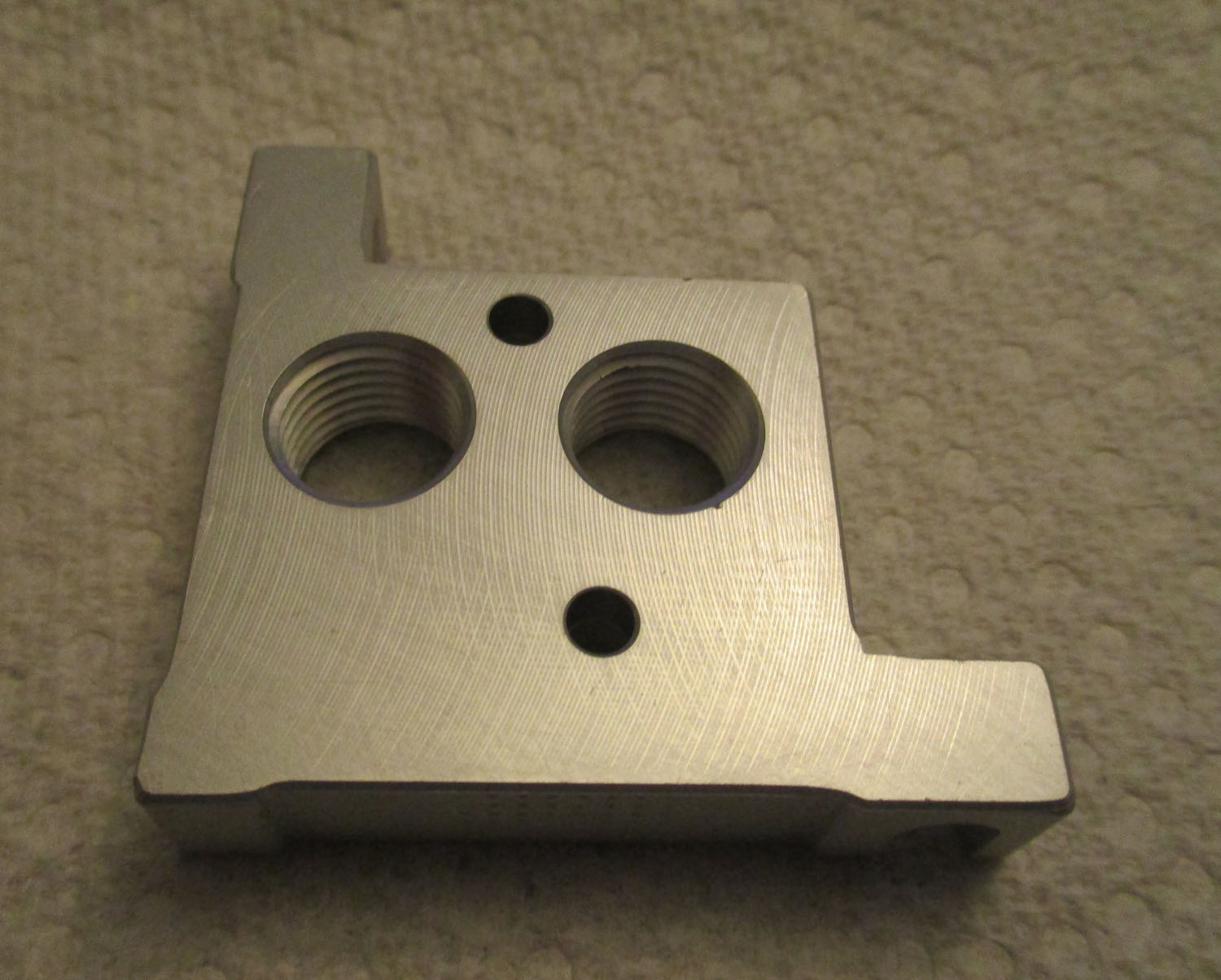

The two pieces of the block are both 2″ long by 1 7/8″ wide by 1/2″ high overall. Without the extensions they are 1 1/2″ long by 1 3/8″ wide.

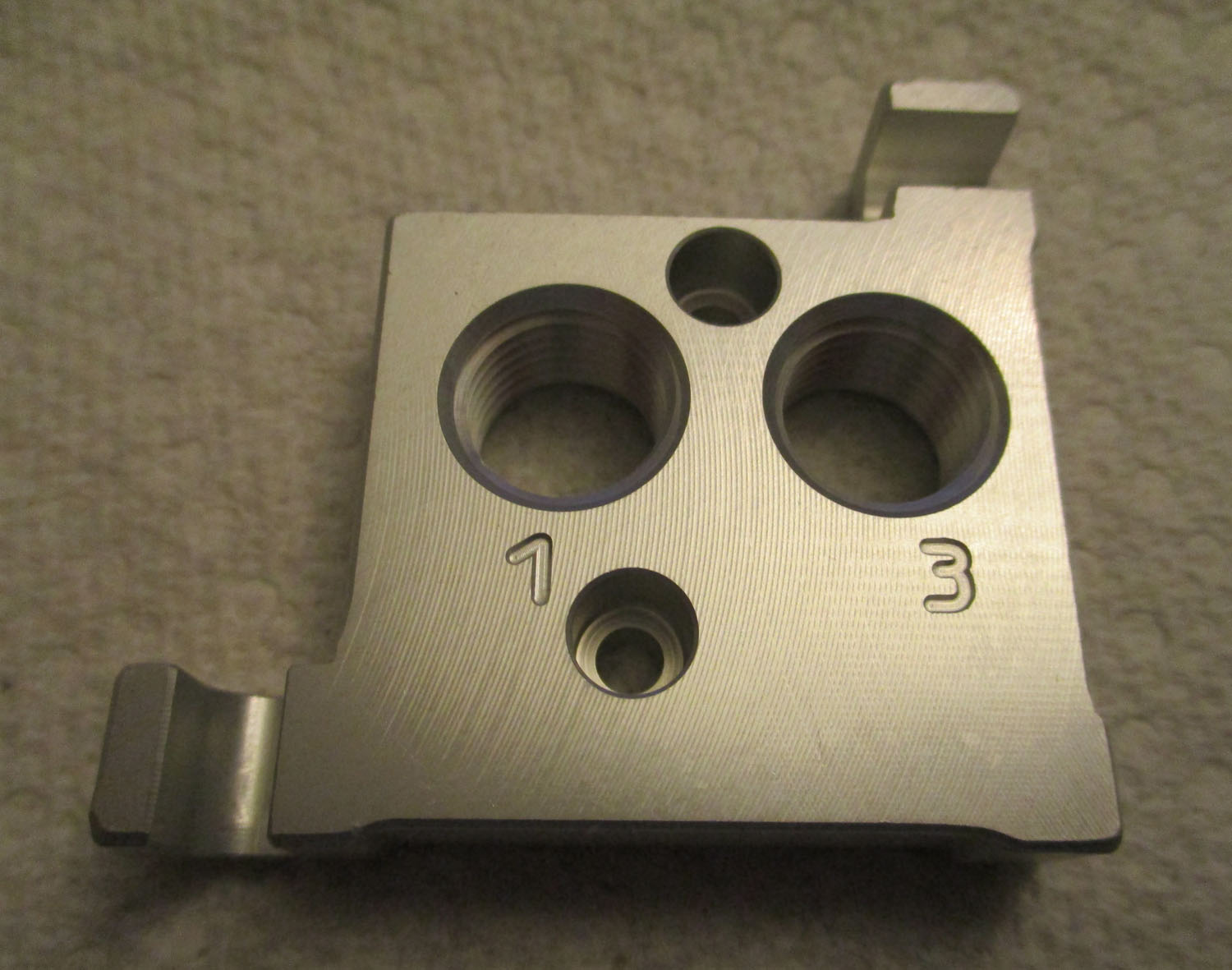

For the piece that has the number one first, reading from the left to right, the two threaded holes have a thread size of 1/2-20. The other two holes have an inner diameter of 3/16″ on one side and an inner diameter of 9/32″ on the other side.

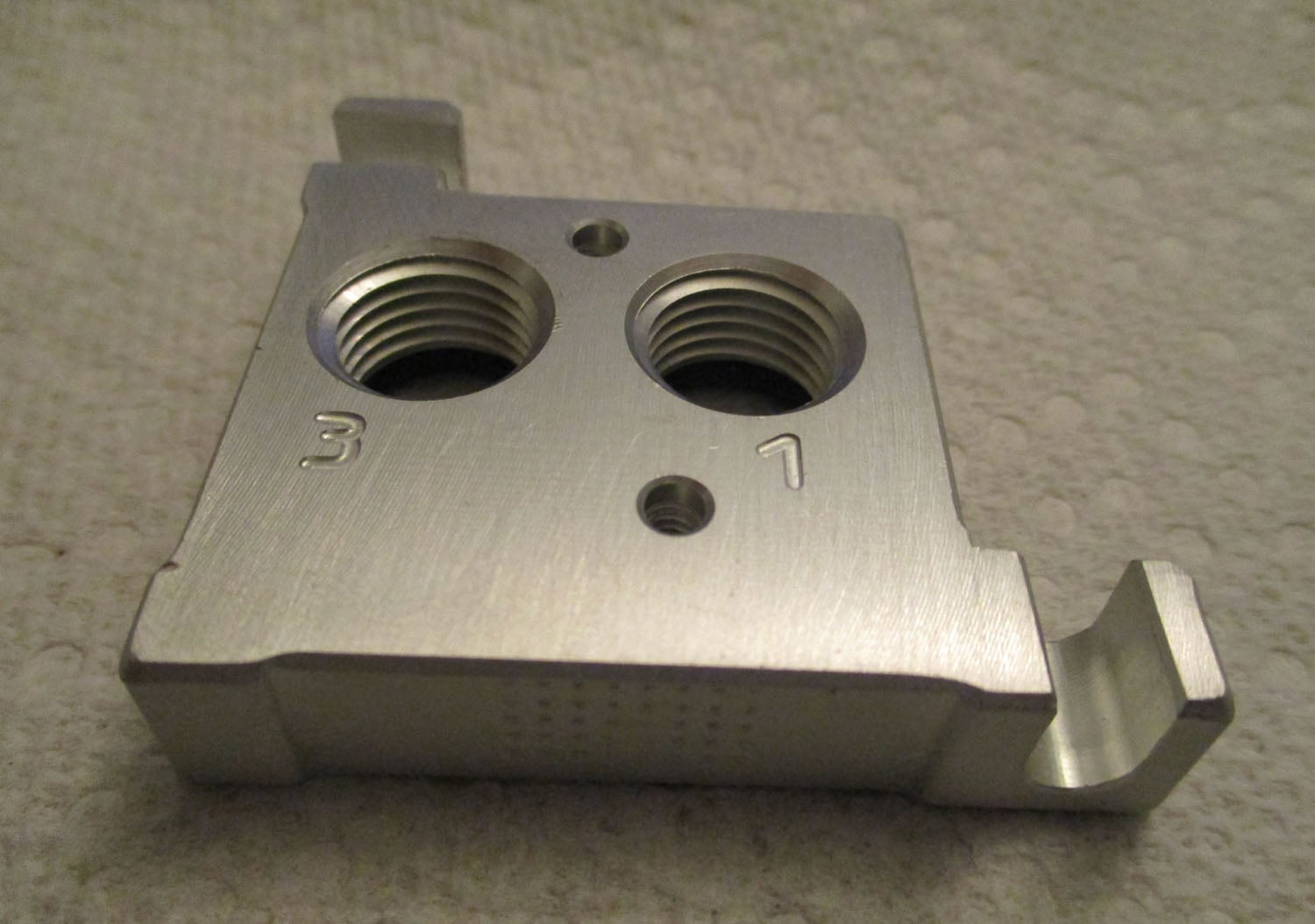

For the piece that has the number three first, reading from the left to right, the two threaded holes have a thread size of 1/2-20. The other two holes have a thread size of #6-32.

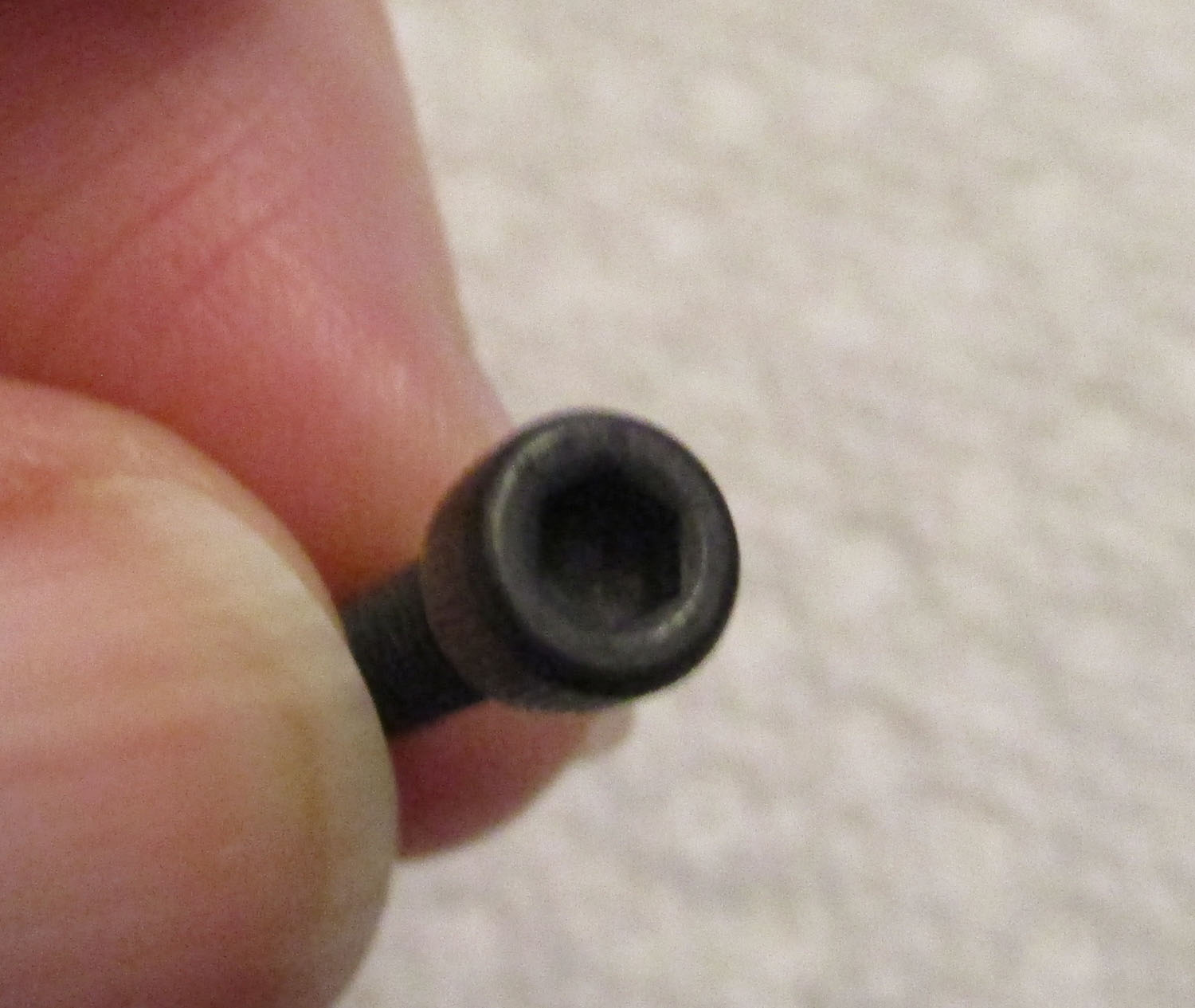

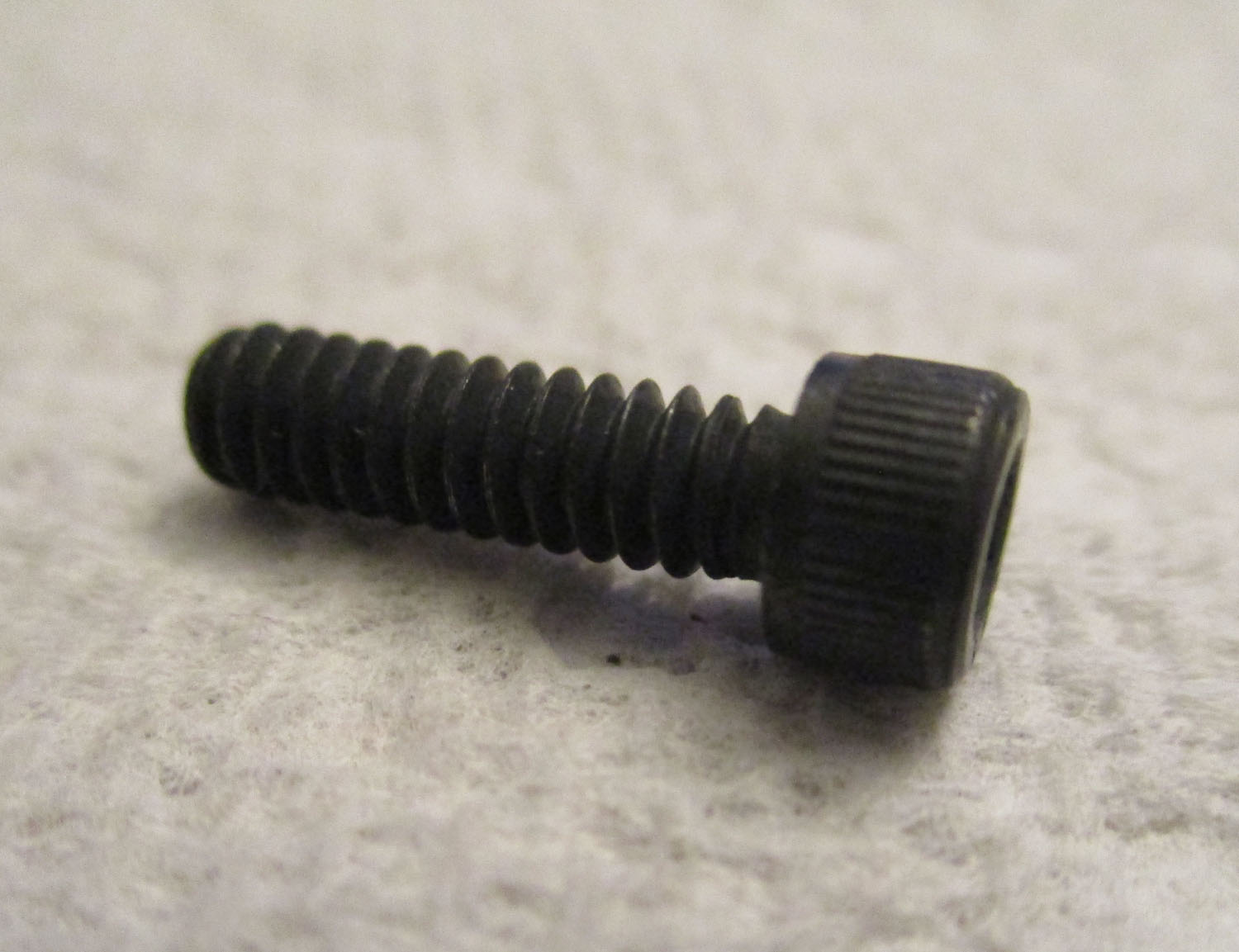

The two-socket screws are 5/8″ long with a thread size of #6-32. The head has an outer diameter of 3/16″ by 1/8″ high.

The Humphrey part number is 7-900A.

Additional information

Weight	0.19 lbs
Dimensions	3 × 3 × 1 in
Brand	Humphrey
