Description
NEW This bushing kit is made of rubber, plastic, and metal. The Surge part number is 7750-0038-529. It measures:

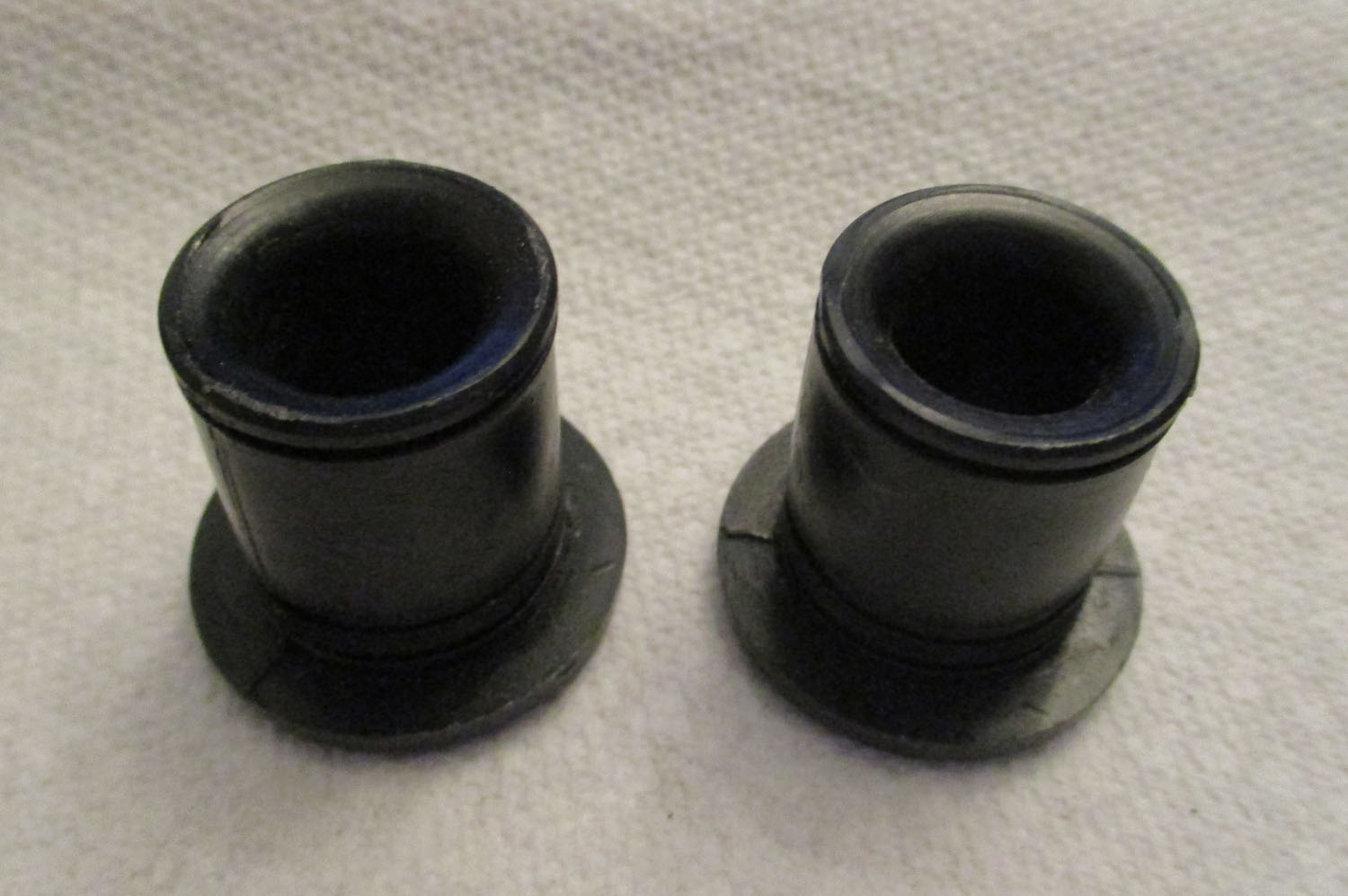

The two hose pieces are 1 13/16″ tall overall. They have an outer diameter of 1 5/16″ with an inner diameter of 7/8″.
The two long-chain bushings are 1 1/4″ tall. The larger end has an outer diameter of 1 1/4″ and the smaller end has an outer diameter of 7/8″, with both ends having an inner diameter of 1/2″.
The short-chain bushing is 9/16″ tall. The larger end has an outer diameter of 1 1/4″ and the smaller end has an outer diameter of 7/8″, with both ends having an inner diameter of 7/16″.

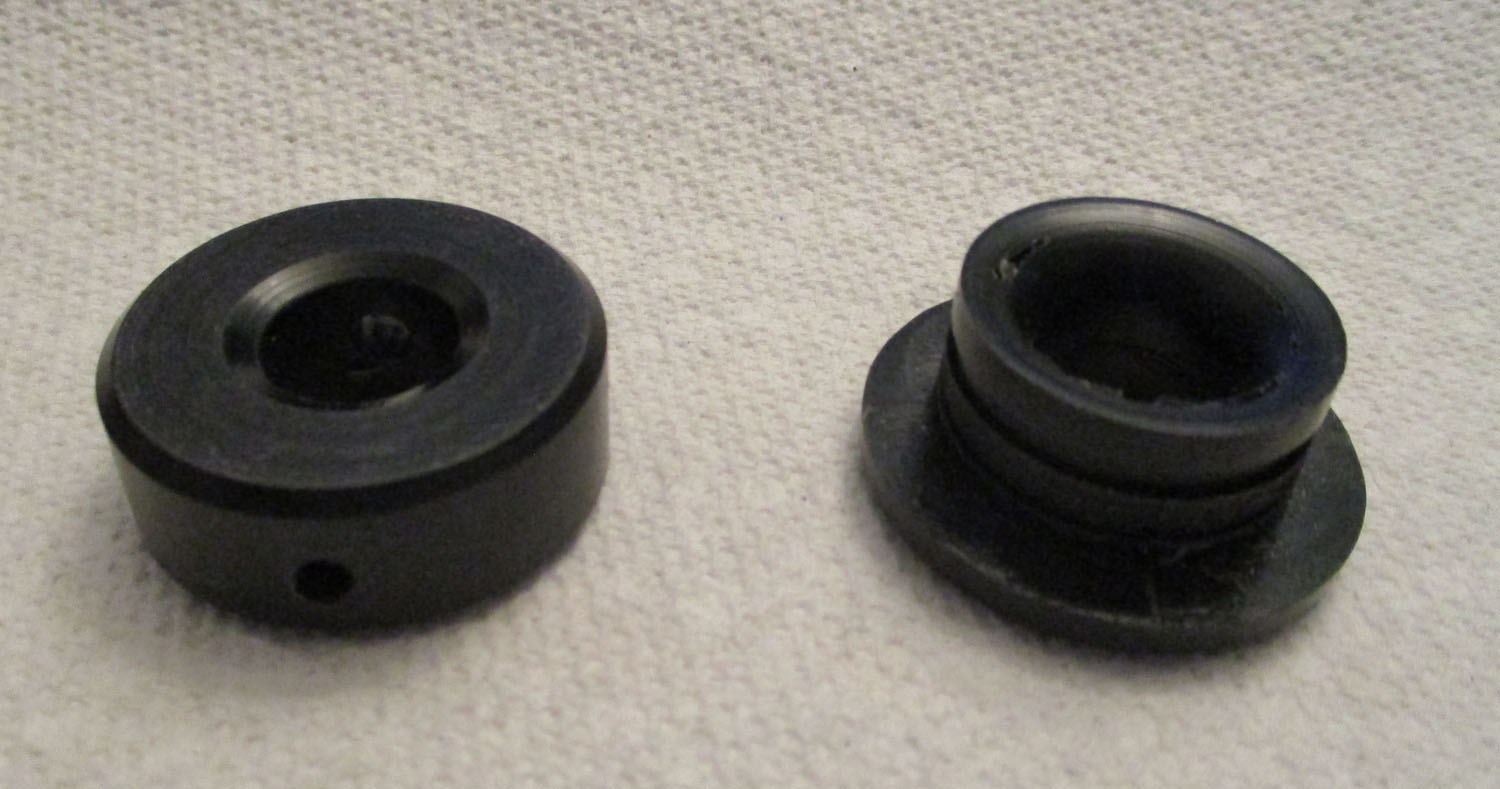

The arm bushing has an outer diameter of 1 3/16″ with an inner diameter of 7/16″, and is 7/16″ thick. The smaller hole on the side of it has an inner diameter of 1/16″ and the larger hole on the side of it has an inner diameter of 1/4″.
The three-snap rings are 1 1/8″ wide overall with an inner diameter of 13/16″, and are 1/16″ thick.

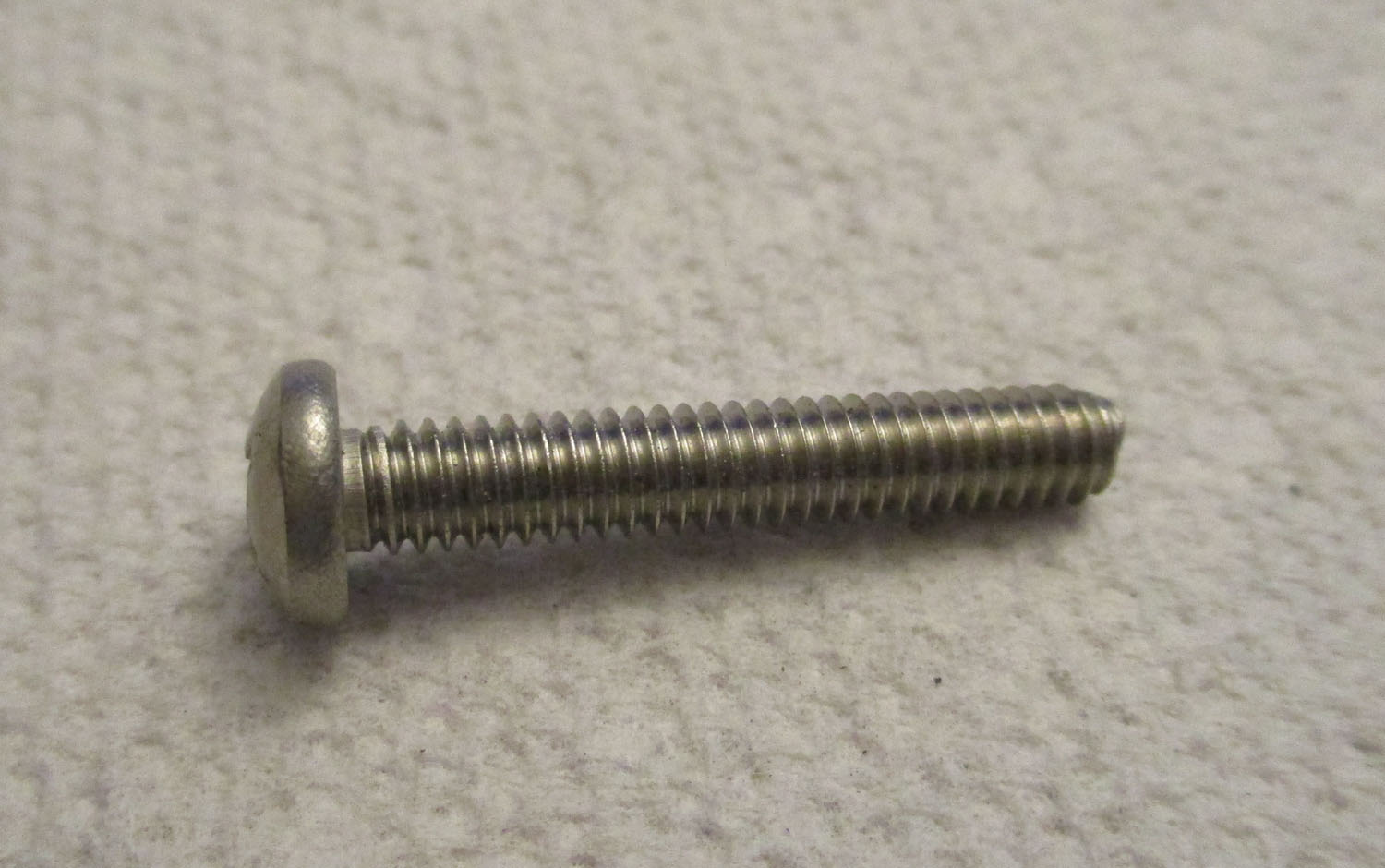

The screw is 1″ long and has a thread size of #8-32.
Additional information
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 7 × 7 × 7 in |
| Brand |
