Push Button Assembly for Emergency Stop

Name: Button Push Assembly Emergency Stop
SKU: AIE-000-002N 95SSW
Price: 150.00 USD
Availability: InStock

$150.00

NEW Push Button Assembly for Emergency Stop

1 in stock

SKU: AIE-000-002N 95SSWCategories: Pneumatic

Description

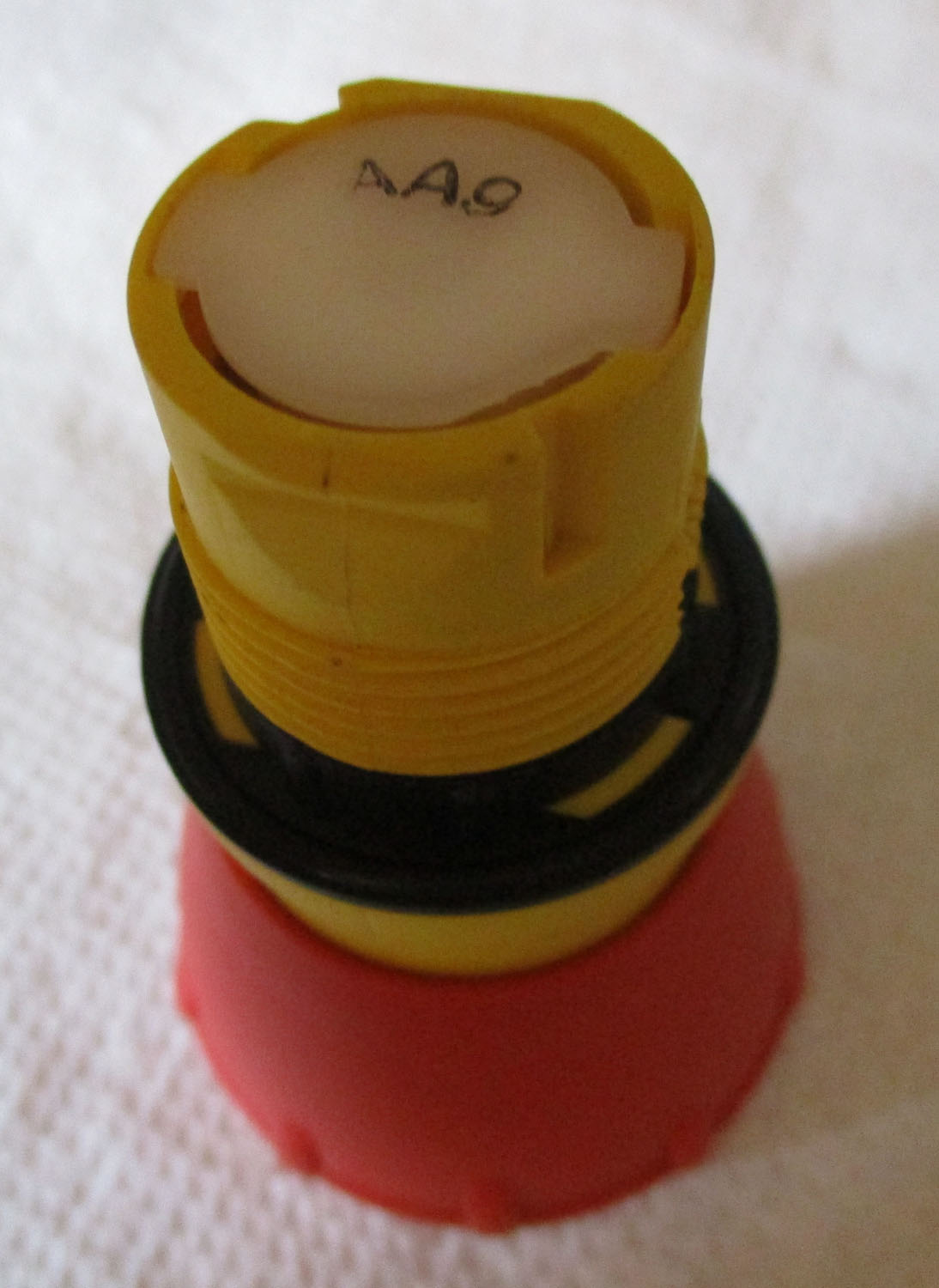

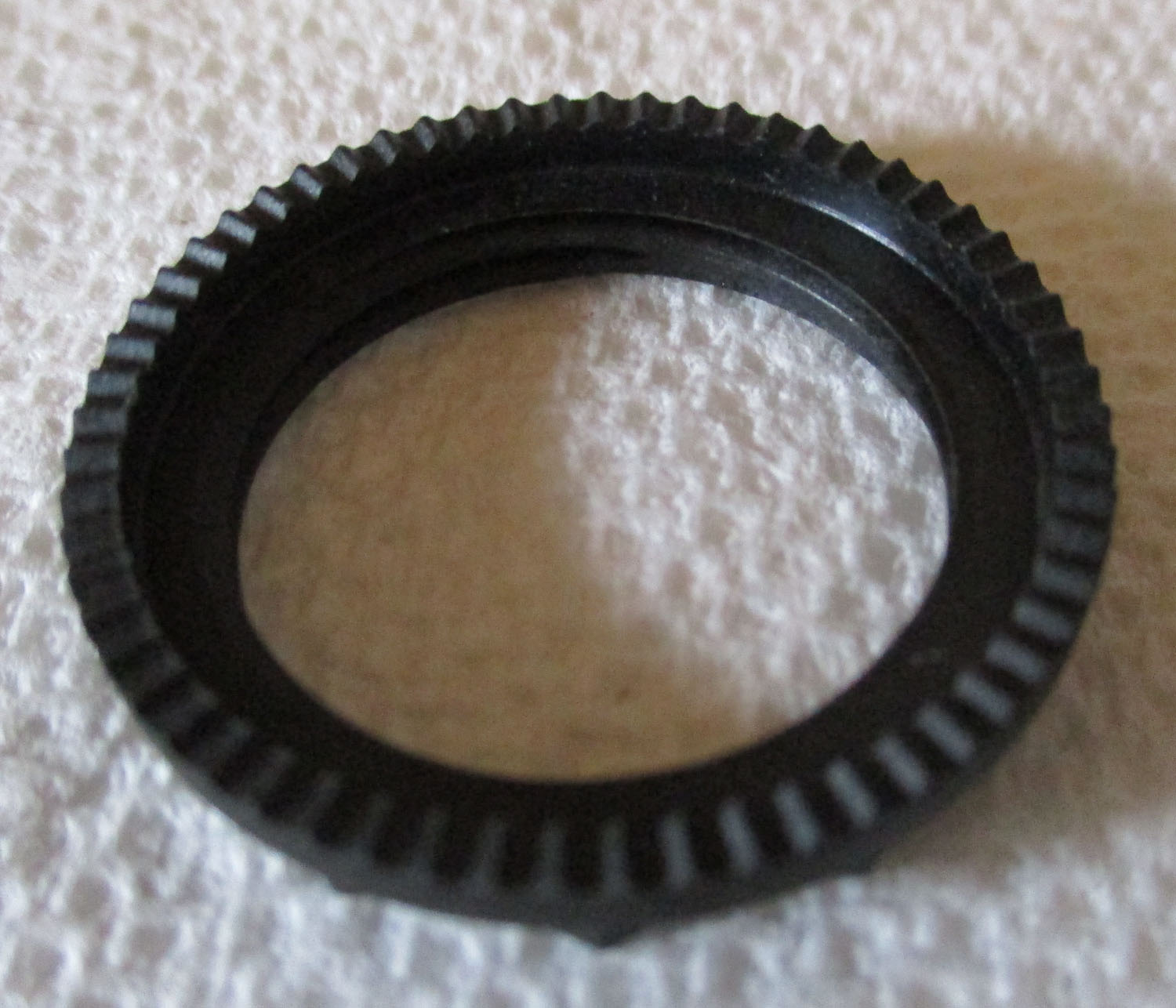

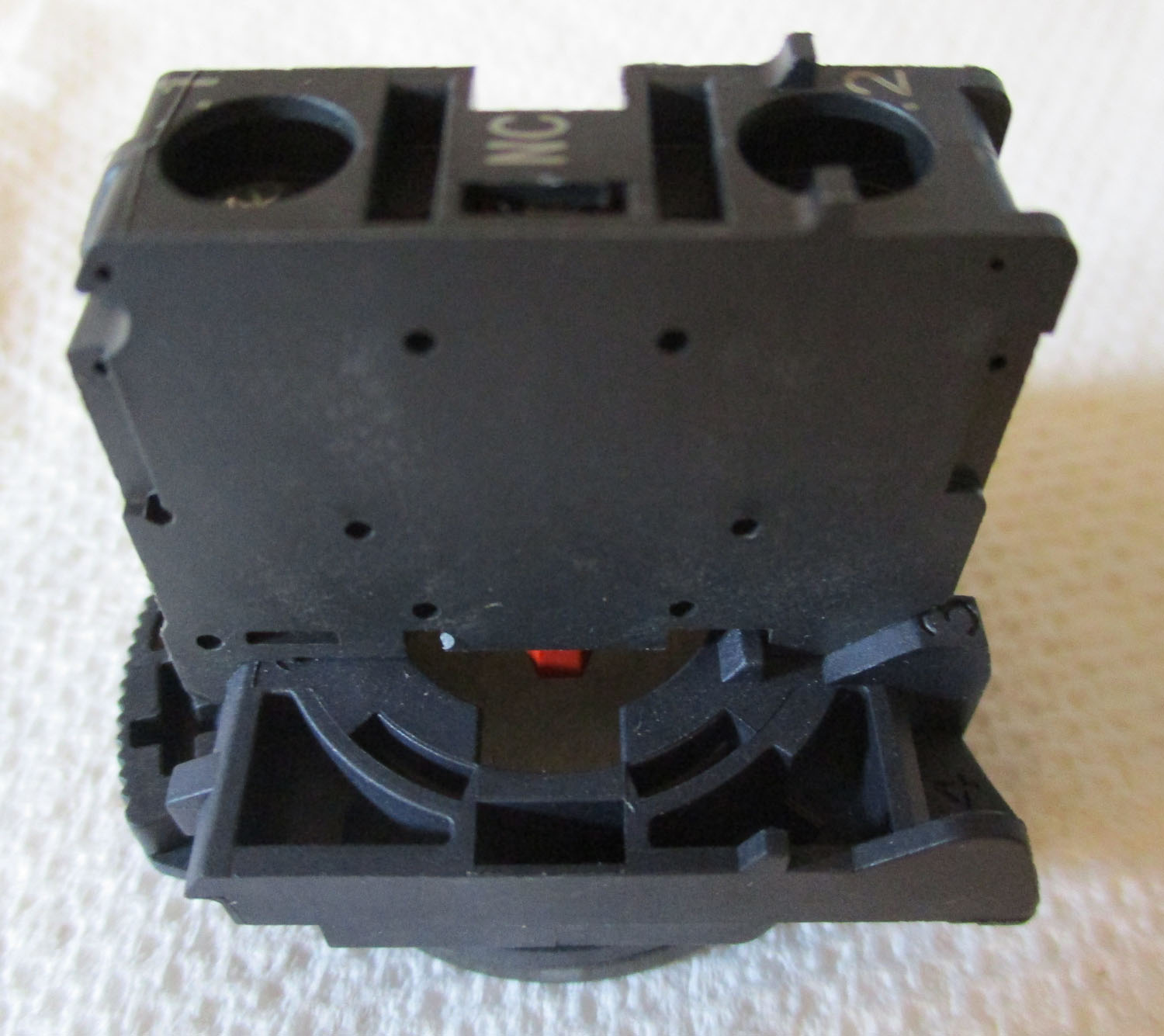

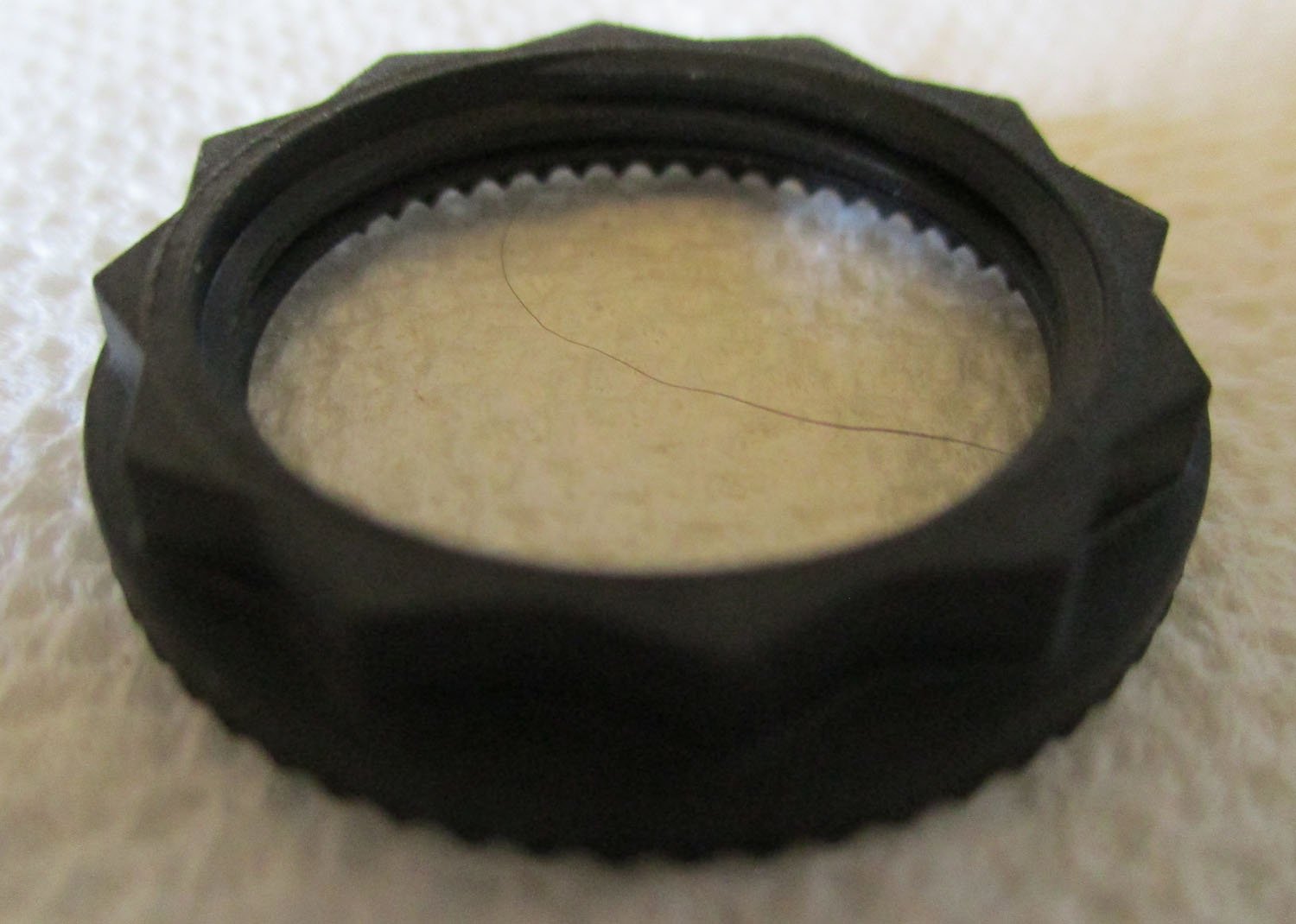

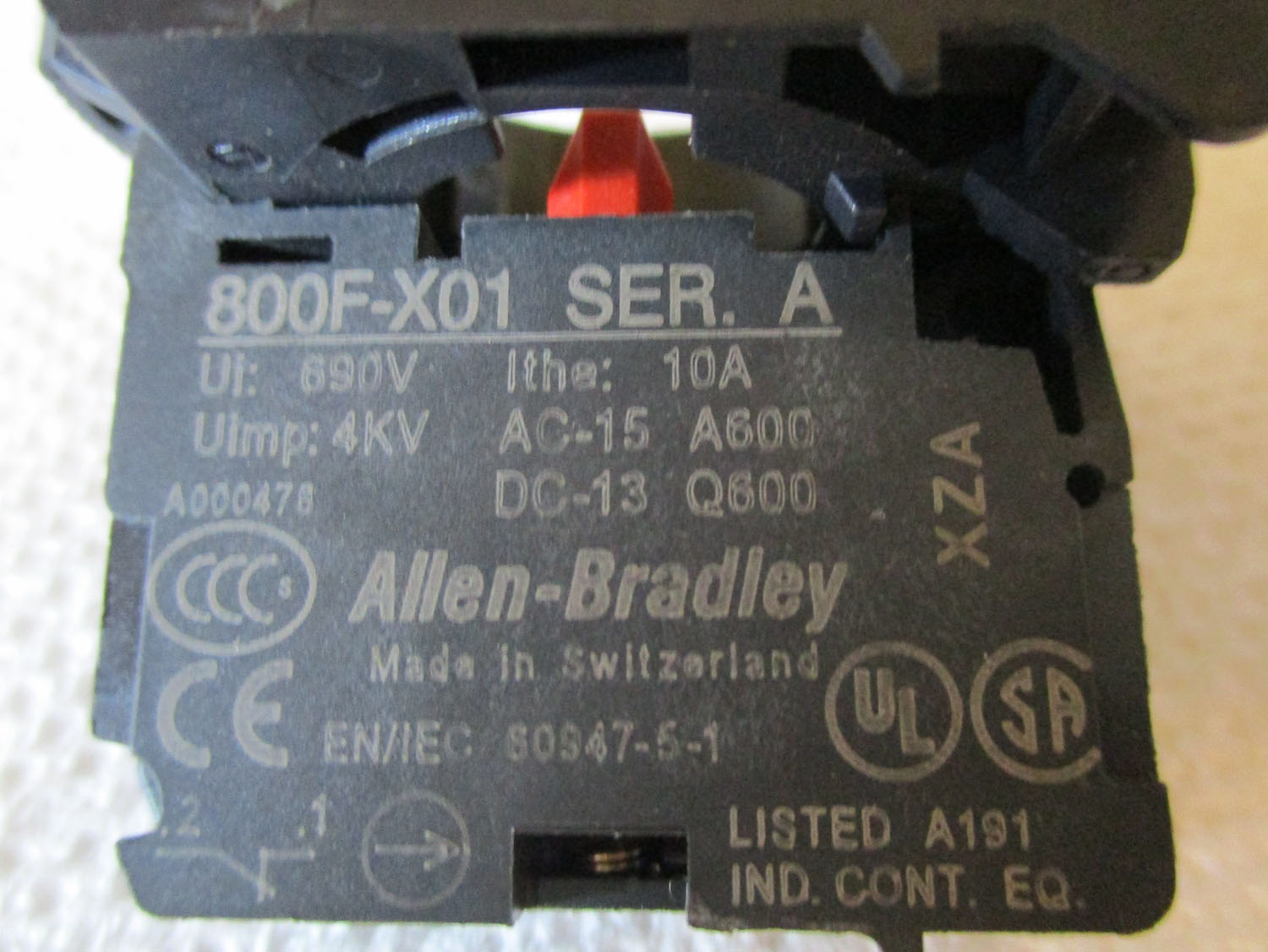

NEW This push-button assembly for an emergency stop on an air compressor is made of plastic and metal. The button is 2 1/2″ tall with an outer diameter of 1 9/16″. The yellow shaft is 7/8″ long with an outer diameter of 7/8″. The black plastic nut is 3/16″ thick with an outer diameter of 1 1/8″ and an inner diameter of 13/16″. The electrical connection is 1 5/16″ tall by 3/16″ wide by 1 7/16″ deep. The circular connection has an inner diameter of 11/16″. The Allen Bradley 800F-X01 Series A breaker switch has the following specifications:

10 ampere Normally Closed

15 volts AC 600 amperes

13 volts DC 800 Q (electrical charge)

The Ingersoll Rand part number is 22053904.

Additional information

Weight	0.38 lbs
Dimensions	3 × 3 × 3 in
Brand	Ingersoll Rand
