Description

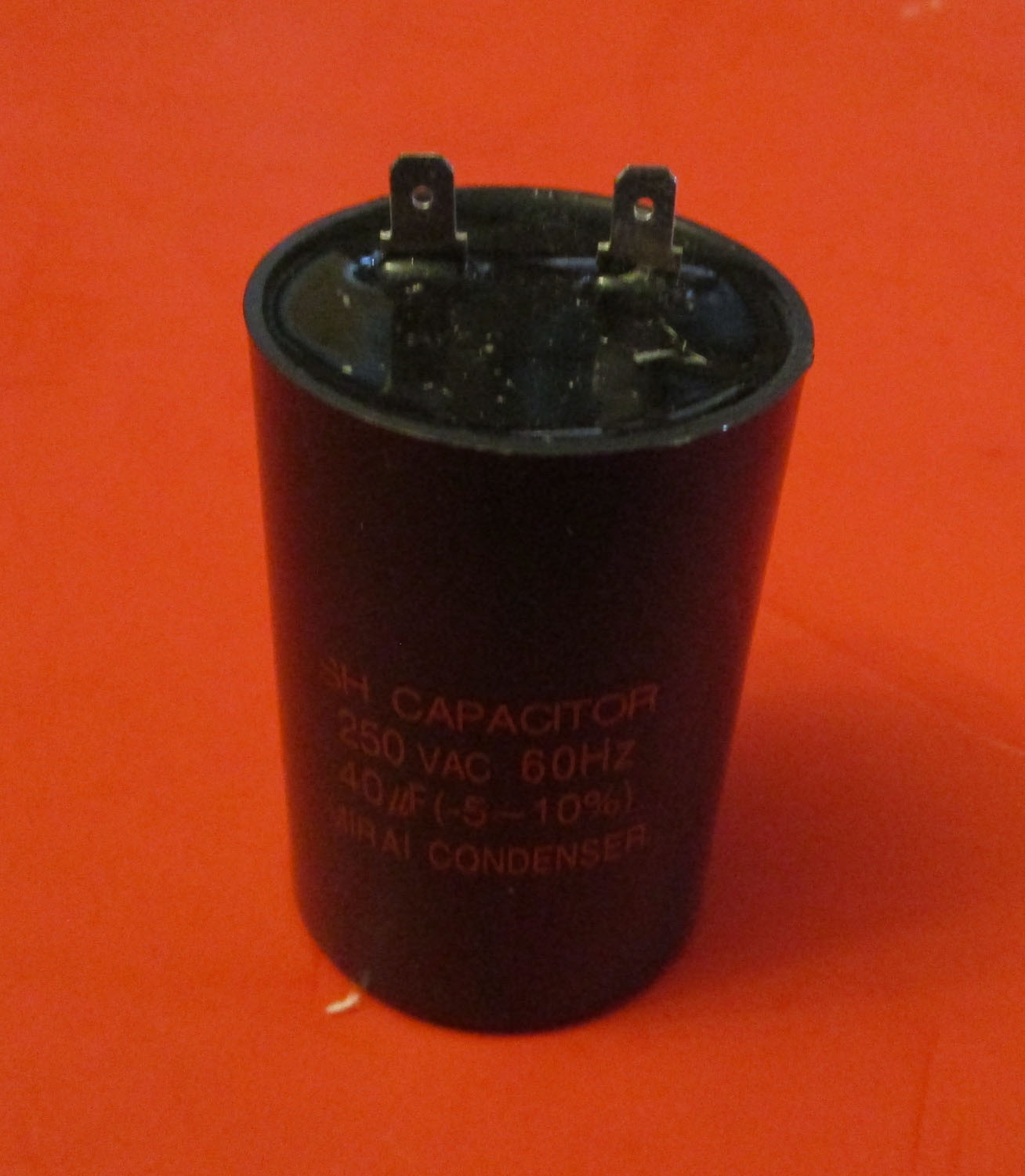

NEW This run capacitor is made of metal and plastic. It measures 2 1/2″ tall with the prongs. The prongs are 1/4″ long. The outer diameter is 1 1/2″. The indicated specifications are:
60 hertz
2 horsepower
250 volts AC
40 micro-Farads
This is a permanent split capacitor, see definition below.
Another variation is the permanent-split capacitor (or PSC) motor.[19] Also known as a capacitor-run motor, this type of motor uses a non-polarized capacitor with a high voltage rating to generate an electrical phase shift between the run and start windings. PSC motors are the dominant type of split-phase motor in Europe and much of the world, but in North America, they are most frequently used in variable torque applications (like blowers, fans, and pumps) and other cases where variable speeds are desired (Wikipedia)
The Surge part number is 7750-0021-624.
Additional information
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 2.50 × 1.50 × 1.50 in |
| Brand |
