Description

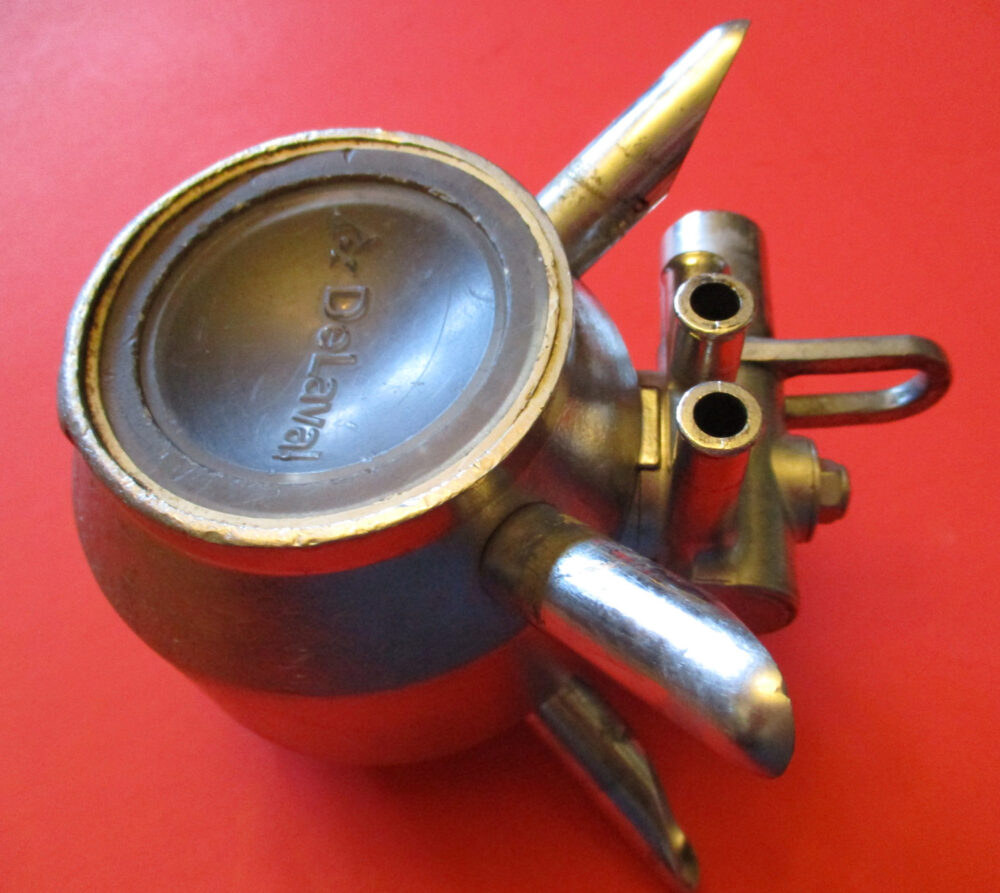

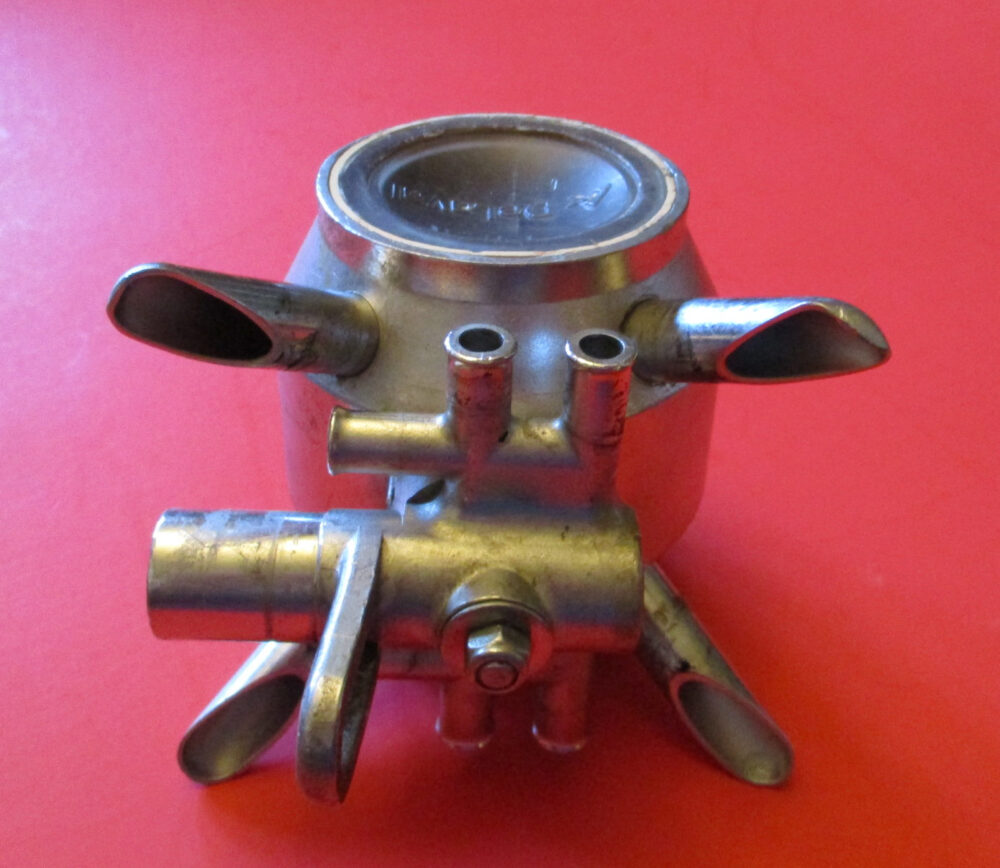

USED This top unloading, barrel claw with an air divider is made of stainless steel, and is used in a Herringbone parlor. The unit measures:
5 7/16″ wide by 4 3/16″ high overall.
The barrel is 3 5/8″ long, with an overall outer diameter of 3 1/2″.
The air tube connection pipes are 5/8″ long, with an outer diameter of 7/16″ and an inner diameter of 5/16″.
The vacuum connection pipes are 13/16″ long, with an outer diameter of 7/16″ and an inner diameter of 5/16″.
The milk outlet pipe has an outer diameter of 13/16″, and an inner diameter of 11/16″.
The inflation connection pipes are 1 7/8″ long, with an outer diameter of 9/16″ and an inner diameter of 1/2″.
The DeLaval part number is unknown.
Additional information
Weight | 1.81 lbs |
---|---|
Dimensions | 4 × 4 × 4 in |
Brand |
