Description

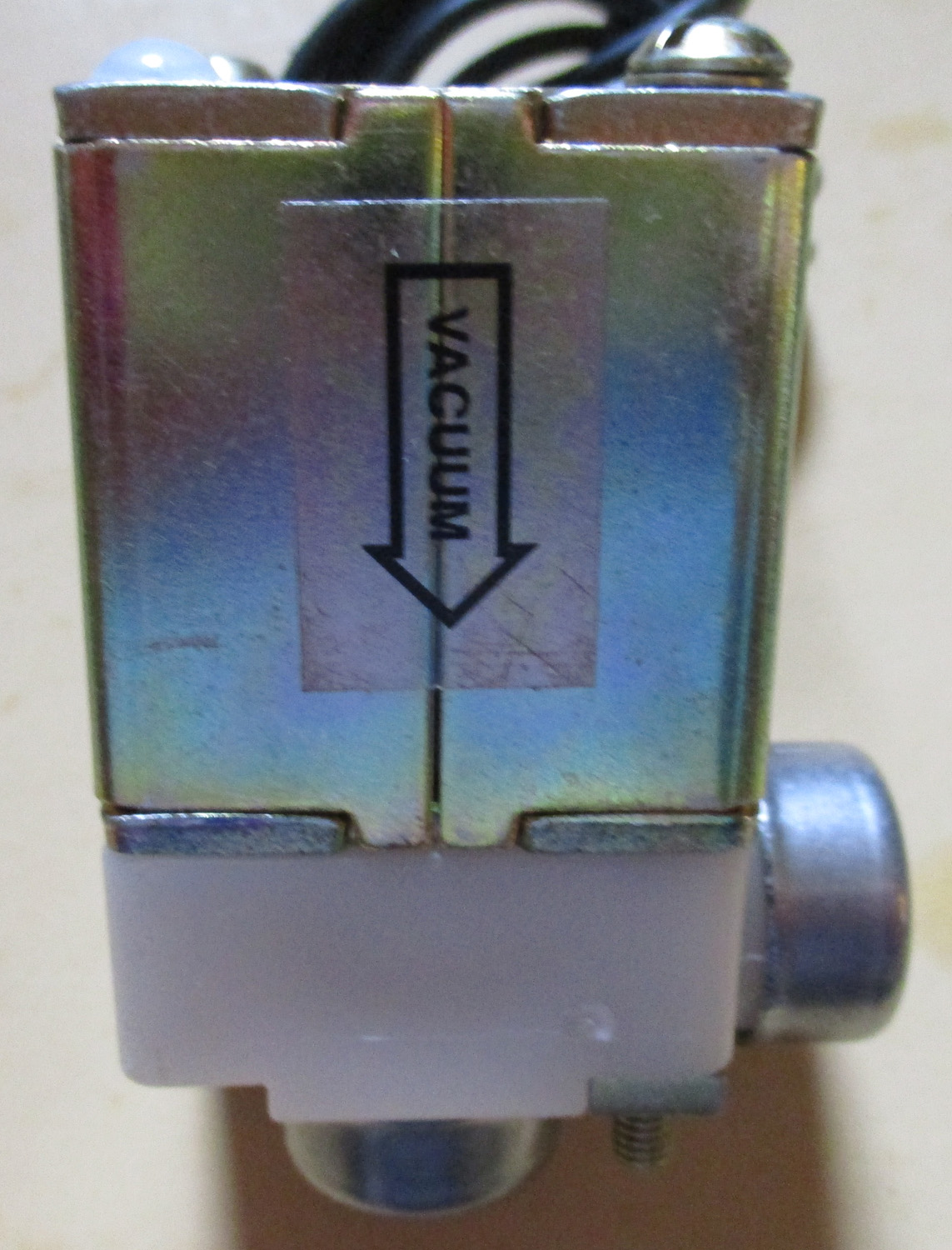

USED This vacuum coil, standing upright, has a total height of 2 13/16″ including the small port on the bottom. The part measures 2 1/4″ long without the ports and is 1 7/16″ square.

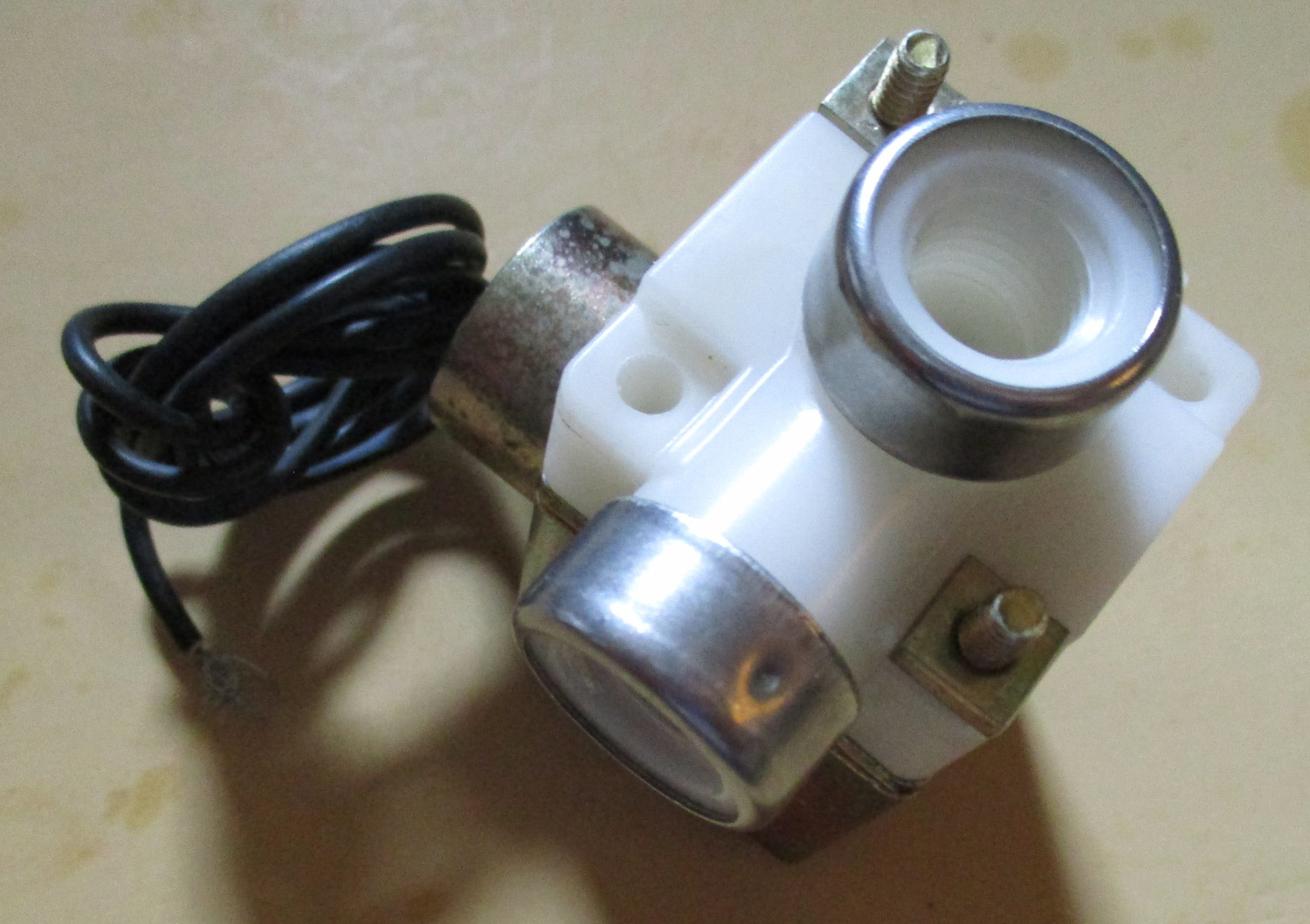

The big port protrudes 7/16″, with an inner diameter of 9/16″ and has electrical wiring coming out of it.
The small ports protrude 1/2″ with an inner diameter of 5/16″ with the vacuuming coming down through the bottom.
There is one similar to this part (SVL-000-002R) with the manufacturer number of 51C19G24-6-T15-43G and the vacuum going out the backside.

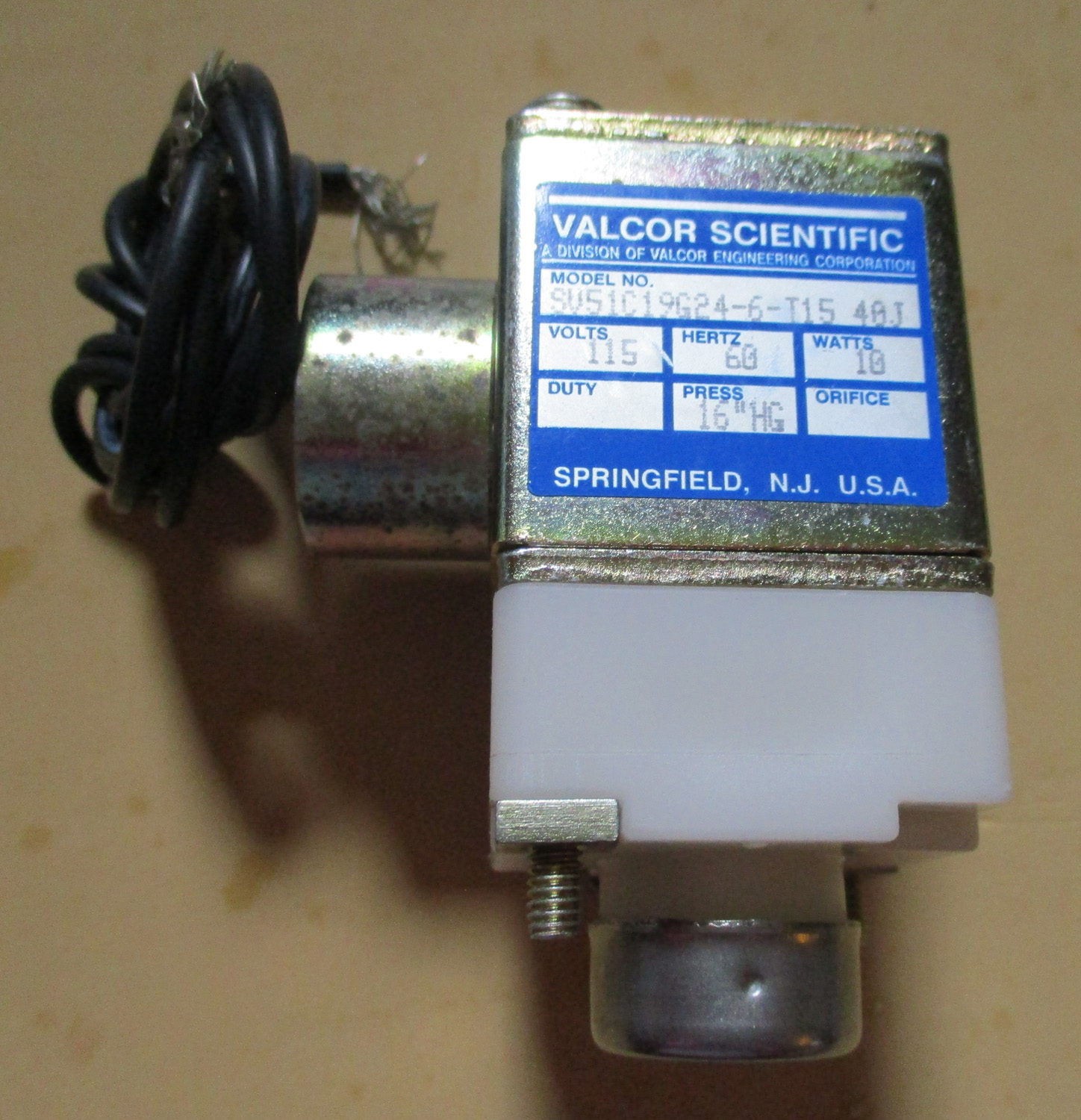

This part is made of metal and plastic. All ports are threaded internally. The indicated specifications for the part are 115 volts, 60 Hertz, 10 watts, and 16″ Hg (Mercury). The Valcor Scientific manufacturer number is SV51C19G24-6-T15-40J.
Additional information
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
| Brand |
