Description
NEW This fan and limit control is made of metal and plastic as follows:
Two black plastic pieces are 3 3/8″ long, 1″ wide, and 7/8″ high, overall. The Honeywell part number is 137813.

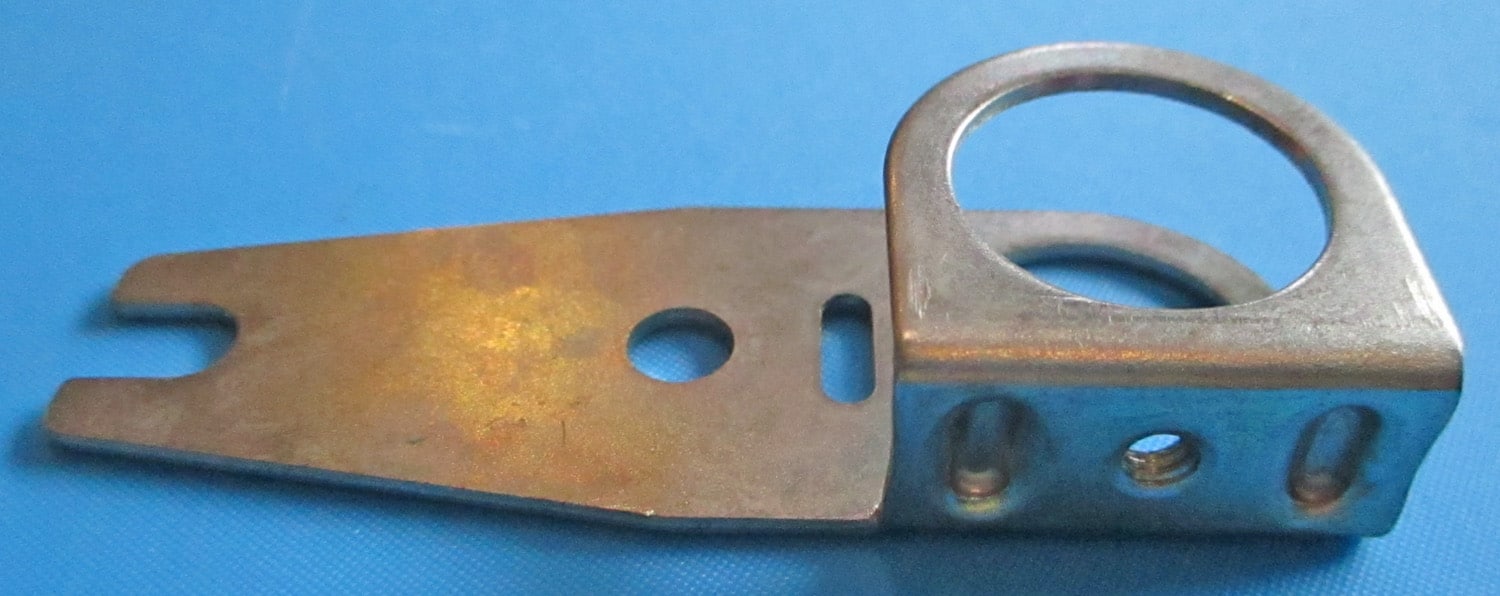

The long metal piece is 3″ long, 1 1/6″ wide, and 1/2″ high, overall. The large hole has a 13/16″ inside diameter, and the small hole has a 1/4″ inside diameter. The small slit is 1/8″ by 3/8″ and the opening on the end is 1/4″ by 3/8″. The part number is 110265.
The shorter metal pieces are 1 1/4″ long with a 1/8″ by 1/8″ tab on the end, 1 ” wide, and 7/16″ high. The holes have a 1/4″ inside diameter.
The plastic pieces with the screw assembly on the end are 2 3/8″ long, 1 1/8″ wide, and 1/32″ thick. The metal screw assembly is 1/2″ long, 3/8″ wide, and 1″ high.

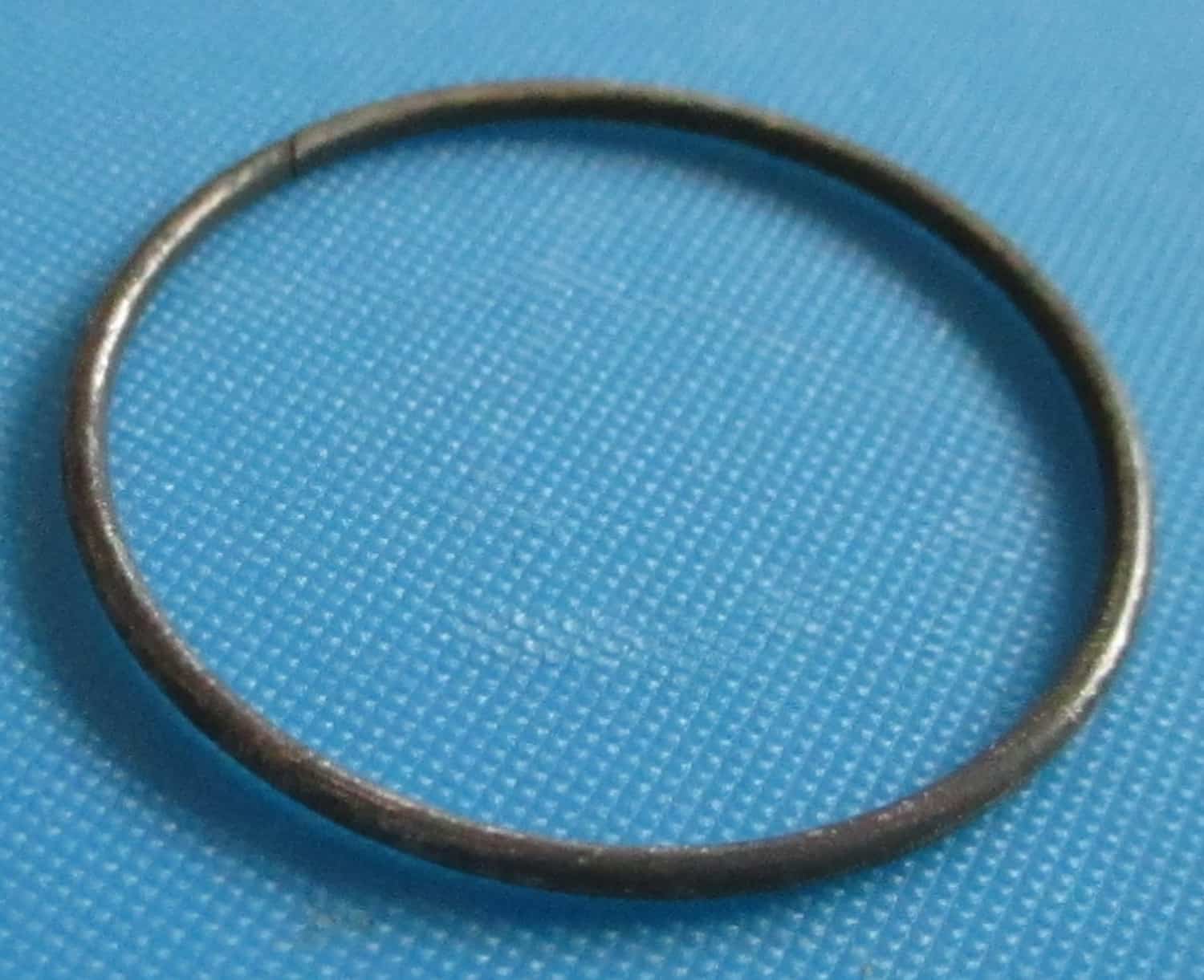

The metal ring has a 1″ outside diameter with a 15/16″ inside diameter and is 1/32″ thick.

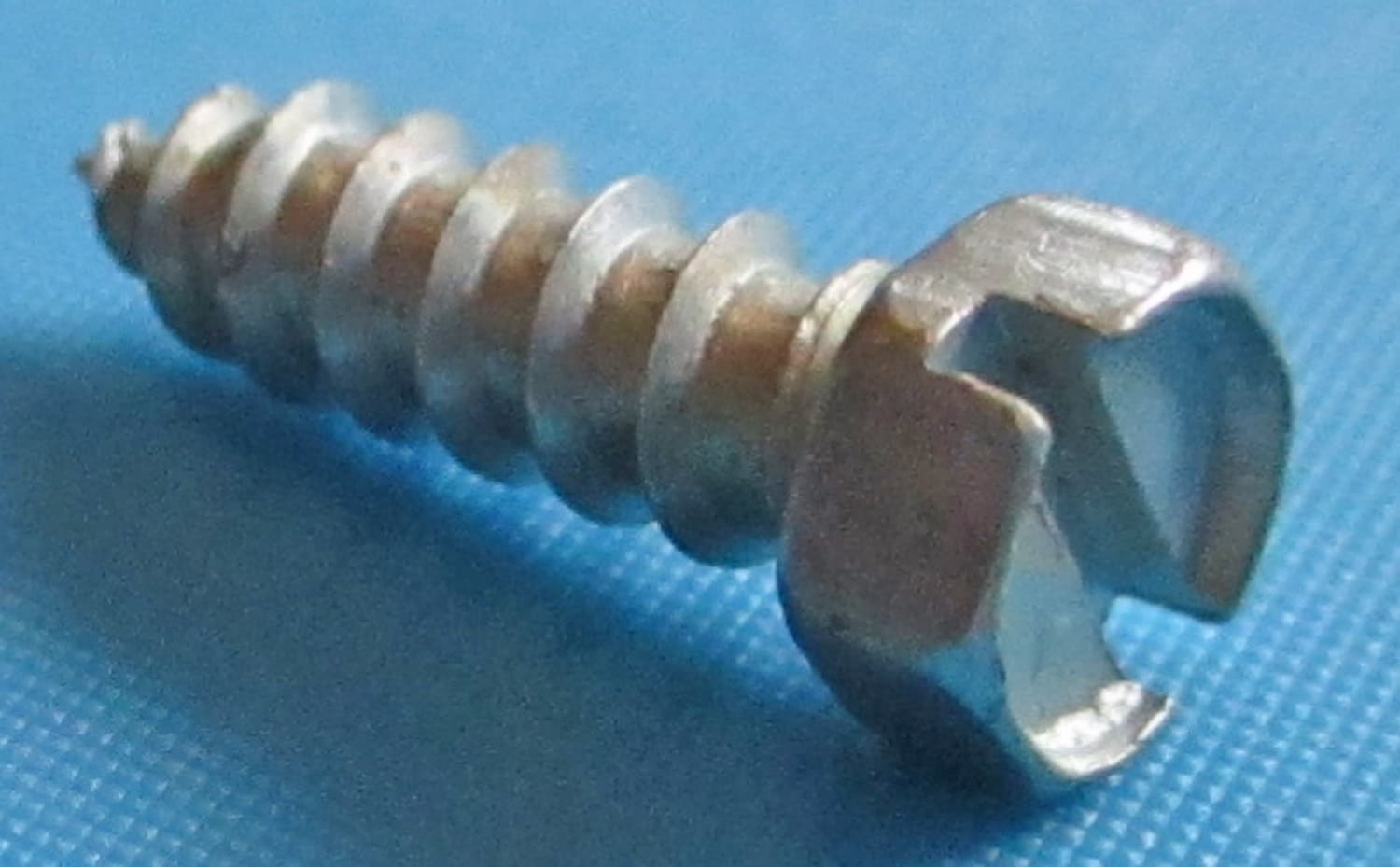

The two slotted hex sheet metal screws are 7/8″ long with 12 tpi, and the slotted panhead screw is 7/16″ long with an 8-32 thread size.
Maximum element temperature: 350° F. Maximum switch temperature: 190°F.

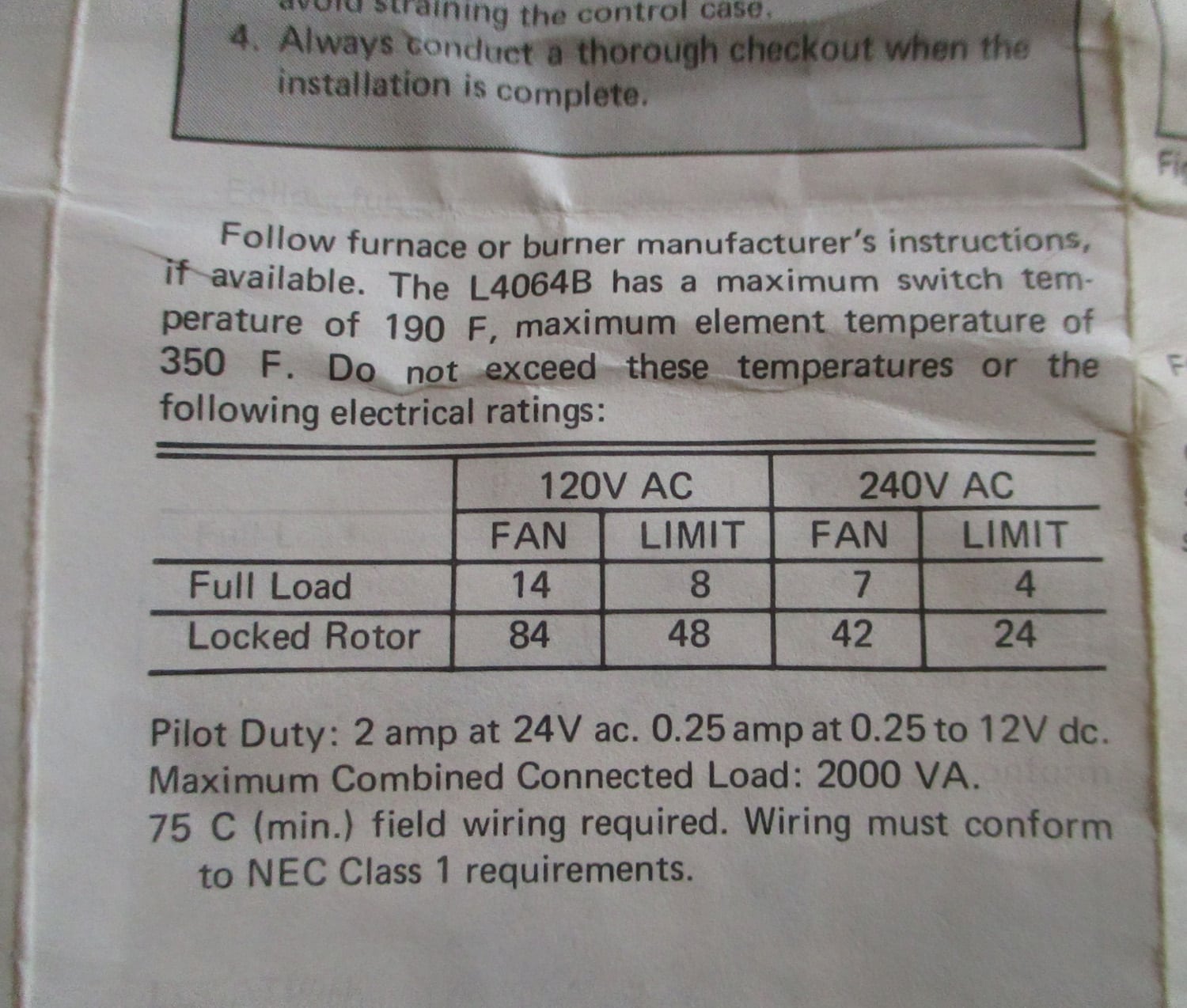

One of the pictures shows the specifications.
The Honeywell part number for the whole assembly is L4064B
Additional information
| Weight | .25 lbs |
|---|---|
| Dimensions | 4 × 3 × 2 in |
| Brand |
