Description

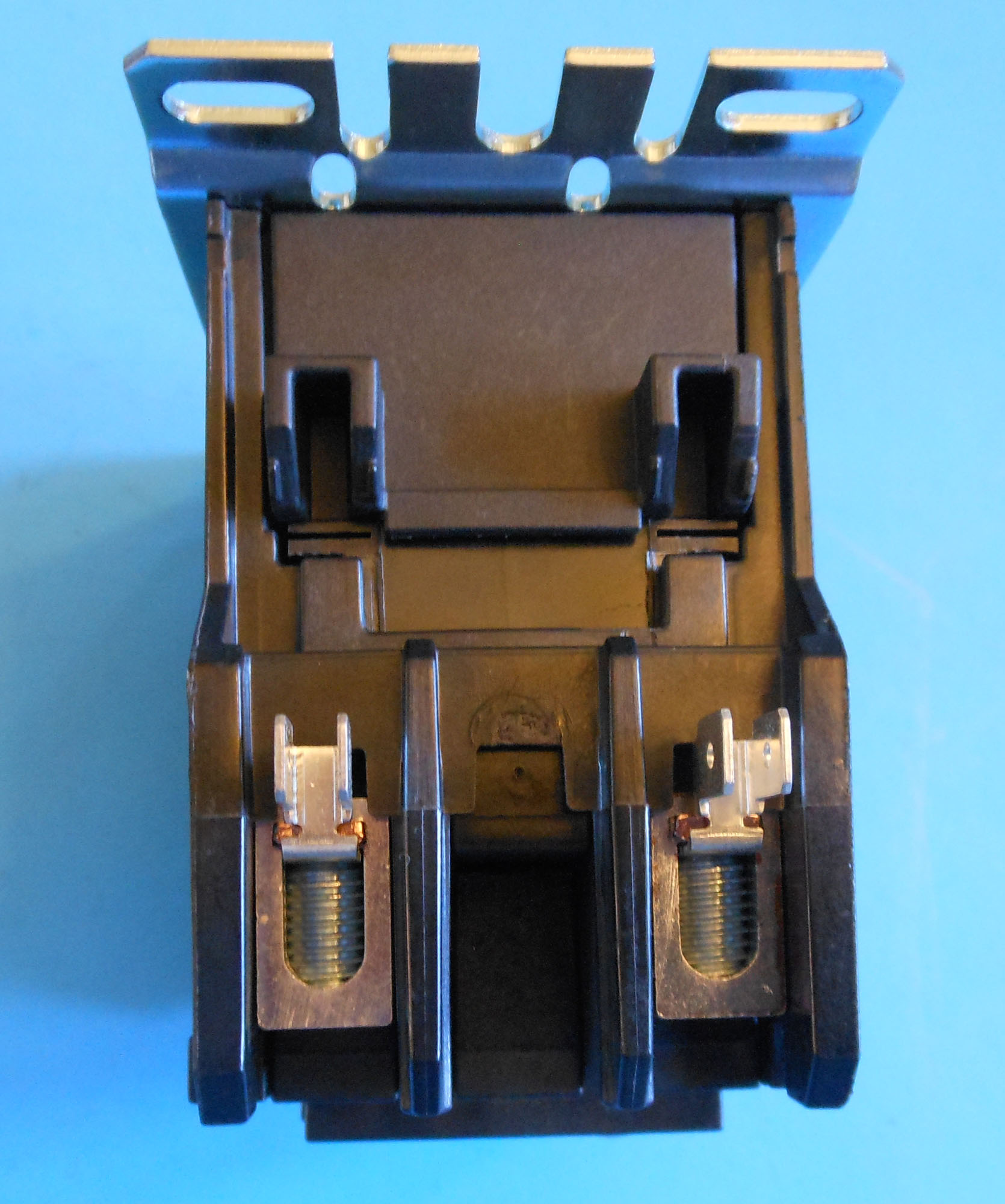

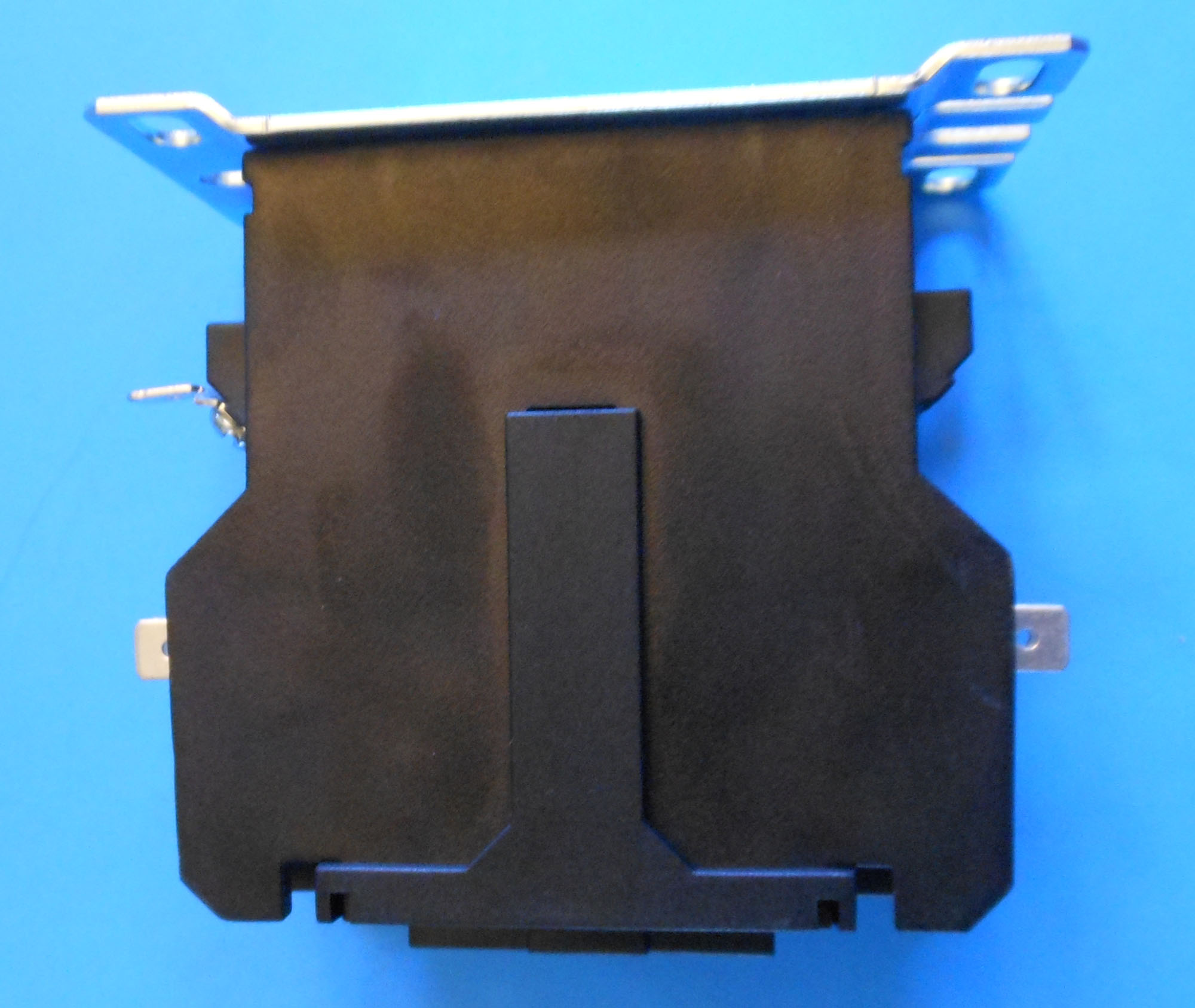

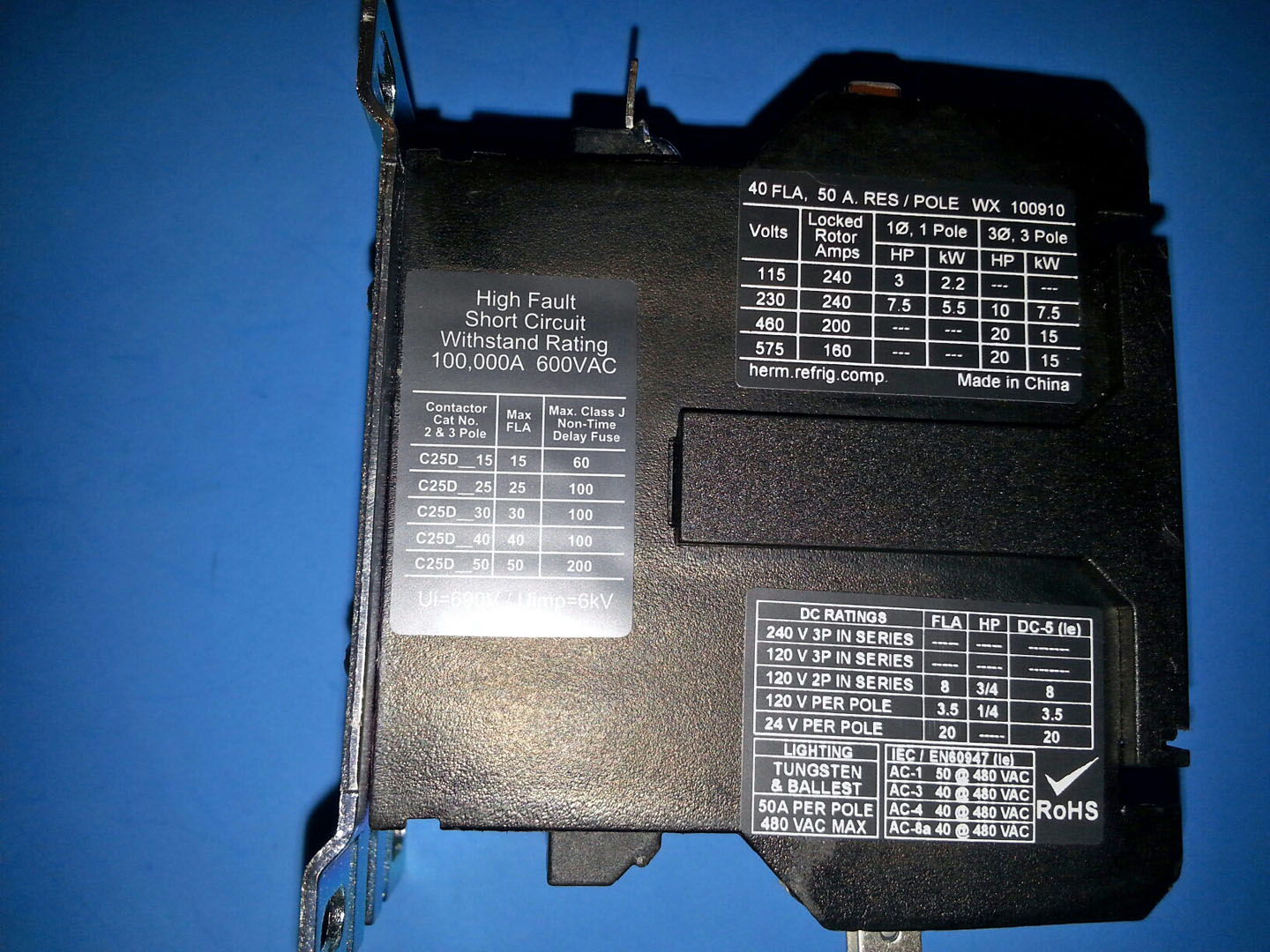

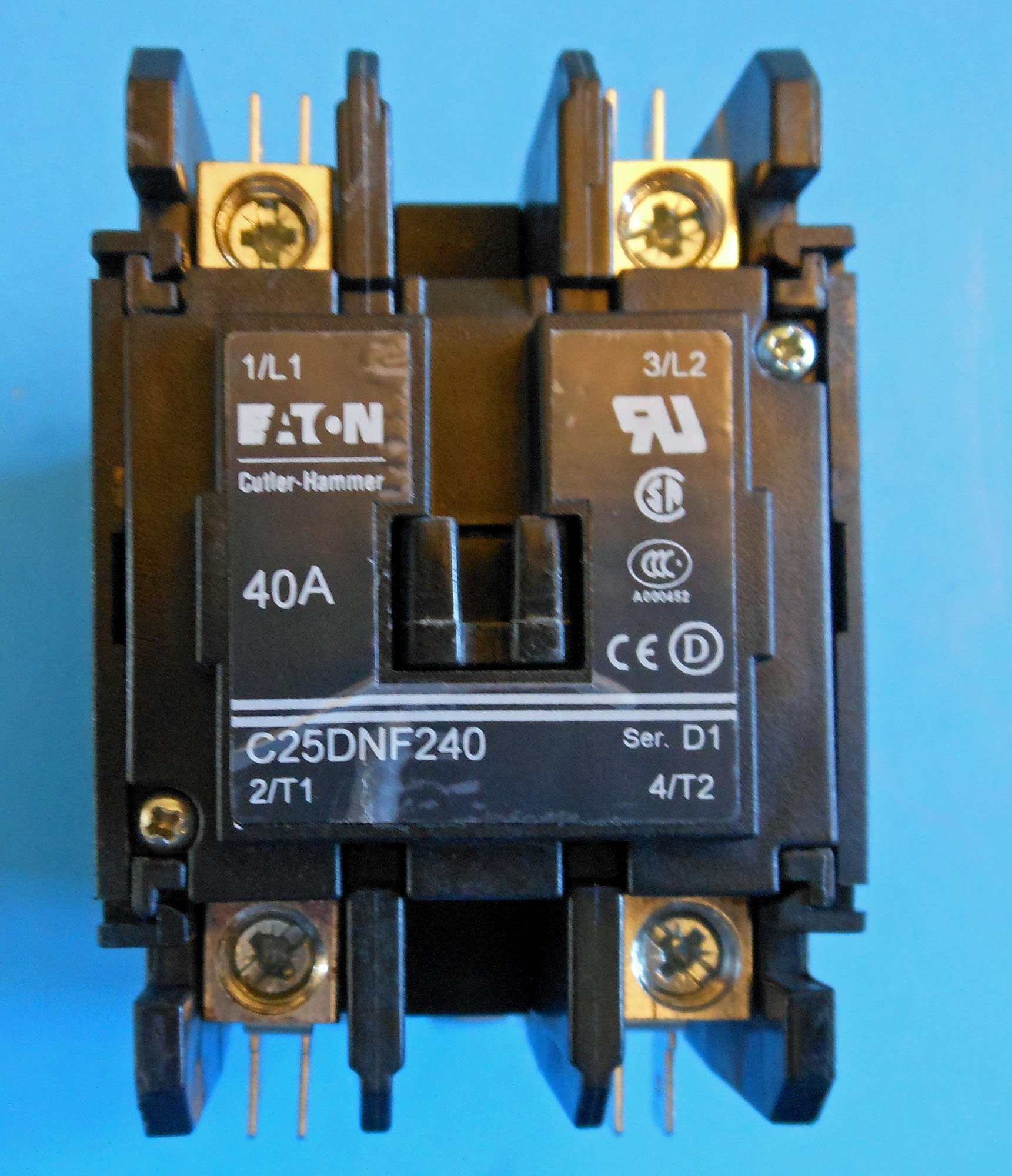

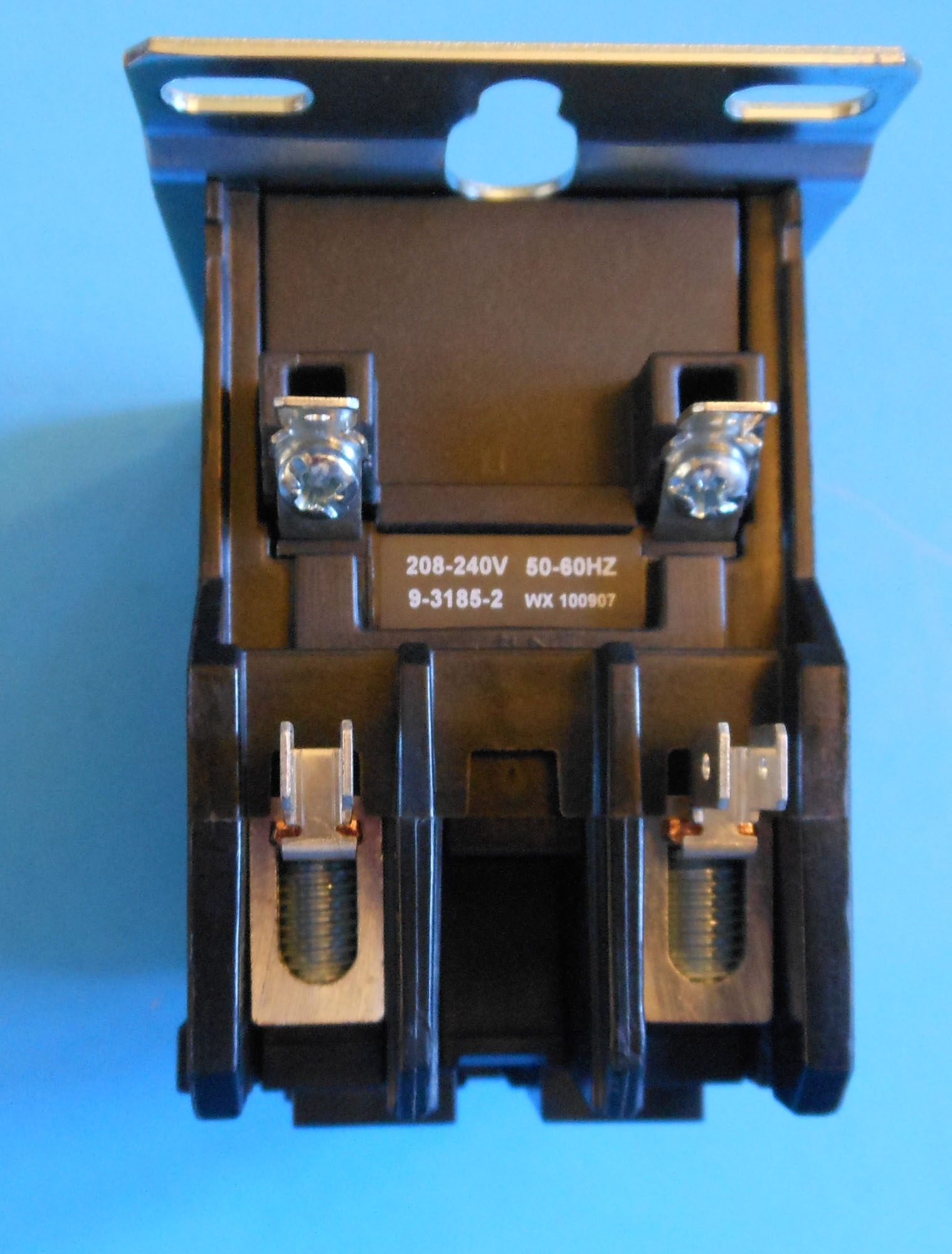

NEW This contactor is manufactured by Cutler-Hammer. The original part number is C2FDNF240B. The contactor is made of plastic and metal and measures 2 3/8″ wide by 3 1/4″ high by 3 3/4″ deep. The chart below contains the operational parameters for this contactor.
| VAC | FLA | LRA | RES | 1 pole | 1 pole | 2 pole | 2 pole | Coil voltage | Hertz |
| HP | KW | HP | KW | ||||||
| 115 | 40 | 3 | 50 | 3 | 2.2 | – | – | 208/240 | 50/60 |
| 230 | 40 | 4 | 50 | 7.5 | 5.5 | 10 | 7.5 | 208/240 | 50/60 |
| 480 | 40 | 5 | 50 | – | – | 20 | 15 | 208/240 | 50/60 |
| 575 | 40 | 4 | 50 | – | – | 20 | 15 | 208/240 | 50/60 |
| Short Form | Meaning |
| FLA | Full Load Amps |
| HZ | Hertz |
| LRA | Locked Rotor Amps |
| LRC | Load Rated Current |
| RES | Reactance |
| V | Volts |
| VAC | Volts AC |
| VDC | Volts DC |
Additional information
| Weight | 2.00 lbs |
|---|---|
| Dimensions | 7 × 6 × 7 in |
| Brand |
