Cylinder Air 17 7/8″L 13 1/2″ Stroke

$180.00

NEW  Cylinder Air 17 7/8″L 13 1/2″ Stroke

3 in stock

SKU: ADL-000-006N 37NWCategories:

Share

Description

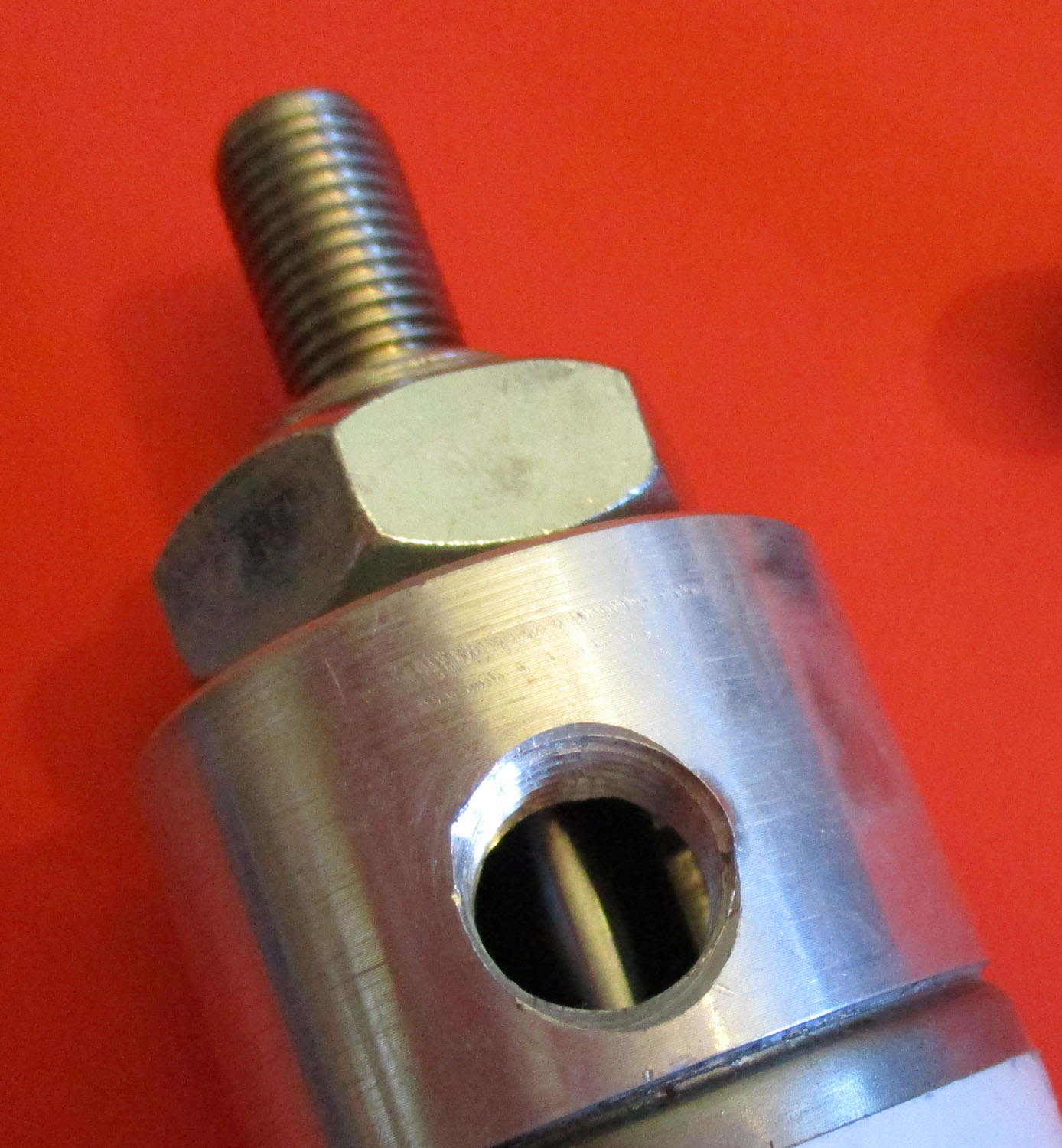

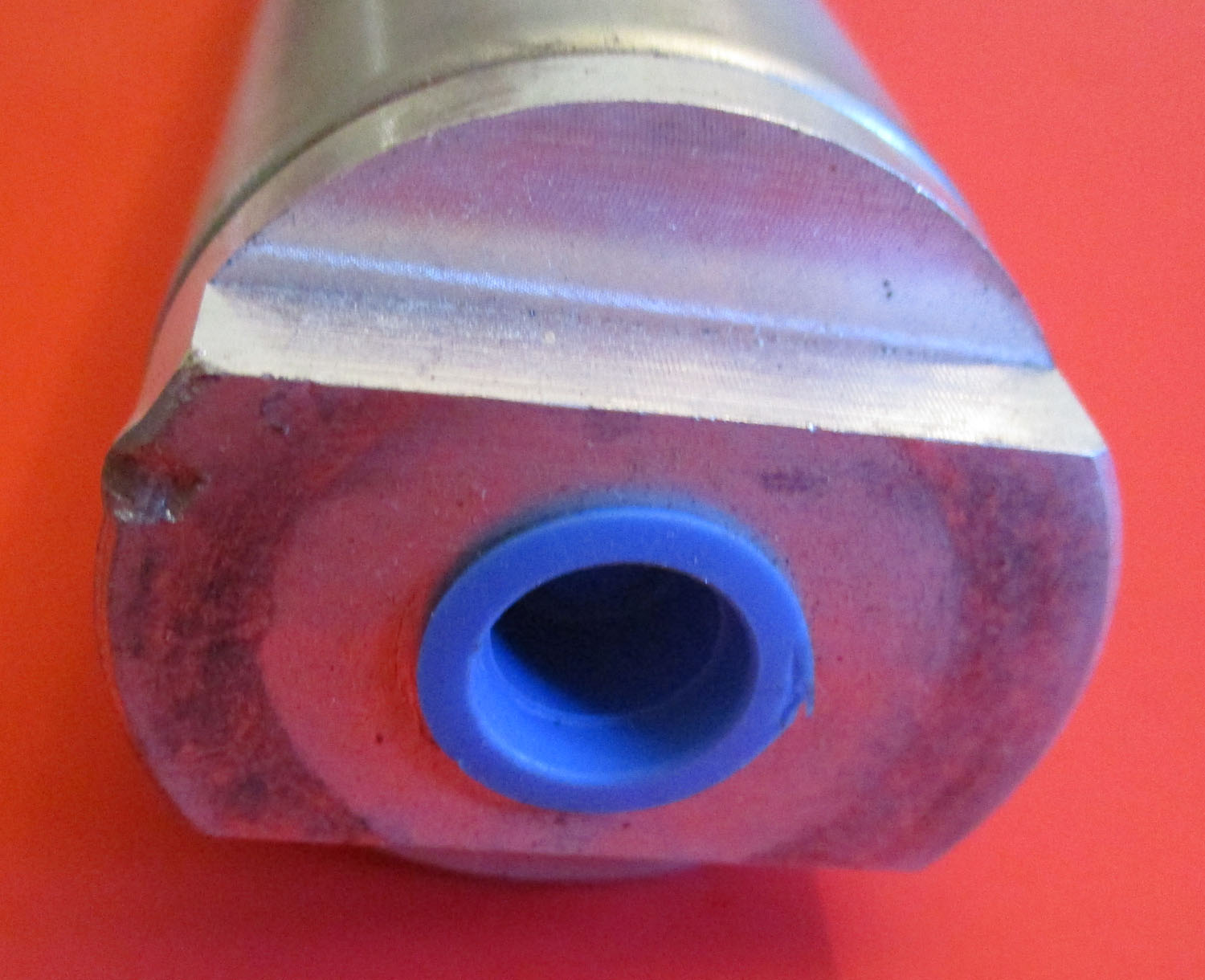

NEW  This air cylinder is made of metal.  The cylinder measures 17 7/8″ long and has an outer diameter of 1 9/16″.  The threaded end is 1 3/8″ long overall, and the threads are 3/4″ long with an outer diameter of 7/16″.  The thread size is 7/16-20.  The large threaded portion with the hex nut has an outer diameter of 3/4″.  The small threaded hole on the side of the cylinder has an inner diameter of 7/16″.  The bore and stroke for the cylinder are 1 1/2″ x 13 1/3″.

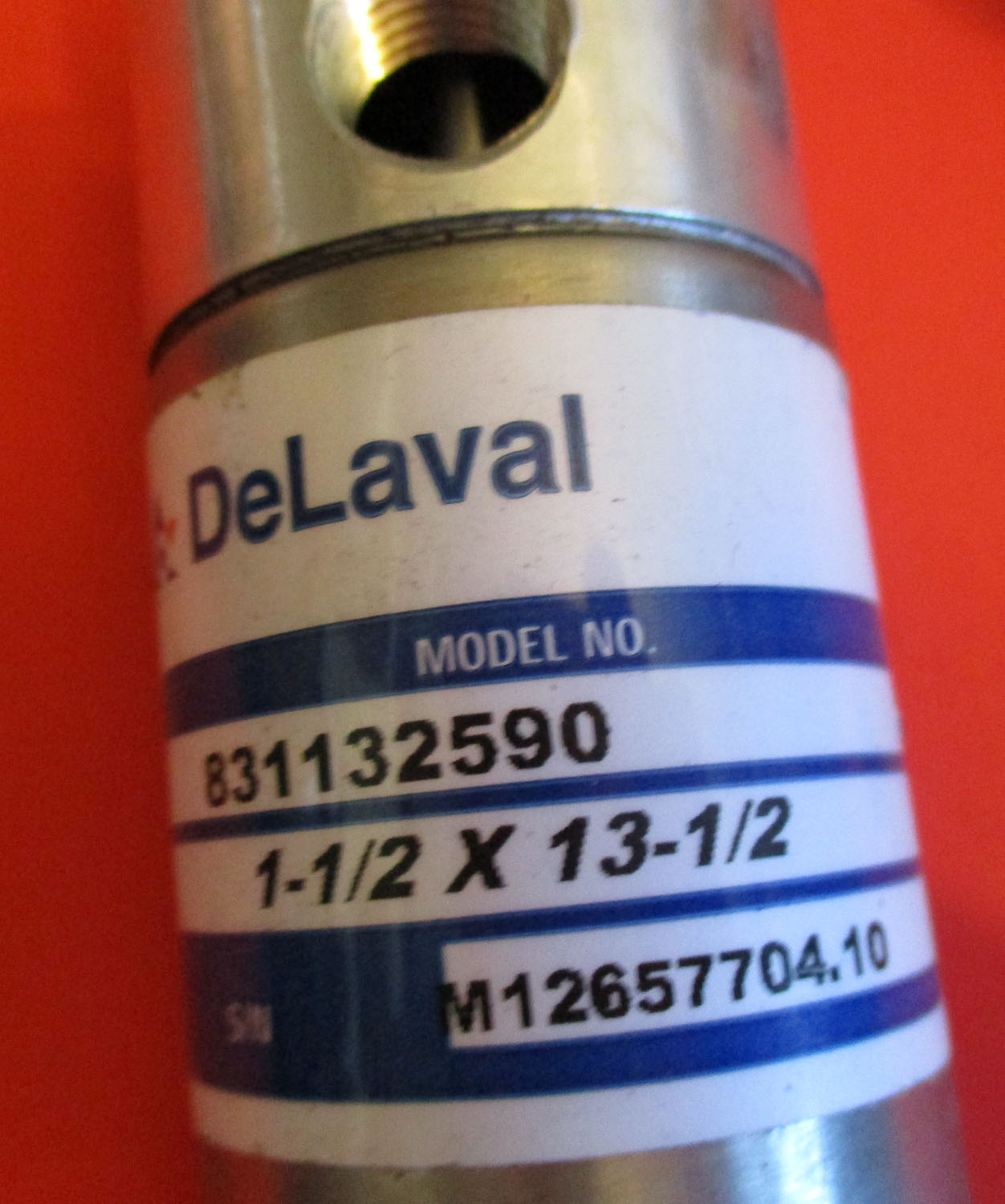

The DeLaval part number for this cylinder is 831132590.

Additional information

Weight 1.50 lbs
Dimensions 19 × 3 × 3 in
