Cylinder Support Arm, Air for Autorotor

Name: Cylinder Support Arm, Air for Autorotor - Dairy Train
SKU: GBB-000-072N 67NW
Price: 220.00 USD
Availability: InStock

$220.00

NEW Cylinder Support Arm, Air for Autorotor

1 in stock

SKU: GBB-000-072N 67NWCategories: Stall Assembly Components

Description

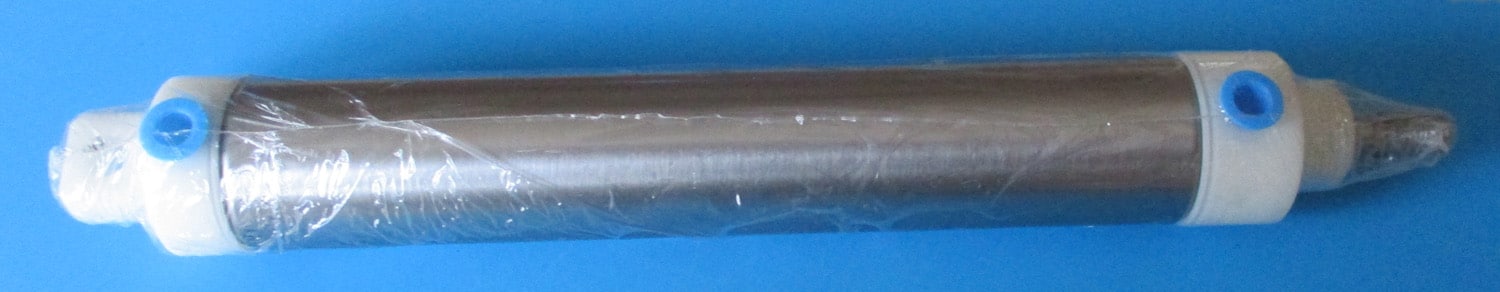

NEW This Surge stainless steel and plastic autorotor air cylinder support arm is 12 1/2″ long.

It has a 1 1/2″ bore with a 7″ stroke.

The stainless steel section is 8 3/8″ long with a 1 9/16″ outside diameter.

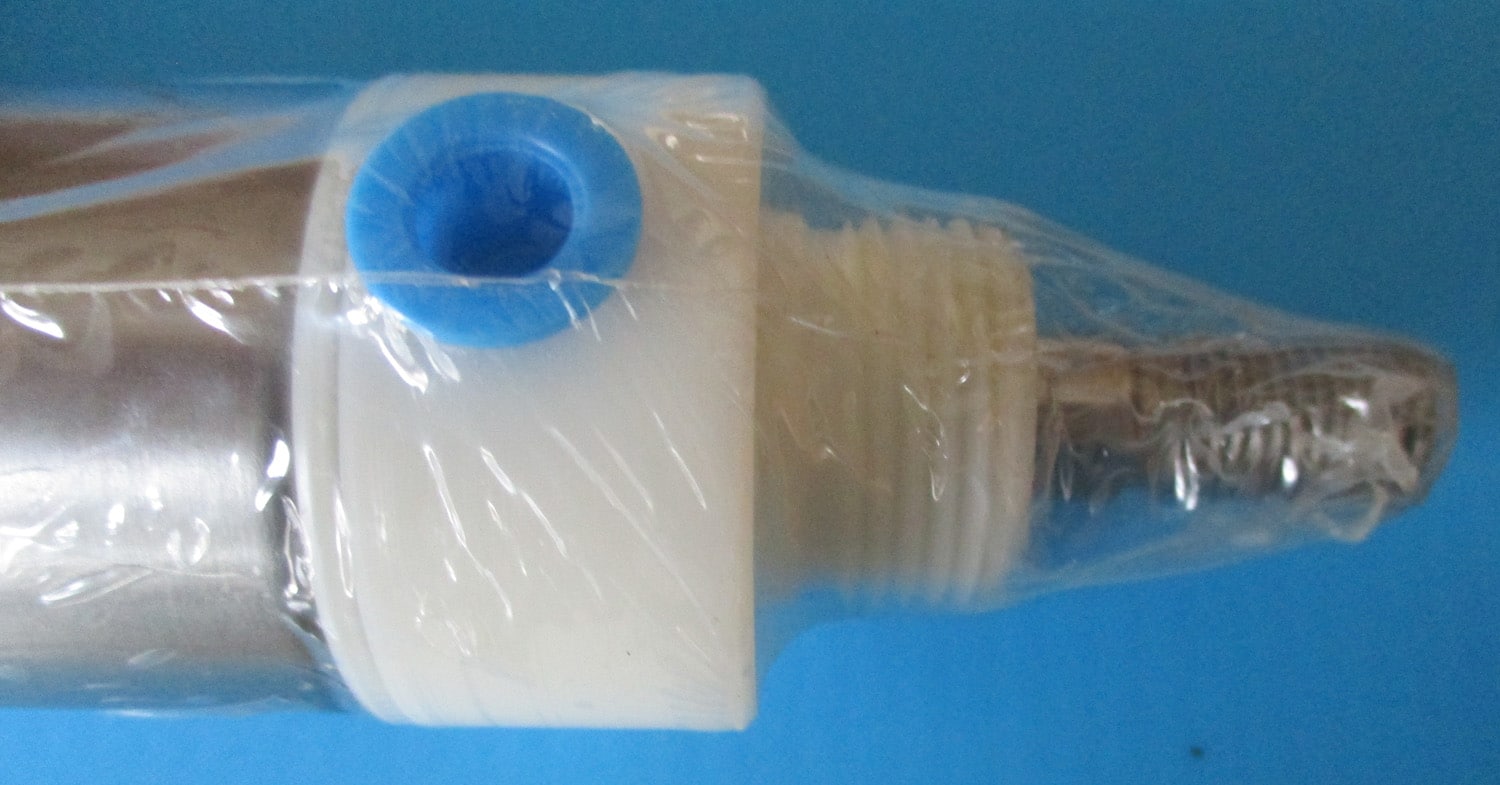

The plastic sections on the ends each have a 1 5/8″ outside diameter, each with a threaded end that has a 1″ outside diameter.

One of the plastic threaded ends is 7/8″ long. The other threaded plastic end is 5/8″ long with a 1″ long stainless steel rod. The rod has a 7/16″ outside diameter of which 5/8″ is threaded.

The blue plastic parts have a 9/16″ outside diameter with a 5/16″ inside diameter and are 1/8″ high.

The Surge part number is 7750-0109-634.

Additional information

Weight	2 lbs
Dimensions	13 × 2 × 2 in
