Diaphragm for Burket Water Valve

Name: Diaphragm for Burket Water Valve - Dairy Equipment Parts
SKU: SBM-000-040N-72SSW
Price: 135.00 USD
Availability: InStock

$135.00

NEW Diaphragm for Burket Water Valve

SKU: SBM-000-040N-72SSWCategories: Pipeline Washer Accessories

Description

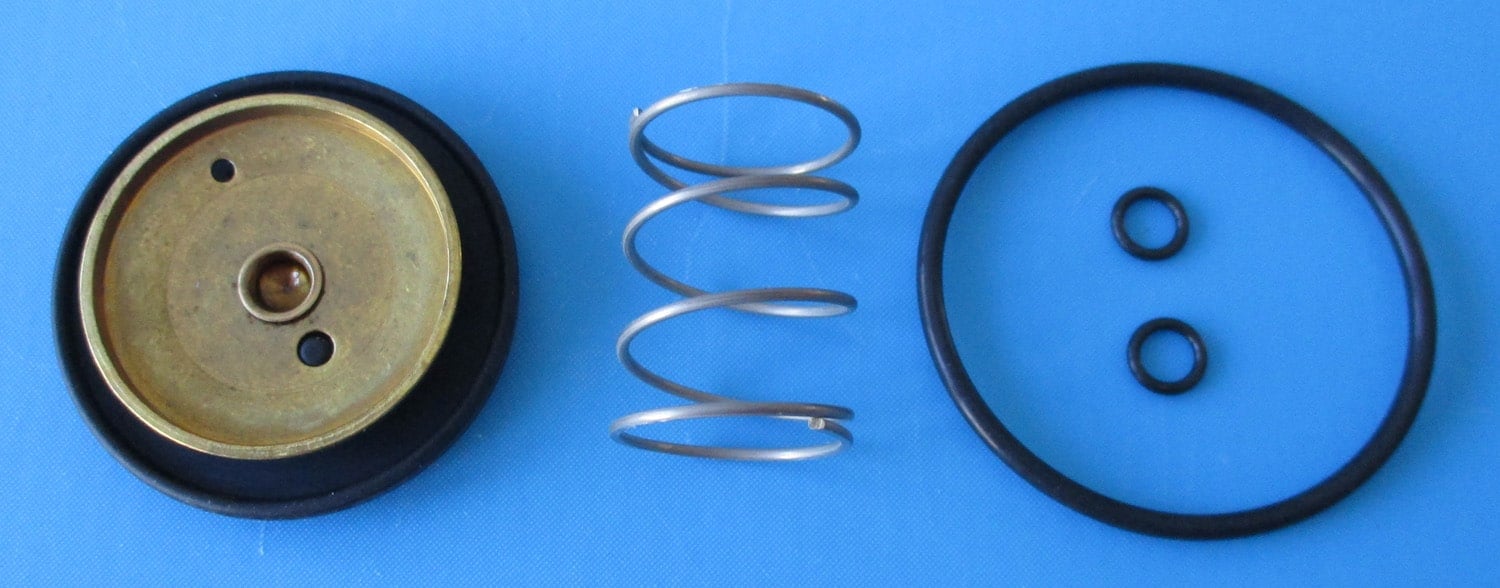

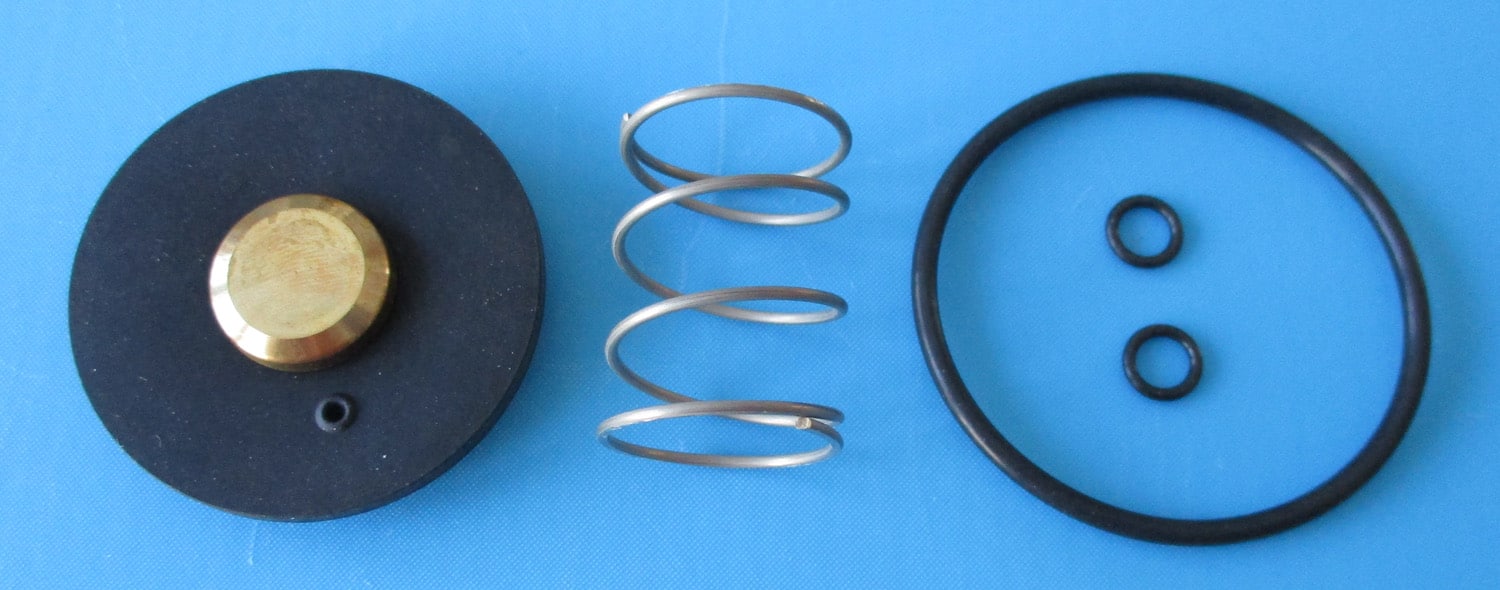

NEW This Boumatic diaphragm for a Burket water valve includes the main diaphragm, a spring, and four (4) rubber o rings.

The main diaphragm is 1/2″ high with a 2″ outside diameter. The brass piece on top is 3/16″ high with a 3/4″ outside diameter and the brass piece at the bottom is 3/16″ high with a 1 5/8″ outside diameter.

The metal spring is 1 3/8″ long with a 1″ outside diameter and a 7/8″ inside diameter.

Two (2) of the rubber o rings have a 2 1/4″ outside diameter with a 2″ inside diameter and are 1/8″ thick. The other two (2) rubber o rings have a 3/8″ outside diameter with a 1/4″ inside diameter and are 1/16″ thick.

The Boumatie part number is 8515773.

Additional information

Weight	.19 lbs
Dimensions	3 × 3 × 3 in
Brand	Boumatic
