Description

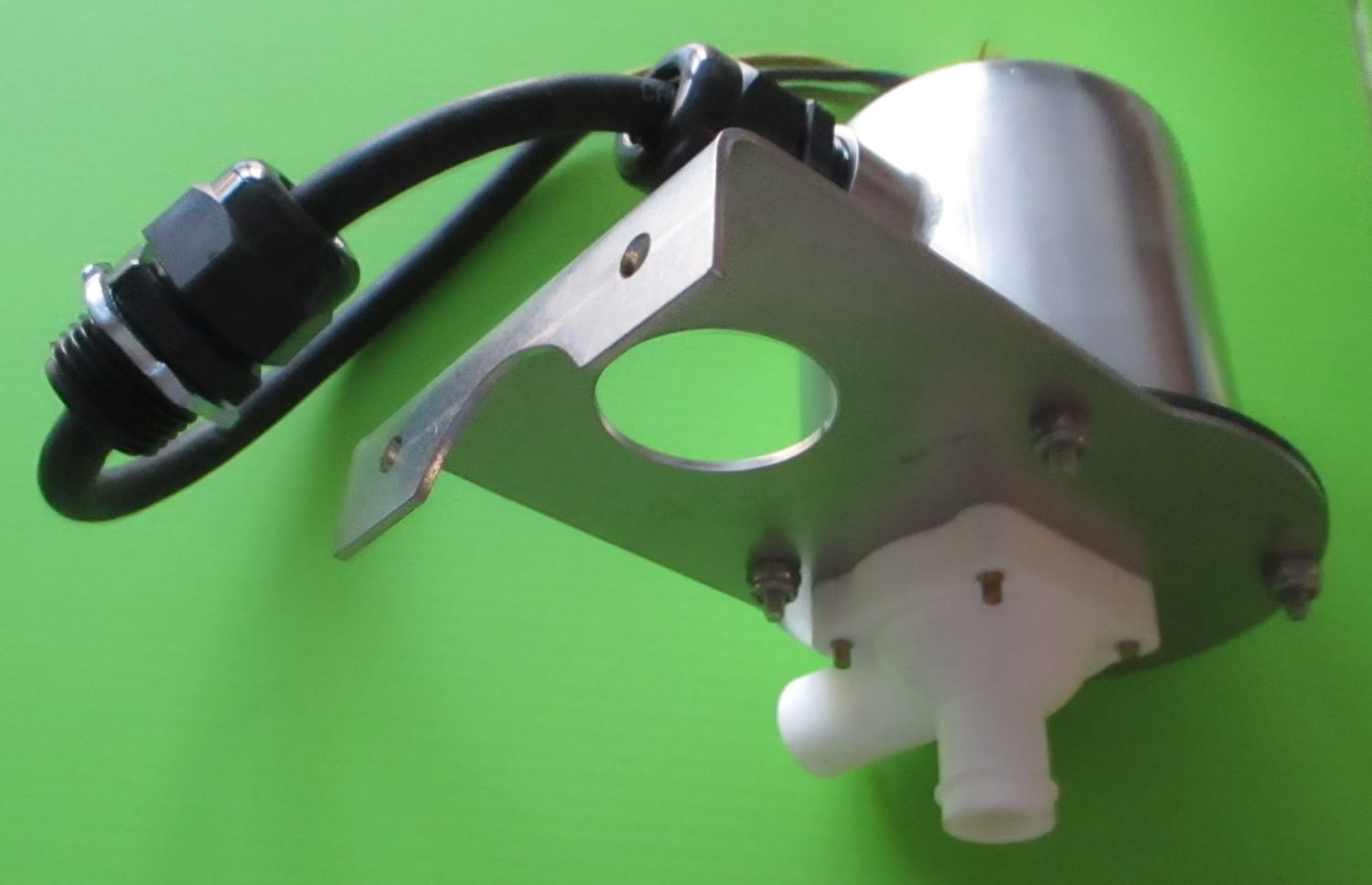

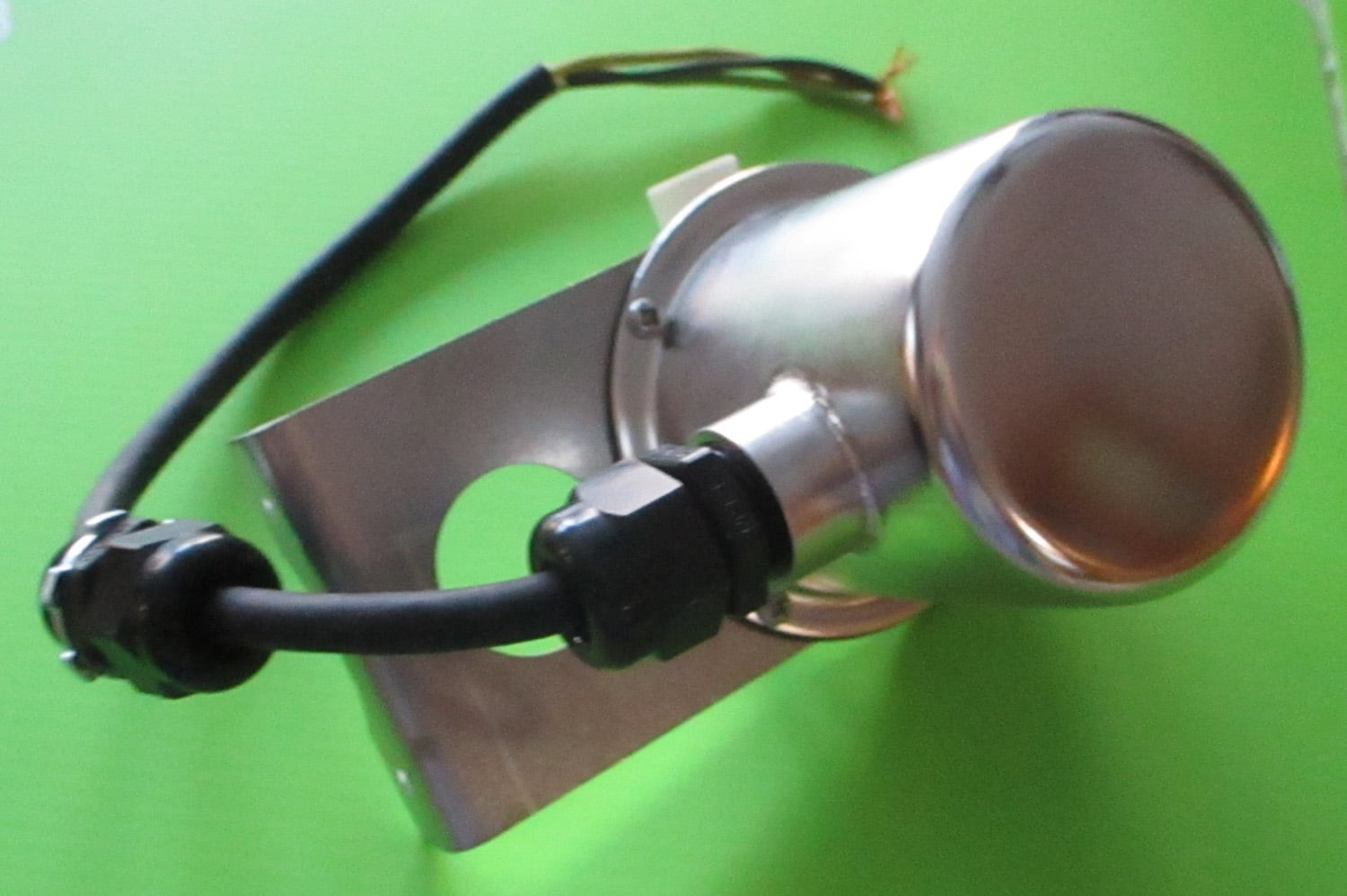

NEW This is a GEA 120-volt AC complete drain for use with a GEA bulk tank.
The stainless steel tower is 3″ high with a 2 3/4″ outside diameter.
The white plastic outlets each have an 11/16″ outside diameter. One has a 1/2″ inside diameter and the other has a 7/16″ inside diameter.
The hose is 21″ long with a 3/4″ outside diameter and a 1/2″ inside diameter.
The rubber-covered three-wire cord is 15″ long and the connecting threads on the cord are labeled NPT, (National Pipe Thread), 1/2.

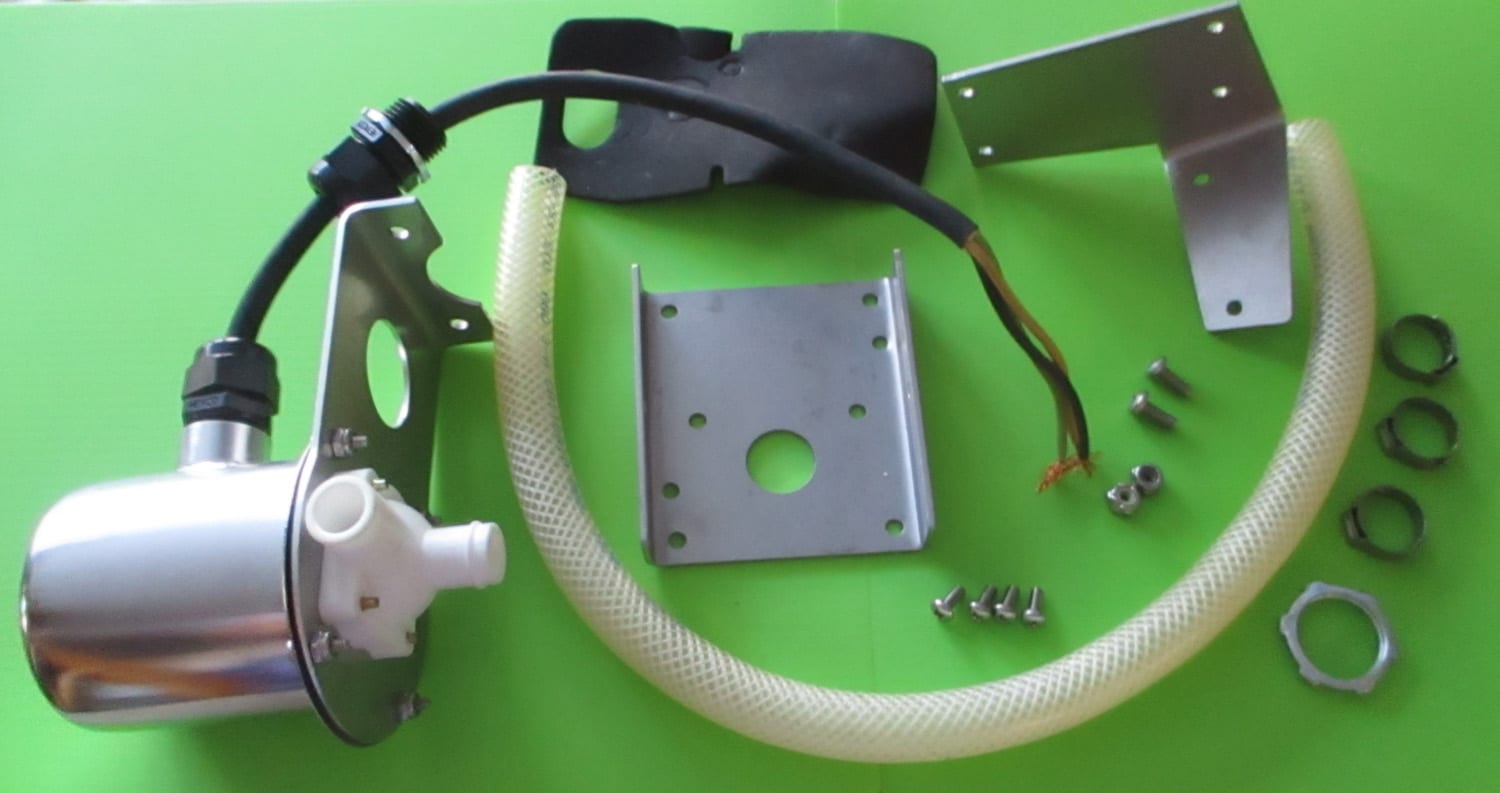

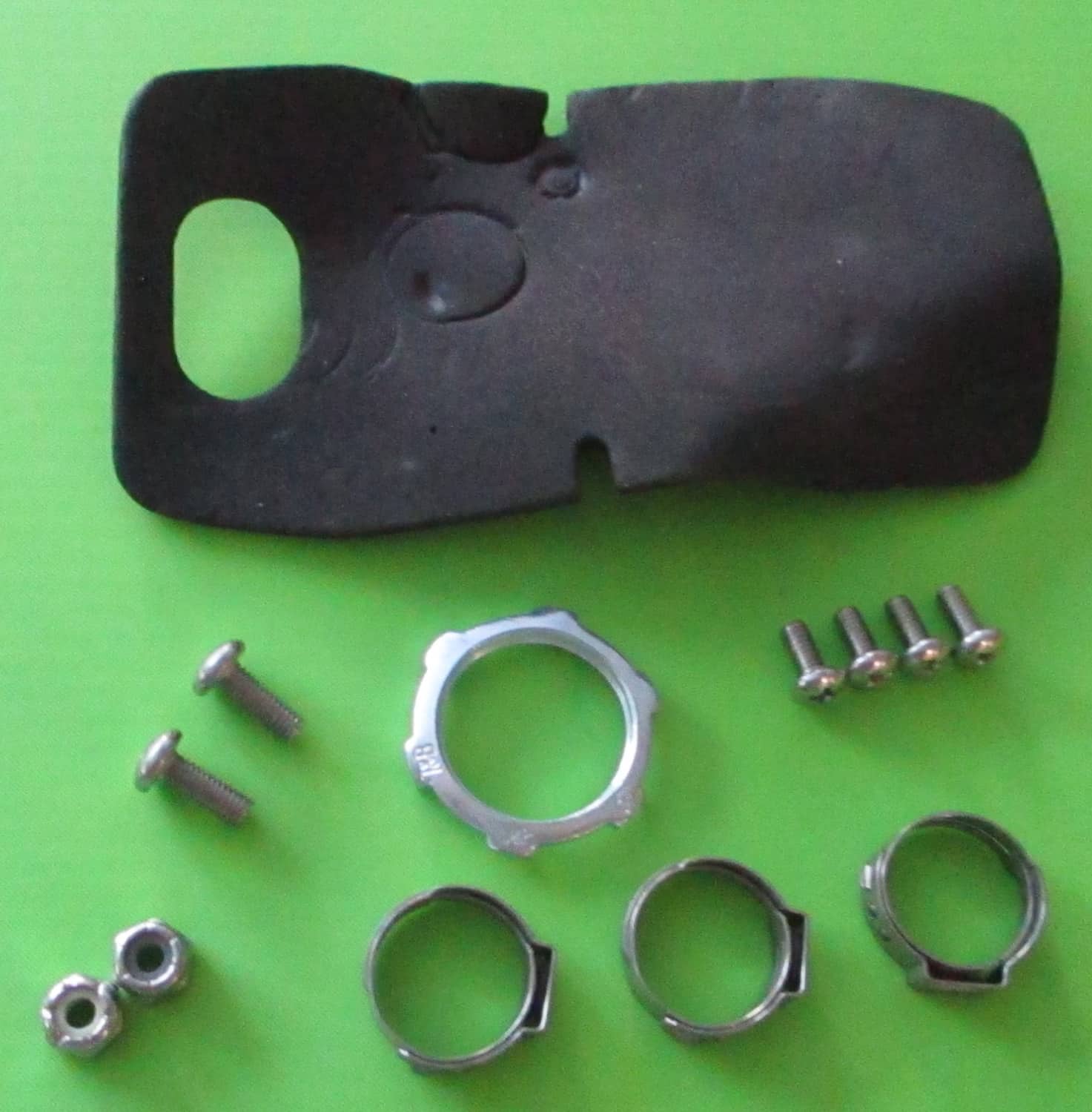

The installation kit includes: one 5 1/2″ by 3″ foam pad, three clamps with a 7/8″ outside diameter and a 3/4″ inside diameter, one lock nut with a 1 3/8″ outside diameter and a 1″ inside diameter, four 7/16″ long panhead phillips head screws with a #8-32 thread size, two 5/8″ long panhead phillips head screws with a #10-32 thread size, and two mylar lock nuts with a #10-32 thread size.

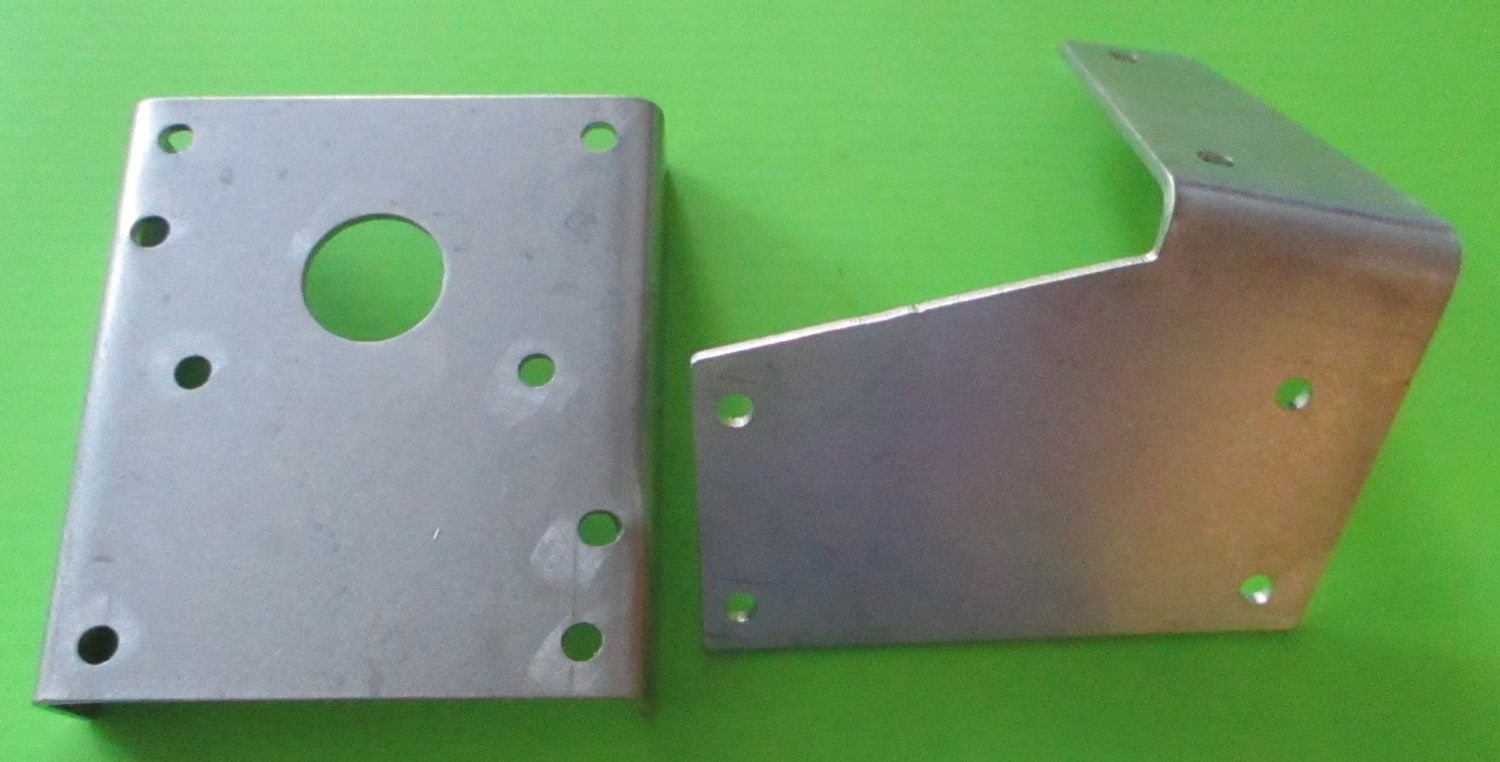

The two stainless steel brackets are approximately 3 1/2″ wide by 3 3/4″ long and 2 5/8″ wide by 4 1/8″ long.
The GEA part number is 7750-0080-160.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 10 × 7 in |
