Gauge Air Pressure Panel Mount 0-300 Psi

Gauge for Air Pressure, Panel Mount, 0-300 PSI

Name: Gauge Air Pressure Panel Mount 0-300 PSI
SKU: AIE-000-001N 95SSW
Price: 130.00 USD
Availability: InStock

$130.00

NEW Gauge for Air Pressure, Panel Mount, 0-300 PSI

1 in stock

SKU: AIE-000-001N 95SSWCategories: Pneumatic

Description

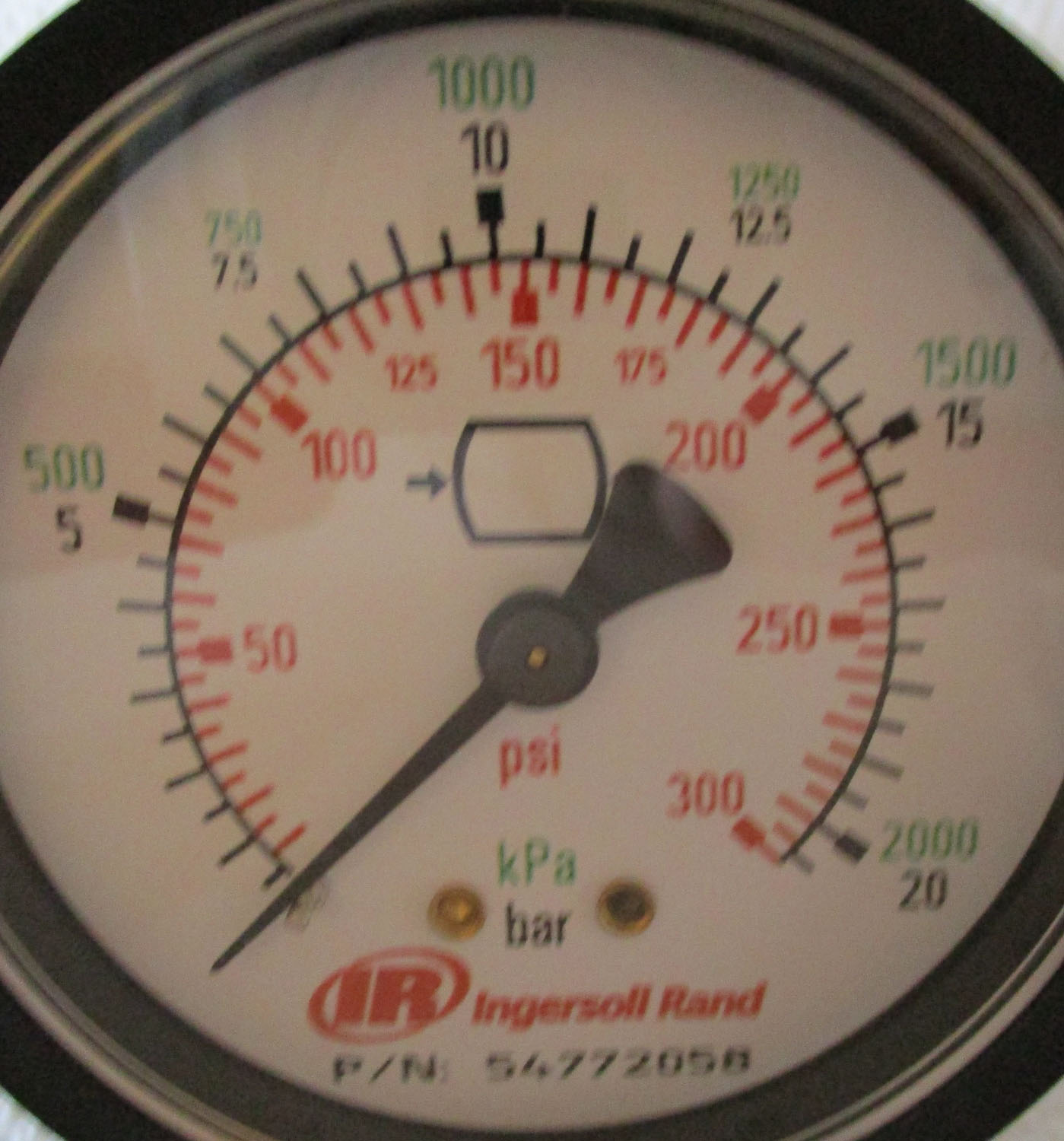

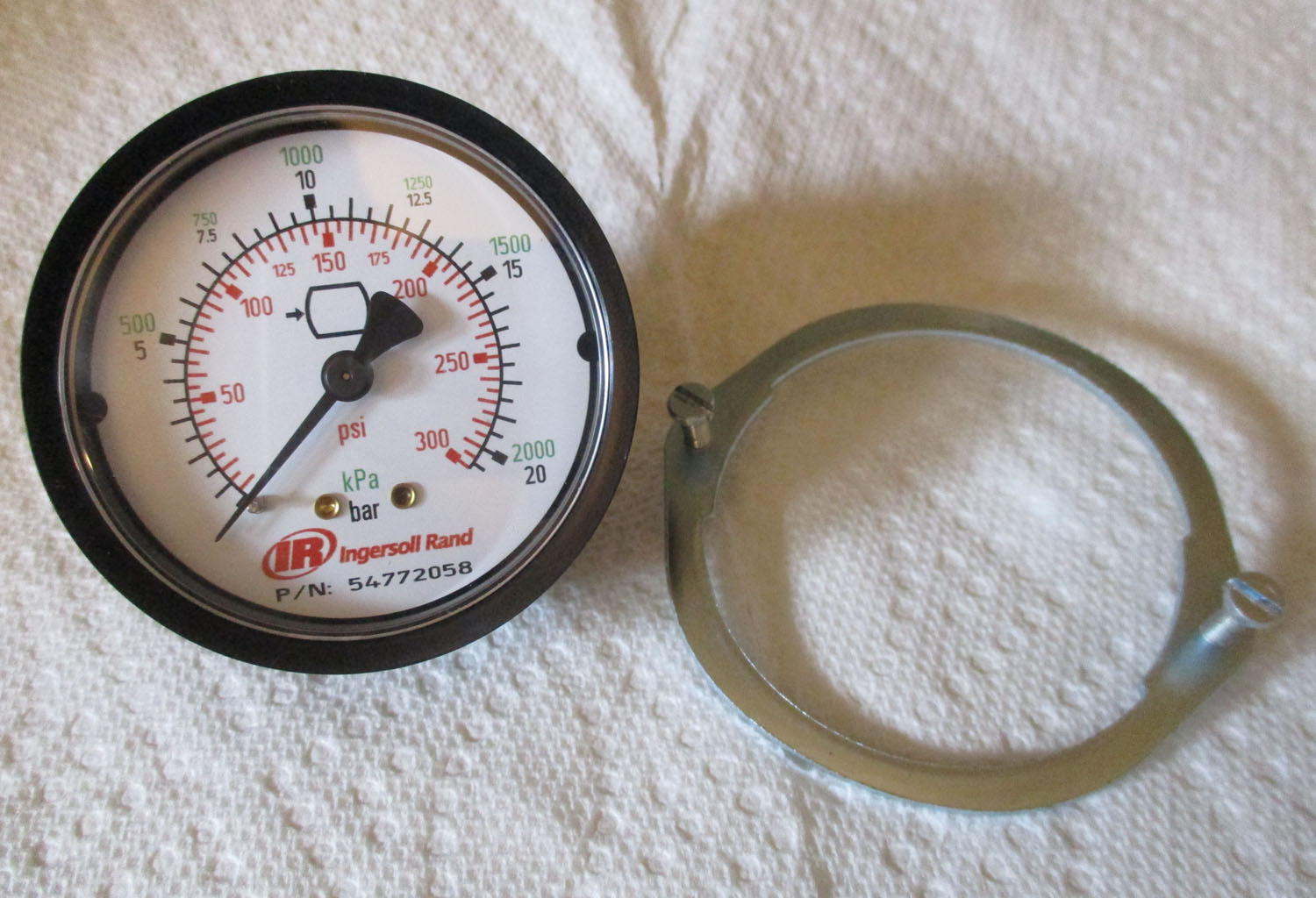

NEW This air pressure gauge is made of plastic and brass. The gauge is 2 1/4″ tall with an outer diameter of 2 1/2″. There is a small 3/16″ tall lip on the top edge that has an outer diameter of 2 11/16″. The shaft is 1″ long with an outer diameter of 1/2″. The threaded section of this shaft is 7/16″ long with 20 threads per inch. The mounting ring has an outer diameter of 3 1/8″ at the widest and an inner diameter of 2 3/8″ at the widest. The two screws are 7/8″ long with an outer diameter of 1/8″ on the threads. The head is slotted with an outer diameter of 1/4″ and 36 threads per inch. This gauge measures three scales of air pressure:

0-300 pounds per square inch

0-2000 kilo Pascals

0-20 bar

The Ingersoll Rand part number is 22053904.

Additional information

Weight	0.38 lbs
Dimensions	3 × 3 × 3 in
Brand	Ingersoll Rand
