Description

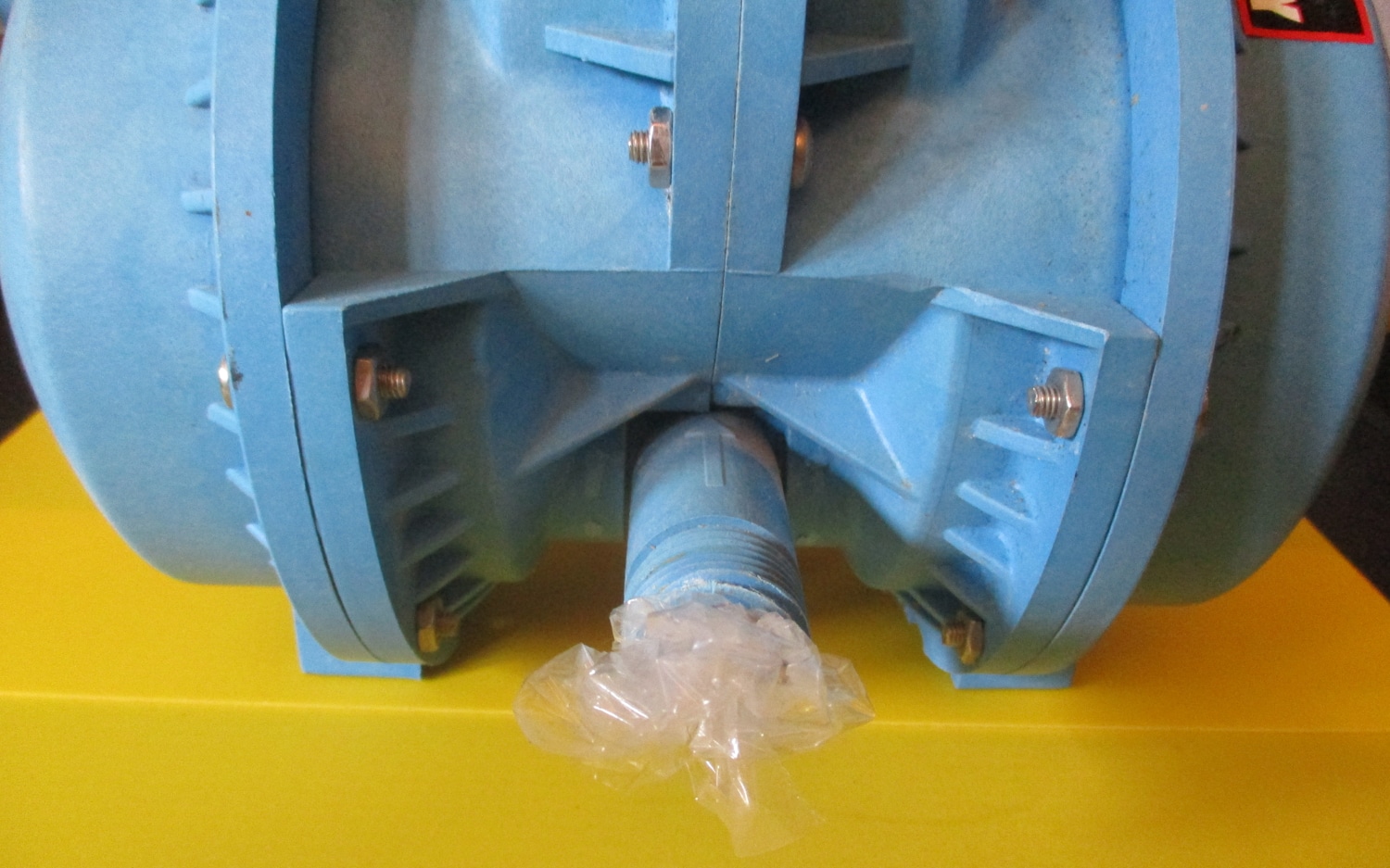

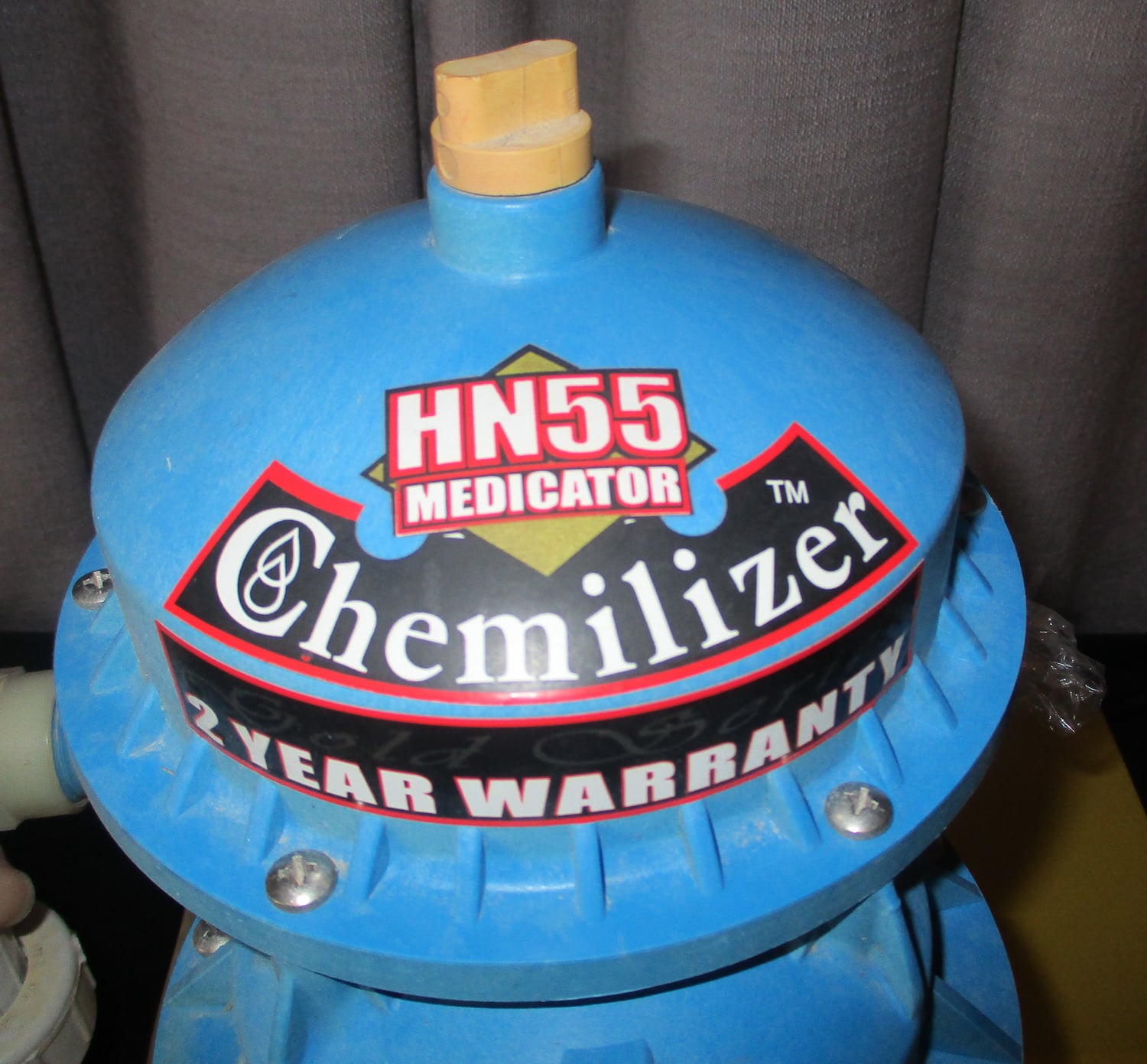

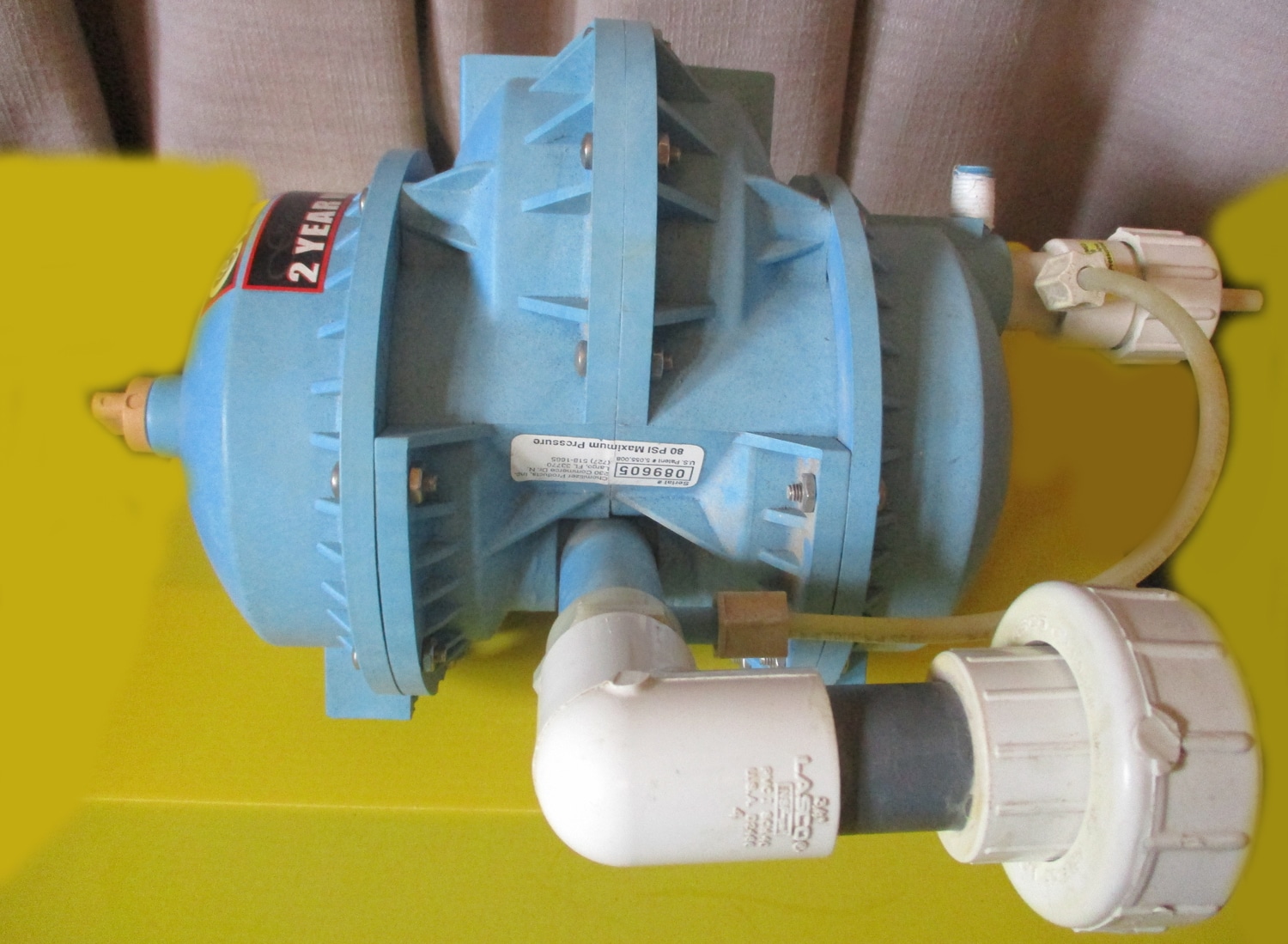

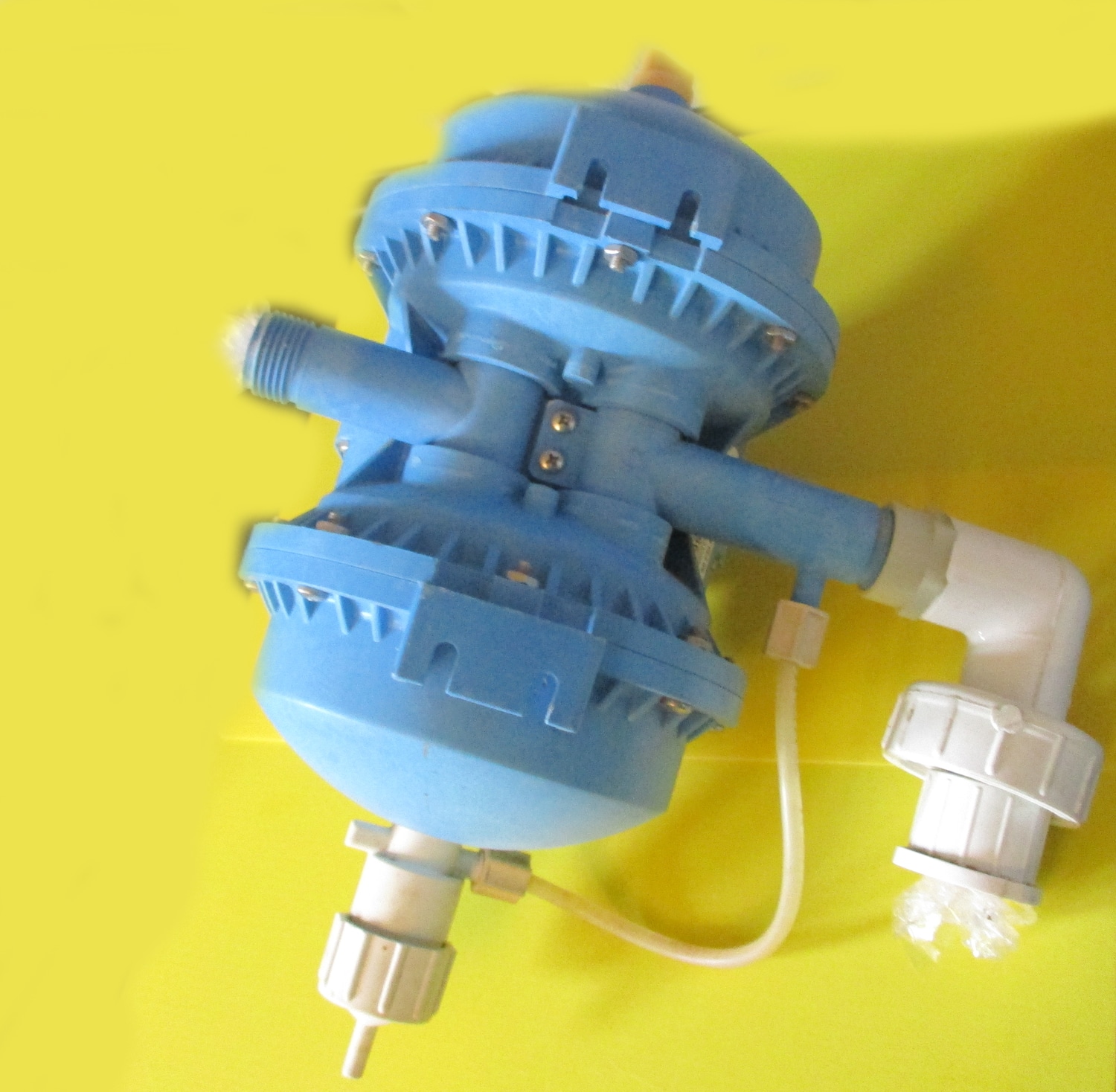

USED This HN55 medicator chemilizer is made of plastic with metal hardware.
The chemilizer is 15″ tall, 11 1/4″ wide, and has a depth of 8″.
There are two (2) nipples, left side (outlet) and right side (inlet) coming out of the chemilizer which have a 1″ outside diameter and 11/16″ inside diameter. On the outlet nipple, (left side) there is a nipple off the side which has a 3/8″ outside diameter. There is a hose attached to this nipple. This hose has a 1/4″ outside diameter.
The inlet nipple is 2 1/4″ long and the outlet nipple is 3″ long.
The elbow on the outlet side has an outside diameter of 1 5/16″, an inside diameter of 1″, and the arm length is 2″.
There is an extension piece coming out of the elbow which has a 1″ outside diameter. This extension goes into a 1 1/2″ outside diameter fitting, with a 2 1/2″ outside diameter nut. The nut has a 1 13/16″ inside diameter.

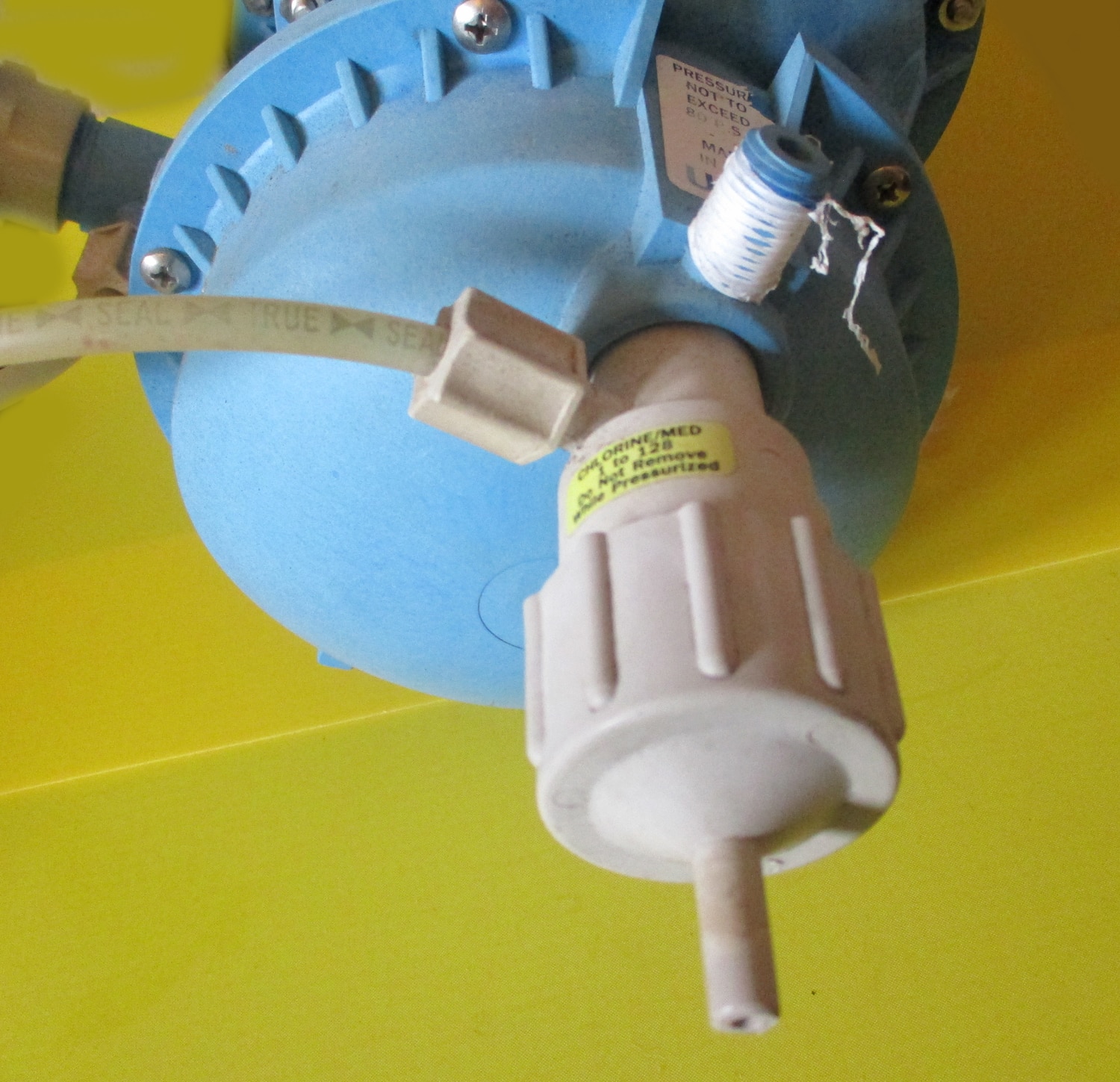

The fitting on the bottom of the chemilizer has a port on the left side which has a 3/8″ outside diameter. There is a hose attached to this port which has a 1/4″ outside diameter.
There is a cap on the bottom that has a 1 11/16″ outside diameter and a 1 5/16″ inside diameter. This cap has a rubber plug inside to seal the hole in the cap. The hole is 1/8″ inside diameter.
The manufacturer and part number are unknown.
Additional information
| Weight | 5.19 lbs |
|---|---|
| Dimensions | 12 × 9 × 16 in |
| Brand |
