Description

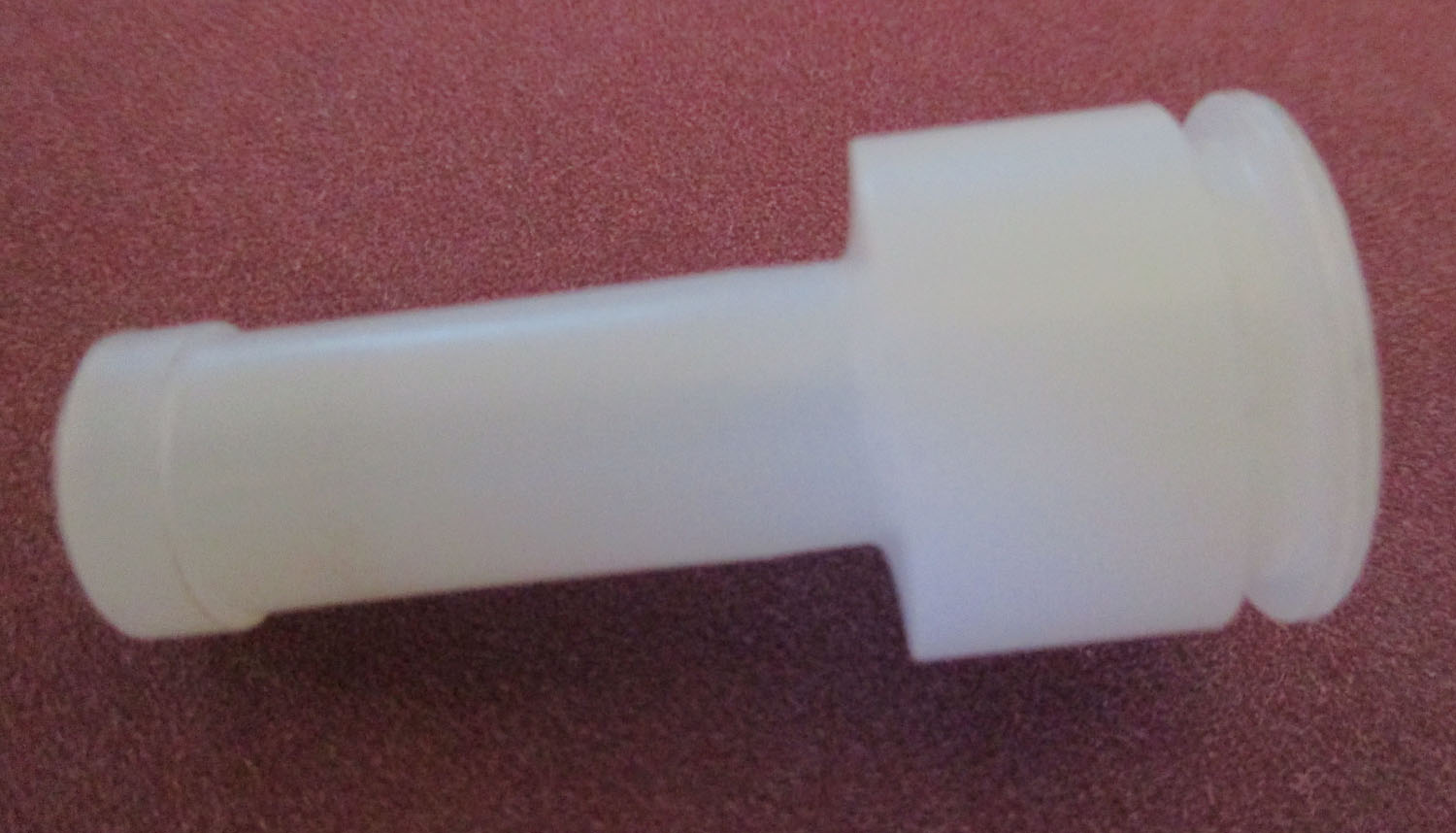

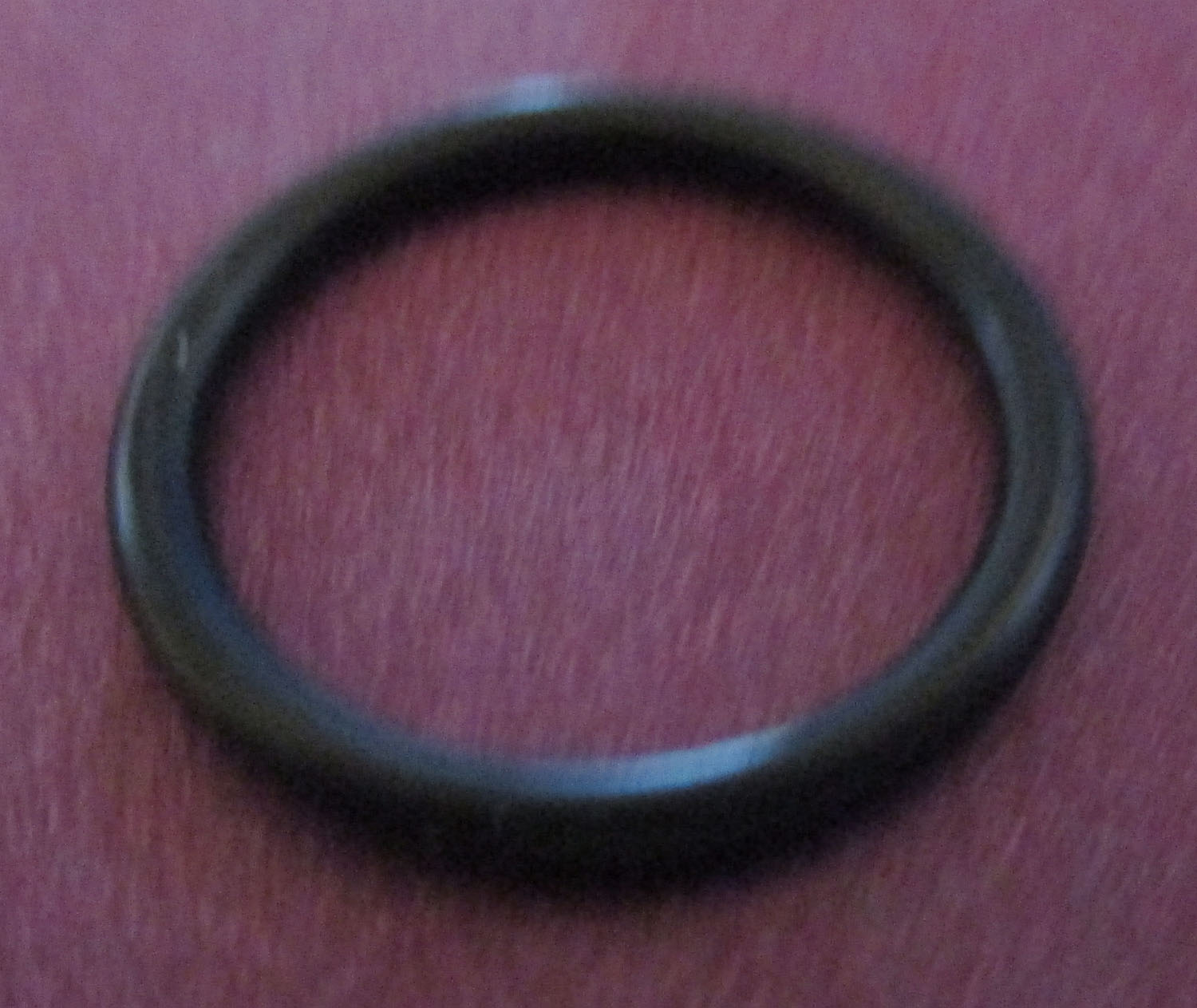

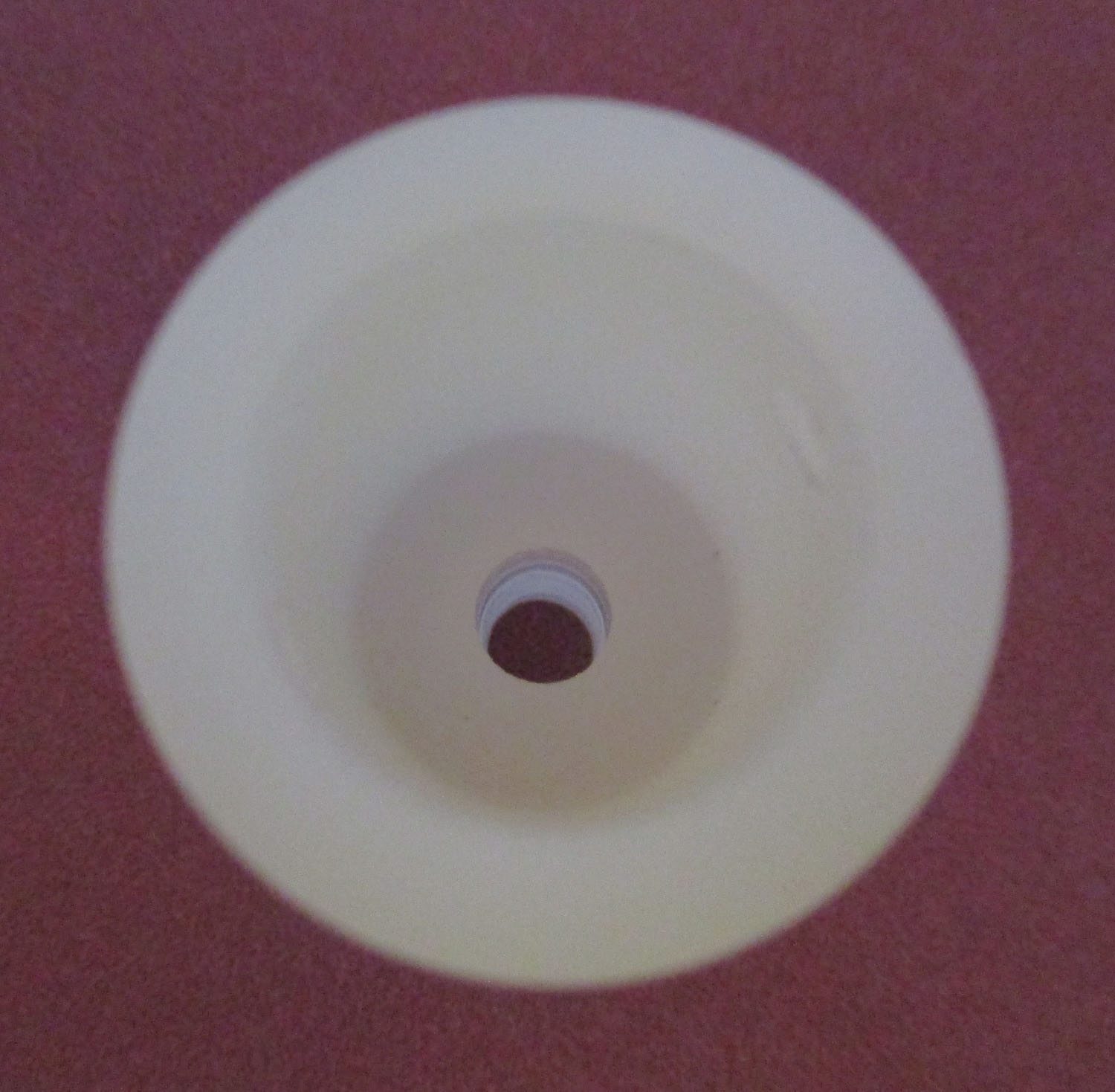

NEW This flow orifice housing assembly for the cleaning of tanks is made of plastic and rubber. The assembly is made up of four different parts. The large nozzle measures 1 15/16″ long and has an outer of 1″ with an inner diameter of 11/16″. The two small holes in the side have an inner diameter of 1/8″. The narrow end of this piece is 3/4″ long, has an outer diameter of 3/8″, and an inner diameter of 1/4″. The small nozzle is 1 1/2″ long with an outer diameter of 11/16″ and an inner diameter of 1/4″. The narrow end of this piece is 1″ long with an outer diameter of 3/8″ and an inner diameter of 1/4″. The two small pins are 5/16″ long. The o-ring has an outer diameter of 11/16″, an inner diameter of 9/16″, and is 1/16″ thick.
The Mueller part number is 8823023.
Additional information
| Weight | 0.13 lbs |
|---|---|
| Dimensions | 3 × 2 × 2 in |
| Brand |
