Description

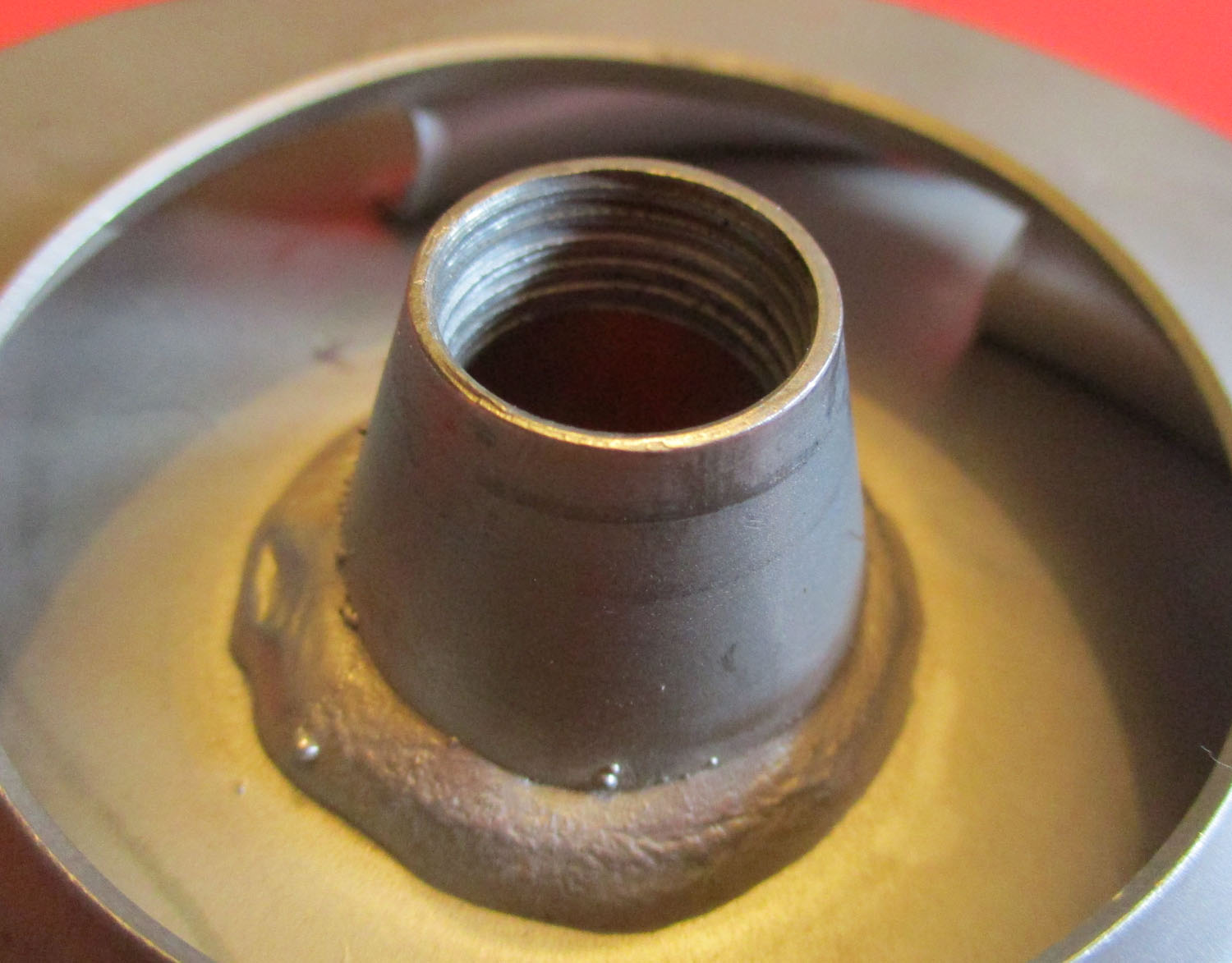

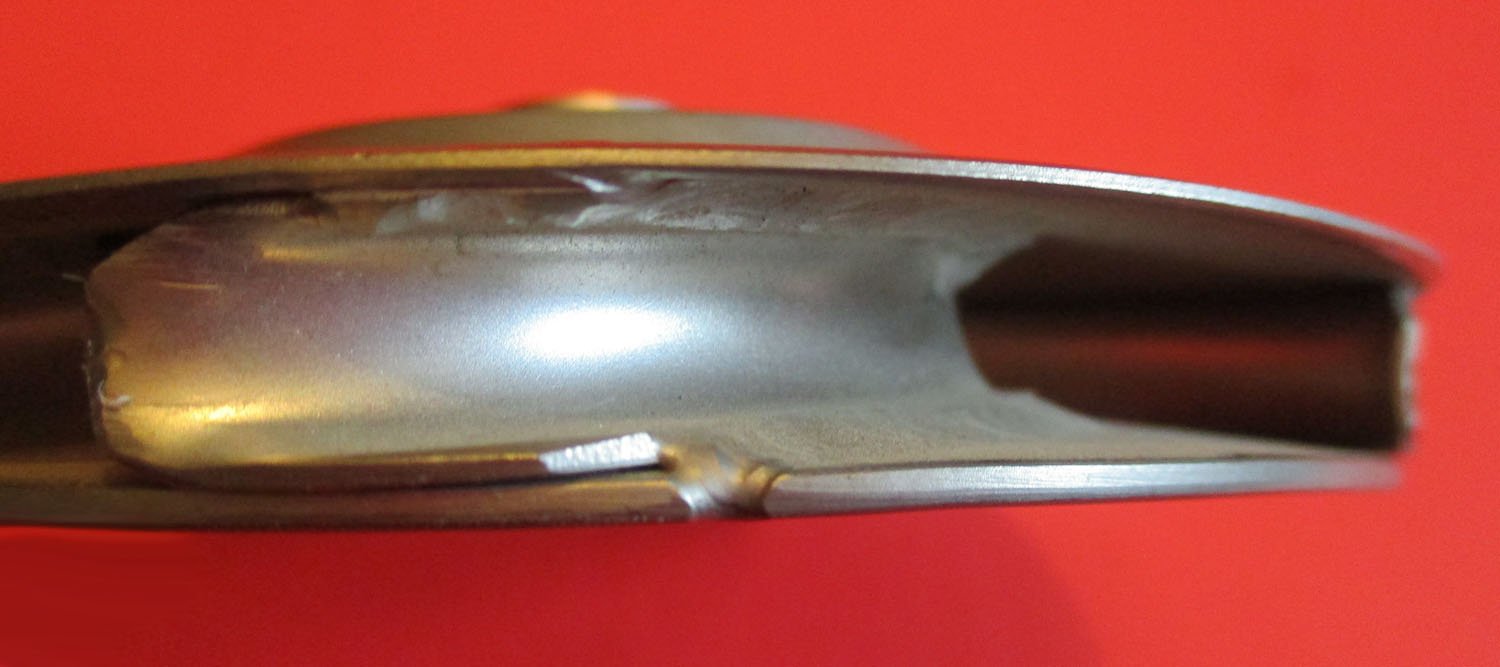

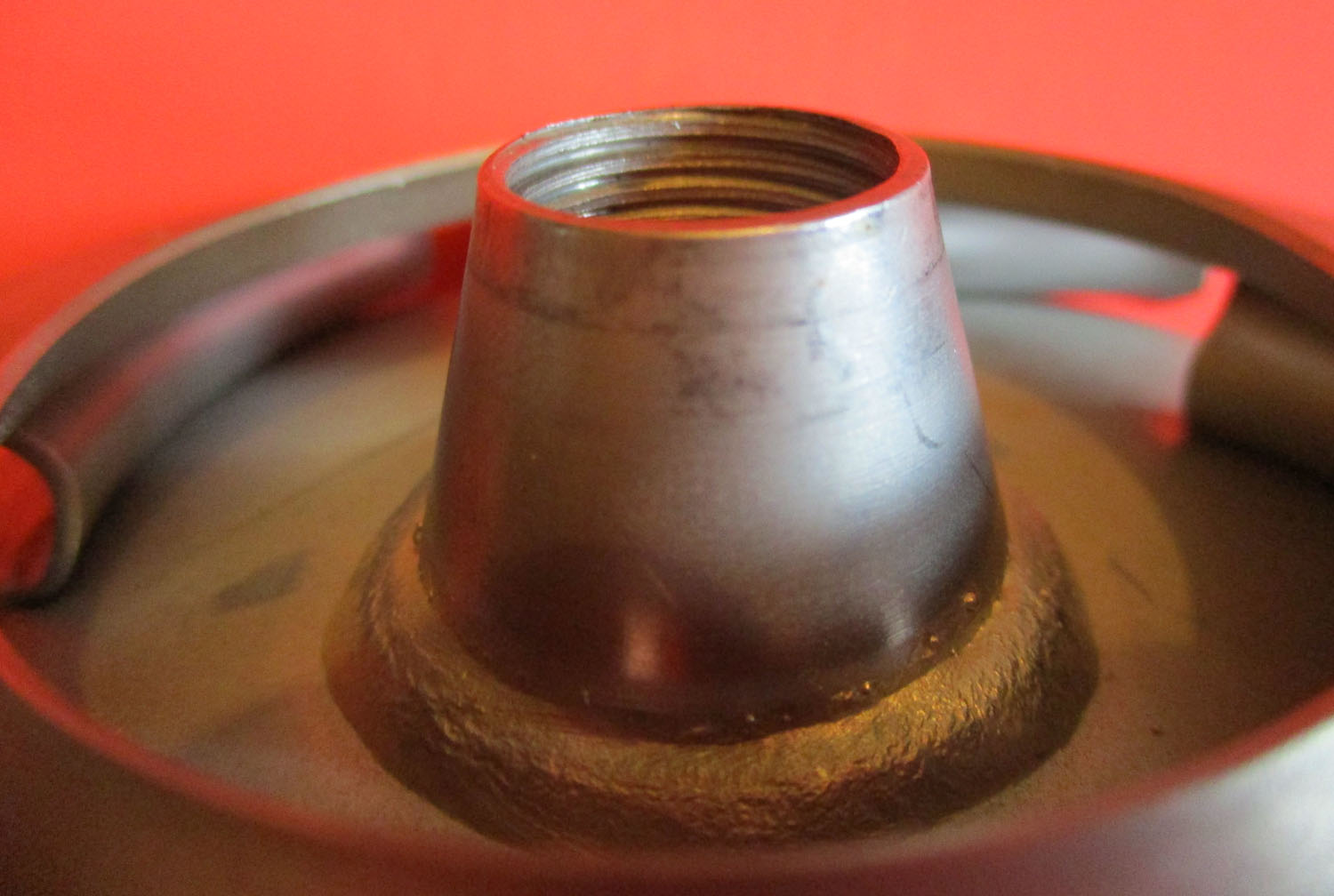

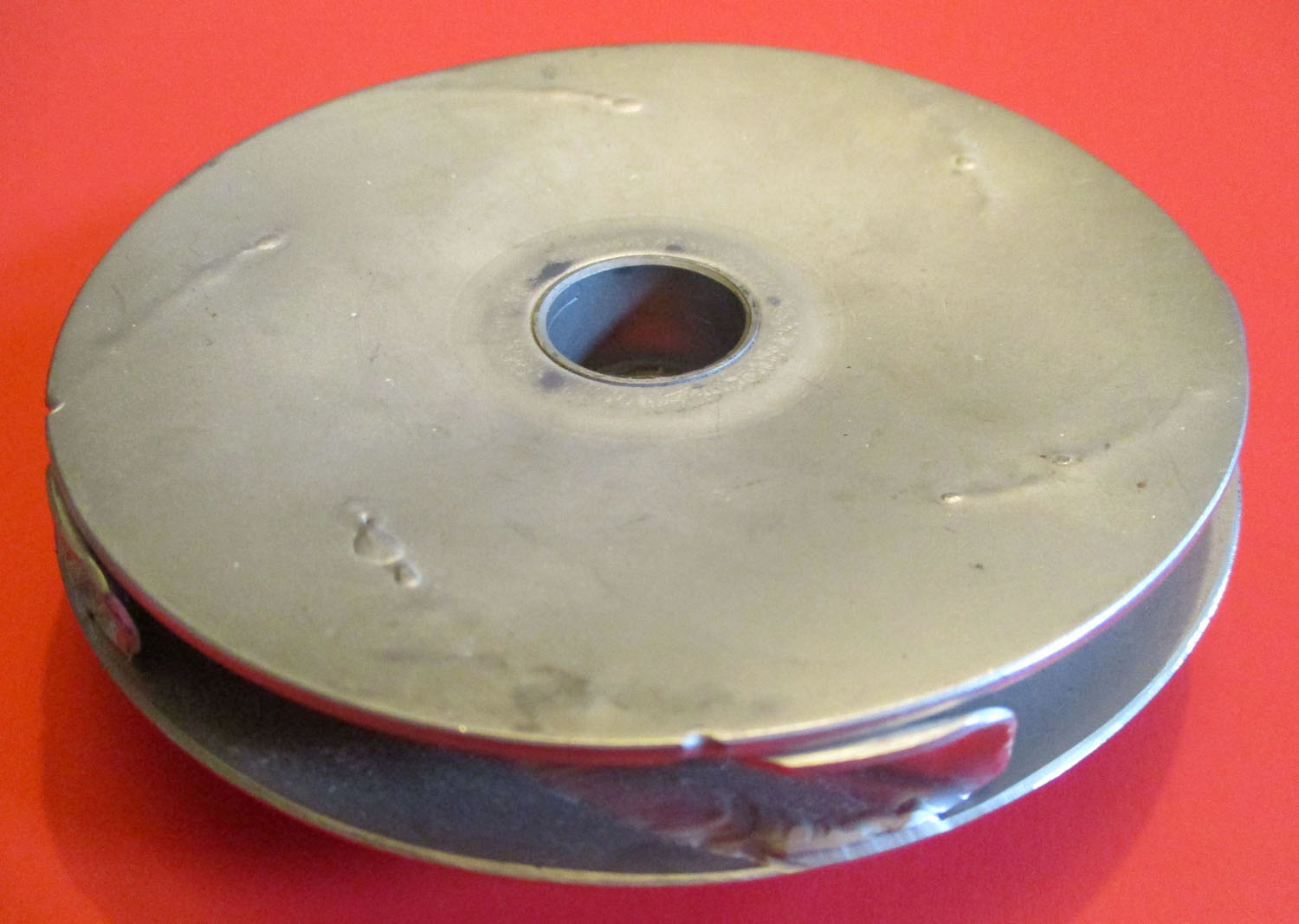

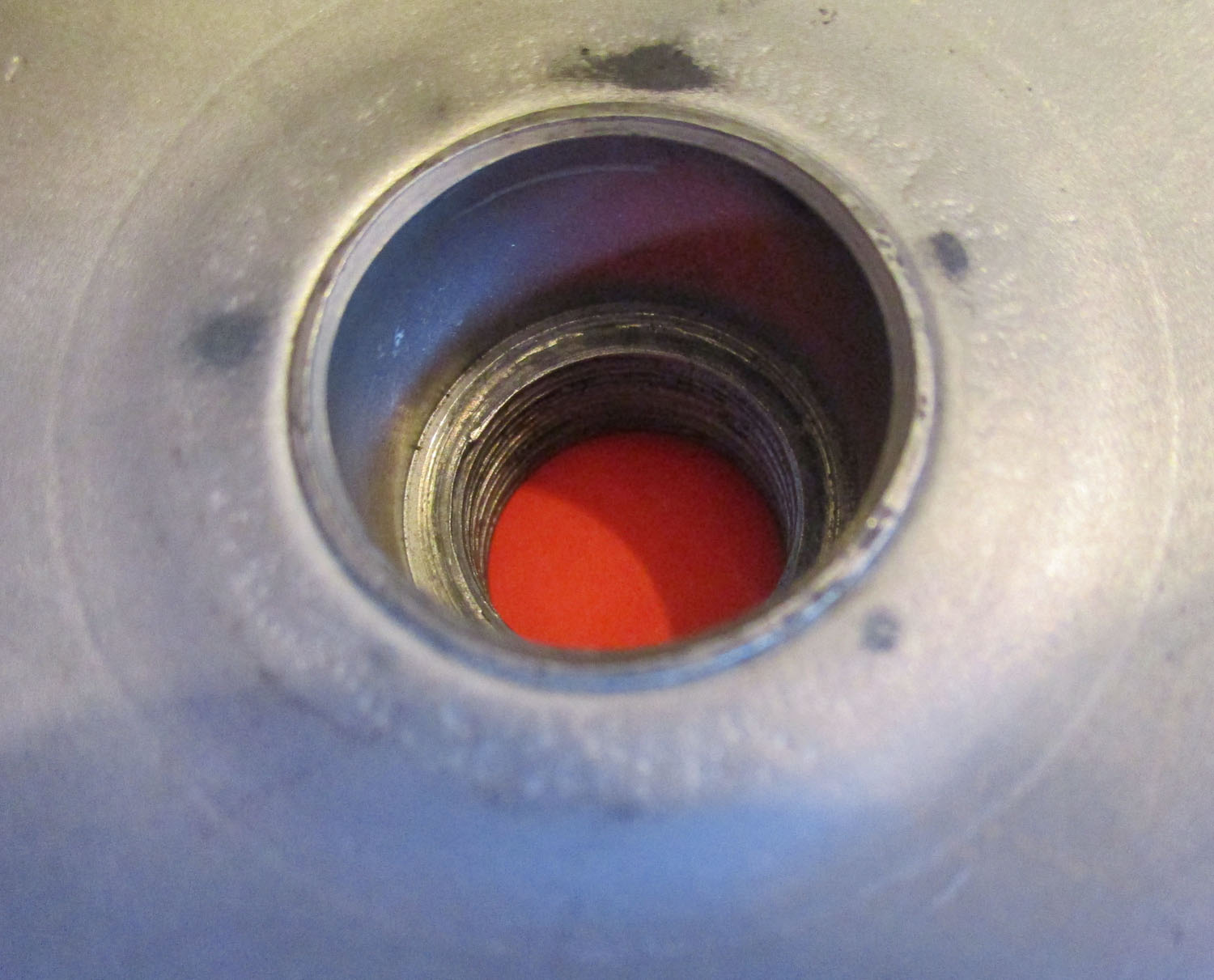

NEW This wash pump impeller is made of stainless steel. The impeller has an outer diameter of 4 7/16″ and it is 1 1/8″ thick. The impeller blades are sandwiched between two plates. The bottom plate is slightly concave and has an outer diameter of 4 7/16″ and a hole for the shaft that is 3/4″ non-threaded. The top plate has a 4 7/16″ outer diameter with an inner diameter of 2 1/8″ and a hole for the shaft. The hole for the shaft on this end is threaded with a thread size of 5/8-18. The five fins are 1 7/8″ long and 7/8″ wide.
The Boumatic part number is 4015037.
Additional information
Weight | 0.65 lbs |
---|---|
Dimensions | 6 × 6 × 3 in |
Brand |
