Description

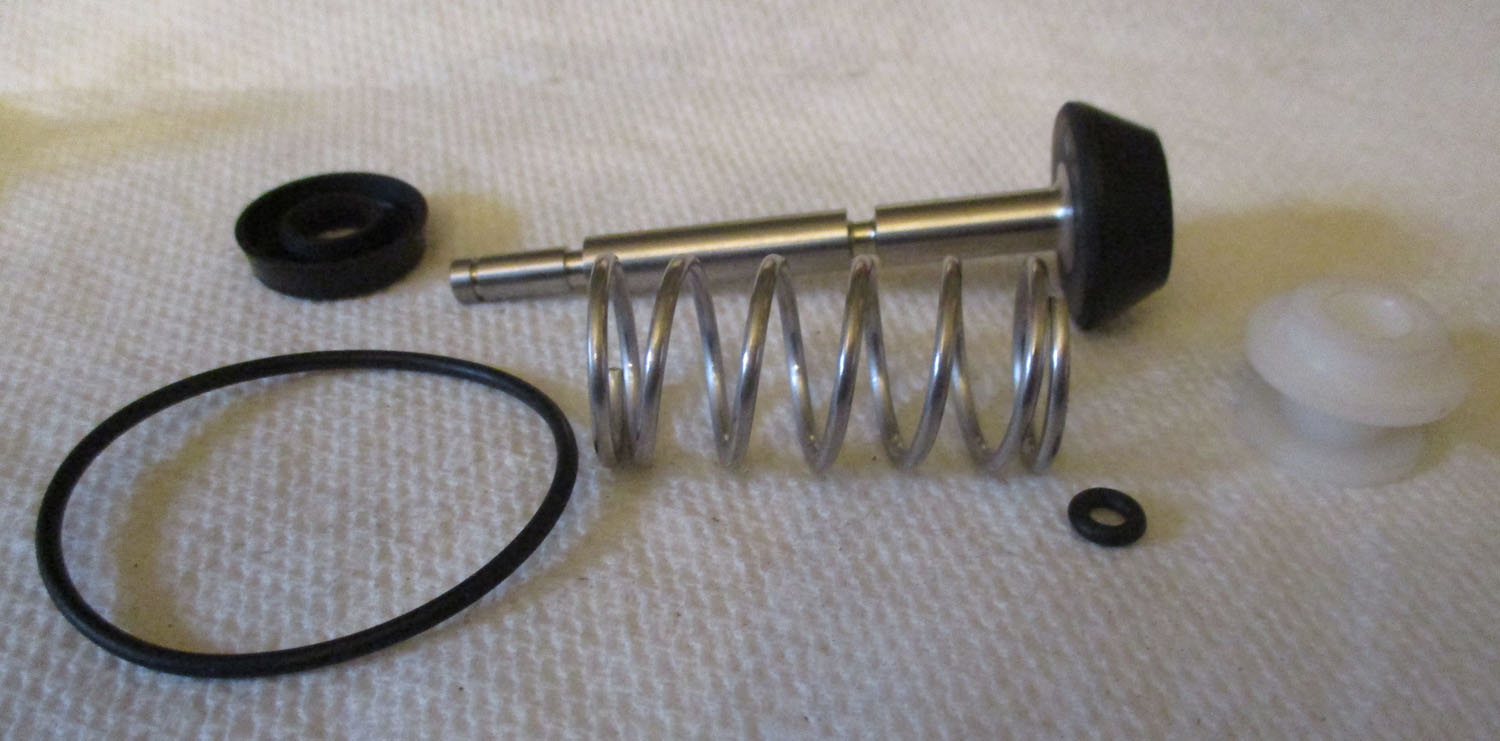

This kit for a 1500h sensor with shut off is made of plastic, metal, and rubber. The measurements are as follows:
The base measures 3/16″ thick and 1 1/2″ tall with an outer diameter of 3/16″.
The shaft of this base has an outer diameter of 1/2″-11/16″ with the fins included–and an inner diameter of 1/4″.
The three mounting holes have an inner diameter of 3/16″.
The metal shaft measures 2 3/4″ long with the outer diameter being 1/4″ on the bottom and 3/16″ on top.
The rubber piece on the end has an outer diameter of 7/8″ that tapers to 5/8″ on the bottom.

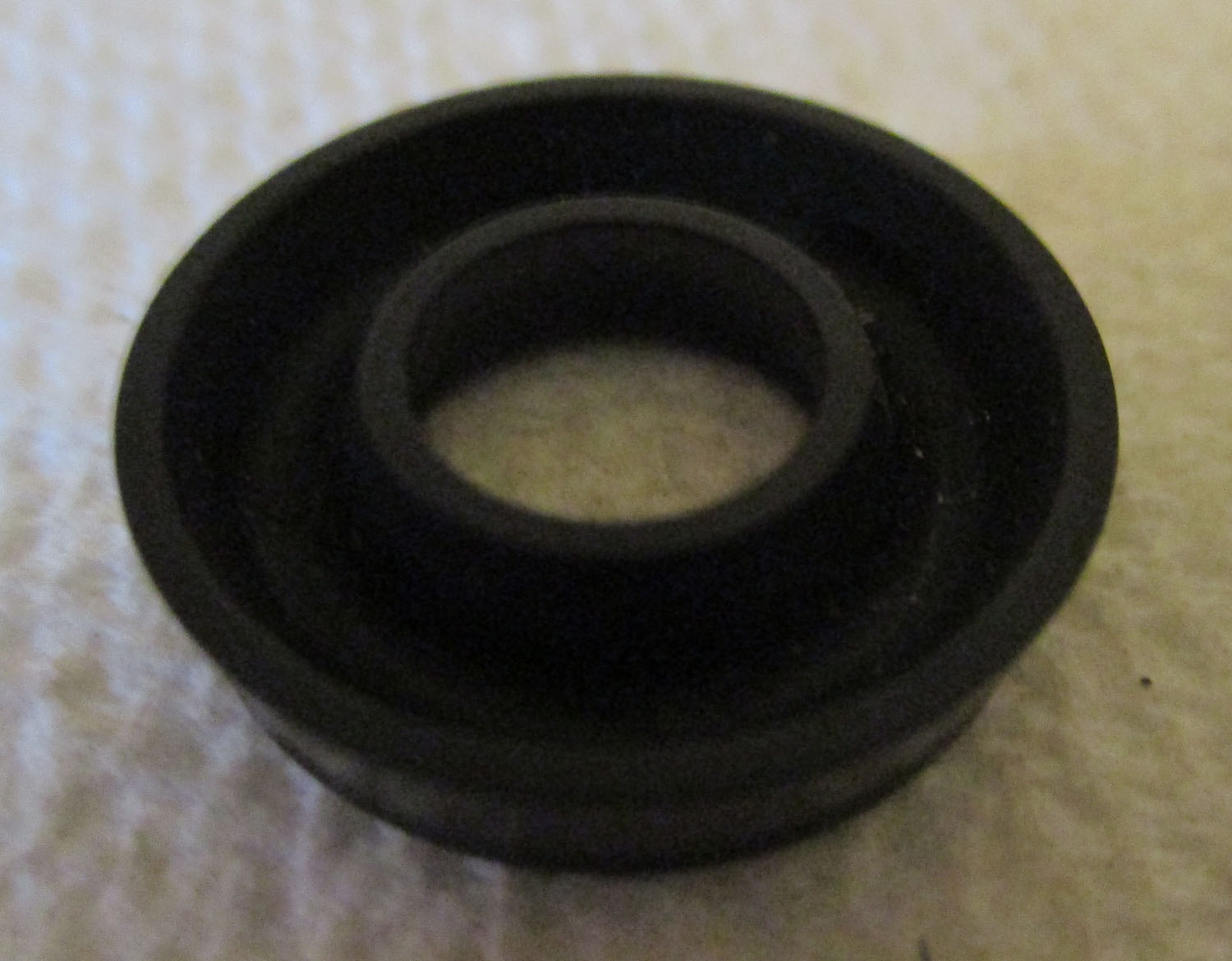

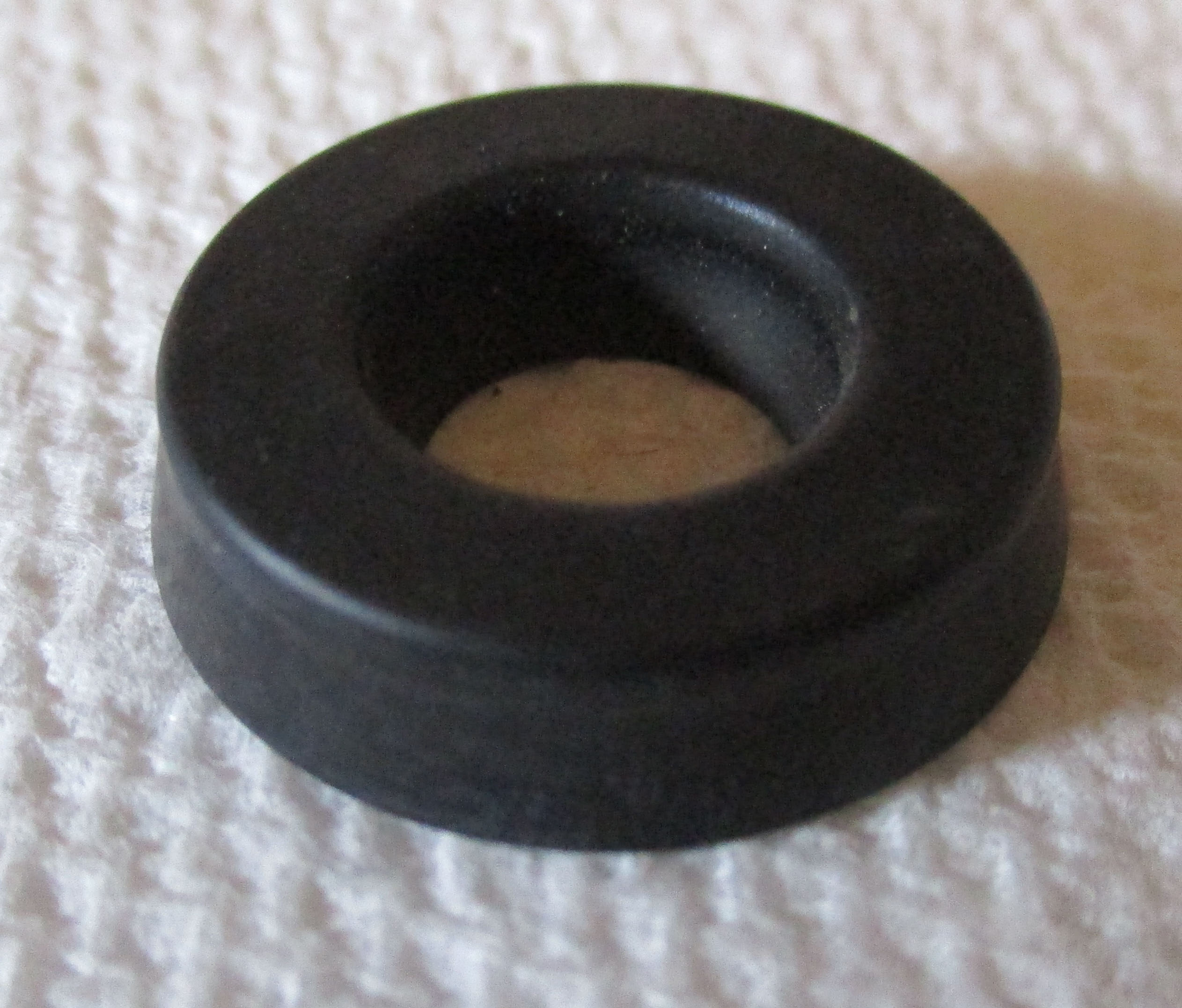

The small rubber gasket is 1/16″ wide, 3/16″ thick, and has an outer diameter of 3/4″. The groove on the bottom of this gasket is 1/8″ wide.
The thin rubber gasket measures 1/16″ wide, 1/16″ thick with an outer diameter of 1 5/8″.
The tiny o-ring has an outer diameter of 1/4″, an inner diameter of 1/8″, and is 1/16″ thick.
The white plastic spacer is 1/2″ tall, has various outer diameters of 3/8″ to 3/4″, and an inner diameter of 3/16″.
The Surge part number for this kit is 7750-0036-740.
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| Brand |
