Description

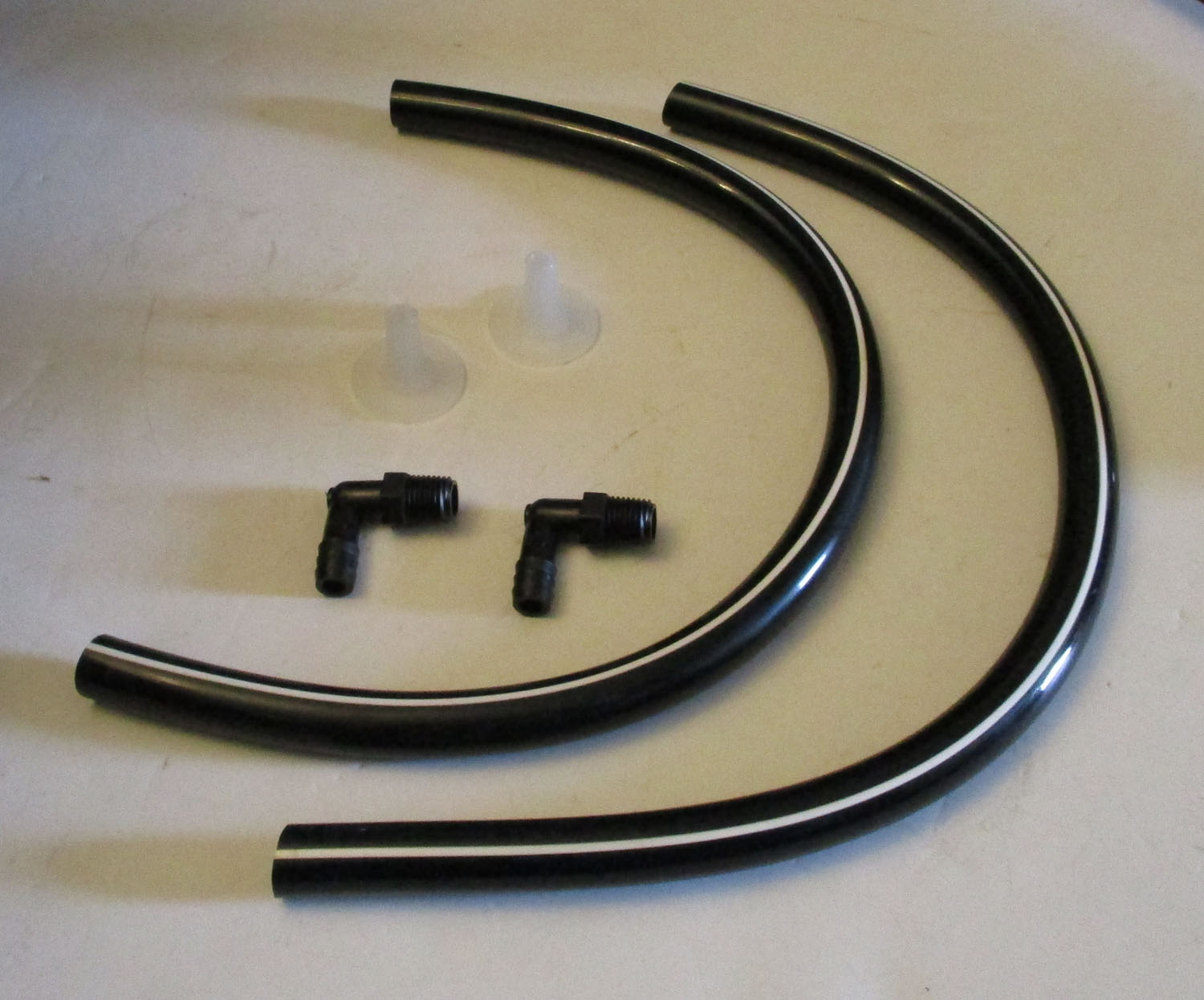

NEW This rubber and plastic fresh air repair kit fit both a Bou-Matic and Puls-Matic pulsator. It also works with a Westfalia pulsator, but the kit does not include the cover required for Westfalia.

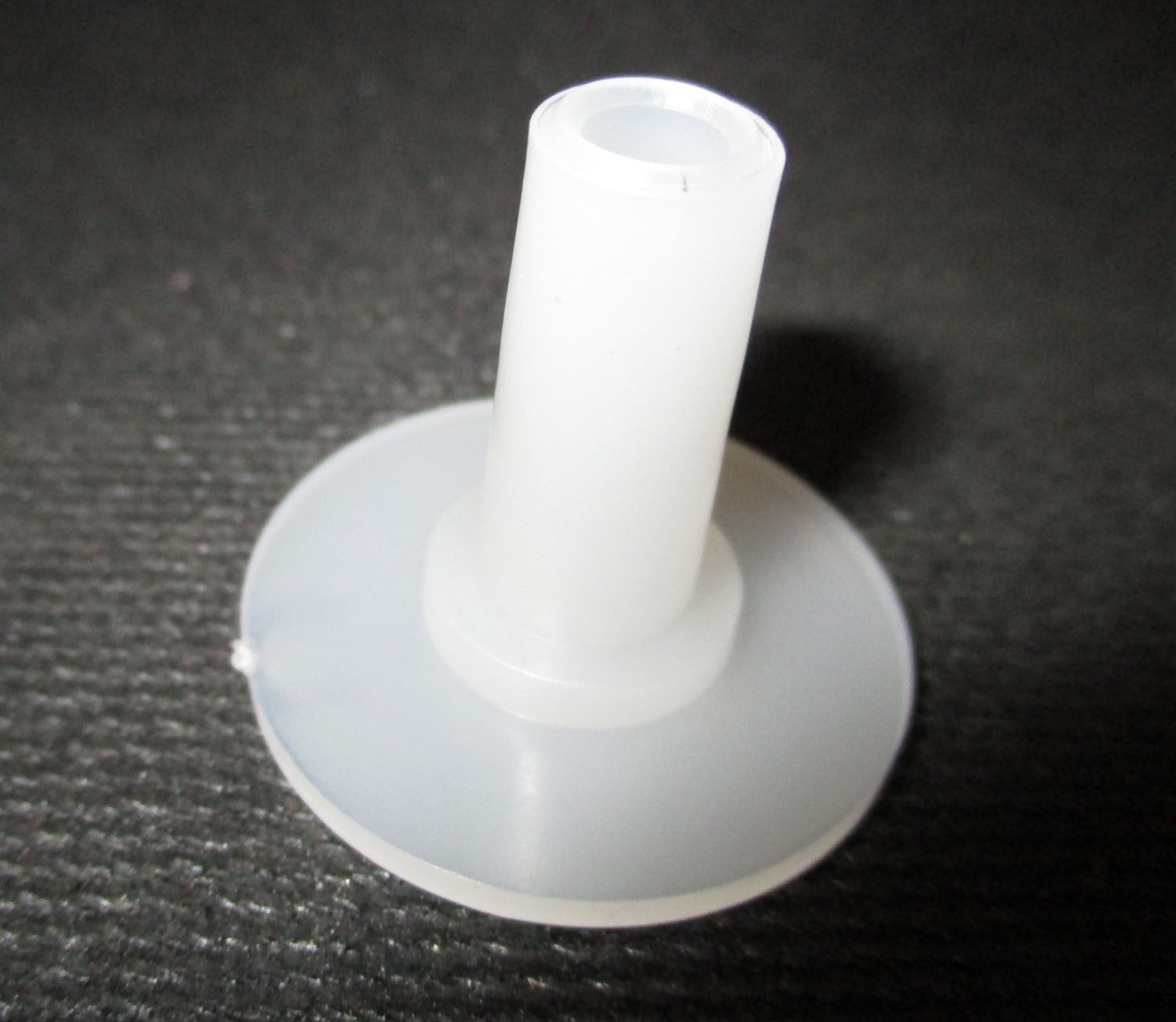

The white plastic piece measures 1″ tall. One side has an outer diameter of 1 3/16″ with an inner diameter of 1/8″, and the other side has an outer diameter of 7/16″ with an inner diameter of 1/8″.

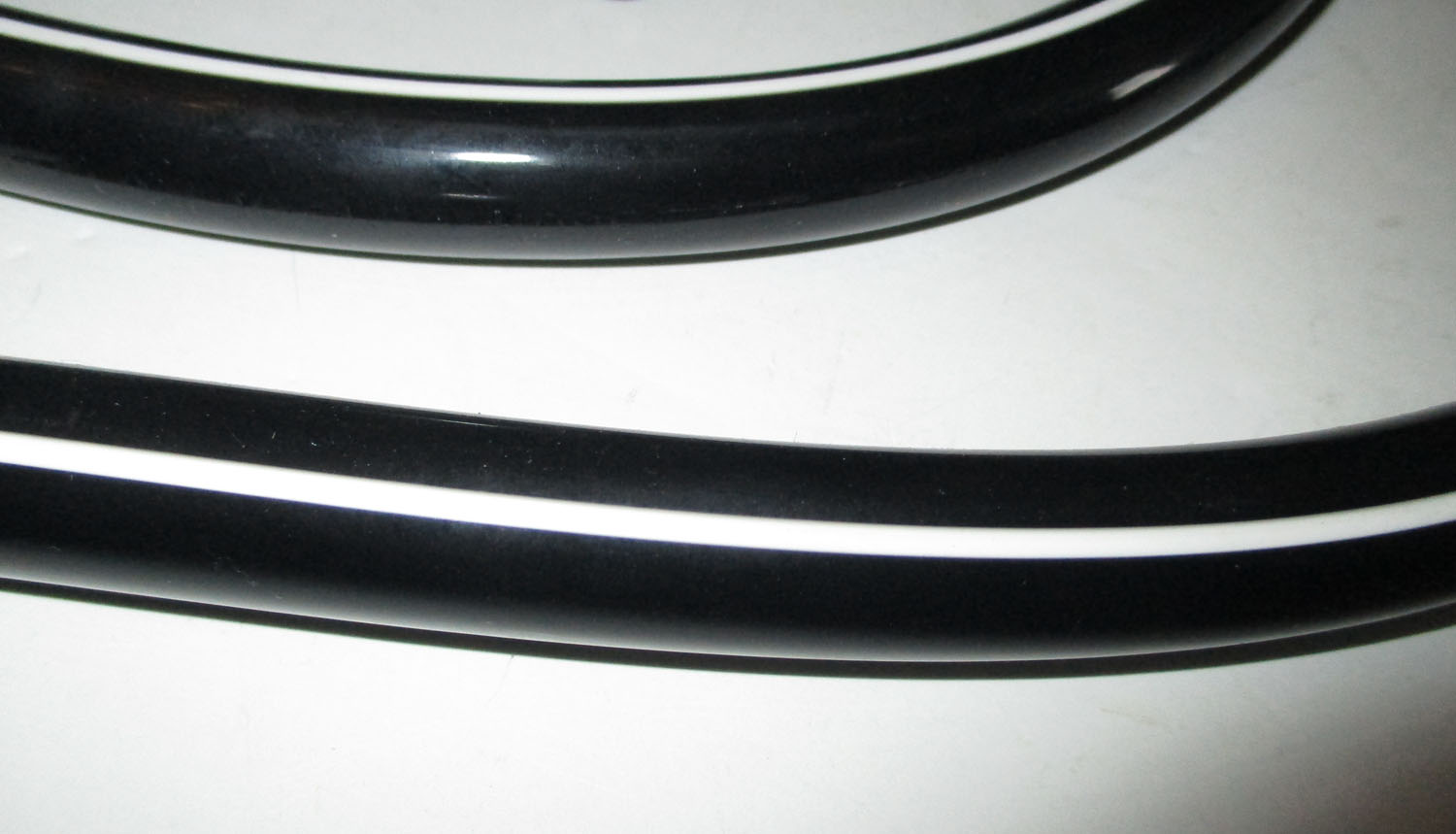

The tubes measure 18 1/4″ long, and 18 1/2″ long. They have an outer diameter of 9/16″ with an inner diameter of 5/16″.

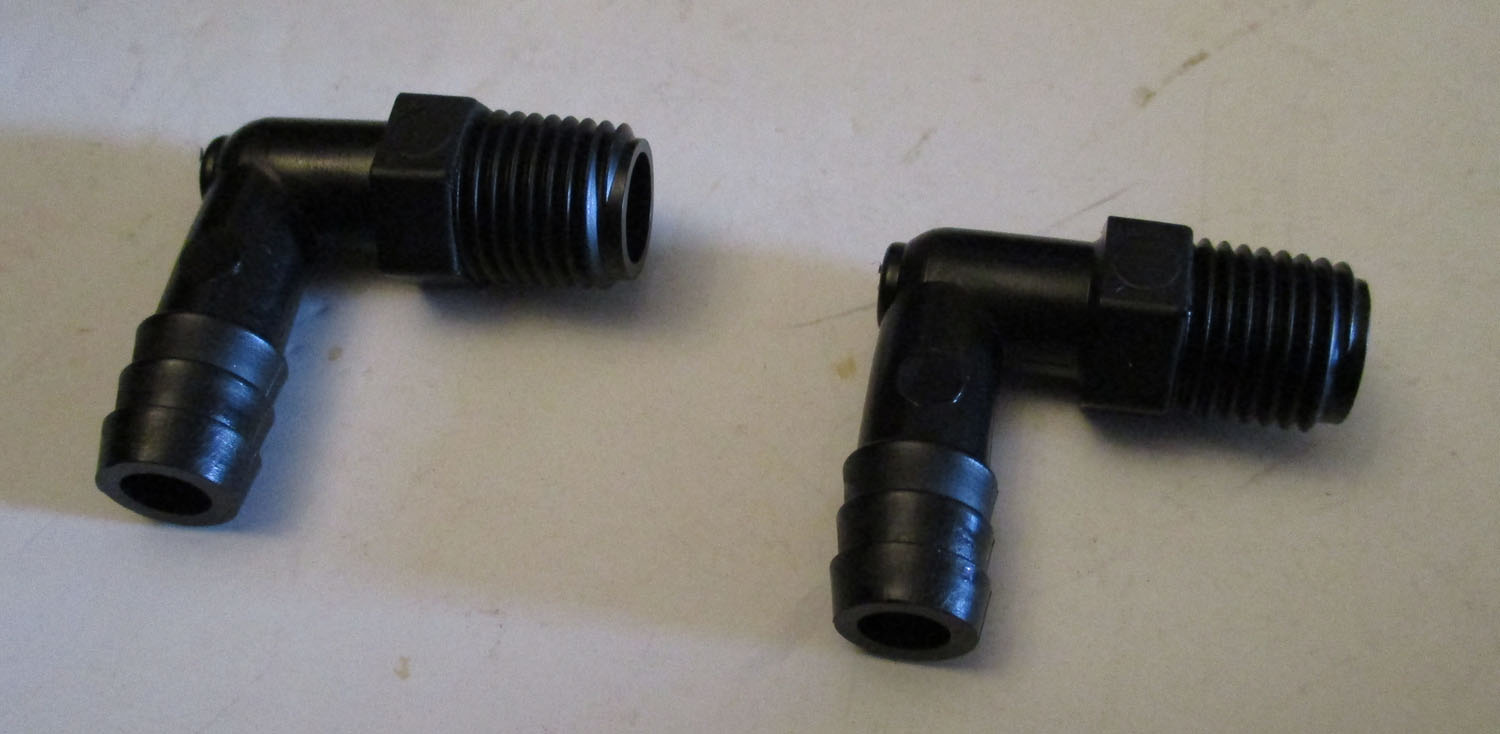

The black piece threaded end has an outer diameter of 3/8″ with an inner diameter of 1/4″. The barbed end has an outer diameter of 5/16″ with an inner diameter of 3/16″. Also on the black piece is 1/4.
The Schlueter manufacturer number is 23079.
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 19 × 2 × 2 in |
| Brand |
