Description

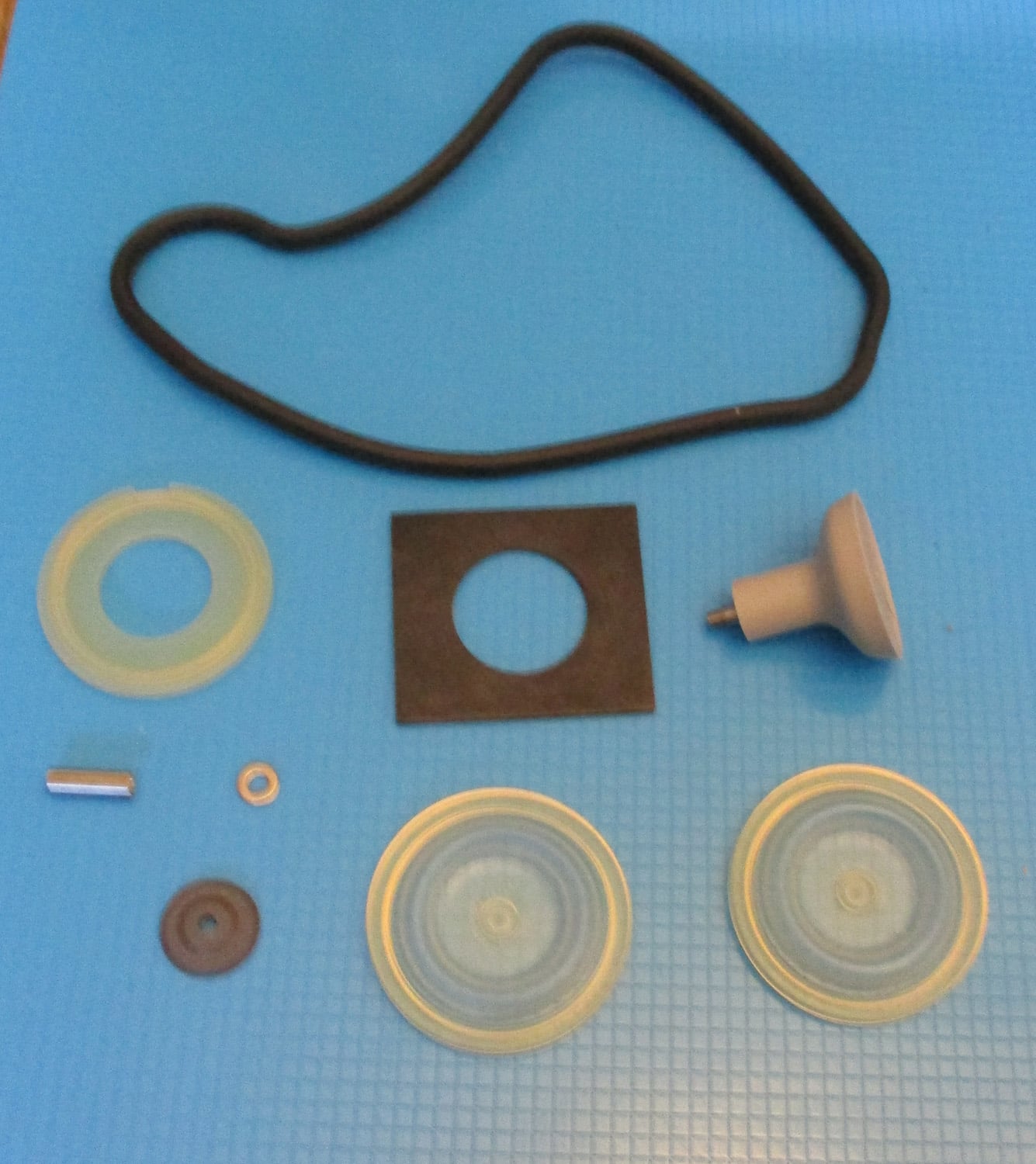

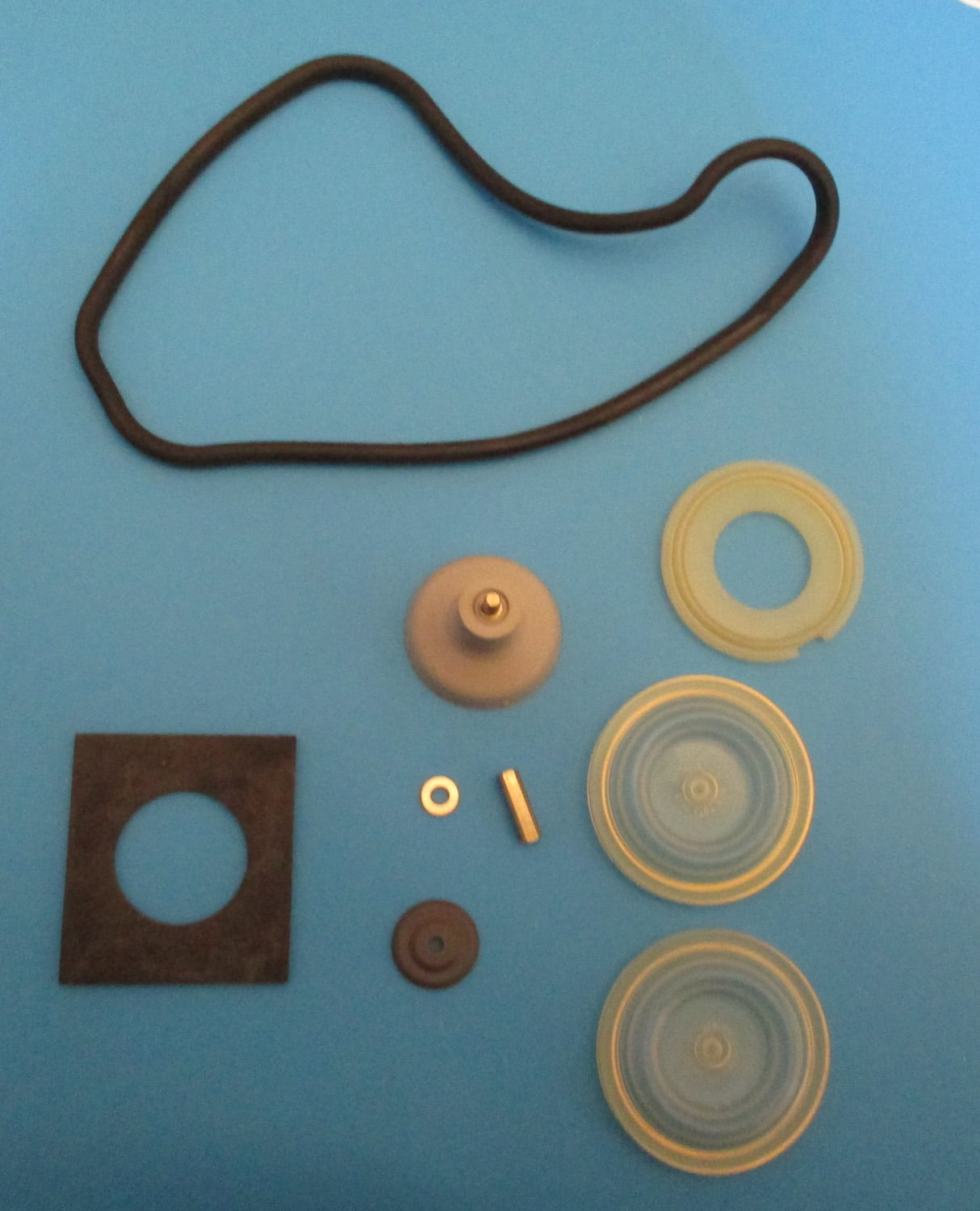

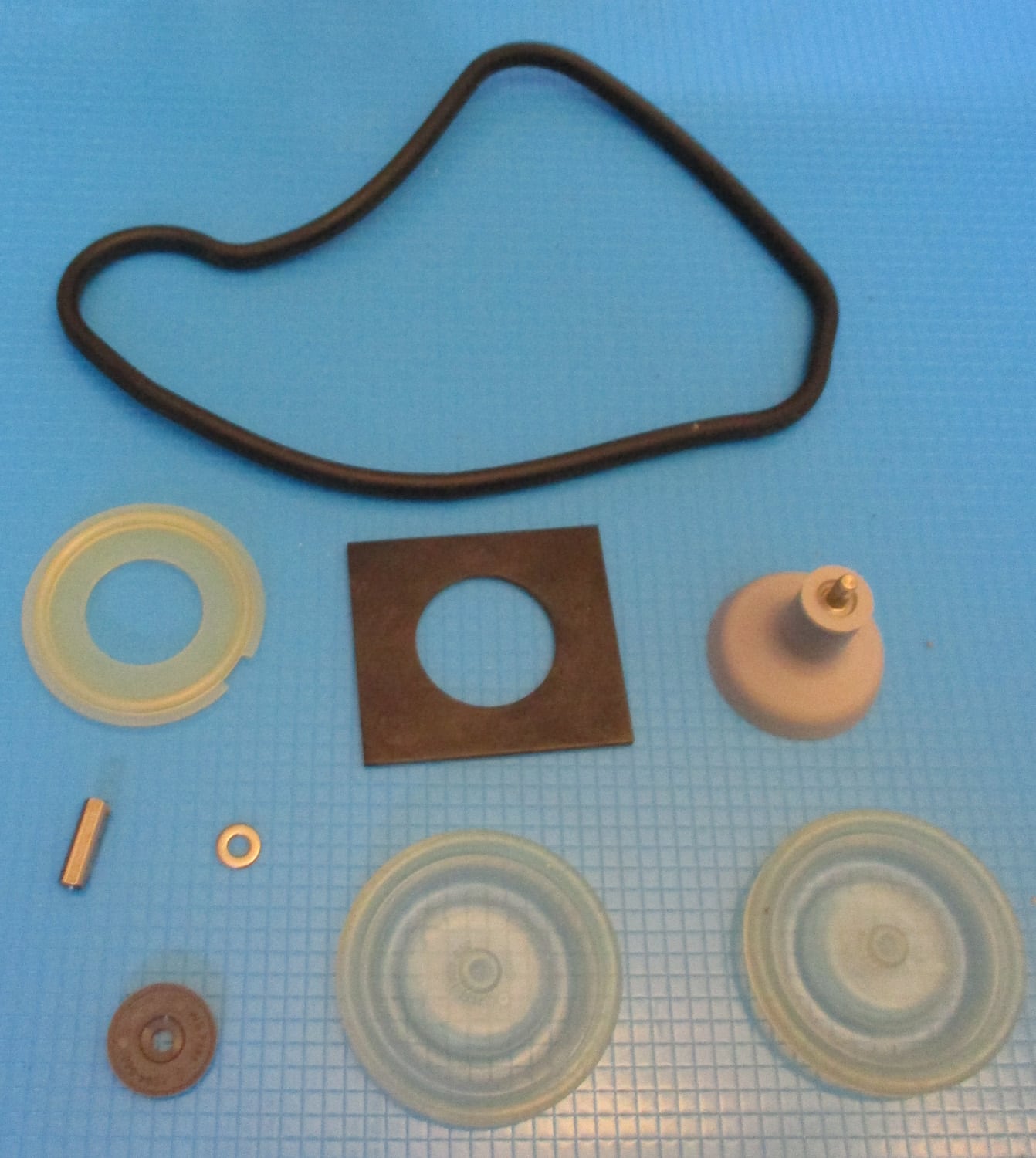

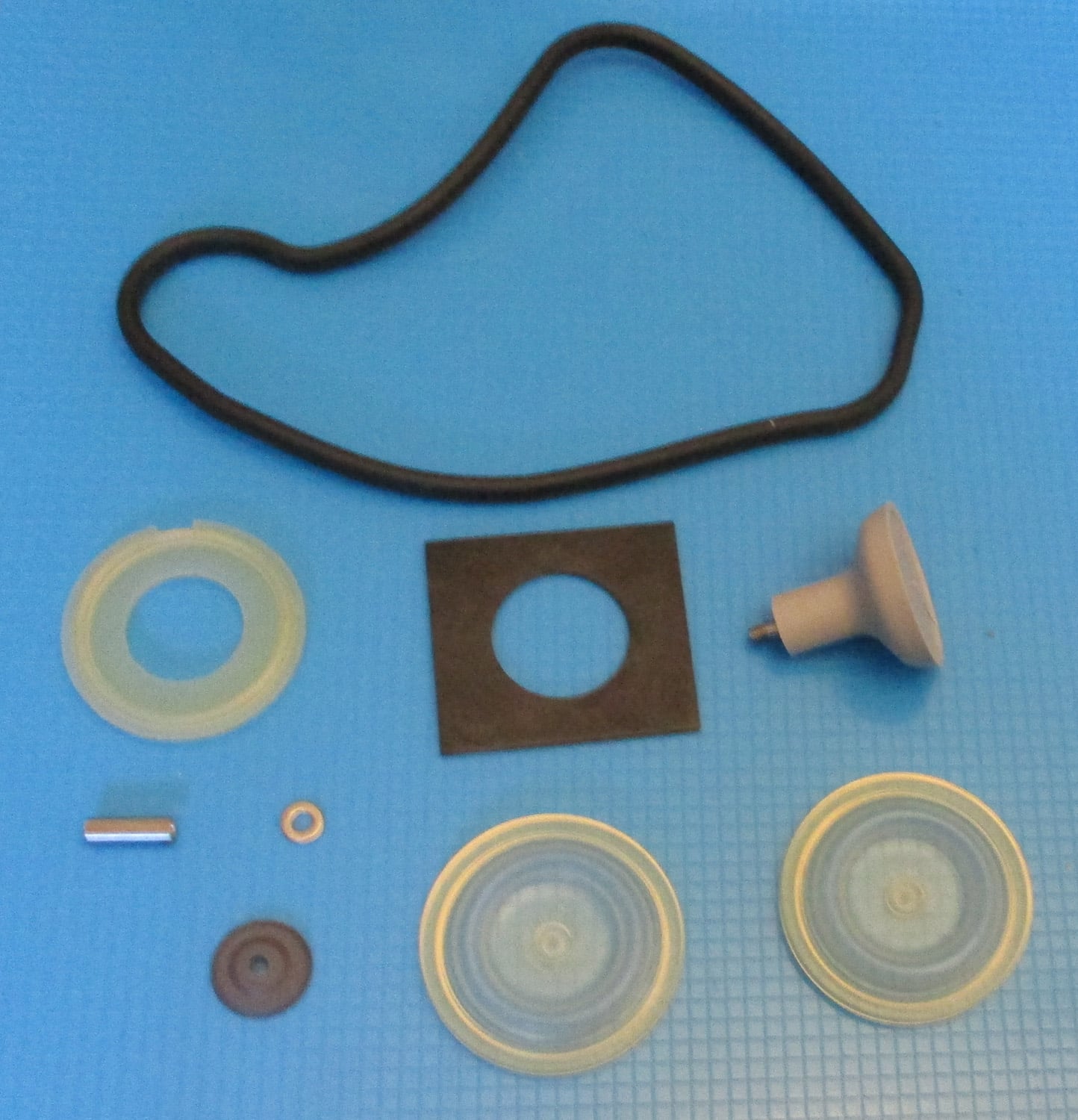

NEW This meter repair kit consists of:
One rubber ring gasket 1/4″ diameter.
One flat rubber gasket 2″ wide by 2 3/16″ long by 1/16″ high.
Two silicone diaphragms 2 1/8″ diameter by 5/16″ high.
One silicone line gasket 2″ outside diameter by 1″ inside diameter by 3/16″ high.
One rubber plunger. The plunger measures 1 1/2″ diameter at the base by 1 1/2″ high. The plunger includes a hard plastic washer, stainless steel washer, and stainless steel nut. The plastic washer measures 3/4″ outside diameter by 3/16″ inside diameter by 1/8″ high. The stainless steel washer measures 5/16″ outside diameter by 3/16″ inside diameter by 1/32″ high. The nut measures 3/16″ outside diameter by 1/8″ inside diameter by 11/16″ high with M4-0.7 threads.

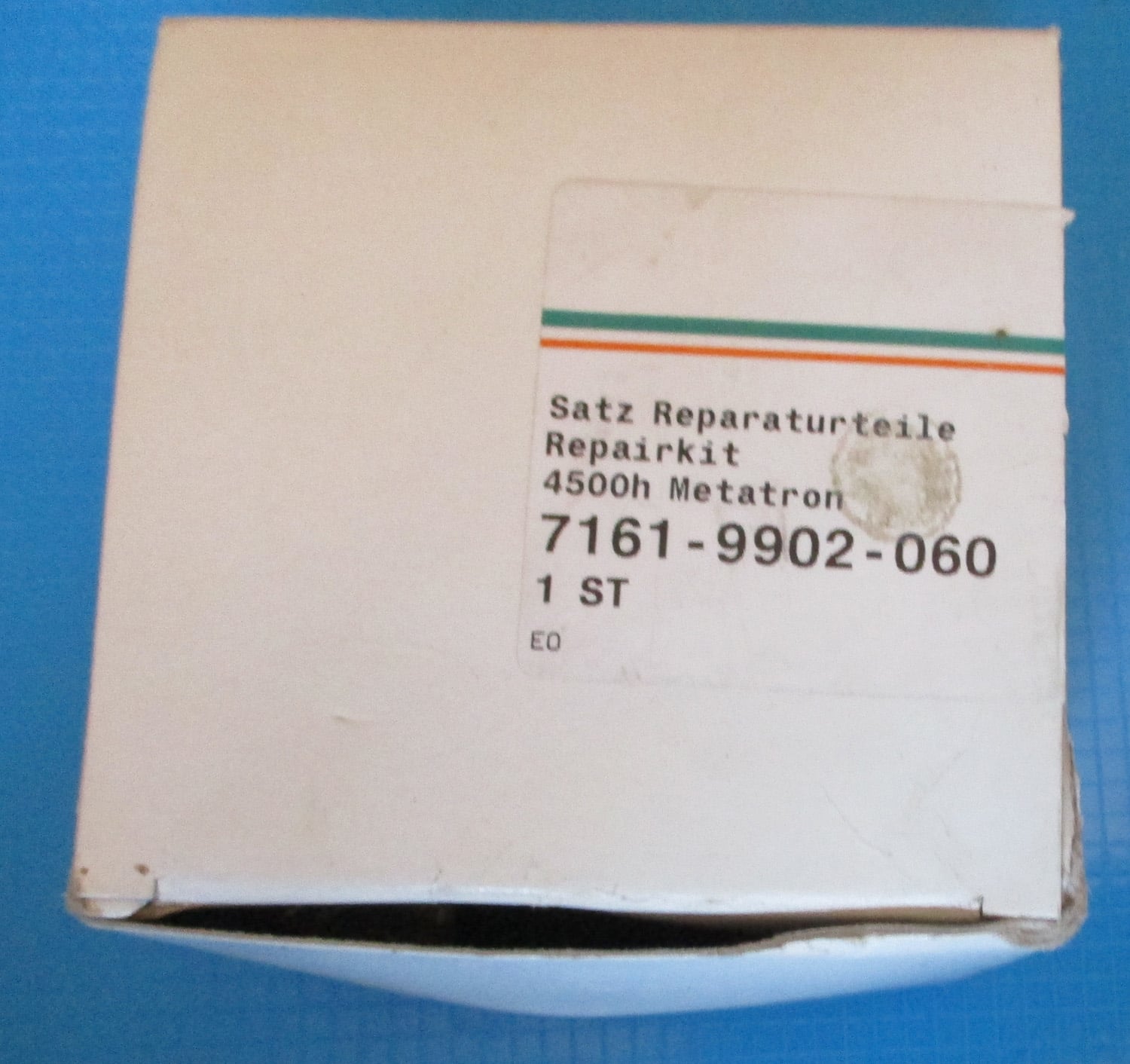

The manufacturer is Westfalia and the part number is 7161-9902-060.
Additional information
| Weight | .25 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
| Brand |
