Description

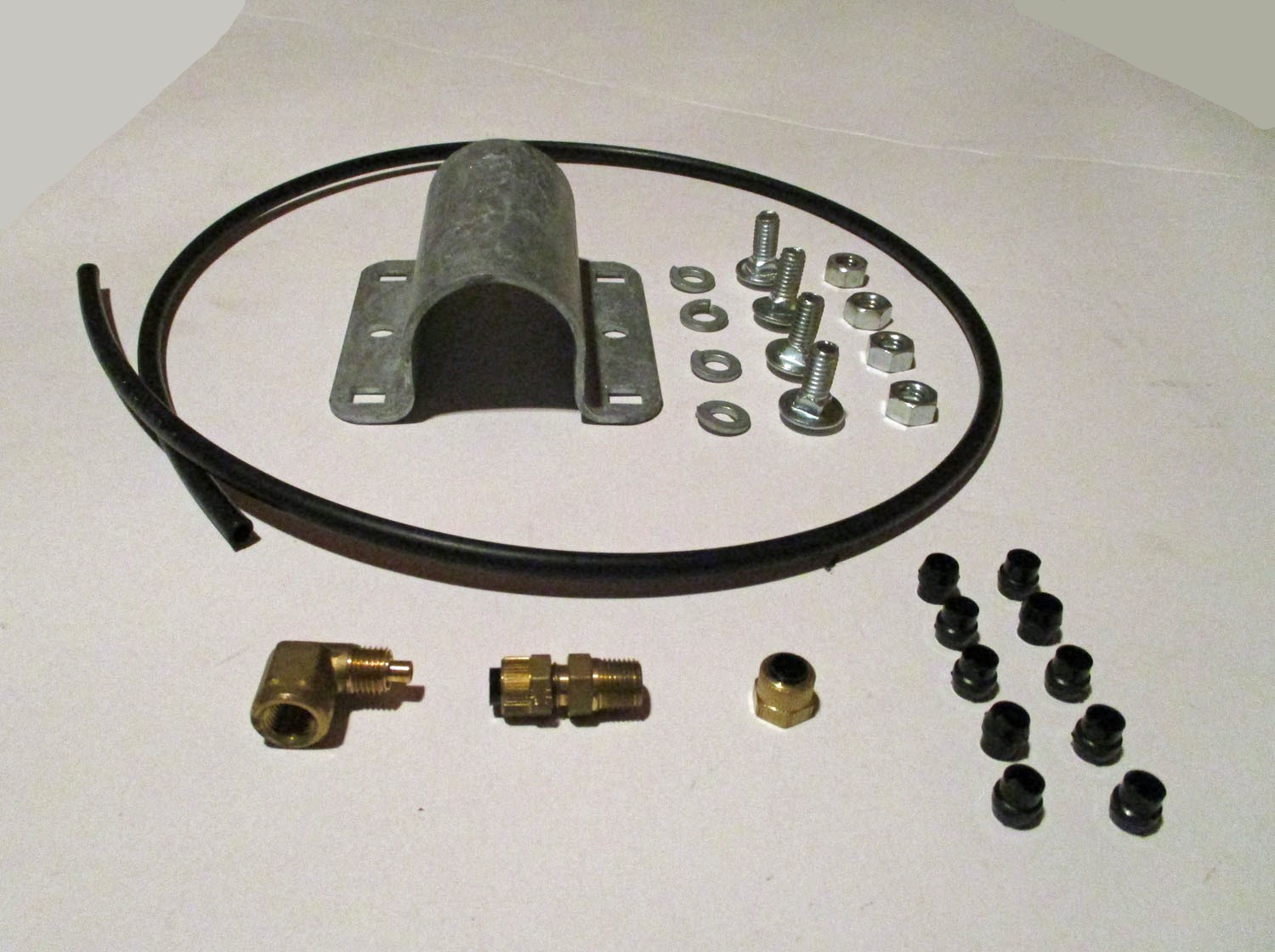

NEW This metal, brass, and plastic power gate kit measures:
The bracket is 3 9/16″ long and 1 3/4″ high.
The plastic tubing is 36″ long.
The elbow-shaped brass fitting is 1 1/16″ long by 3/4″ long. The outer thread has an outer diameter of 3/8″ and the inner thread has an inner diameter of 3/8″.
The straight brass fitting is 1 1/8″ long, and the thread has an outer diameter of 3/8″.
The short brass fitting is 3/8″ long, and the thread has an inner diameter of 3/8″.

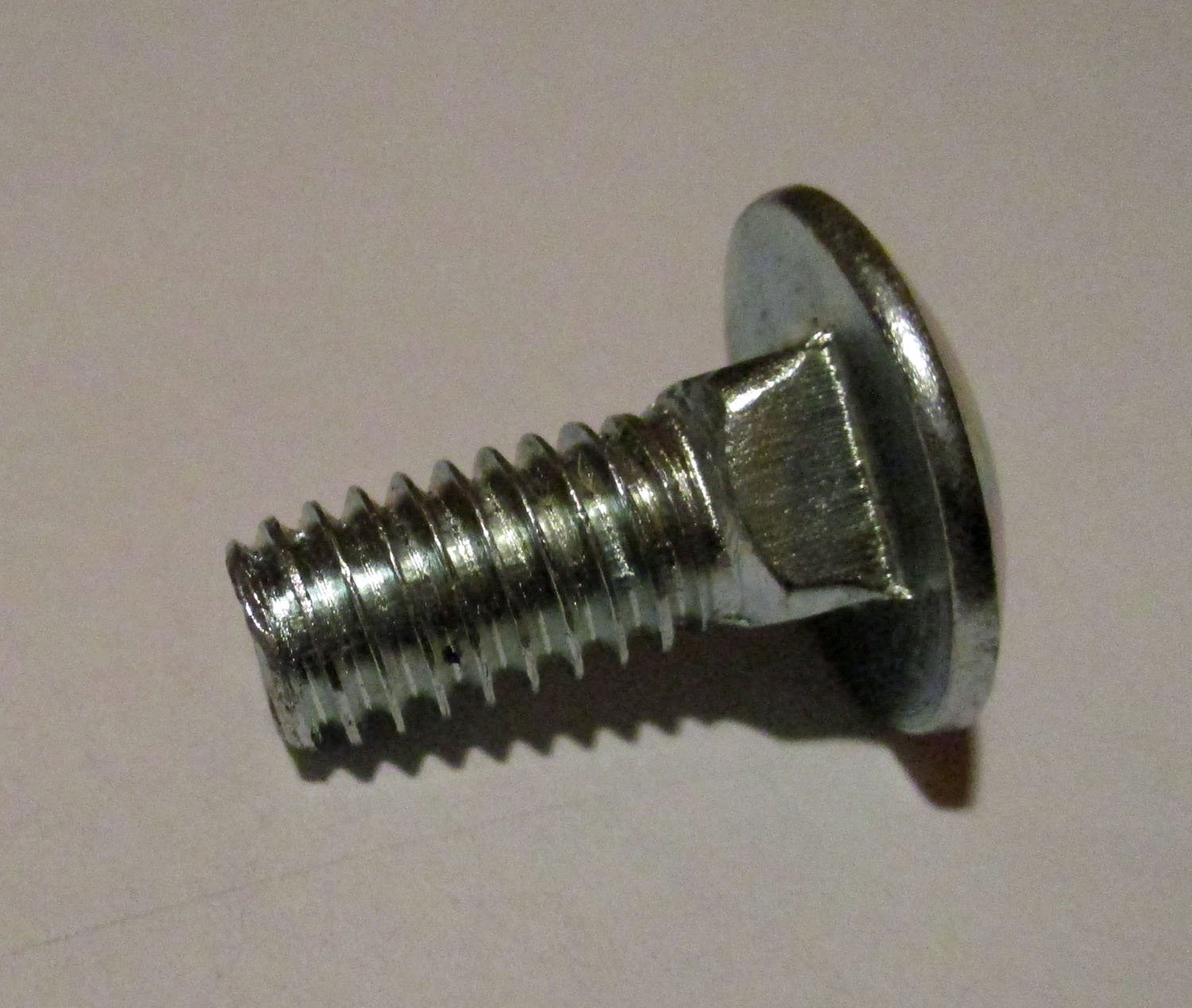

The four bolts are 7/8″ long with an outer diameter of 1/4″.

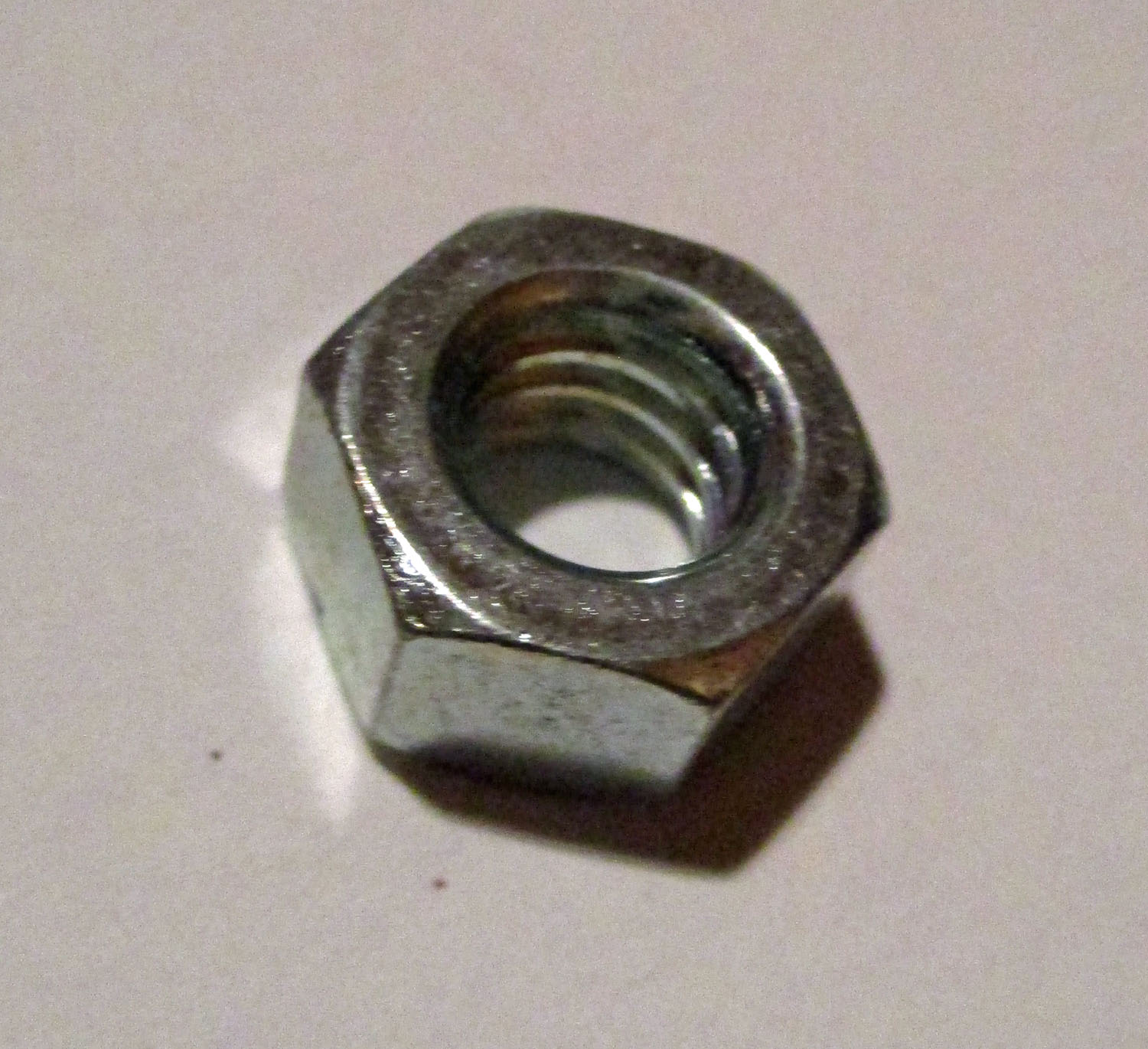

The four nuts are 1/2″ wide and have an inner diameter of 5/16″.
The four lock washers have an outer diameter of 1/2″ and an inner diameter of 5/16″.
The ten black plastic sleeves are 5/16″ long with the ends having an outer diameter of 1/4″, and the larger portion has an outer diameter of 5/16″
The Surge part number is 7750-0017-051.
Additional information
| Weight | 1.00 lbs |
|---|---|
| Dimensions | 8 × 8 × 3 in |
| Brand |
