Description

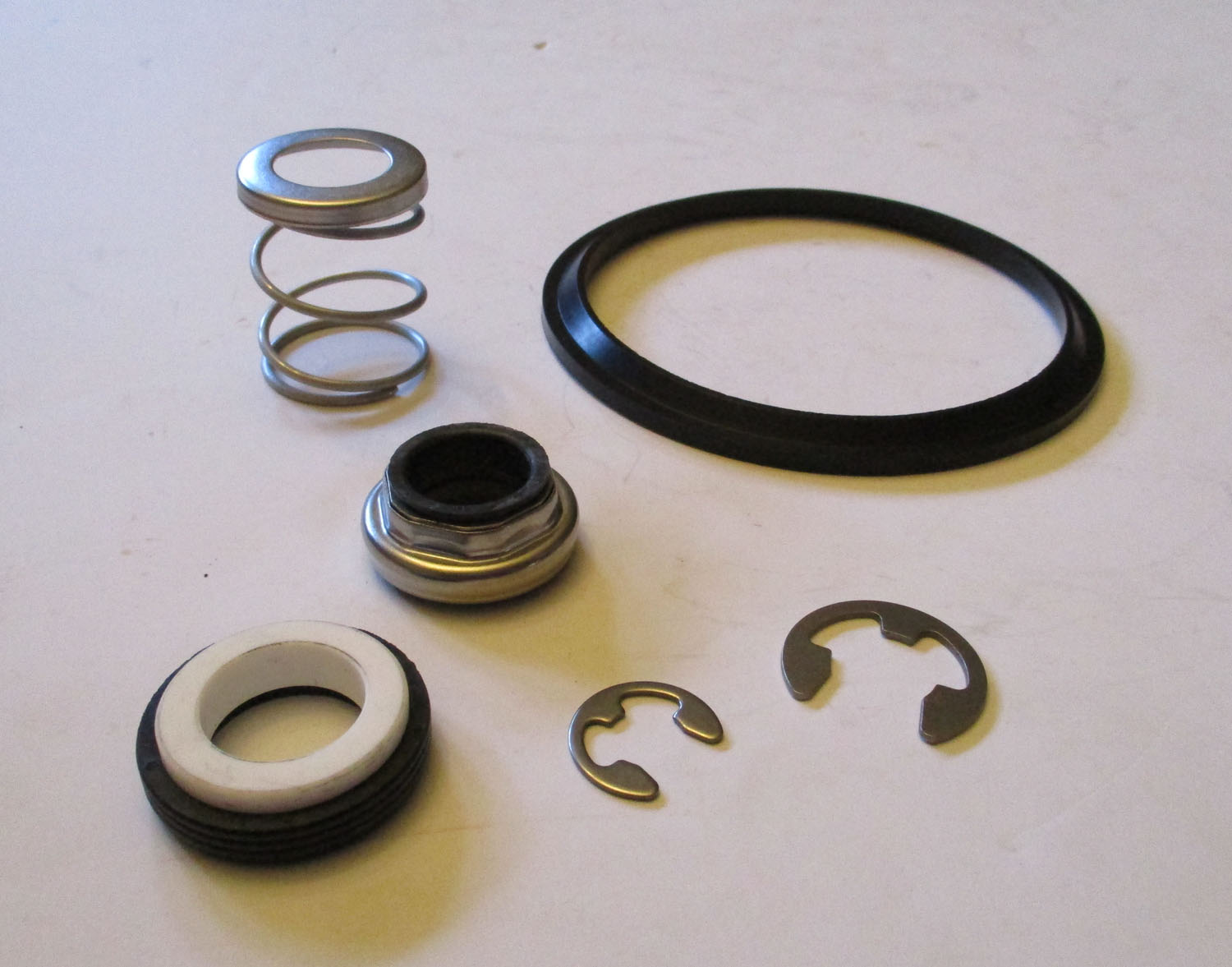

NEW This 1/2 horsepower wash pump repair kit is made of rubber, ceramic, and metal. It measures:

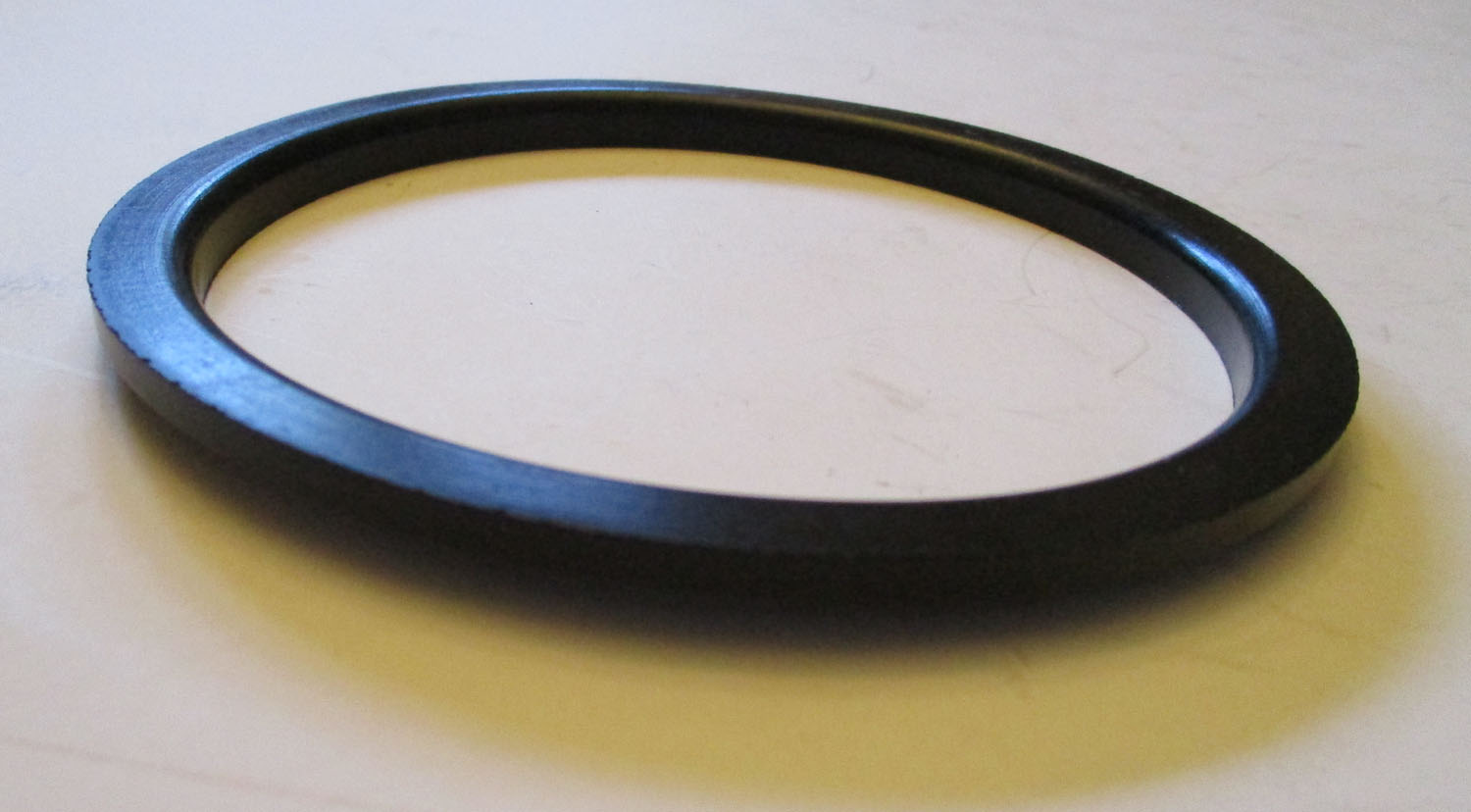

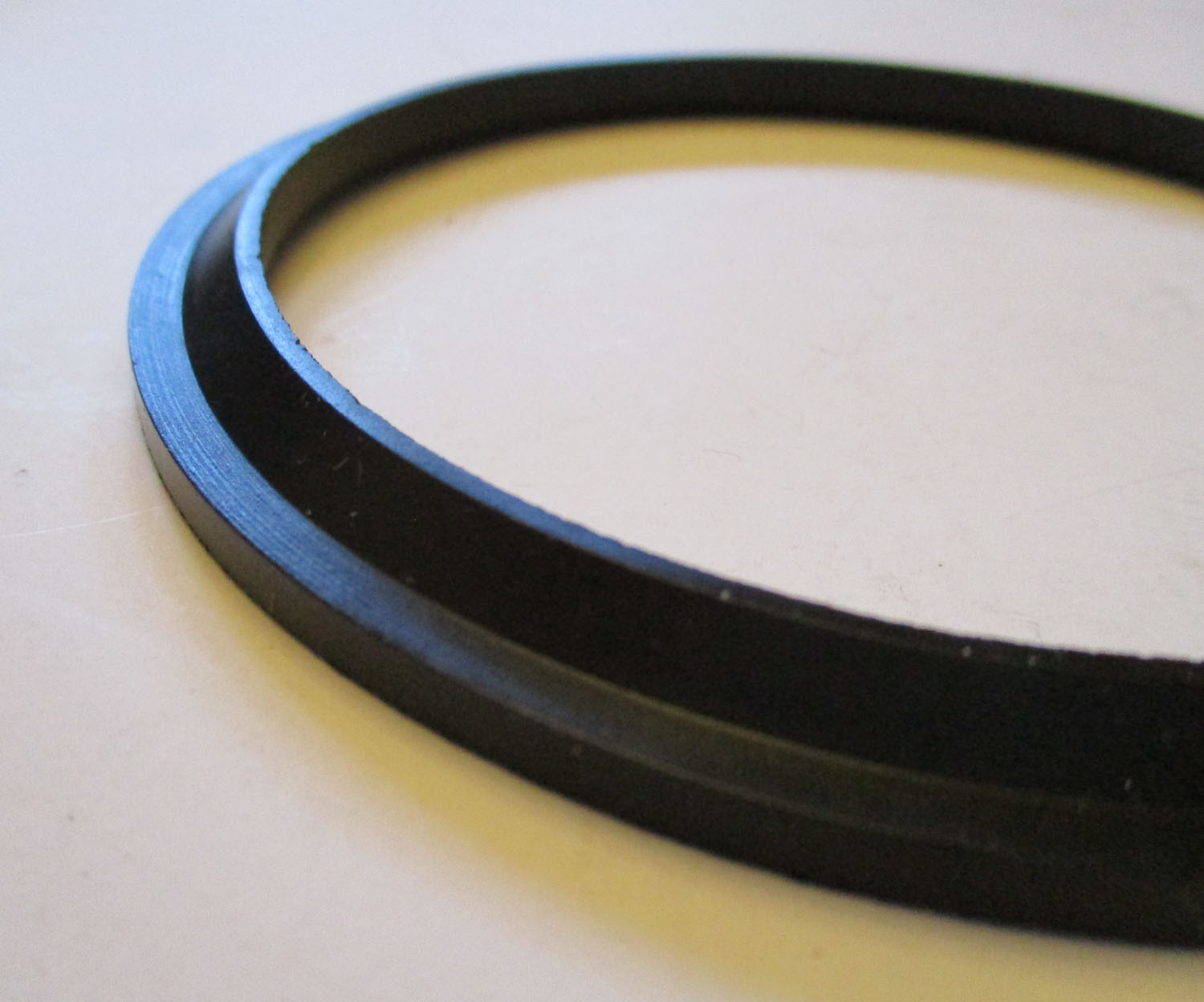

The large gasket has an outer diameter of 4 5/16″ with an inner diameter of 3 5/8″. The outside of the lip is 1/8″ in height and the inside of the lip is 1/4″ in height.

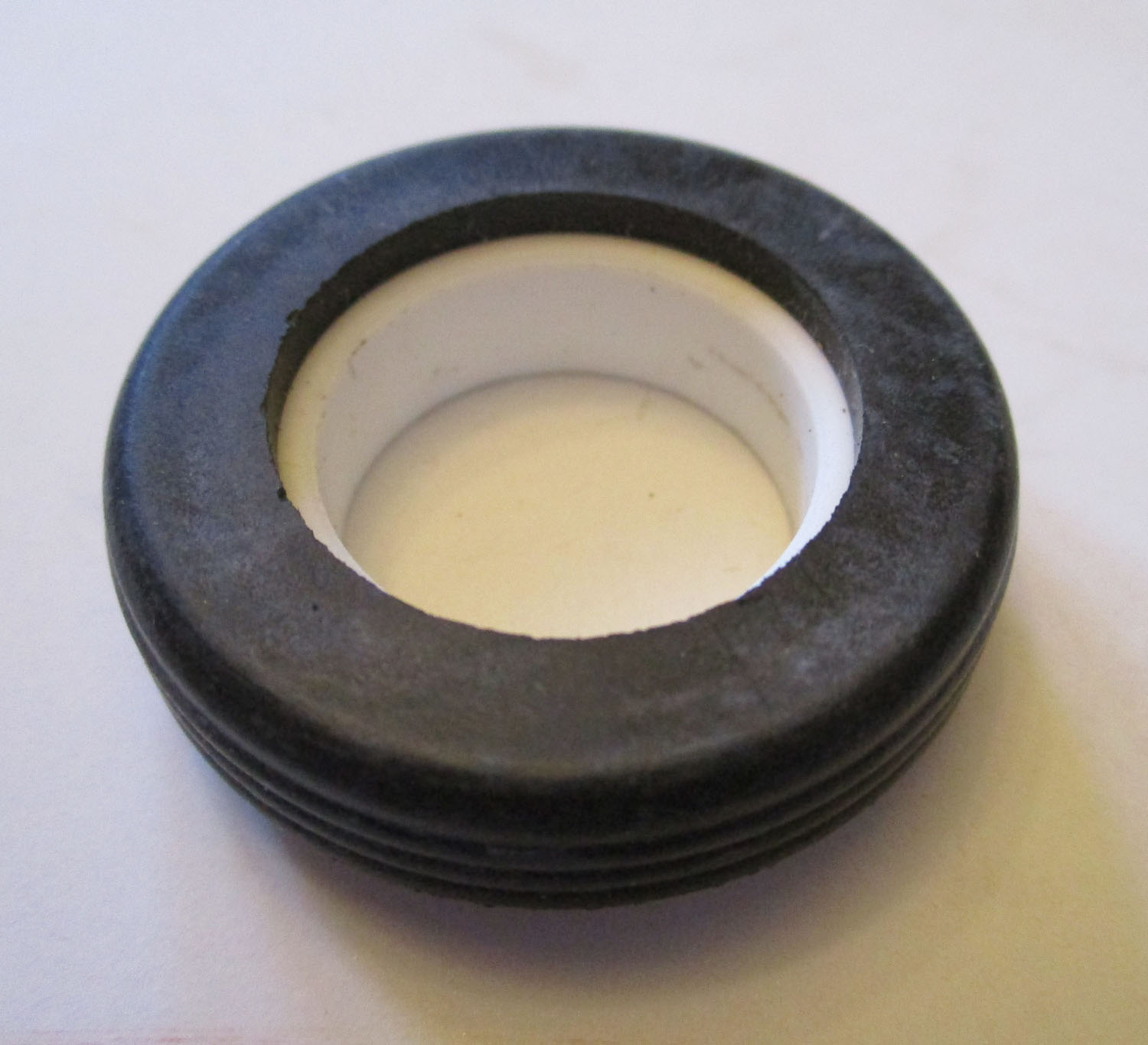

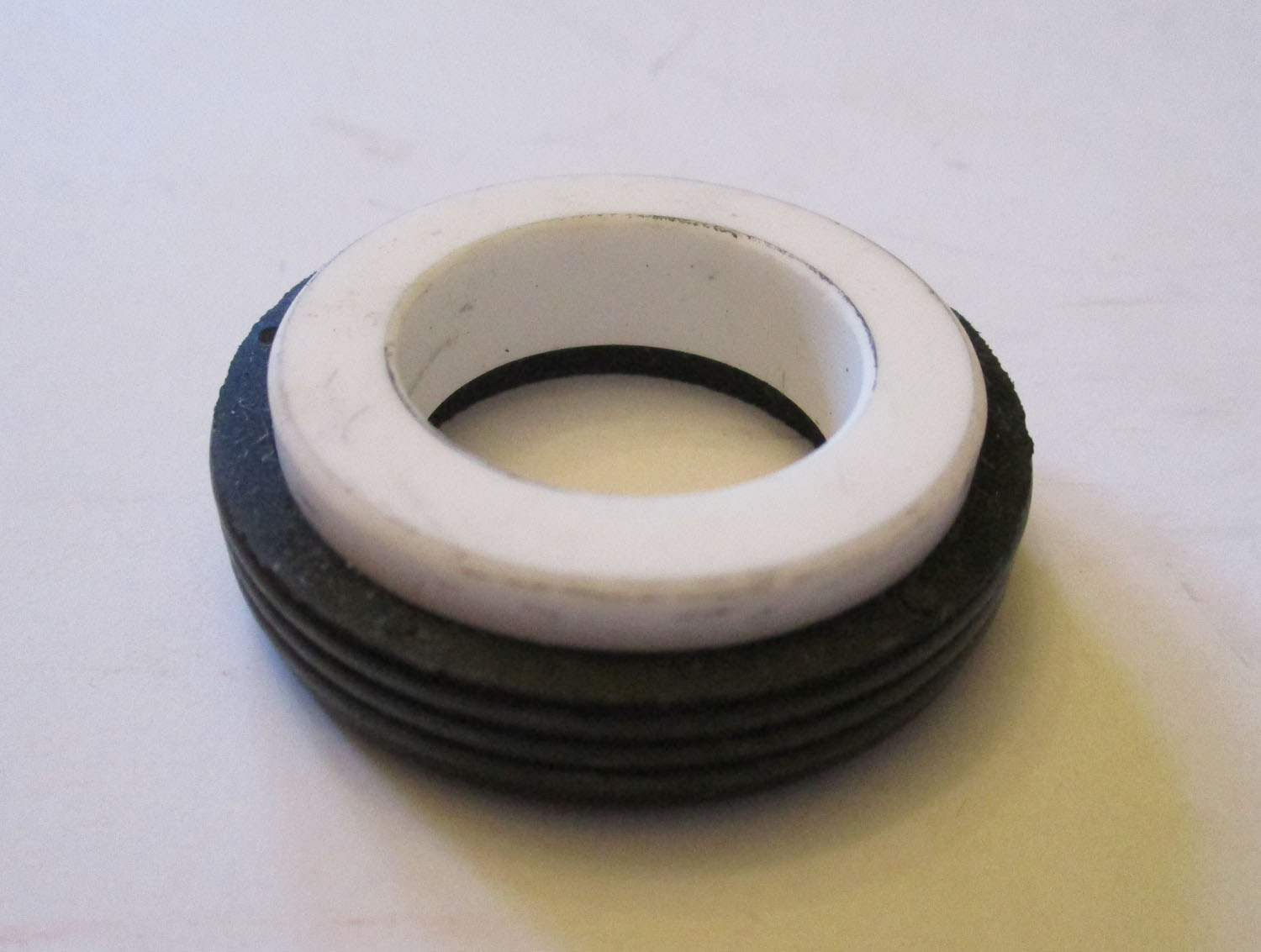

The rubber and ceramic seal has an outer diameter of 1 5/16″ with an inner diameter of 11/16″, and is 7/16″ thick.

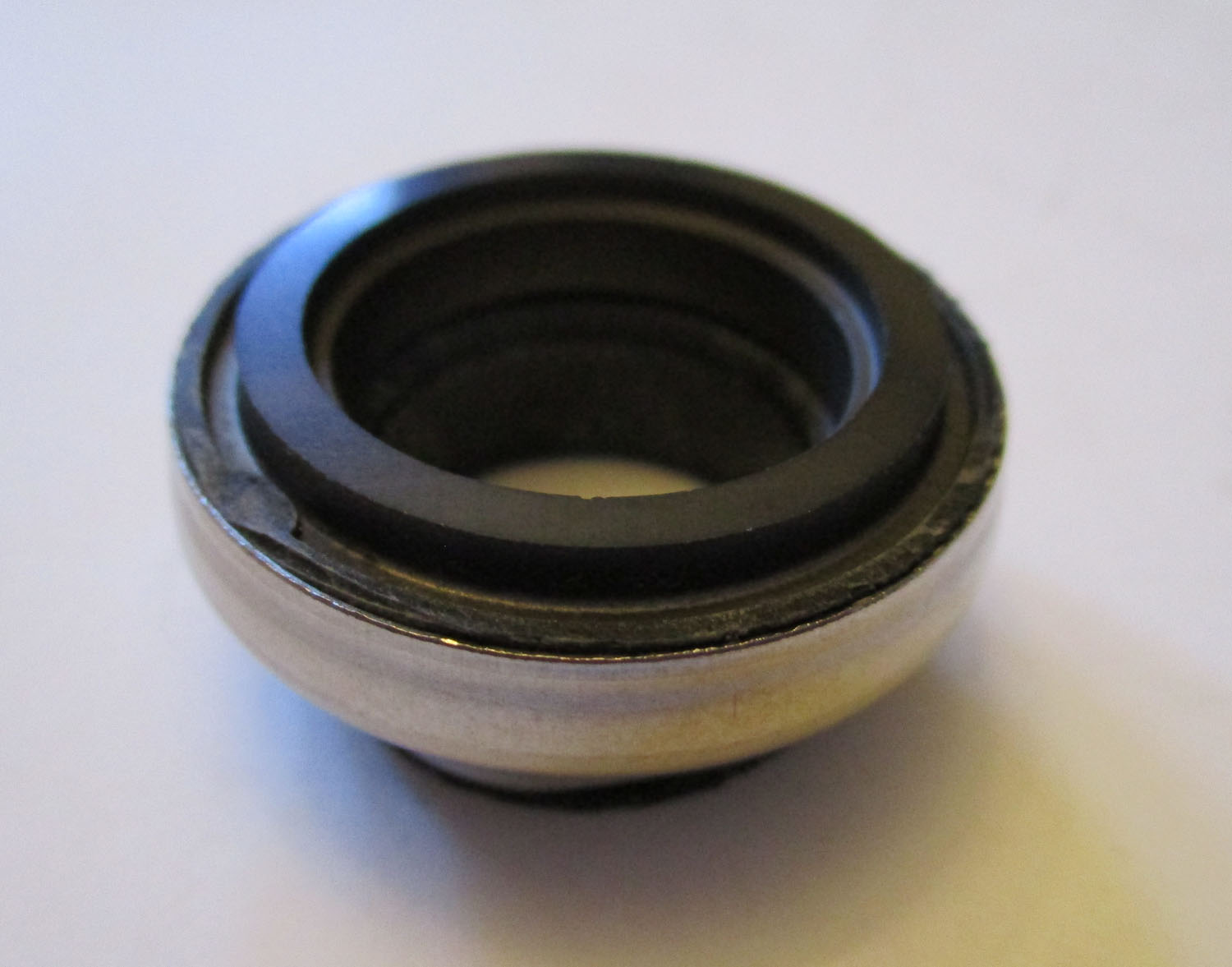

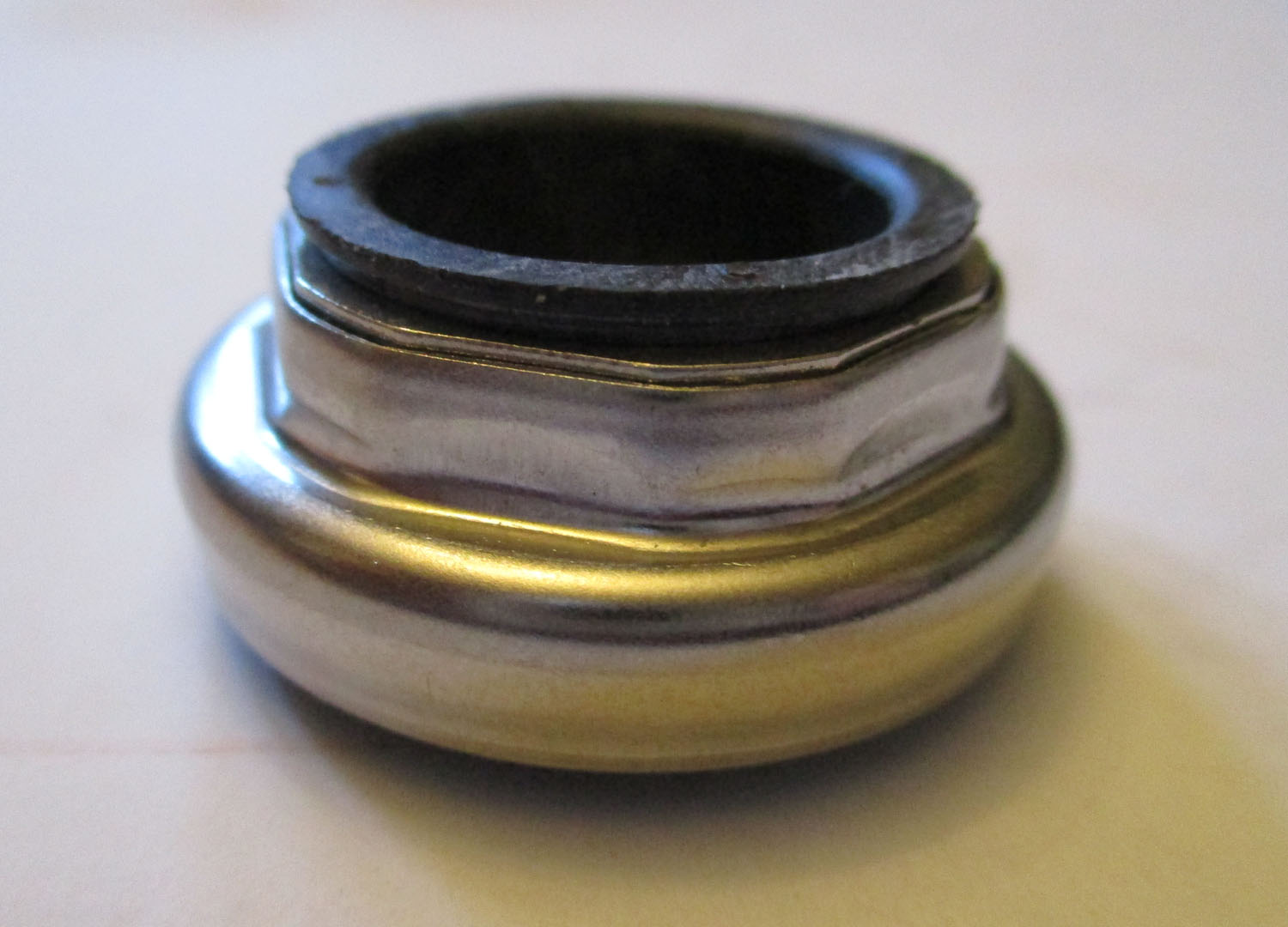

The rubber, ceramic, and stainless steel seal has an overall diameter of 1 3/16″. The rubber side has an outer diameter of 13/16″ with an inner diameter of 11/16″ The ceramic side has an outer diameter of 15/16″ with an inner diameter of 13/16″, and it is 1/2″ high.

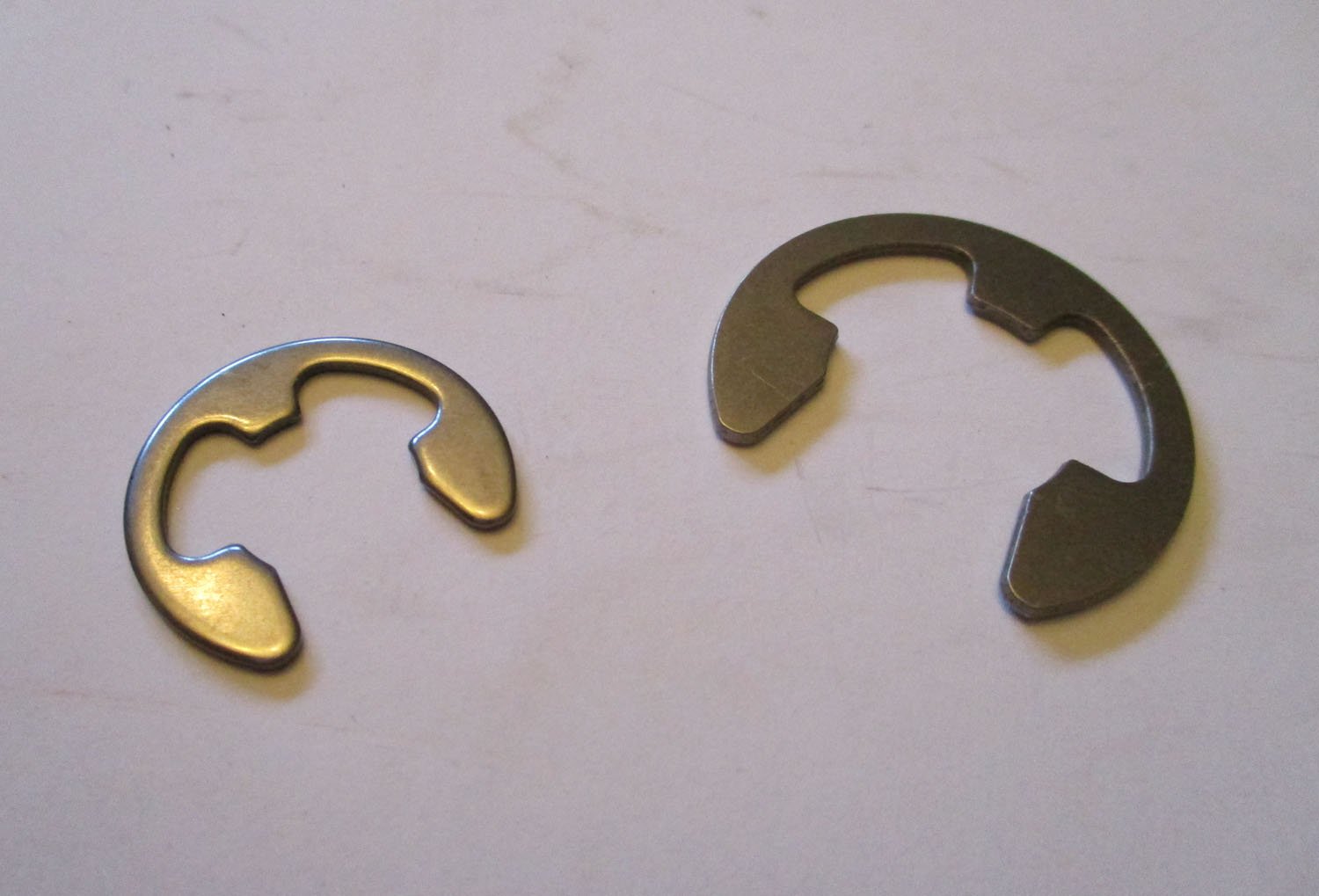

The larger clip is 1″ in diameter, with the opening being 5/8″ wide.
The smaller clip is 11/16″ in diameter with the opening being 7/16″ wide.

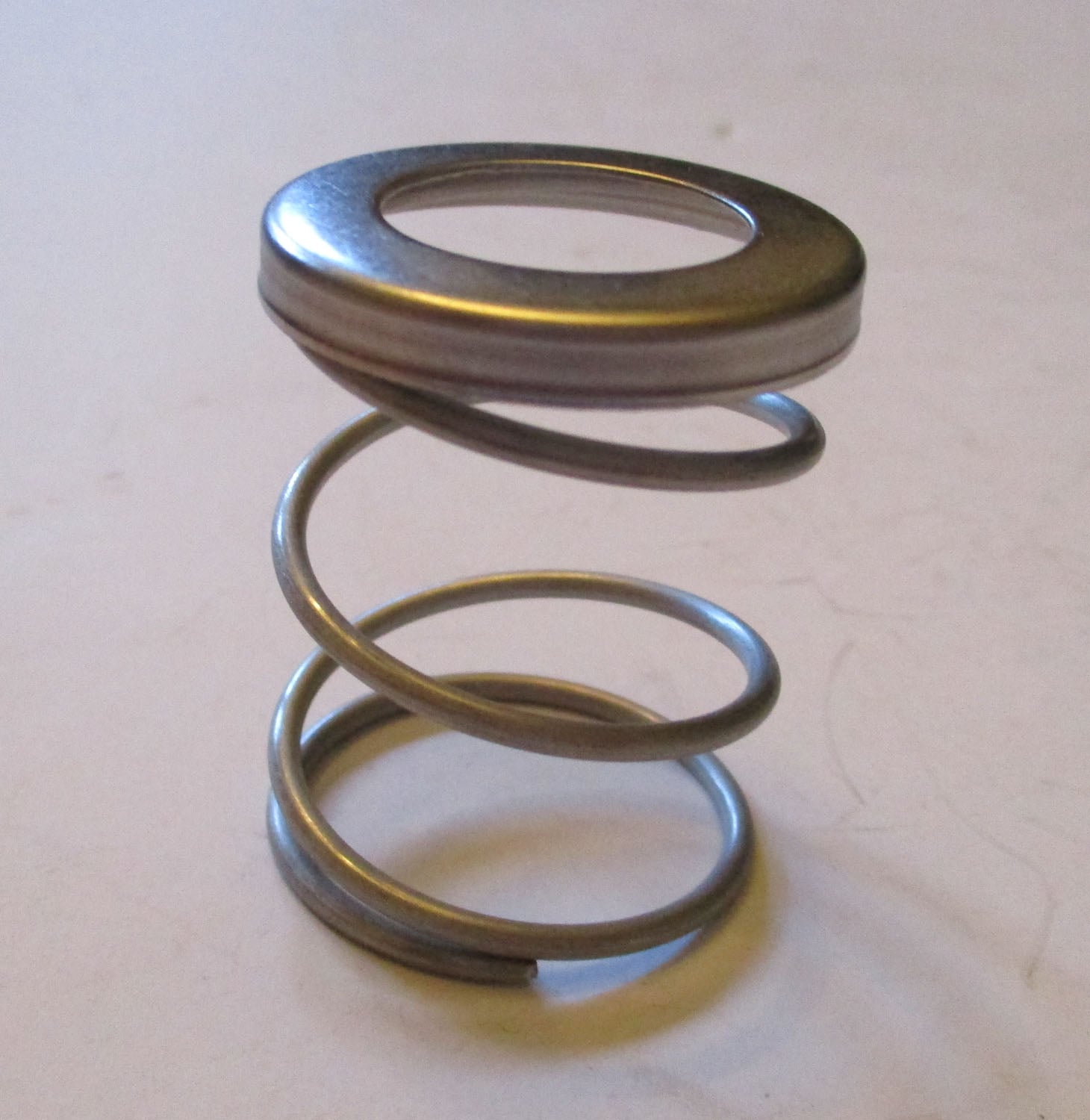

The spring is 1 1/2″ long with an outer diameter of 1 3/16″. The caped end has an inner diameter of 11/16″, and the open end has an inner diameter of 1″.
The Surge part number is 7750-0033-461.
Additional information
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 4.50 × 4.50 × 2 in |
| Brand |
