Description

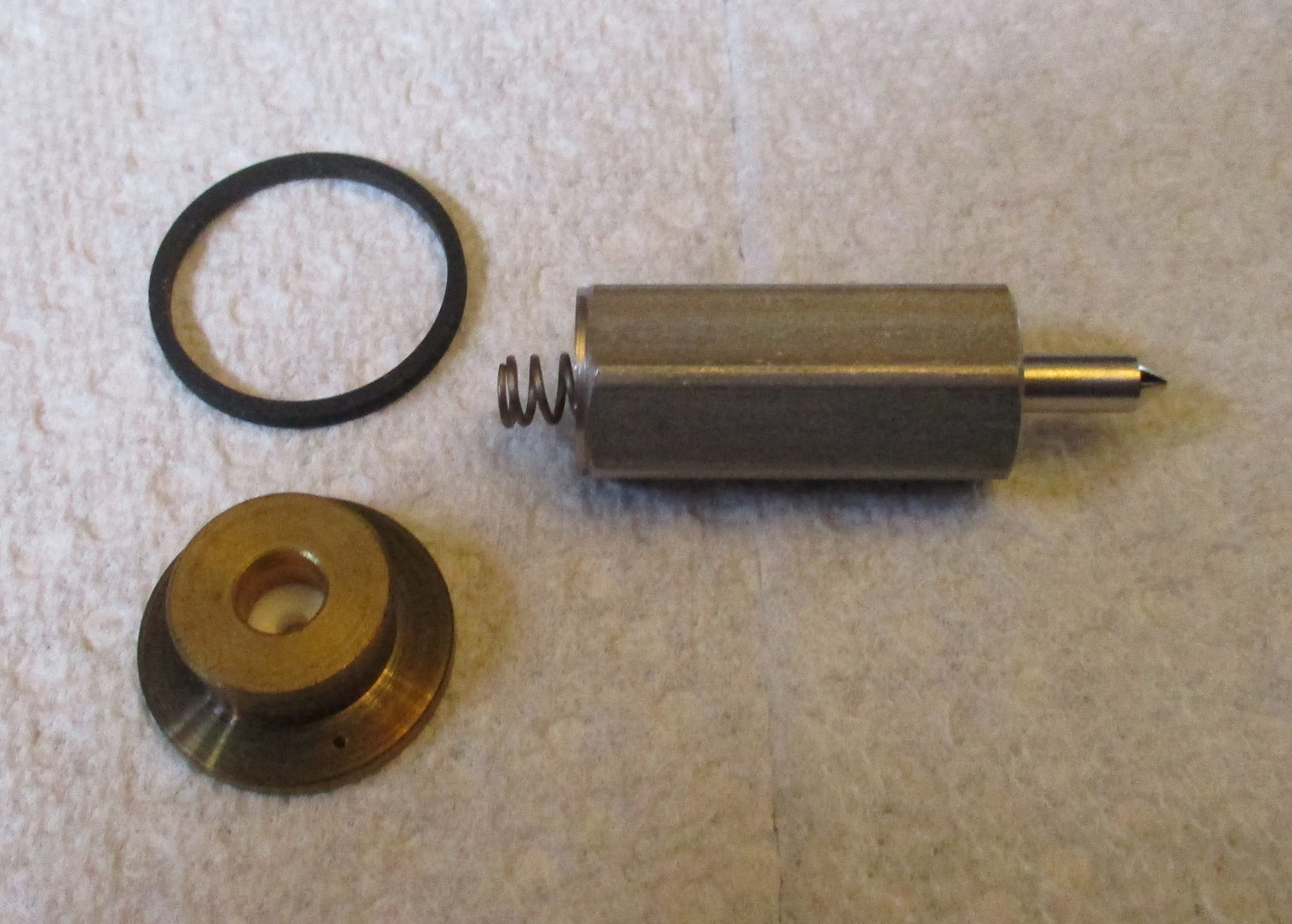

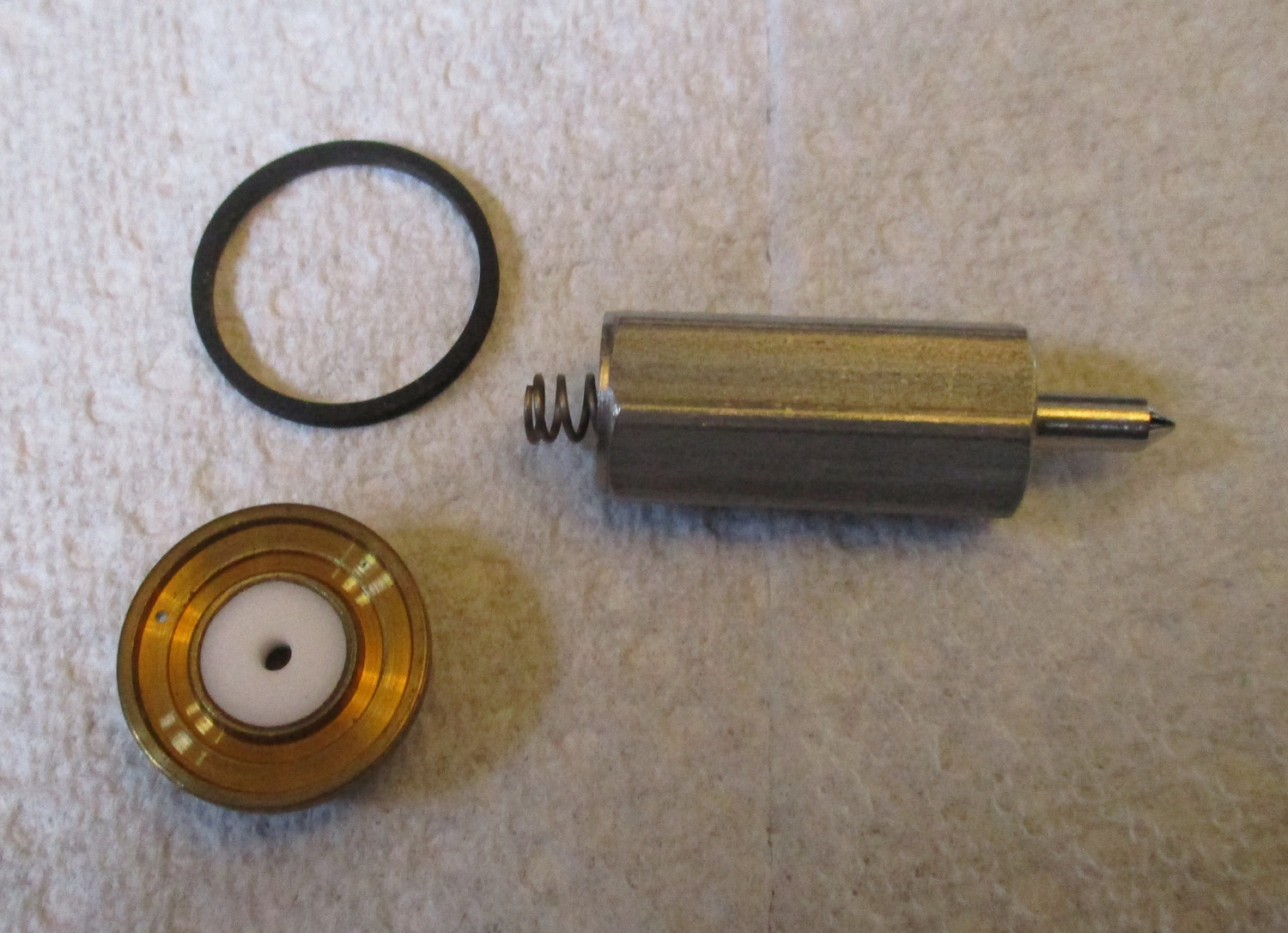

NEW This Sporlan metal, plastic, and rubber valve repair kit include three parts. The stem/plunger is 1 5/8″ long, total, including the 1 1/8″ long cylinder, the 1/8″ kick-off spring, and the 3/8″ point which has 1/8″ outside diameter. The seat disc is 5/16″ high with a 3/4″ outside diameter for the larger end and a 1/2″ outside diameter for the smaller end. The inside diameter is 3/16″ on one end and 1/16″ on the other. The rubber washer has a 7/8″ outside diameter with a 13/16″ inside diameter, is 1/16″ high and fits onto the seat disc. The original Sporlan part number is 30226, with a KS-B9 printed on the box, also.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 2 × 1 × 1 in |
| Brand |
