Description
NEW This plastic and metal washer kit measures:

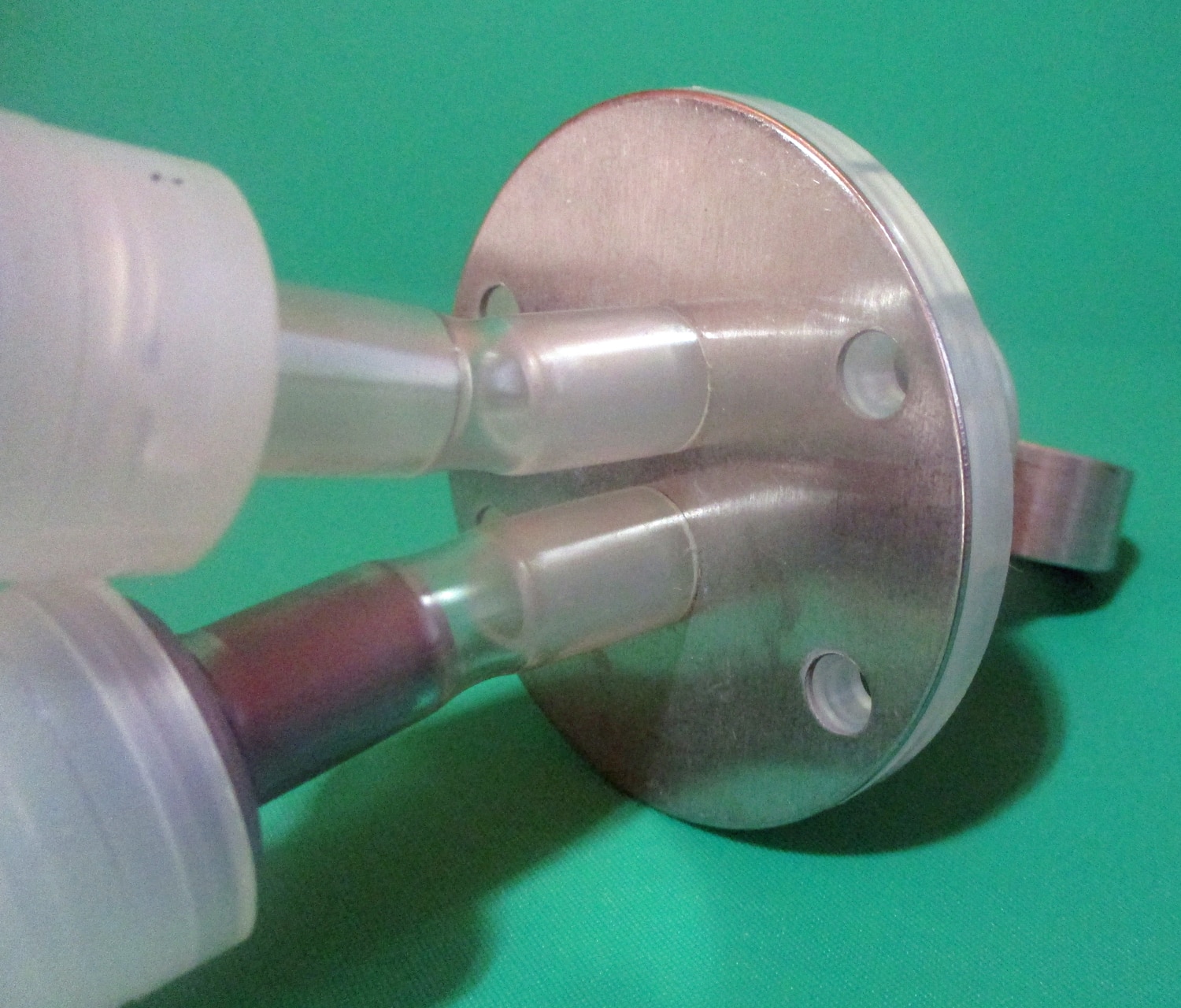

The main piece is 6 1/8″ long by 2 1/2″ wide overall. The nipples on the end of it have an outer diameter of 3/8″.

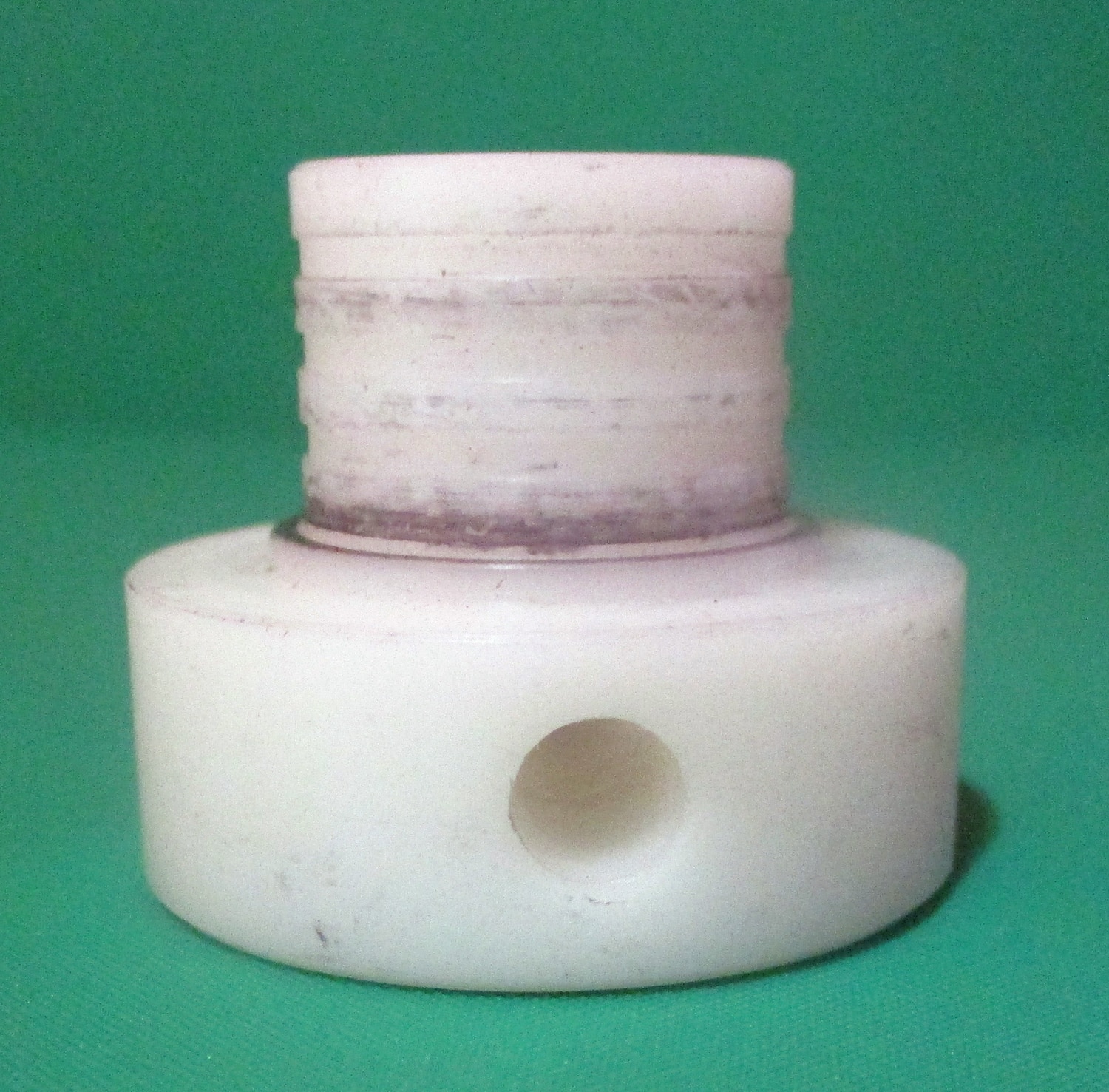

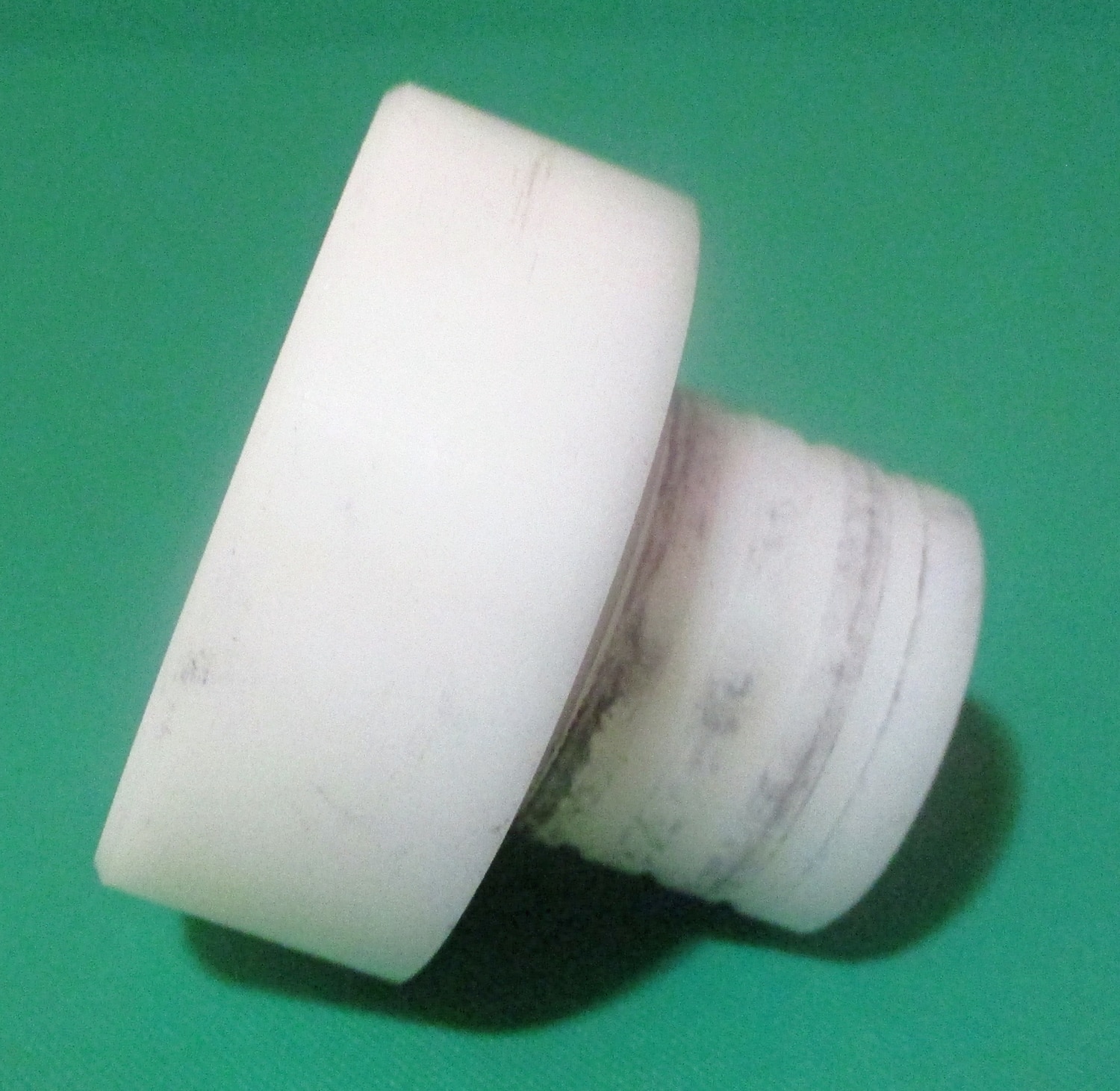

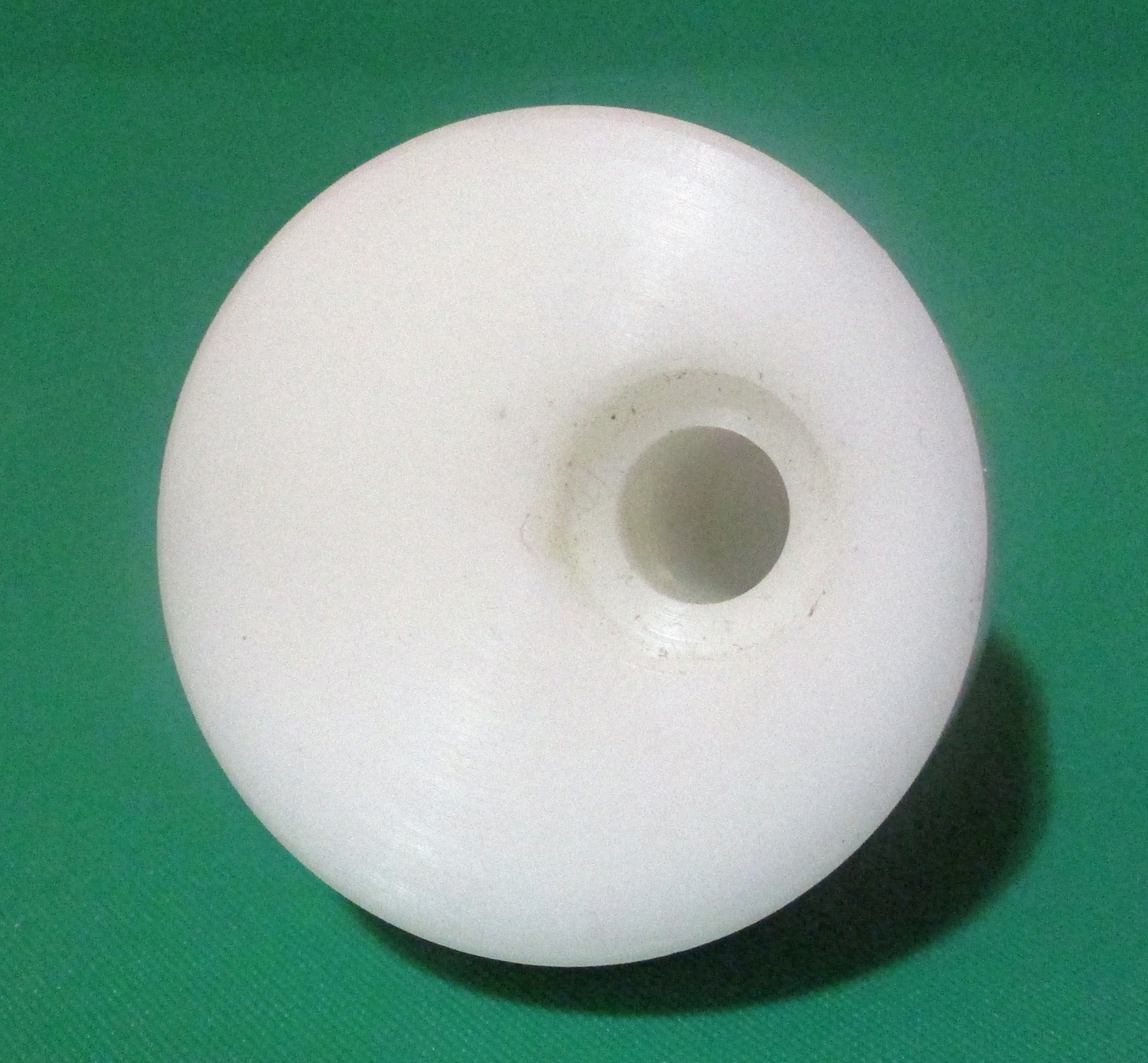

The white piece, which appears to be used, measures 1 1/4″ high overall. The thread has an outer diameter of 7/8″. The bottom has an outer diameter of 1 1/2″. The hole on the side has an inner diameter of 5/16″. On the bottom the first opening has an inner diameter of 9/16″ and the second has an inner diameter of 3/8″.

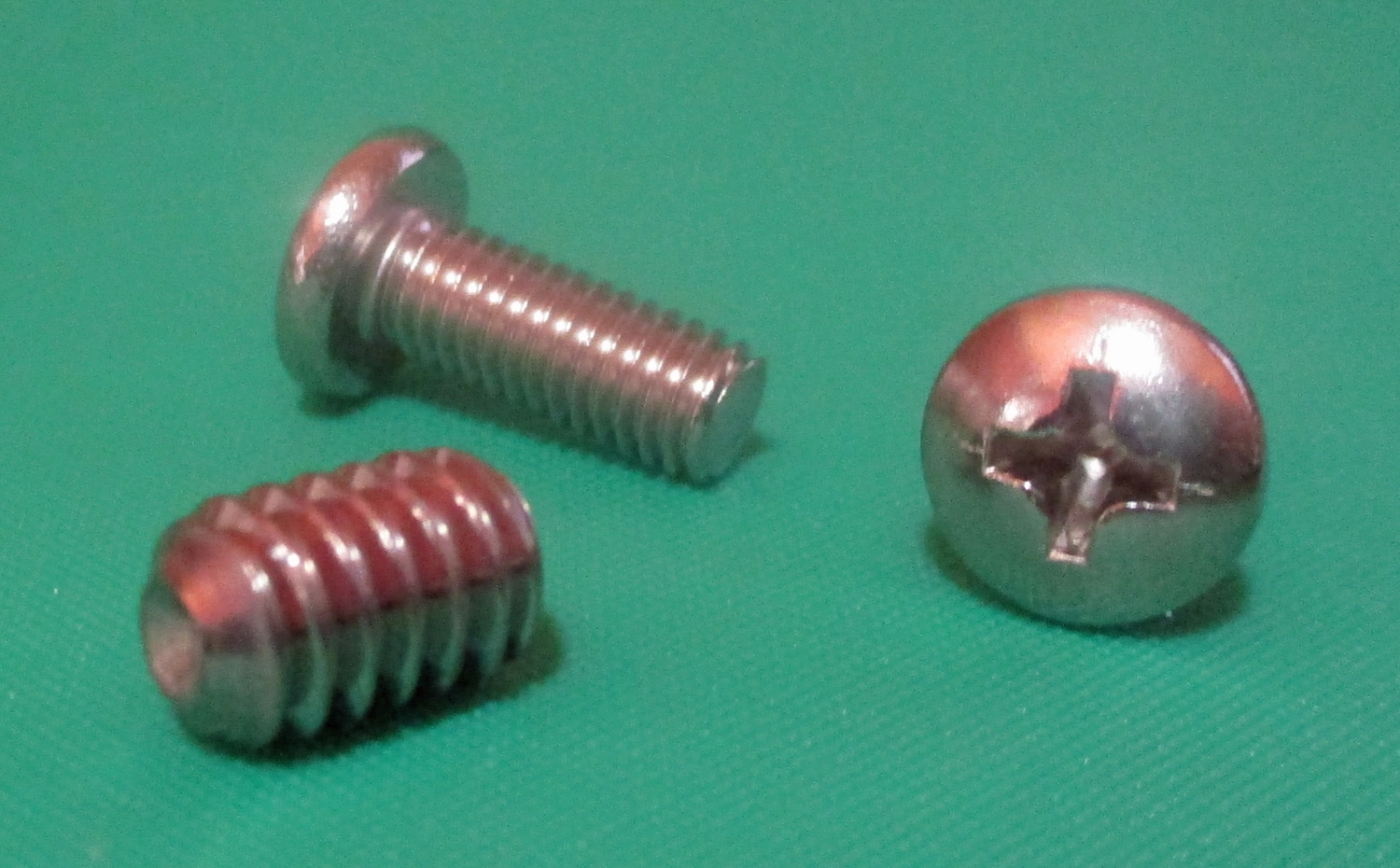

The screws are 9/16″ long, and the thread has an outer diameter of 1/8″.
The set screw is 5/16″ long, and the thread has an outer diameter of 3/16″.

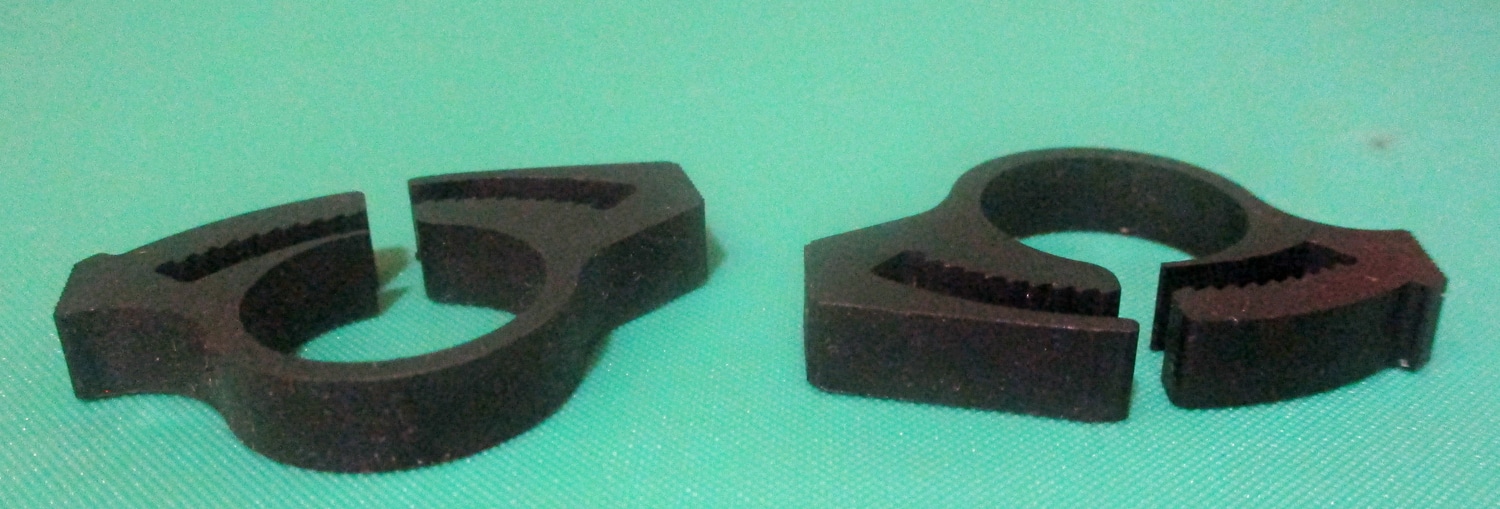

The black pieces are 1 3/8″ long by 15/16″ wide by 3/16″ high.

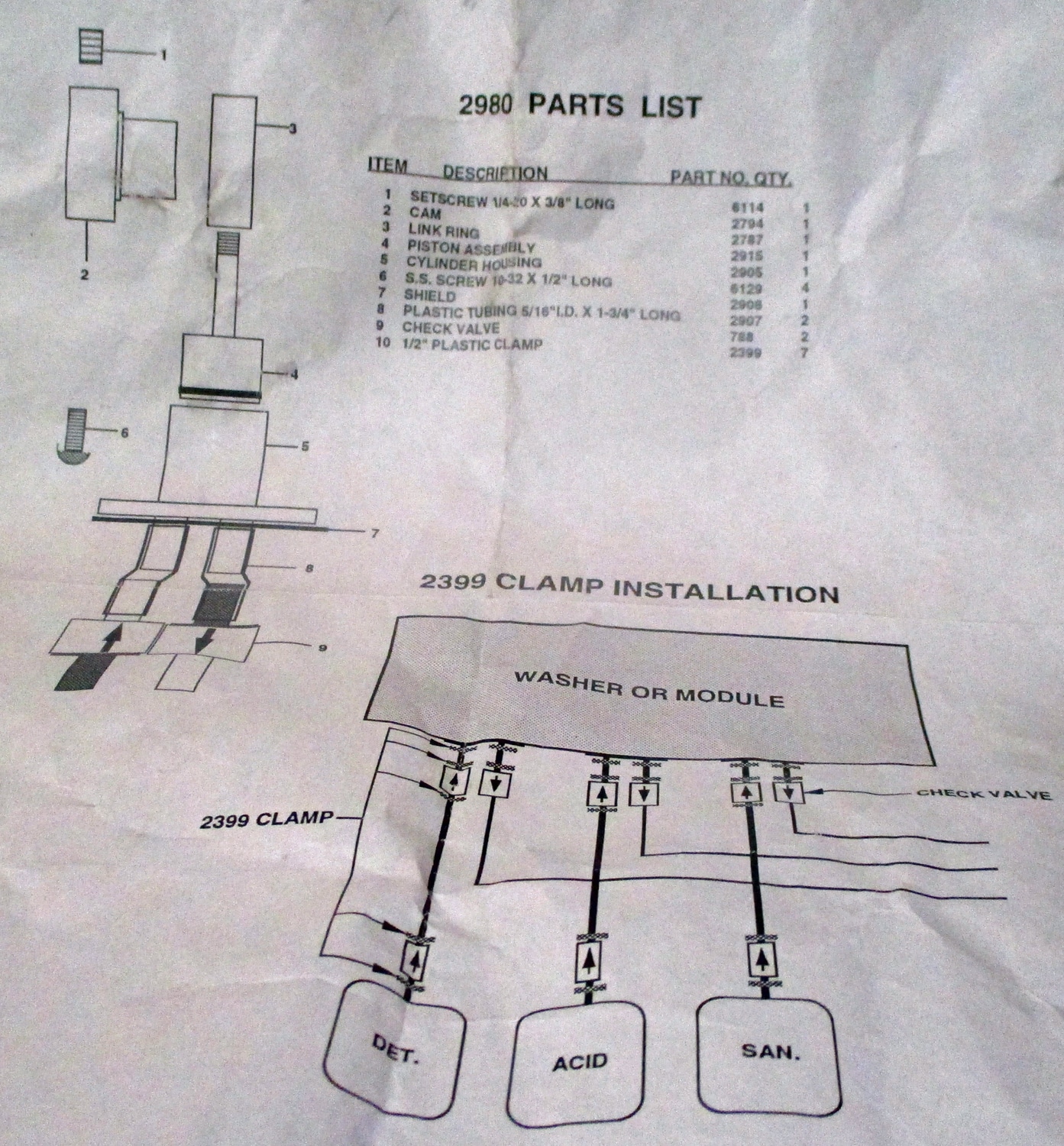

The Bender part number is 2980.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Brand |
