Description

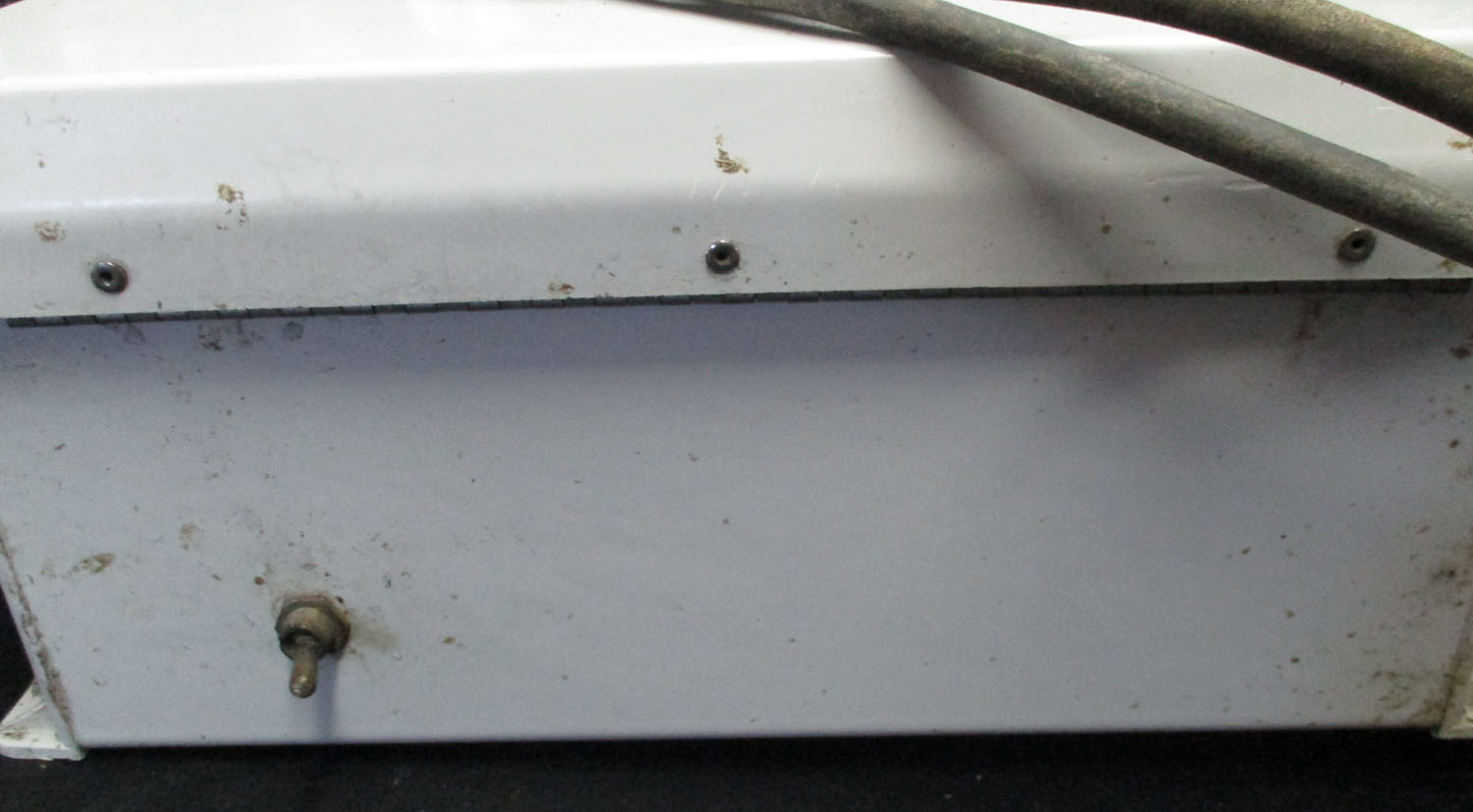

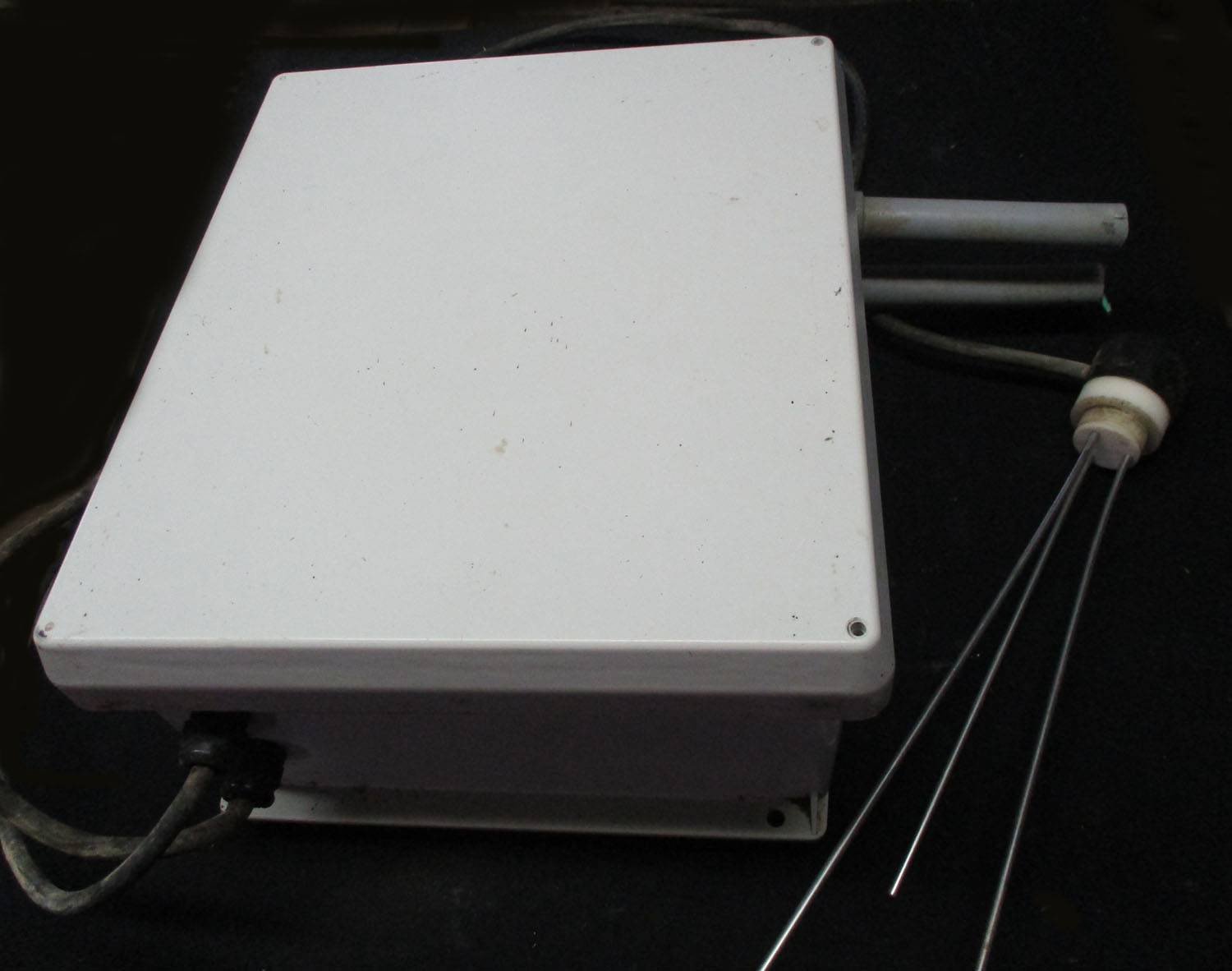

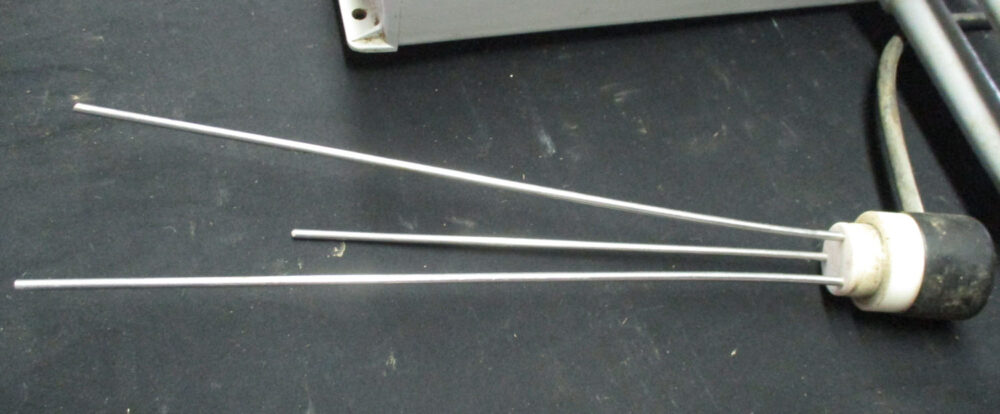

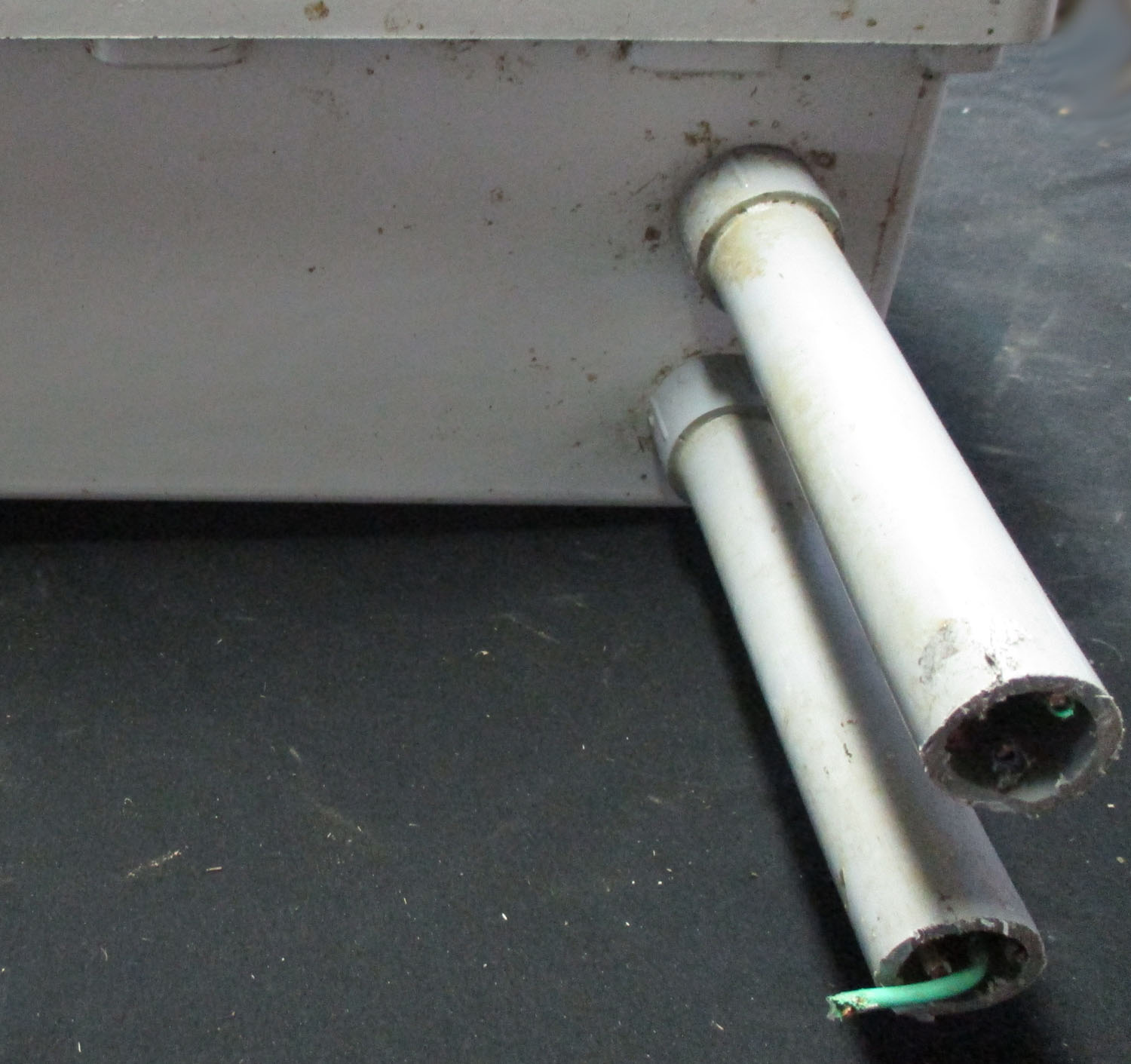

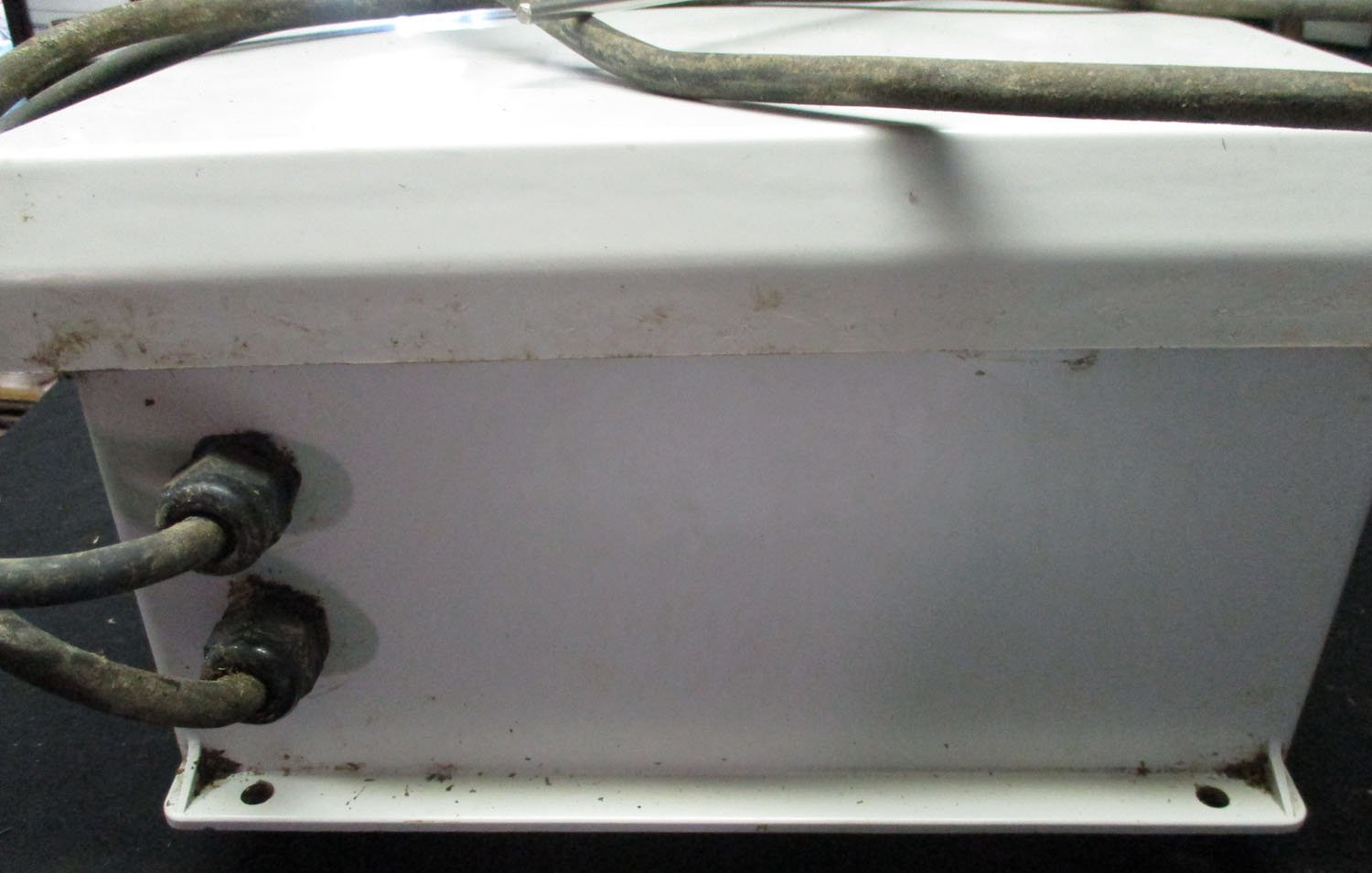

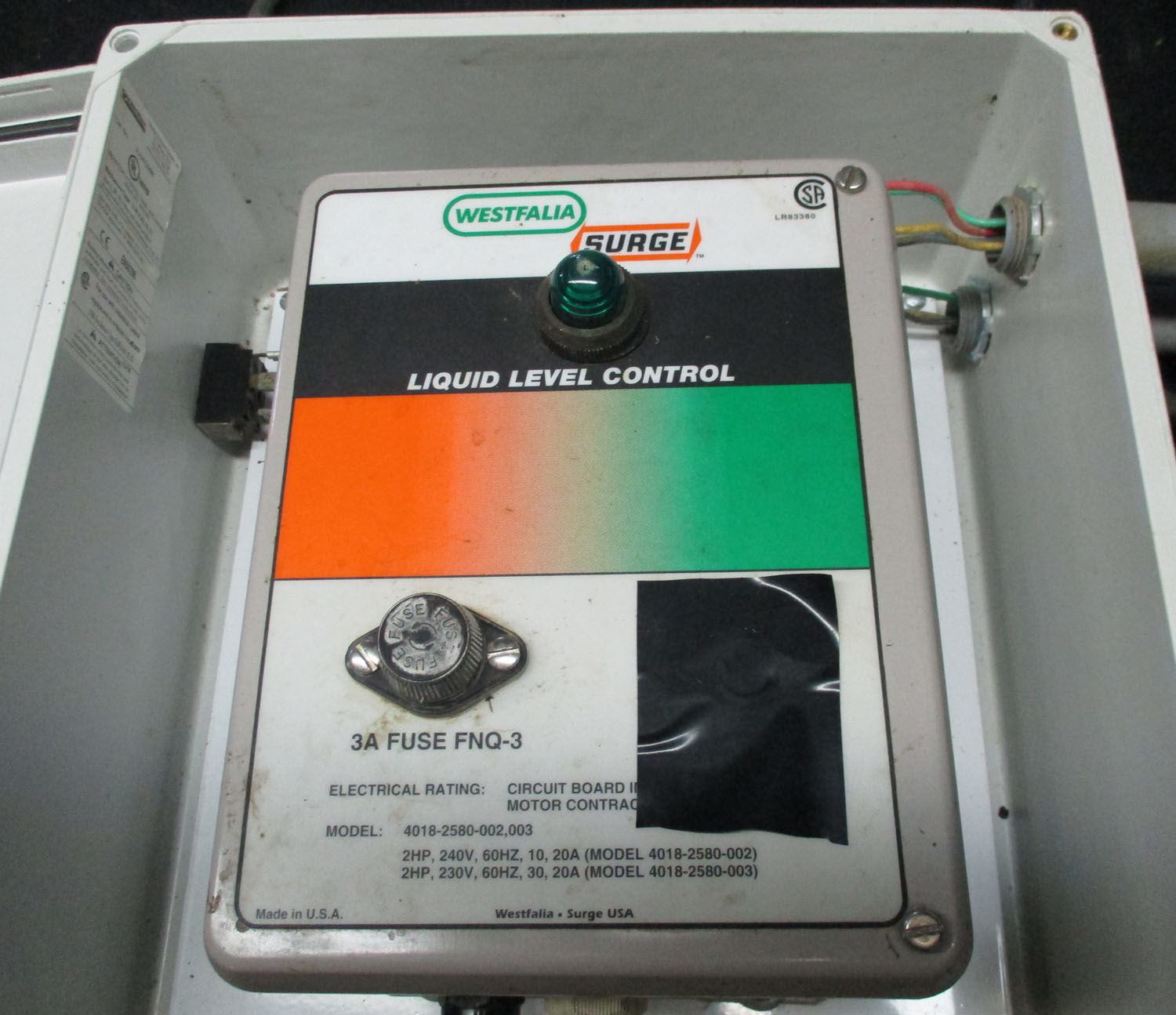

USED This liquid level control includes a hard plastic protective box and a stainless steel probe. The box measures 13 1/2″ wide by 15″ tall by 7 1/2″ deep with the toggle switch on the side being 1″ long. The pipes on the side are 7″ long with an outer diameter of 1 1/16″ and an inner diameter of 3/4″. The control inside the box measures 7 1/2″ wide by 9 1/2″ tall by 5″ deep–6″ deep including the knobs. The wire to the probe is approximately 5 feet long. The probe is 17″ long overall with an outer diameter of 2 1/8″ and an inner diameter of 1 1/2″. The two longer stainless steel probes are 15″ long and the shorter probe is 12″ long. The circuit board has the following specifications:

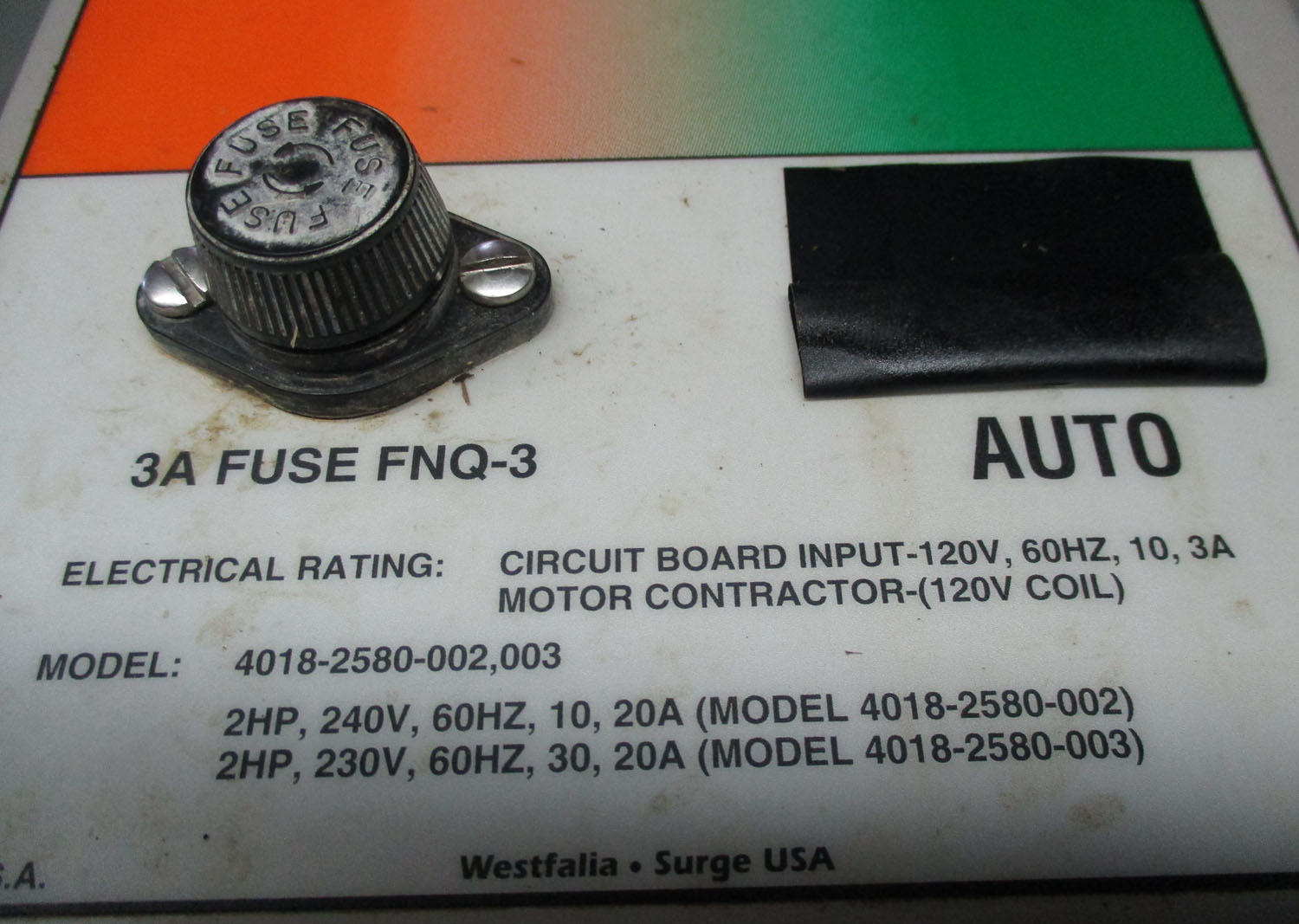

Input: 120 volts, 60 Hertz, 3 amperes
2 horsepower 240 volts, 60 Hertz, 20 amperes (model 002)
2 horsepower 230 volts, 60 Hertz, 20 amperes (model 003)
The Surge part number for this liquid level control is 4018-2580–002, 003.
Additional information
Weight | 25.00 lbs |
---|---|
Dimensions | 17 × 20.50 × 8.50 in |
Brand |
