Description
NEW This visual flow meter is made of rubber, plastic, and metal. It measures:

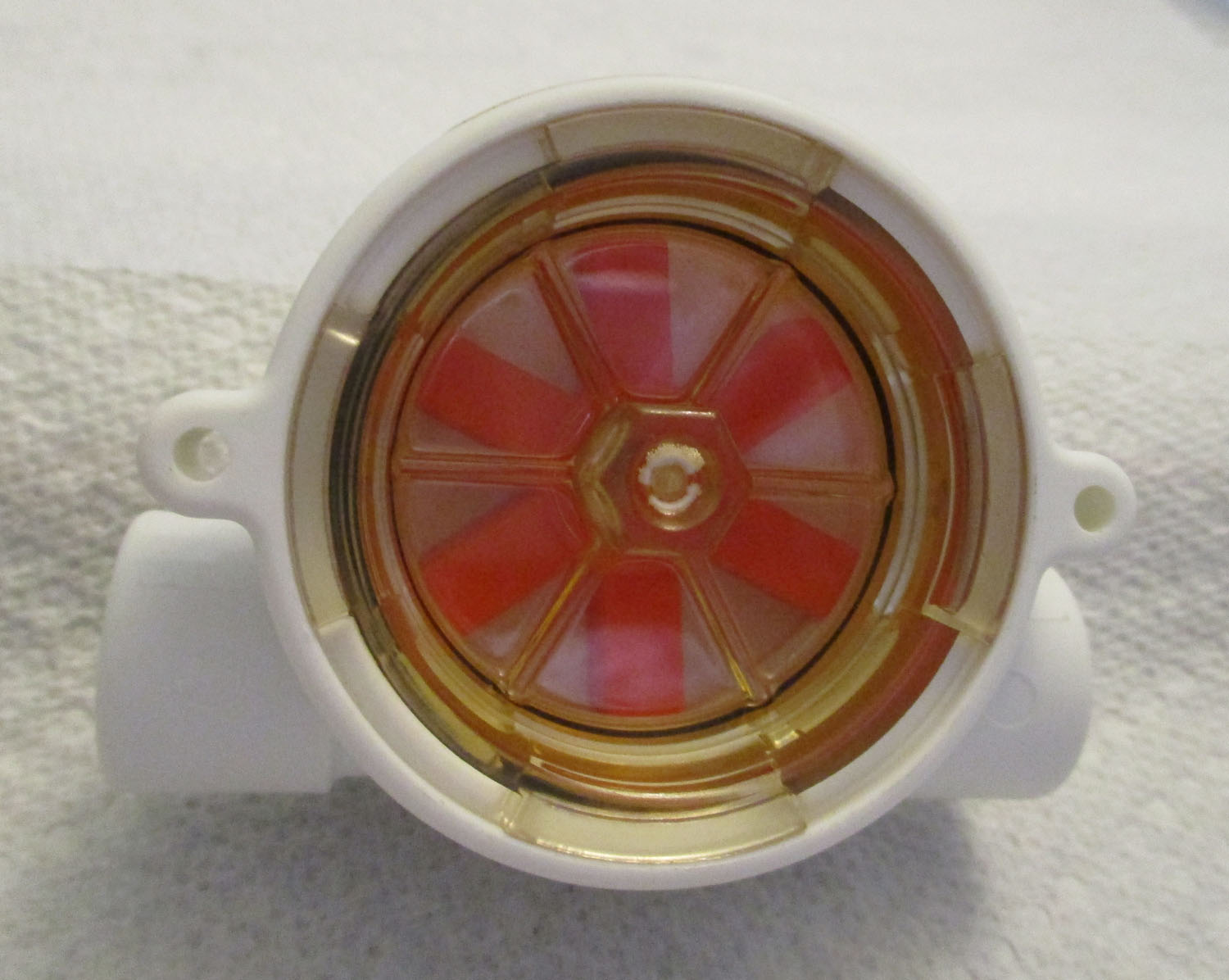

The indicator is 3″ long by 2 3/16″ for the overall outer diameter. The inlet/outlet holes have an outer diameter of 3/4″ with an inner diameter of 7/16″.

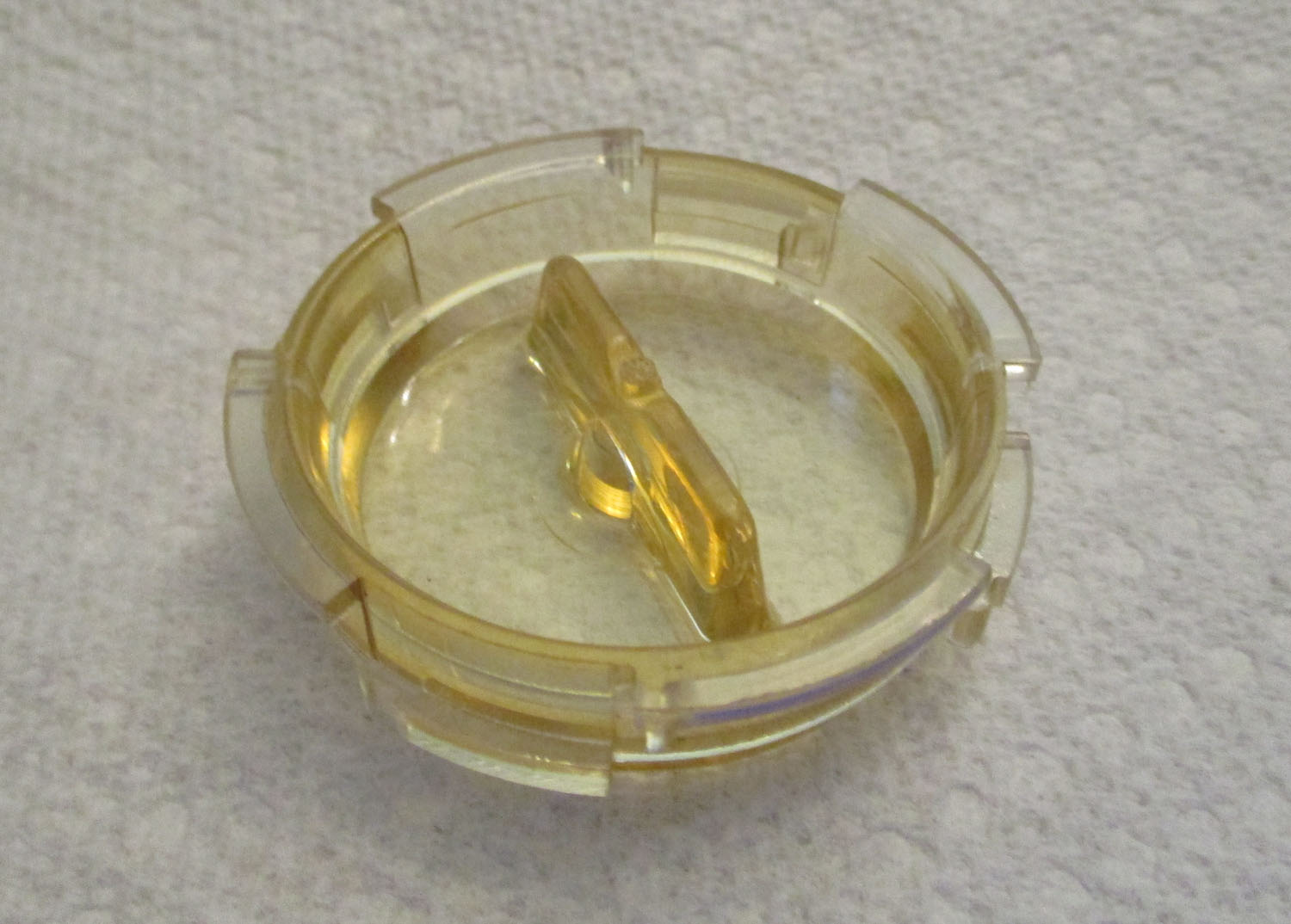

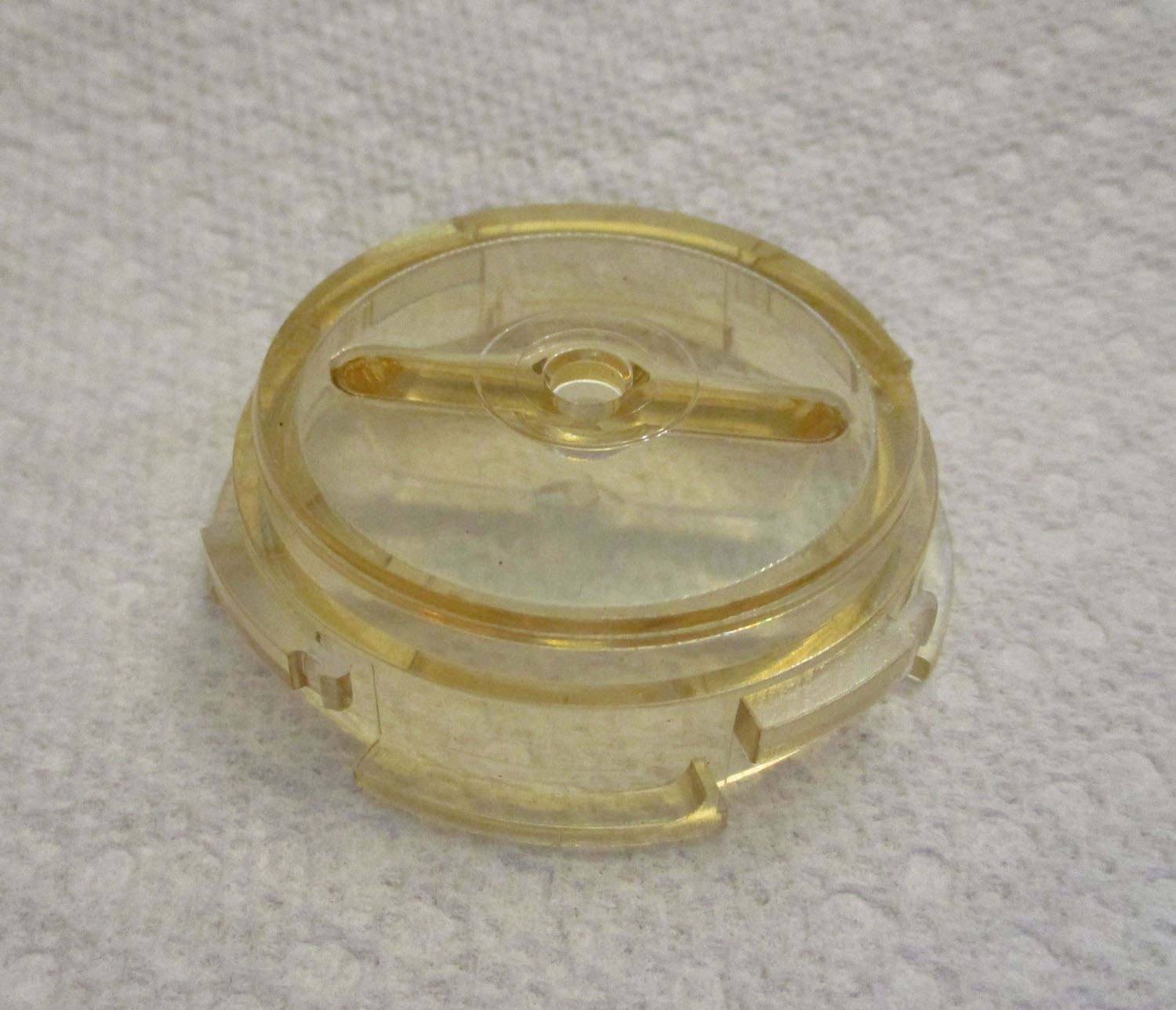

The cover has an outer diameter of 2″, and is 1/2″ tall.

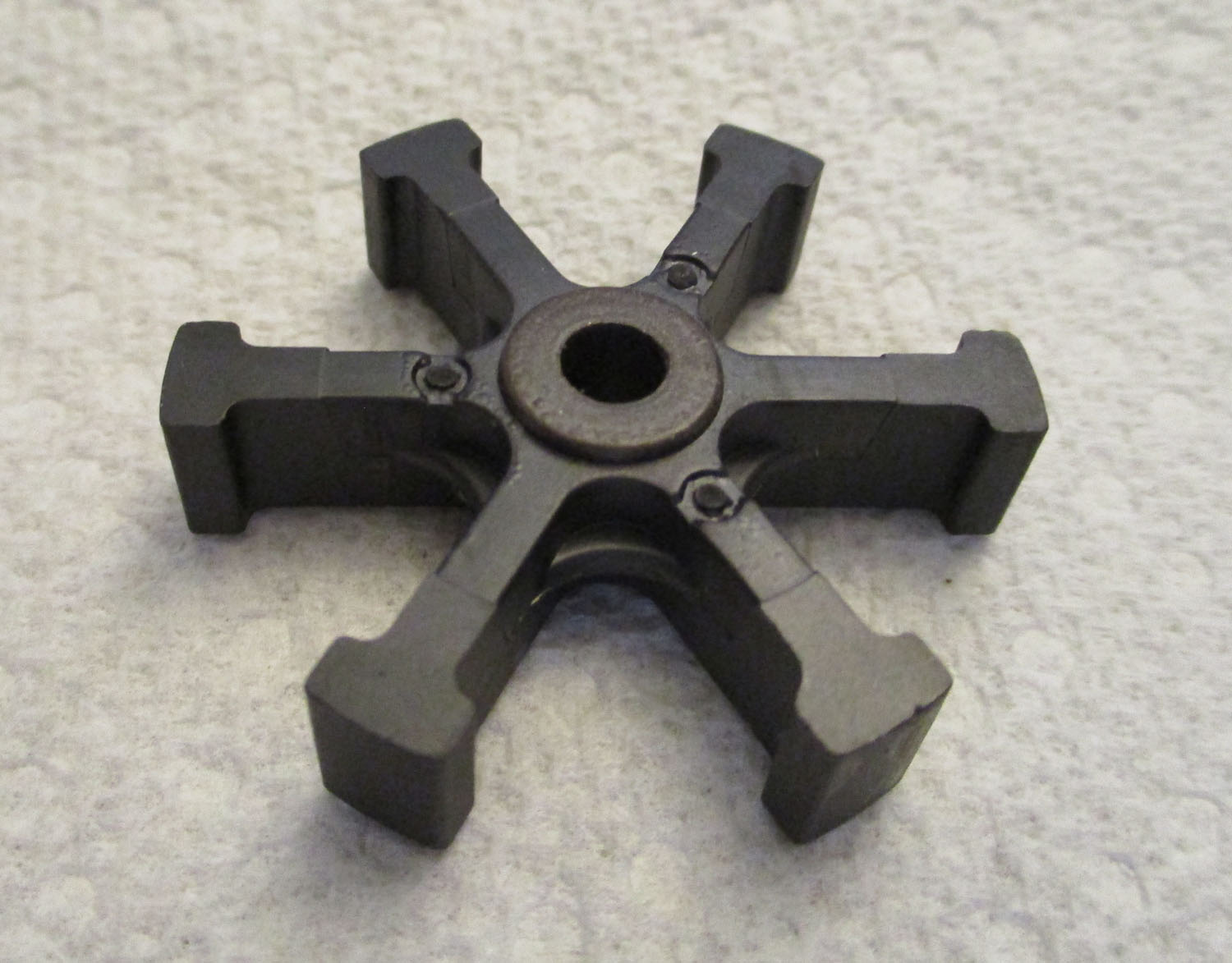

The wheel has an outer diameter of 1 1/2″, and is 1/4″ tall.
The O ring has an outer diameter of 1 3/4″ with an inner diameter of 1 5/8″, and is 1/8″ thick.

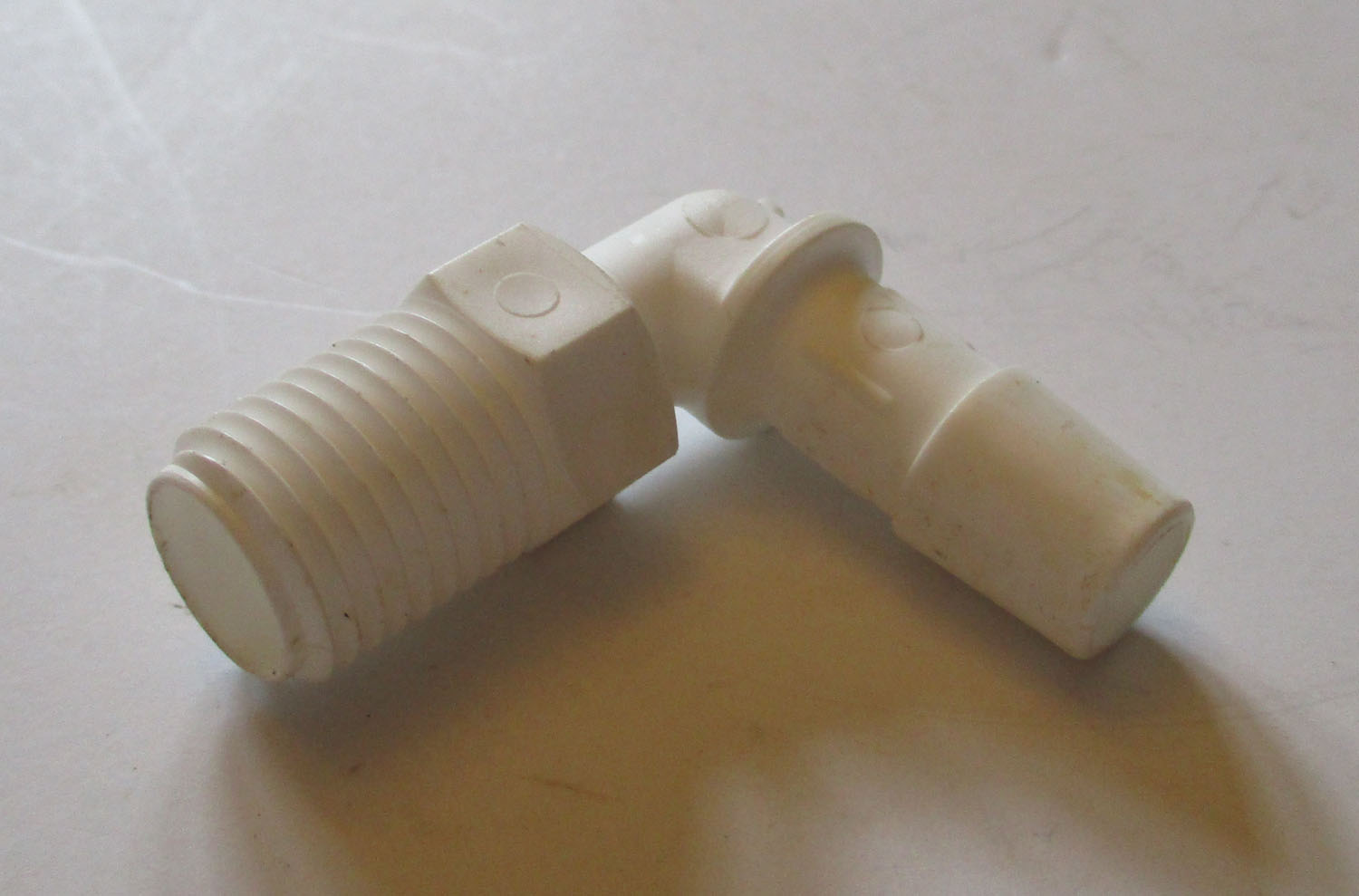

The threaded end of the elbow is 1 3/8″ long. The barbed end of the elbow is 1 1/4″ long. The thread has an outer diameter of 7/8″ with an inner diameter of 5/16″. The barb has an outer diameter of 1/4″ with an inner diameter of 3/16″.

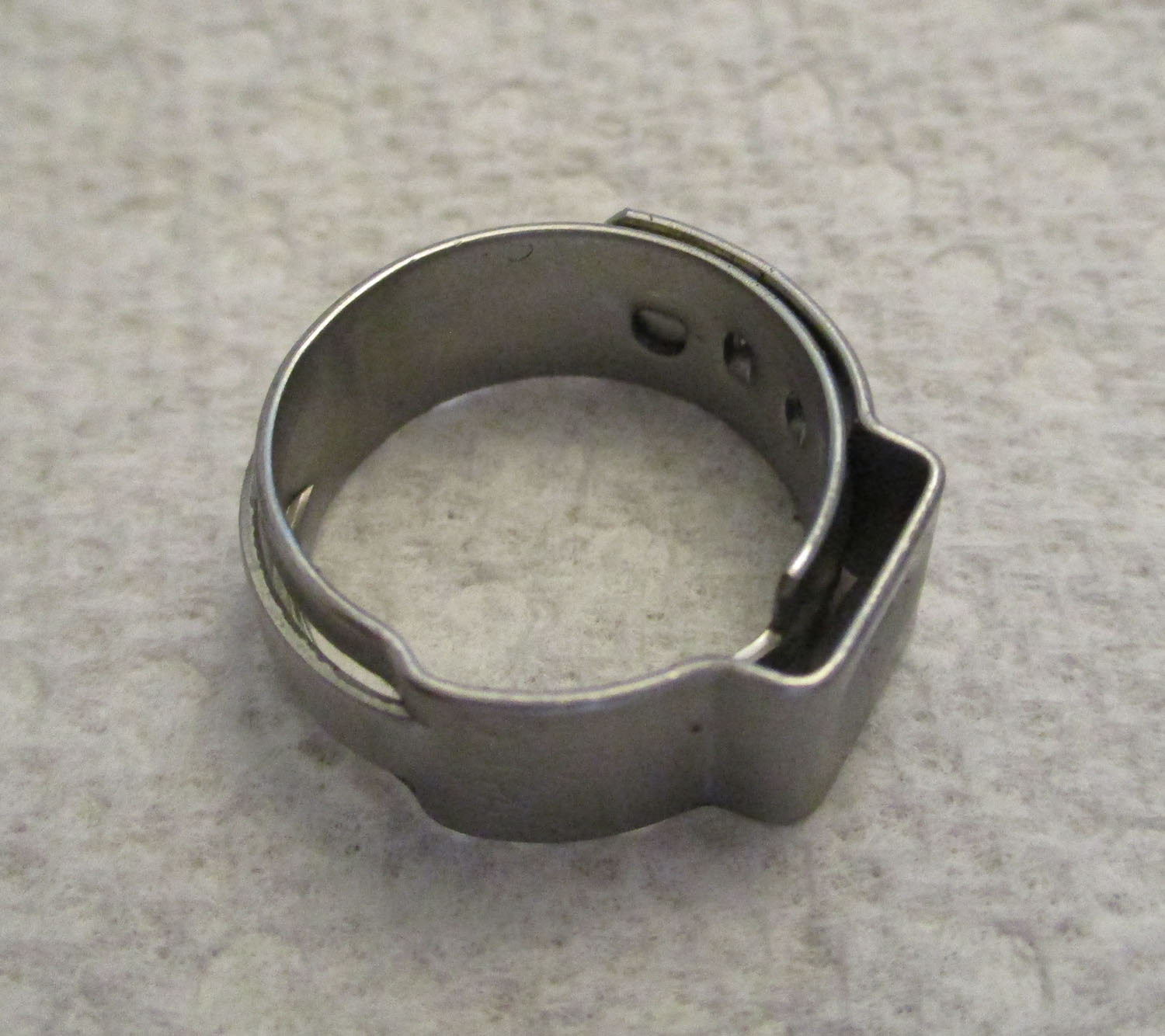

The squeeze clamp is 5/8″ long and is 3/16″ thick.
The screws are 1/2″ long.

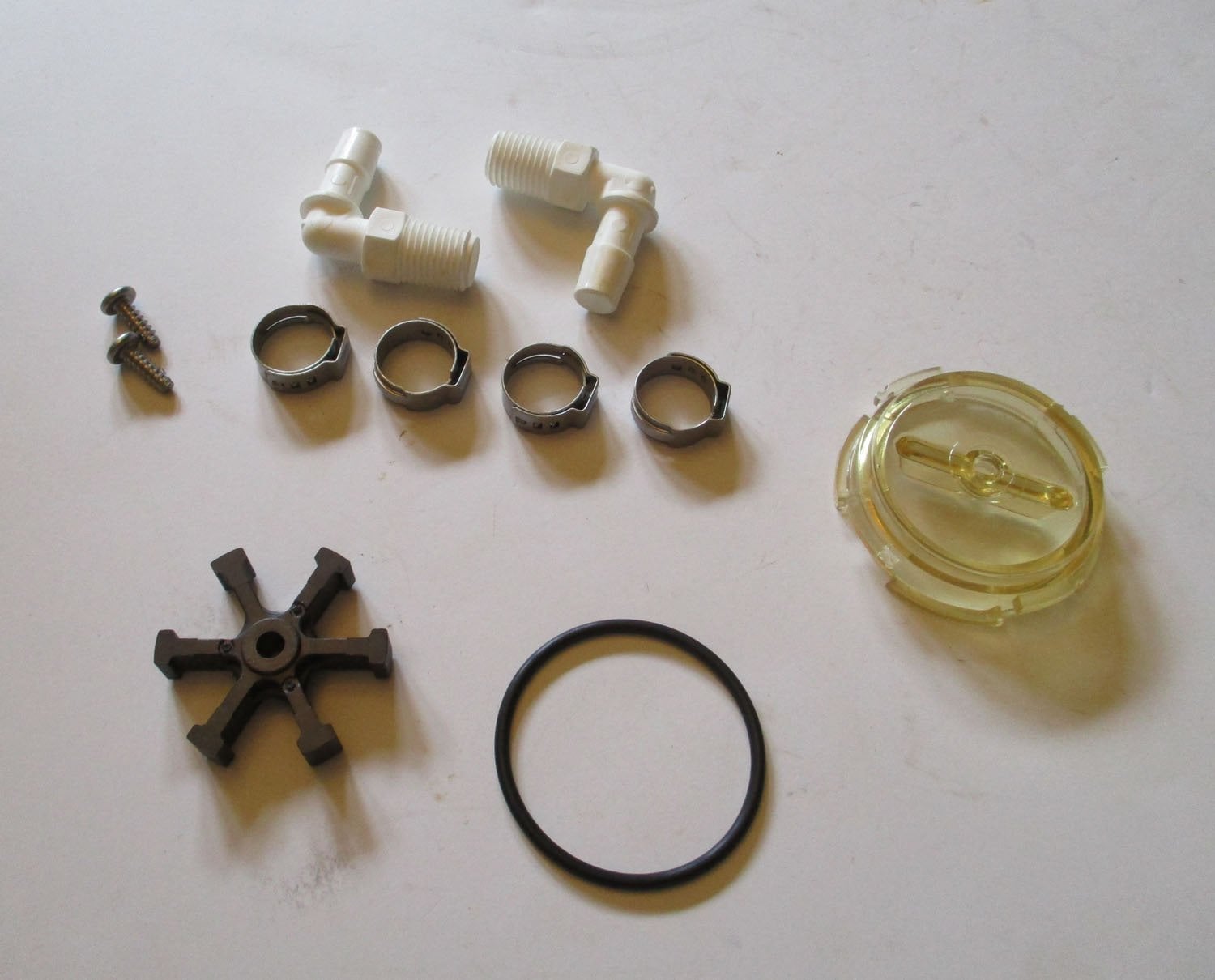

The Surge part numbers are, the indicator 7750-0037-869, the kit 7750-0037-898.
Additional information
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Brand |
