Oiler Assembly One Check Valve

Name: Oiler Assembly One Check Valve
SKU: VBM-000-014N 25NS02
Price: 78.00 USD
Availability: InStock

$78.00

NEW Oiler Assembly One Check Valve

1 in stock

SKU: VBM-000-014N 25NS02Categories: Oilers

Description

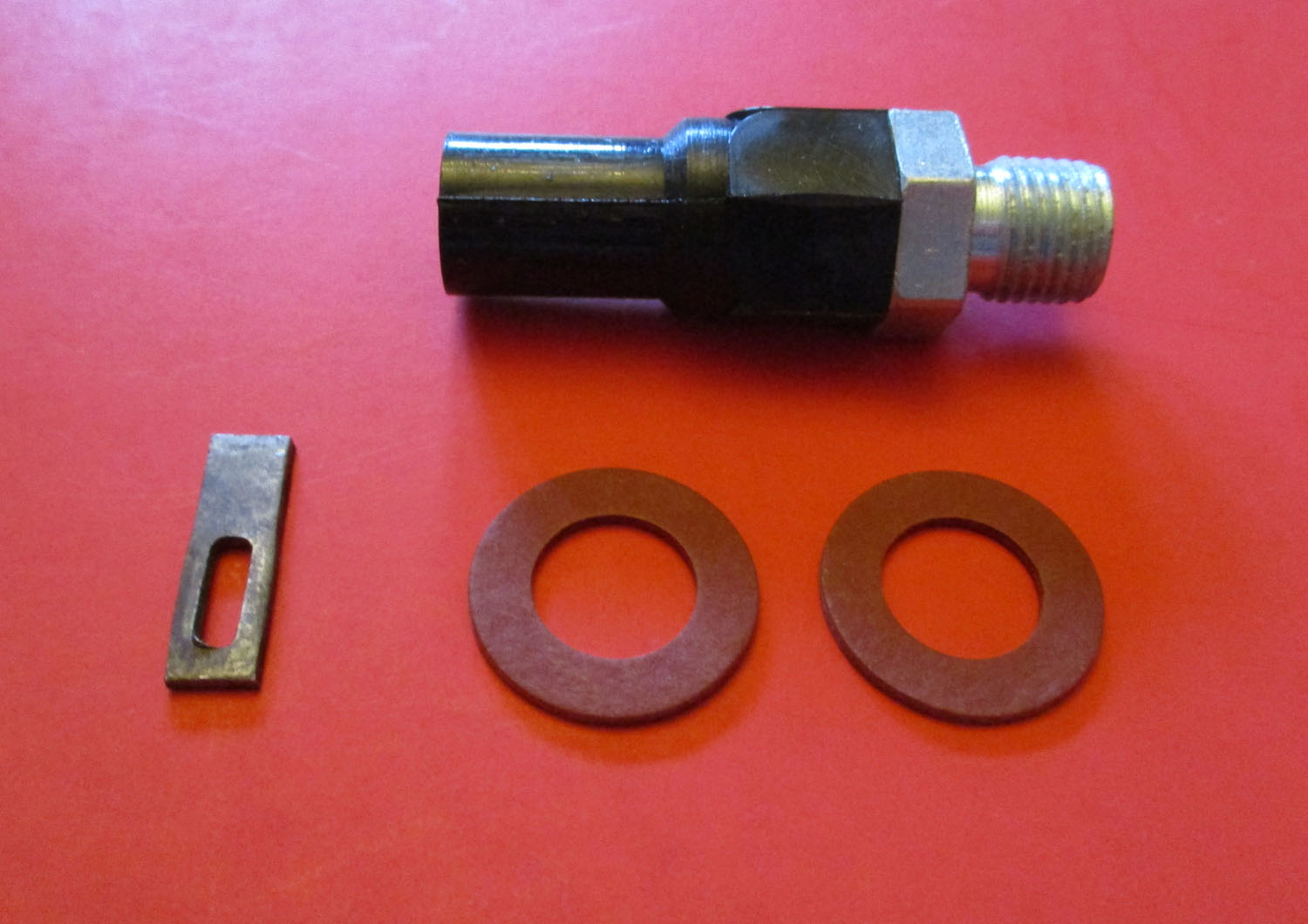

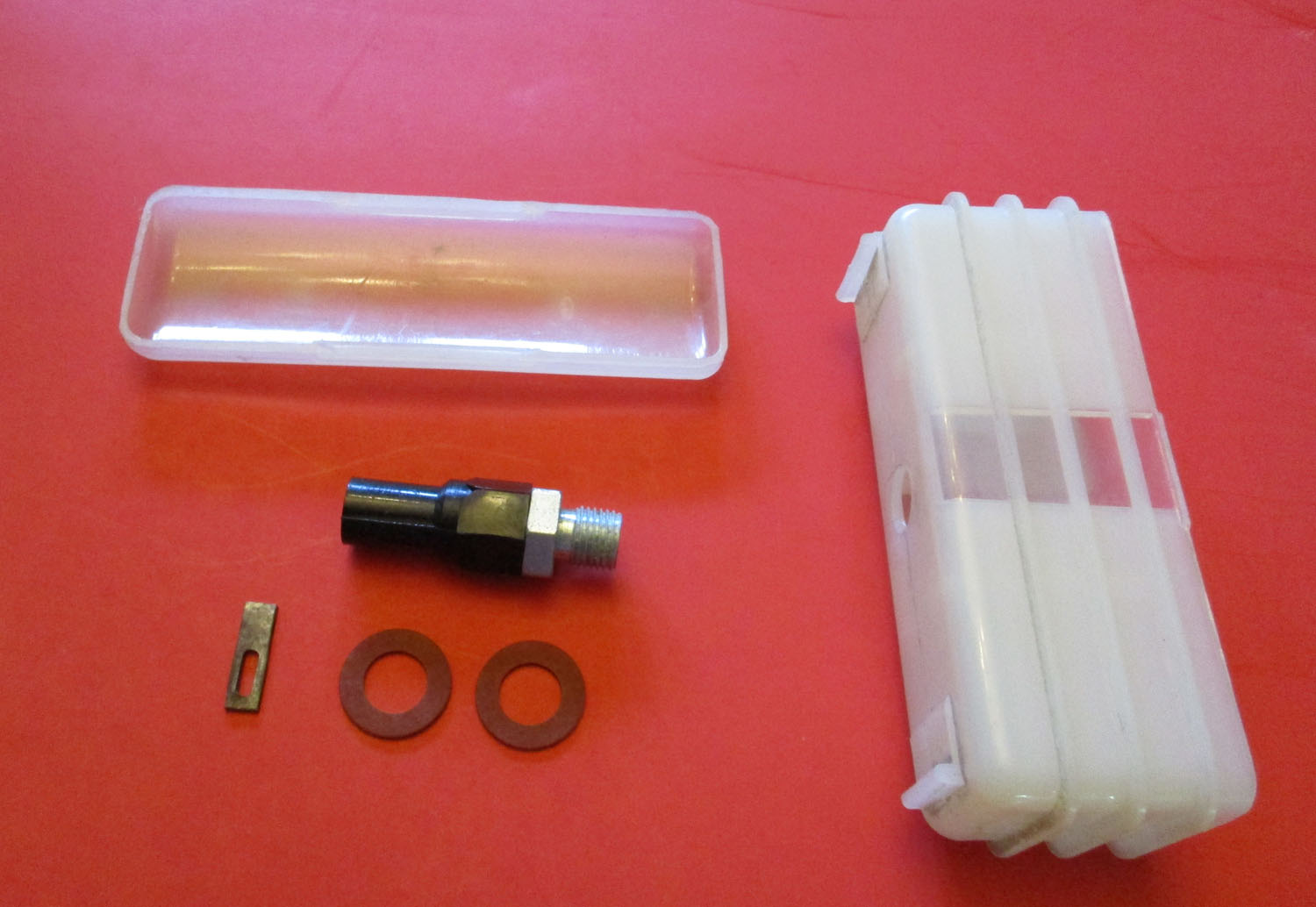

NEW This oiler assembly with one check valve is made of plastic and metal.

The clip measures 7/8″ long by 1/4″ wide and is 1/16″ thick.

The washers measure 13/16″ for the outer diameter with an inner diameter of 7/16″, and are 1/16″ thick.

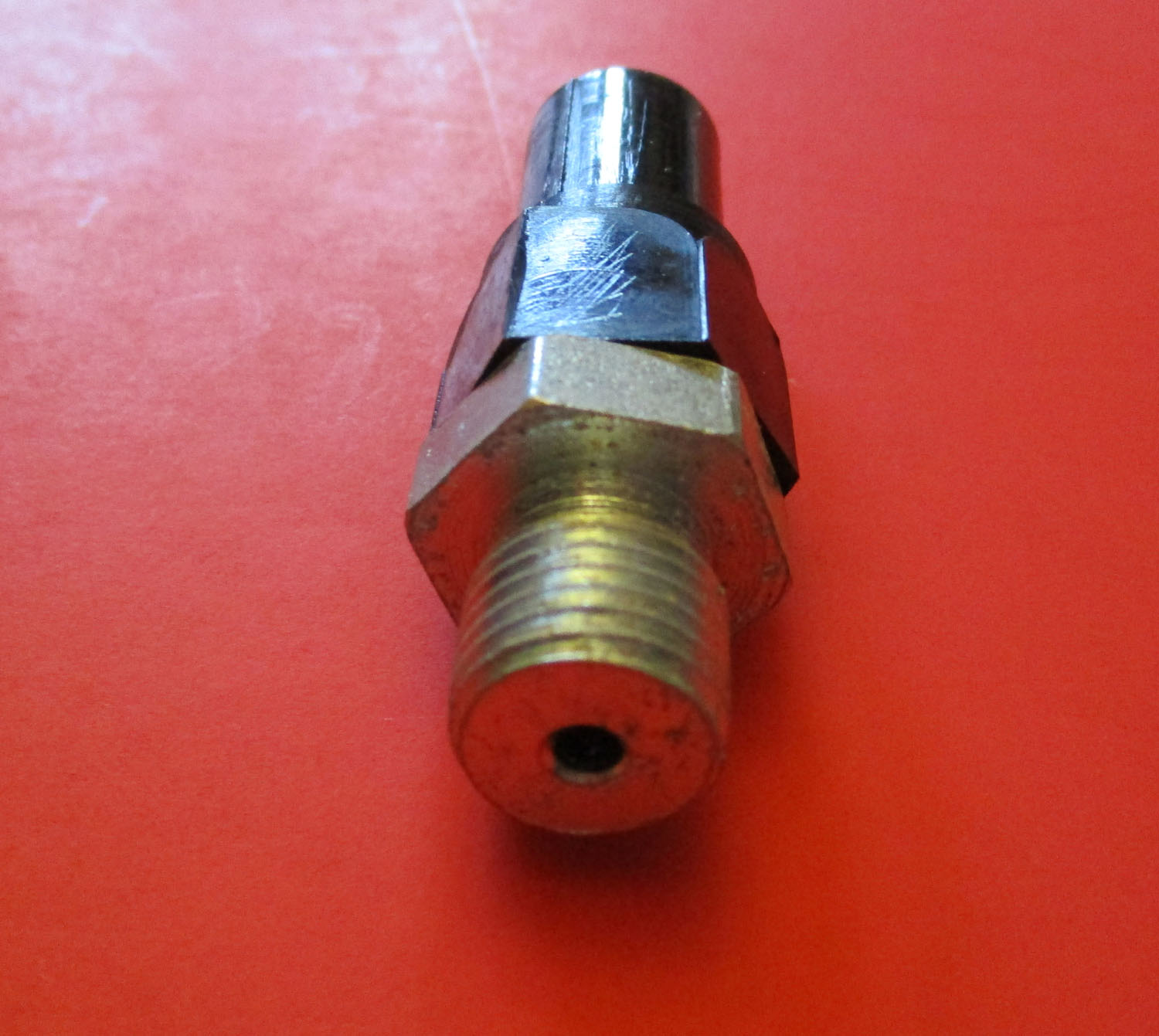

The valve assembly measures 2 3/16″ long by 5/8″ wide. The plastic end has an outer diameter of 1/2″ with an inner diameter of 5/16″. The threaded end has an outer diameter of 7/16″ with an inner diameter of 1/16″.

The reservoir measures 5 5/16″ long by 1 3/4″ wide and is 2 5/16″ tall.

This is for a FR 2,3, or 4 Vacuum pump. The Boumatic manufacturer numbers are reservoir 8519826, reservoir covers 8519685, fiber washers 8519615, and valve assembly 8519616.

Additional information

Weight	0.44 lbs
Dimensions	9 × 5 × 6 in
Brand	Boumatic
