Description
USED This stainless steel and rubber vacuum wash valve plunger and rod measures:

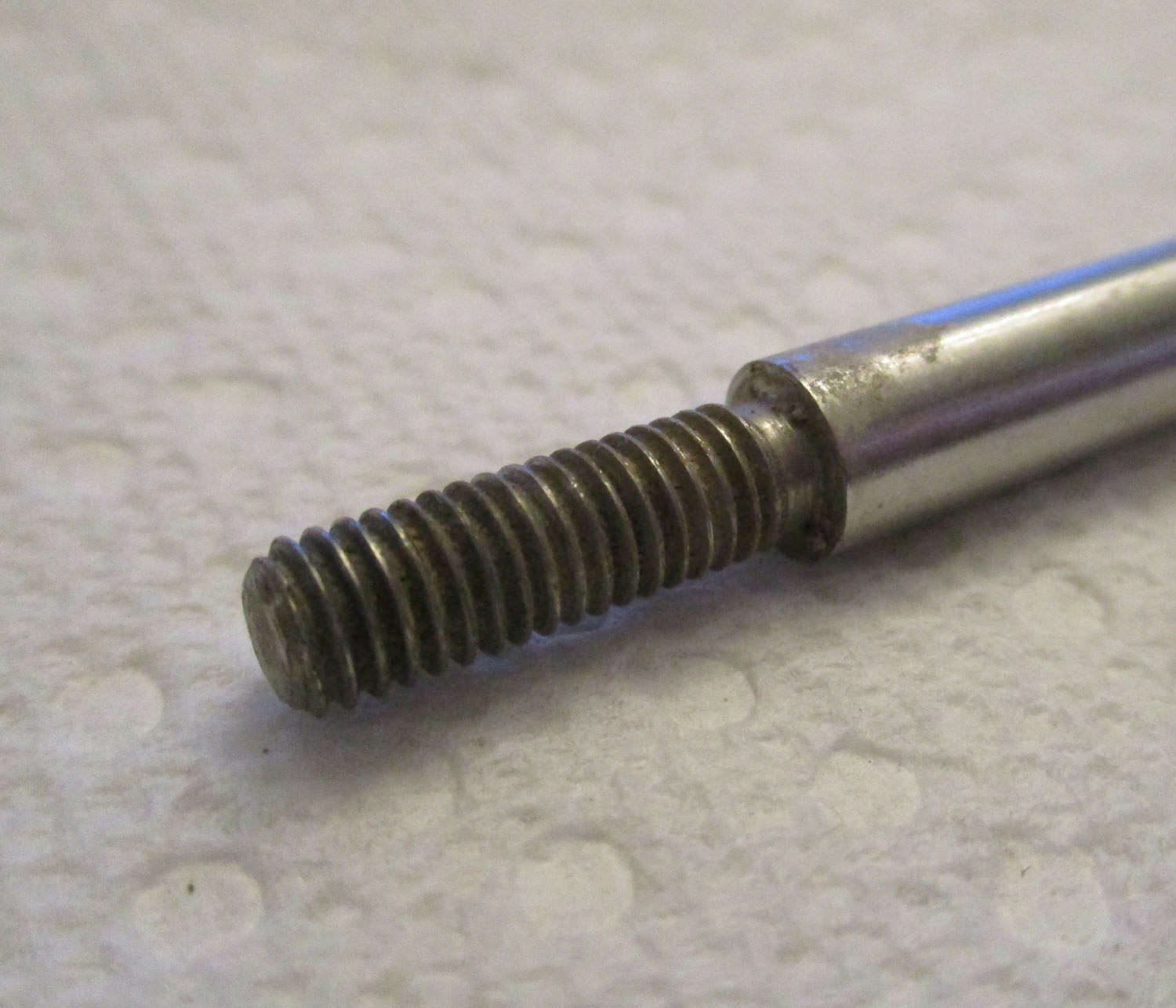

The rod is 6 7/8″ from threaded end to threaded end, with an outer diameter of 1/4″, and has a thread size of #10-32.

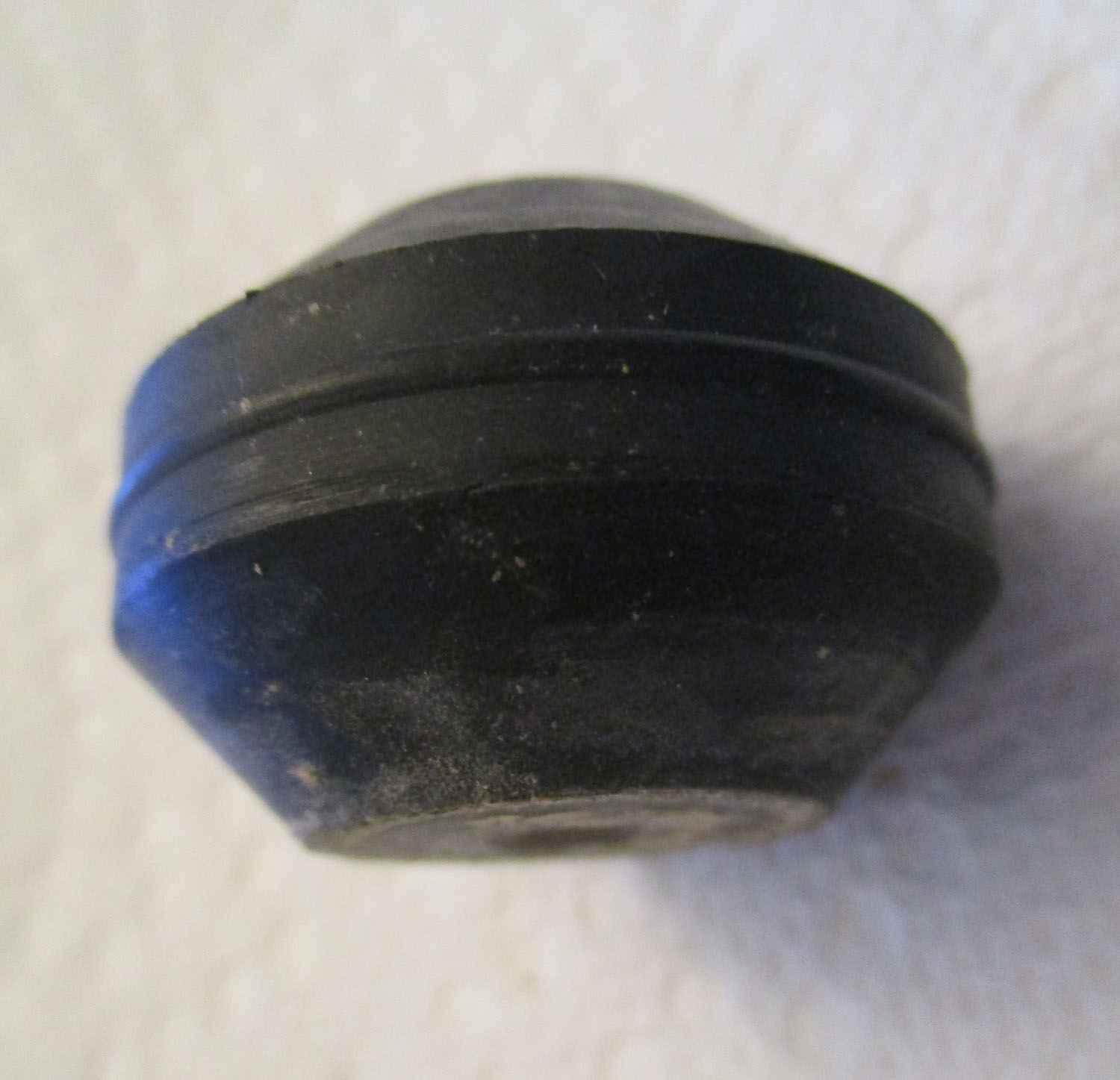

The rubber head measures 1 5/16″ at the largest part of the outer diameter and is 7/8″ tall. The hole has an inner diameter of 3/16″.

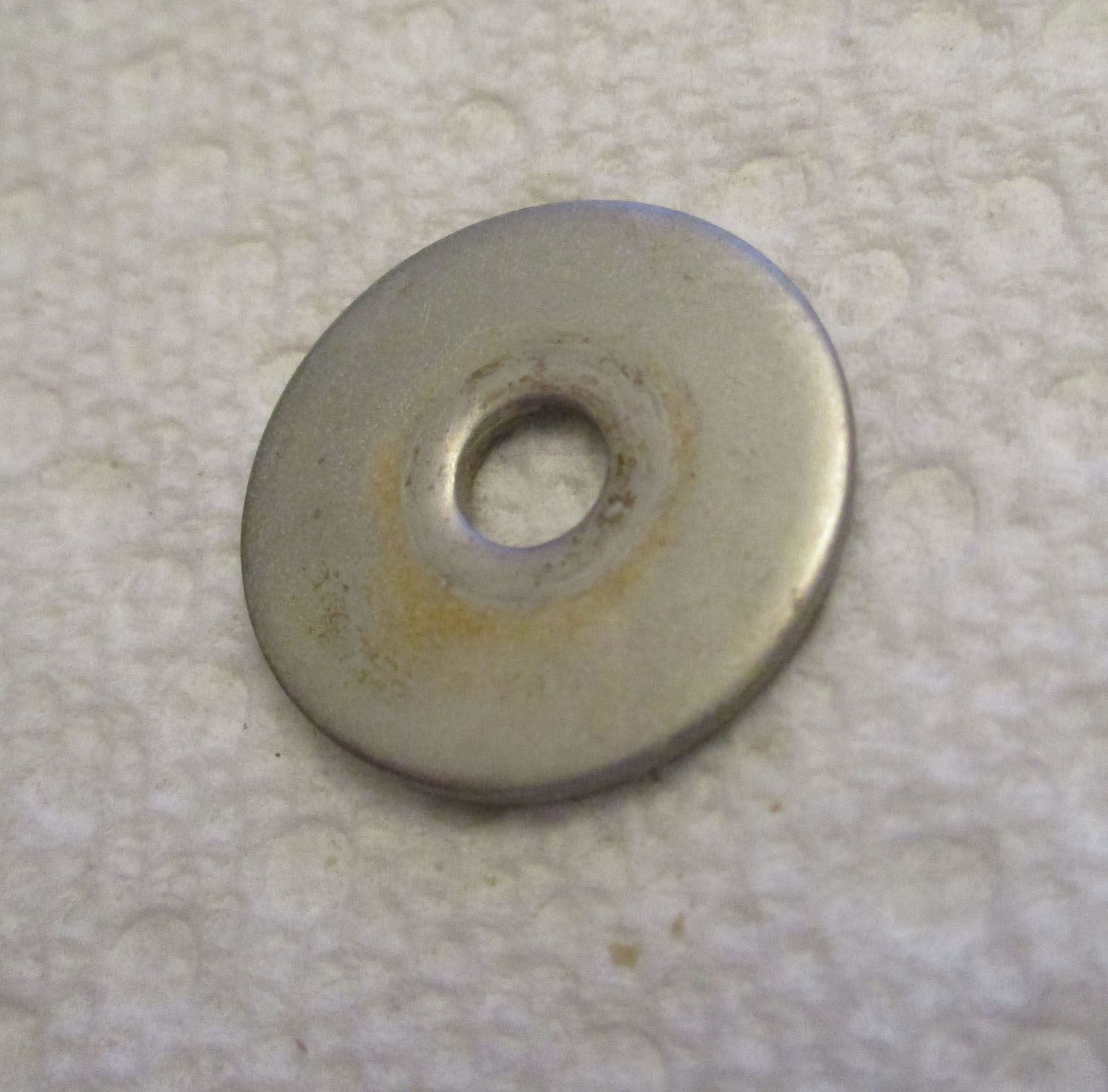

The washer has an outer diameter of 3/4″, with an inner diameter of 1/4″.

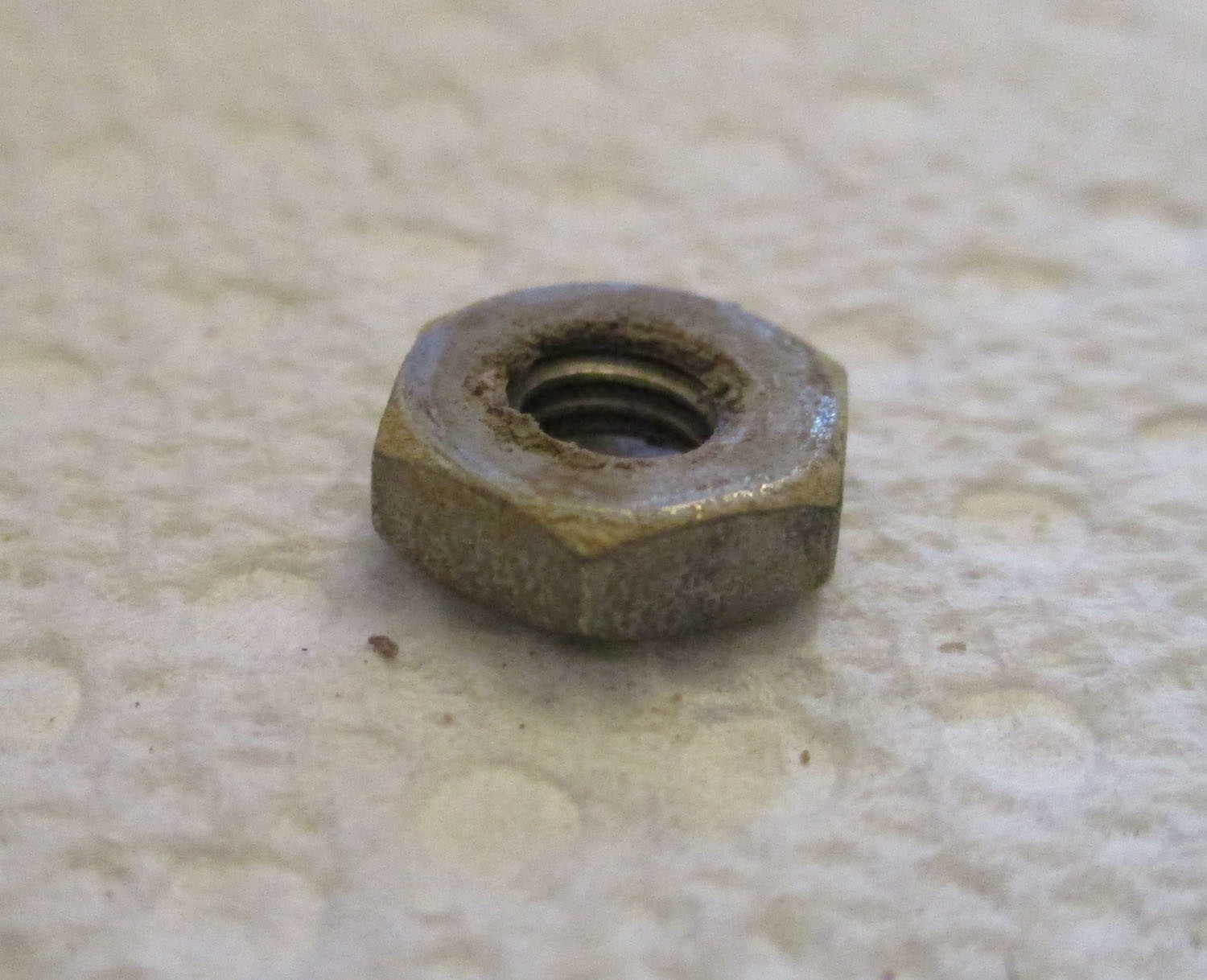

The nut is 3/8″ wide by 1/8″ high, and has a thread size of #10-32.
The plunger and rod are used in the older version Surge 1 1/2″ vacuum wash valve. The Surge part number is 7750-0022-975.
Additional information
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 7 × 1.50 × 1.50 in |
| Brand |
