Relay For Liquid Level Control With Start Capacitor 100Μf 50V

Relay Liquid Level Control w/Start Capacitor 100µF 50V

Name: Relay for Liquid Level Control with Start Capacitor 100µF 50V
SKU: MUK-000-397N 08NS07
Price: 30.00 USD
Availability: InStock

$30.00

NEW Relay Liquid Level Control w/Start Capacitor 100µF 50V

1 in stock

SKU: MUK-000-397N 08NS07Categories: Contactors, Capacitors and Relays for Motors, Motor Contactors, Relays and Capacitors

Description

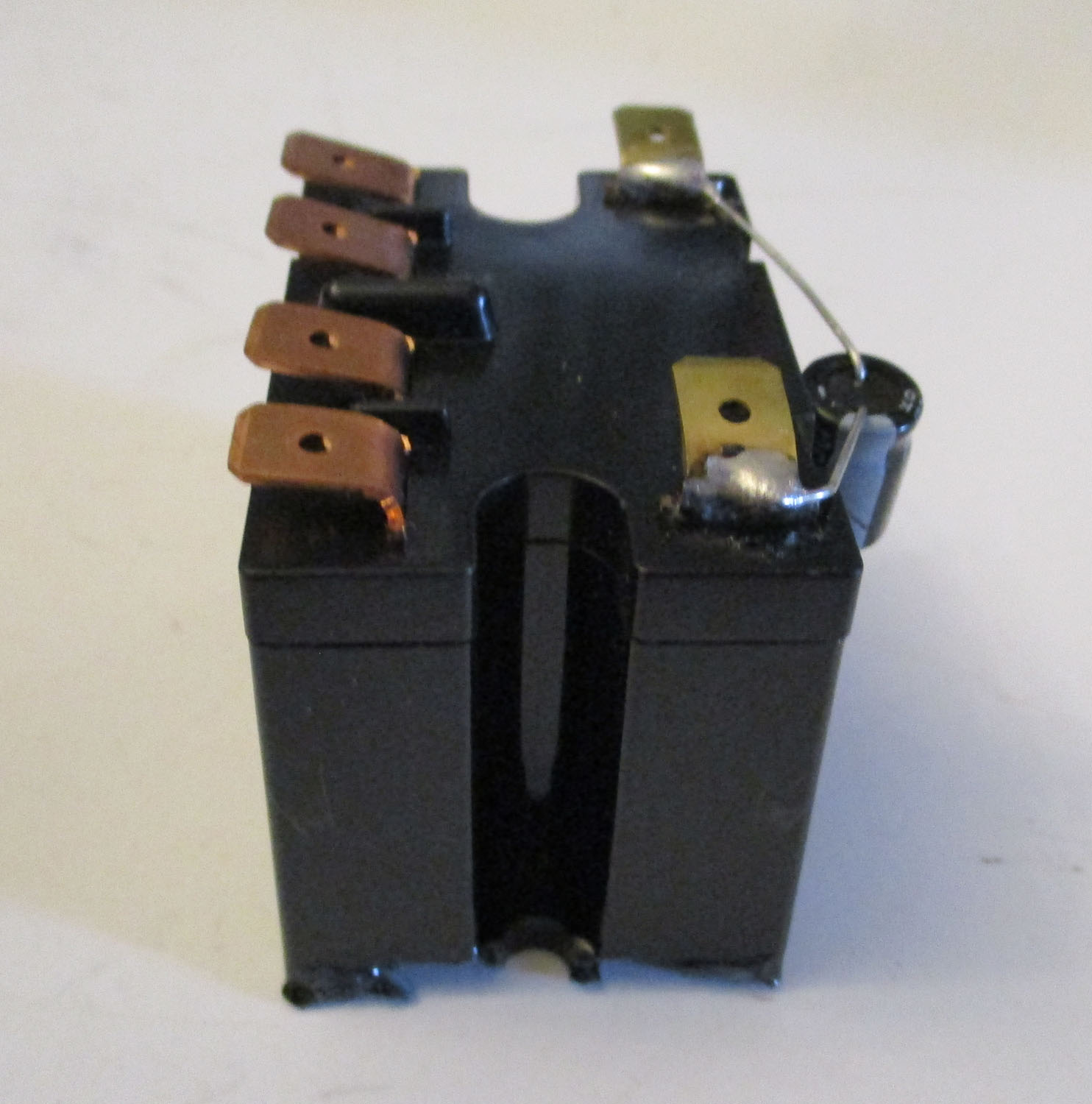

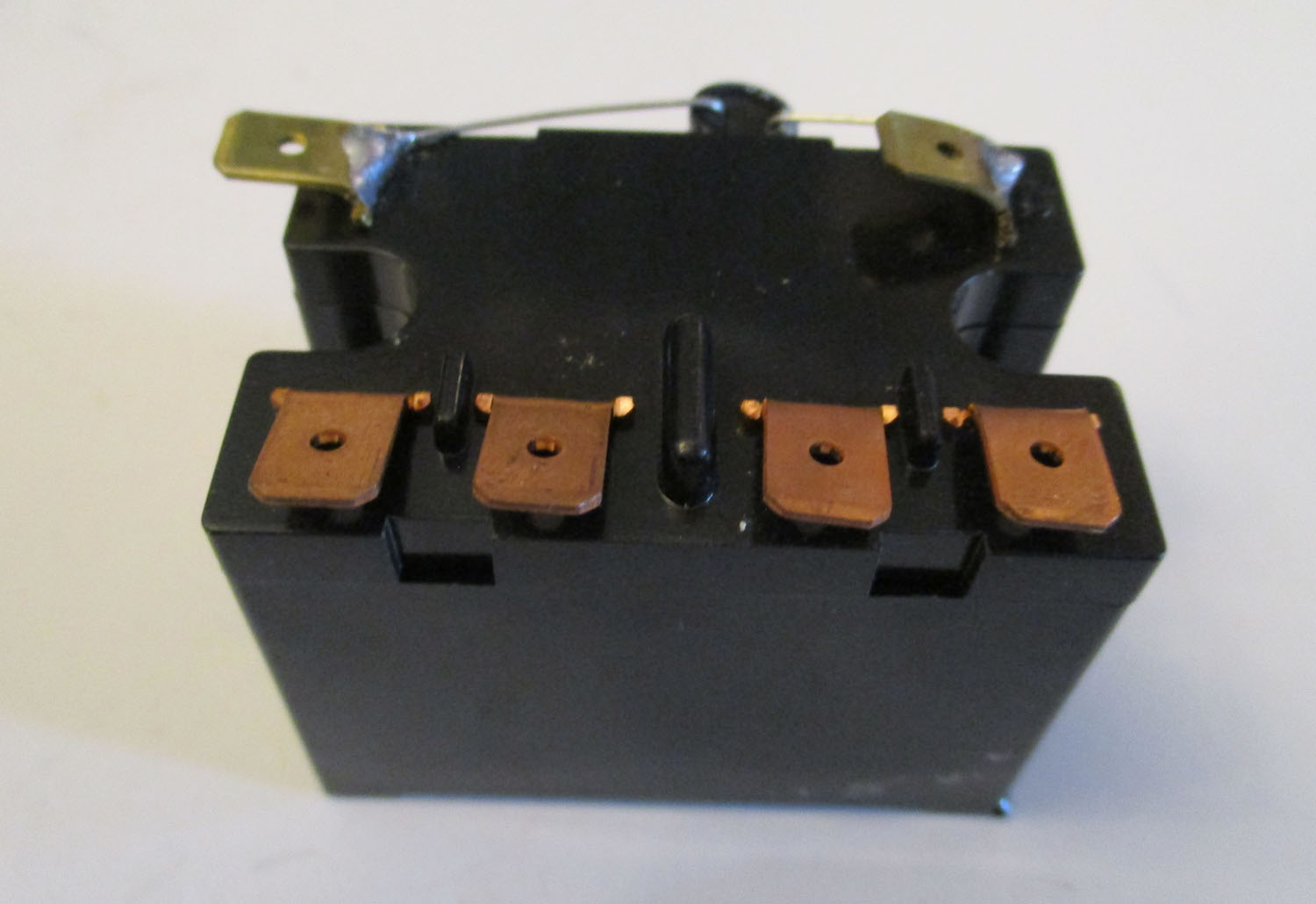

NEW This metal and plastic relay measures:

The relay is 2 1/16″ wide overall by 1 3/16″ deep overall by 1 1/2″ tall.

The six connectors are 3/4″ long.

The washer has an outer diameter of 1/4″ with an inner diameter of 3/16″.

The screw is 1/2″ long with a #8-32 thread size.

The indicated specifications for the capacitor are 85° Celsius, 100 micro-Farads, 50 volts. The relay part number is HE2aN-Q-DC12V AHE2221. The manufacturer is unknown. The relay operates according to the chart below.

Horse Power	Volts	Alternating Current or Direct Current	Amperes	Volts	Alternating Current or Direct Current
1	125	AC	25	277	AC
2	250	AC	25	30	DC

Additional information

Weight	0.25 lbs
Dimensions	5 × 7 × 6 in
Brand	Unknown
