Relay Potential TR66 35AMP 385V

Name: Relay Potential TR66 35AMP 385V - Dairy Equipment Parts
SKU: MTI-000-001N 25SS08
Price: 24.00 USD
Availability: InStock

$24.00

NEW Relay Potential TR66 35AMP 385V

1 in stock

SKU: MTI-000-001N 25SS08Categories: Contactors, Capacitors and Relays for Motors, Motor Contactors, Capacitors and Relays, Motor Contactors, Relays and Capacitors

Description

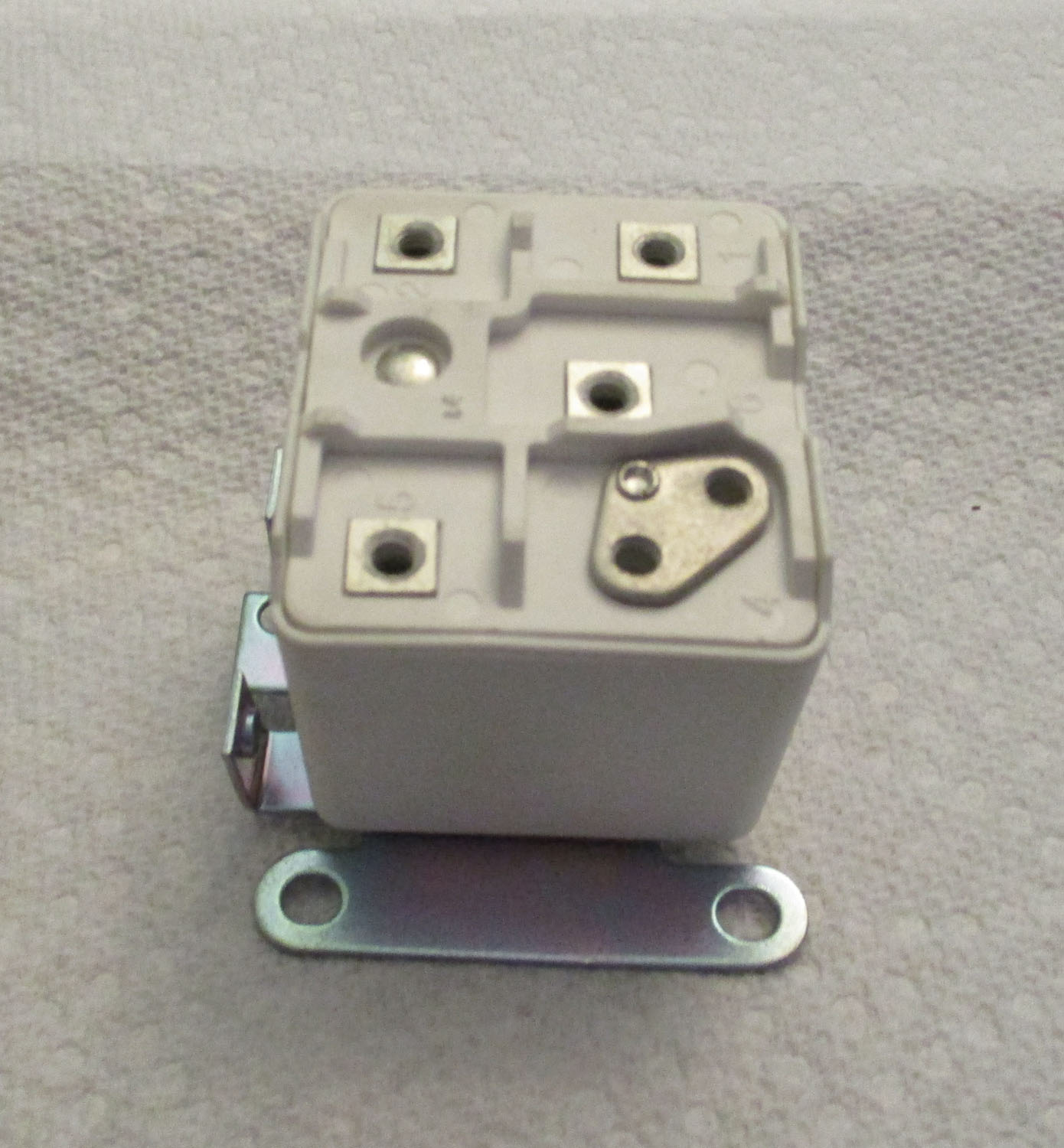

NEW This TR66 potential relay is made of metal and plastic. It measures 2 1/8″ tall with the bracket by 2 3/8″ wide with the bracket by 1 15/16″ deep with the bracket. The hardware measures:

The bracket is 5/16″ long by 1/4″ wide.

The smaller screw is 3/16″ long.

The larger screw is 1/4″ long.

The indicated specifications are:

Continuous coil volt 395 volts

Pickup minimum of 210 volts

Pickup maximum of 230 volts

Dropout maximum of 123 volts

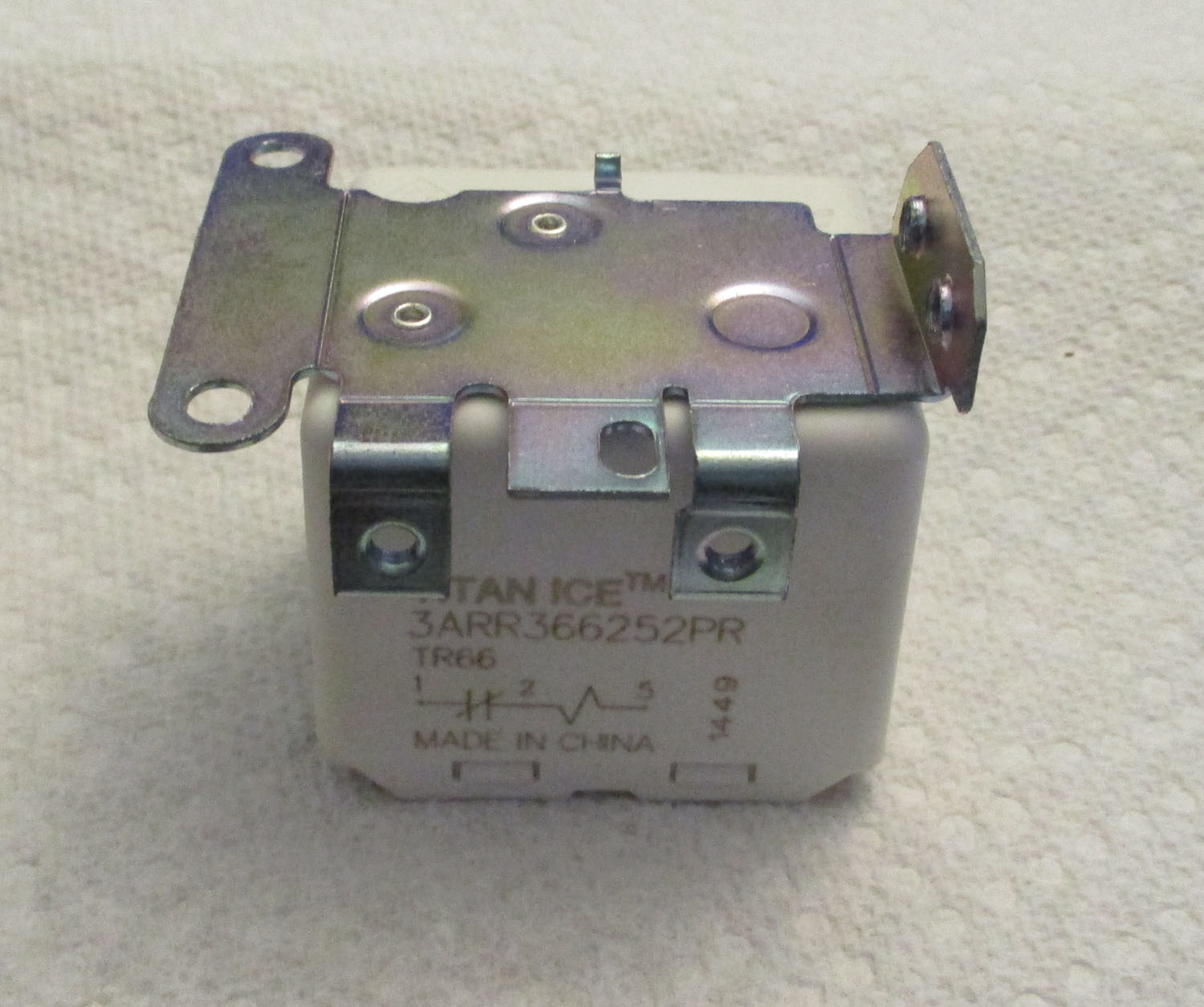

The Titan Ice part number is 3ARR366252PR.

Additional information

Weight	0.75 lbs
Dimensions	2.25 × 2.50 × 2 in
Brand	Titan Ice
