Description

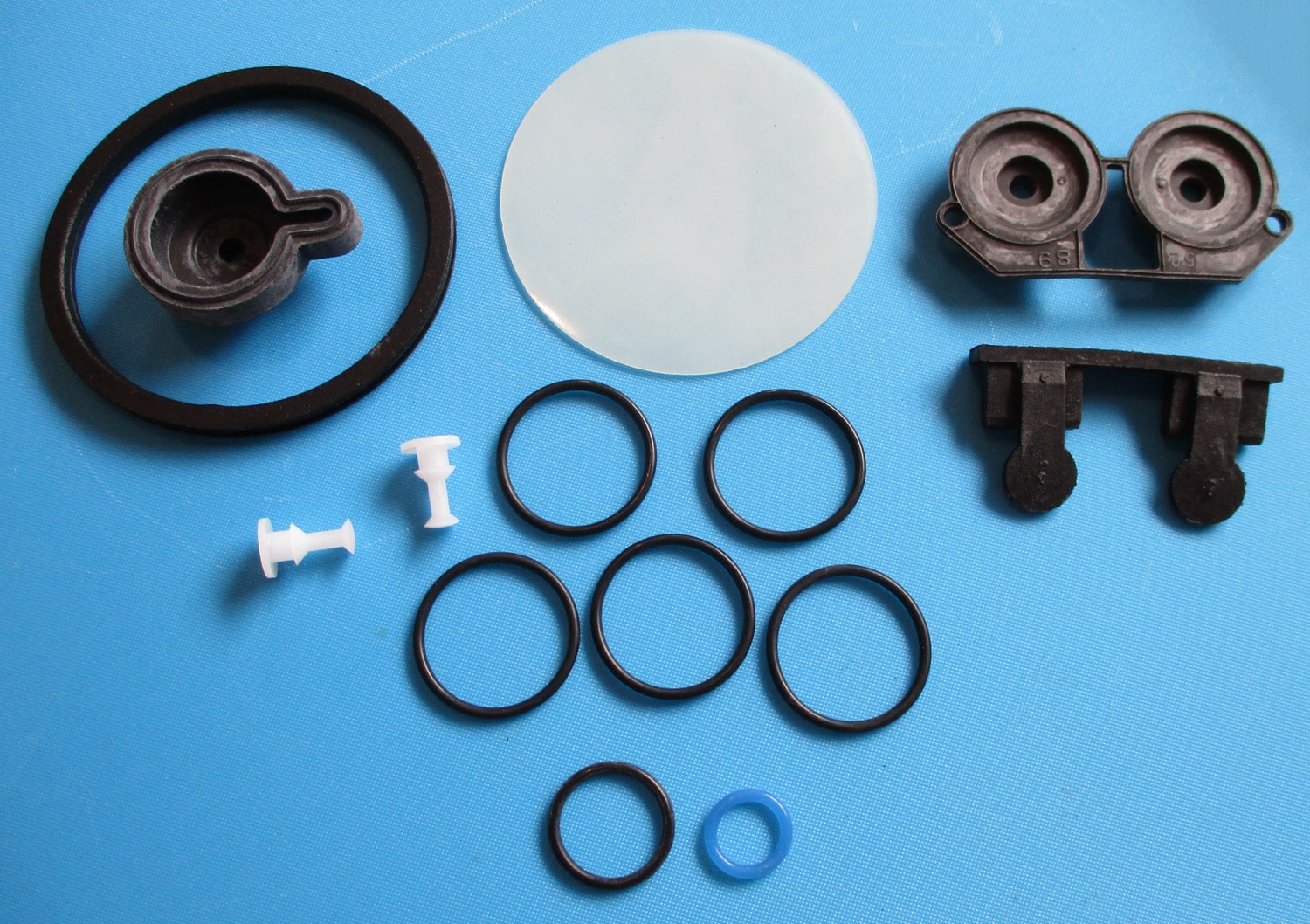

NEW This DeLaval service kit for the MU350, MU450, 4000H contains plastic and rubber parts which consist of:
Two plastic diaphragm axles: 7/16″ long with a 5/16″ outside diameter on the top and a 3/16″ outside diameter on the bottom.
One flat plastic disc: 2 3/16″ outside diameter.
One rubber o-gasket: 2 5/16″ outside diameter, 2 3/16″ inside diameter, 1/8″ thick, 1/16″ deep groove around edge.
Five rubber o-rings: 7/8″ outside diameter, 3/4″ inside diameter, 1/16″ thick.
One rubber o-ring: 5/8″ outside diameter, 1/2″ inside diameter, 1/16″ thick.
One blue rubber o-ring: 7/16″ outside diameter, 5/16″ inside diameter, 1/16″ thick.

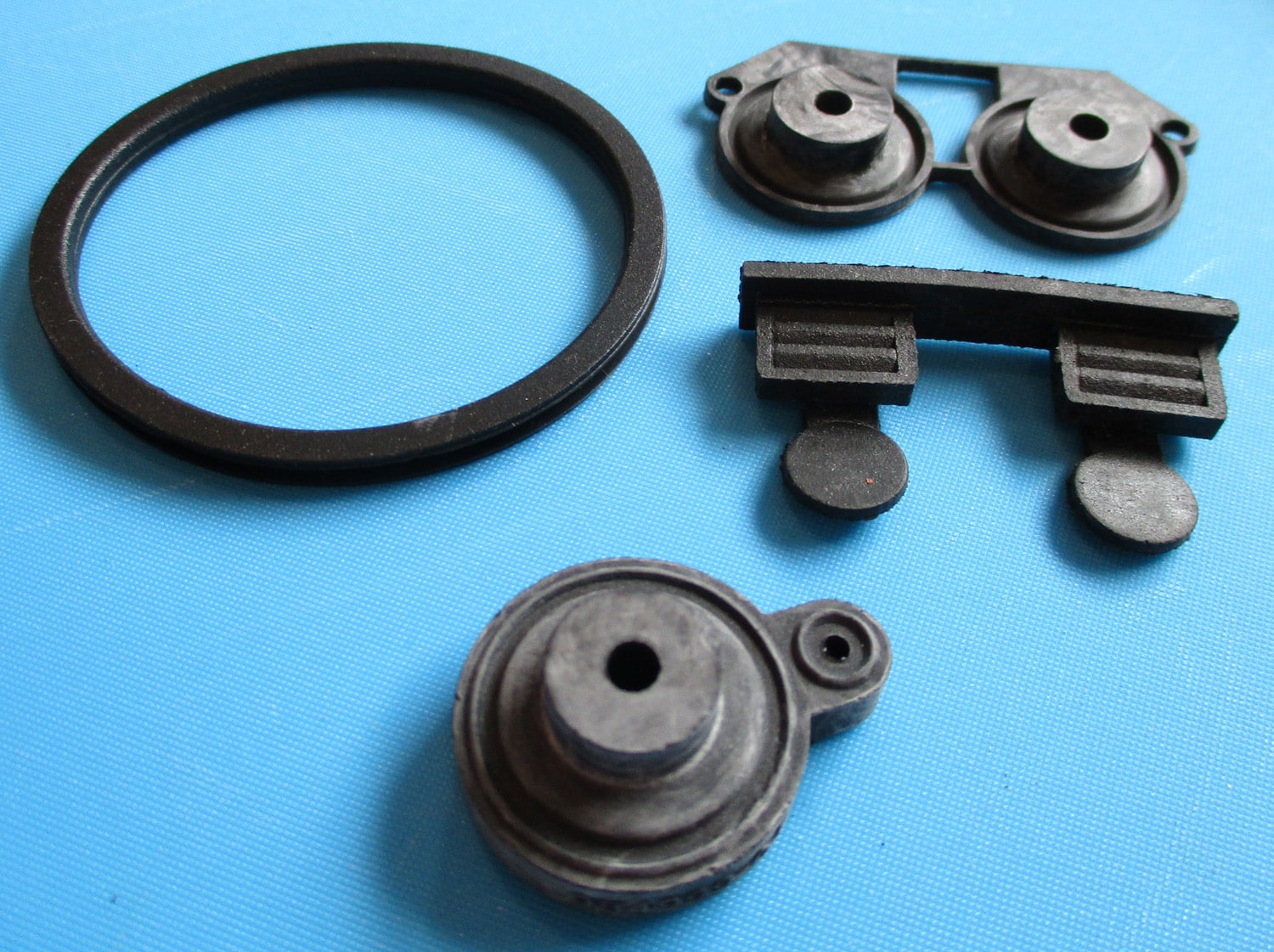

Also included are three rubber diaphragms, as shown in the pictures.
The DeLaval part number is 86606030.
Additional information
| Weight | .13 lbs |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| Brand |
