Description

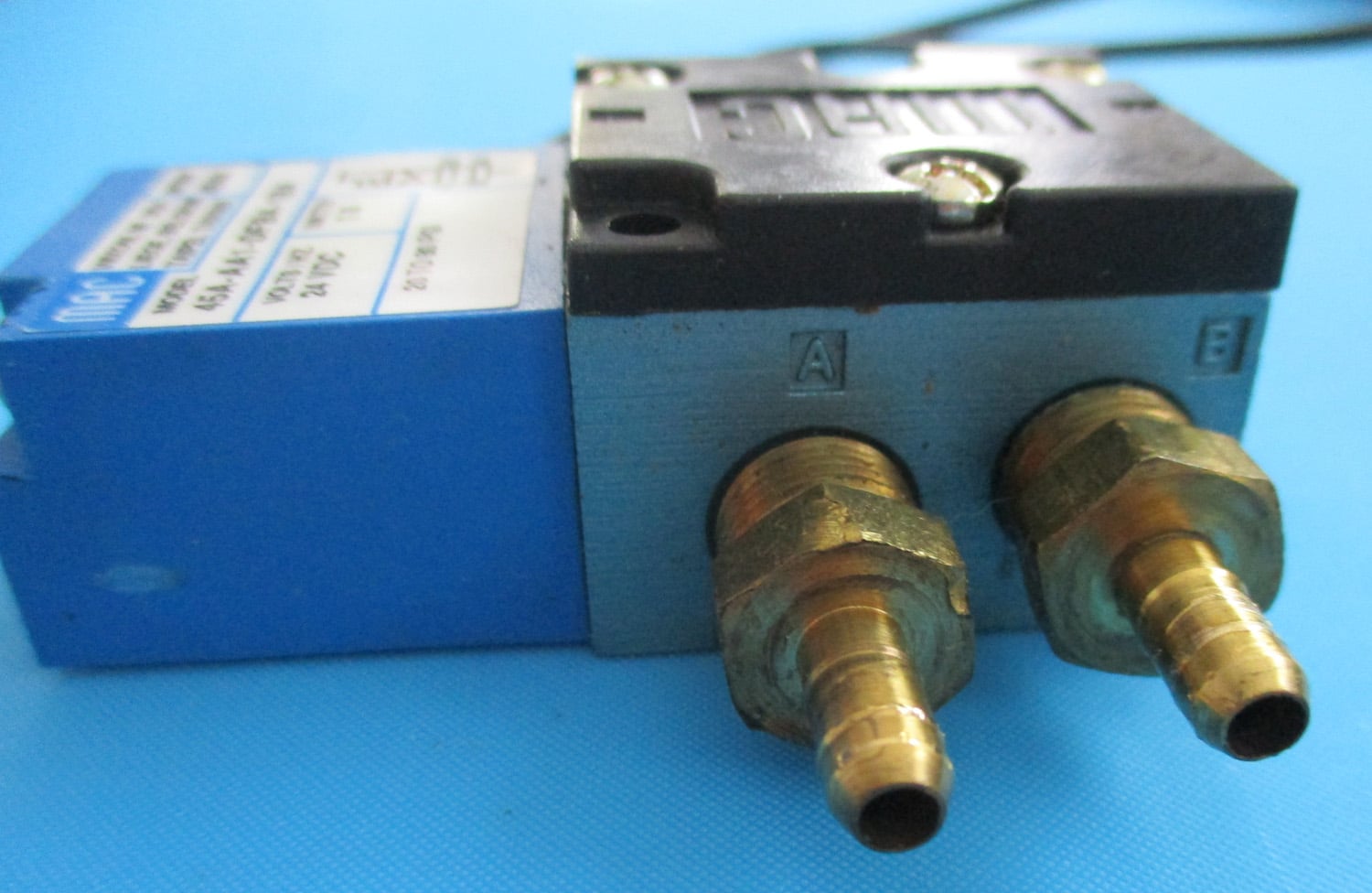

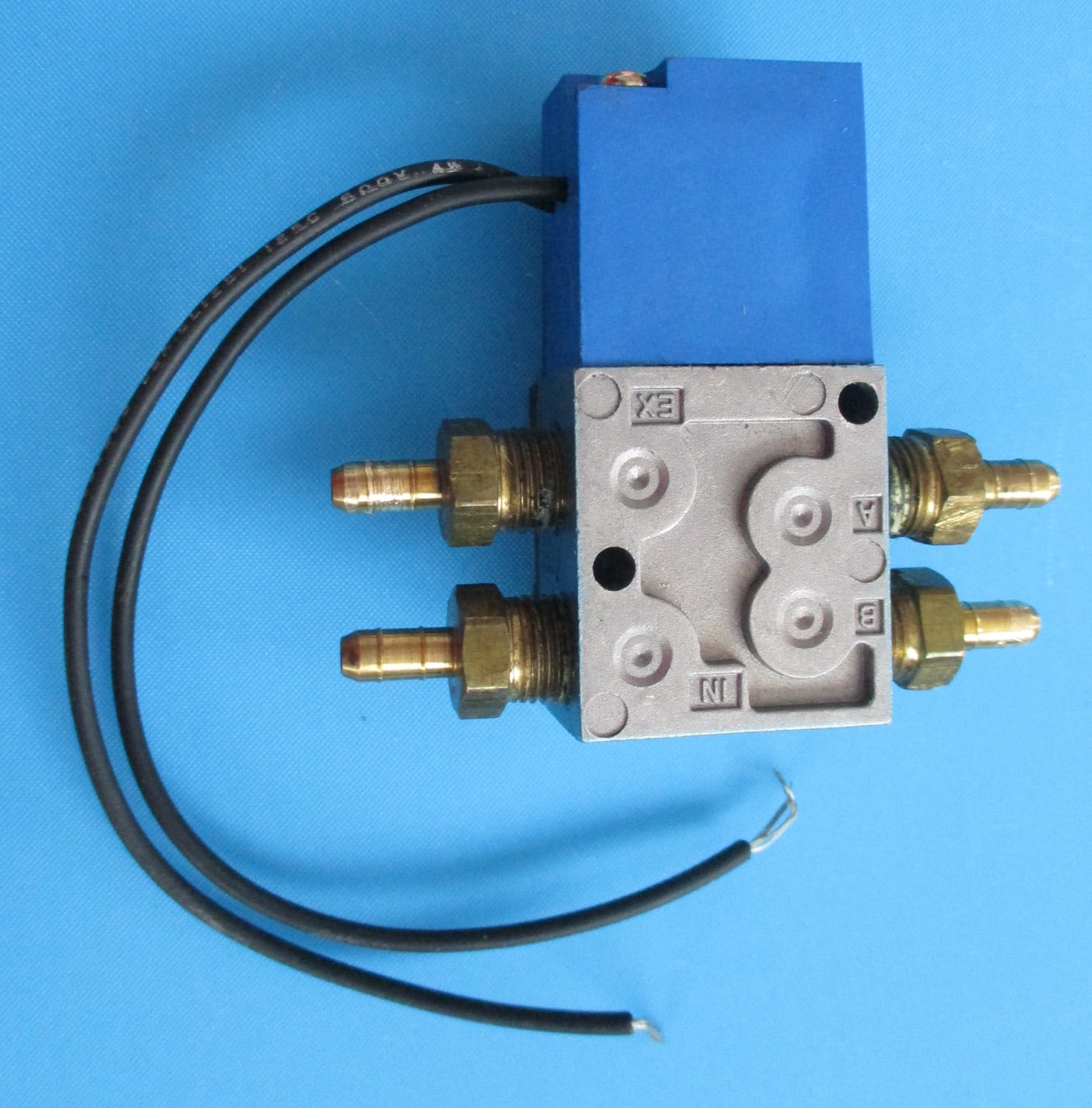

USED This plastic and metal MAC air shift valve is 2 7/16″ long and 15/16″ high. The plastic body is 1-3/16″ wide and the total width, including the nipples, is 2 3/4″. The brass connectors are 13/16″ long, including the slip-fit barbed nipples. The nipples are 3/8″ long with a 3/16″ outside diameter and a 1/8″ inside diameter. The plastic-covered wires are 6″ long.
The specifications are:
24 volts DC
1.8 Watts
VAC 20 to 80 pounds per square inch.

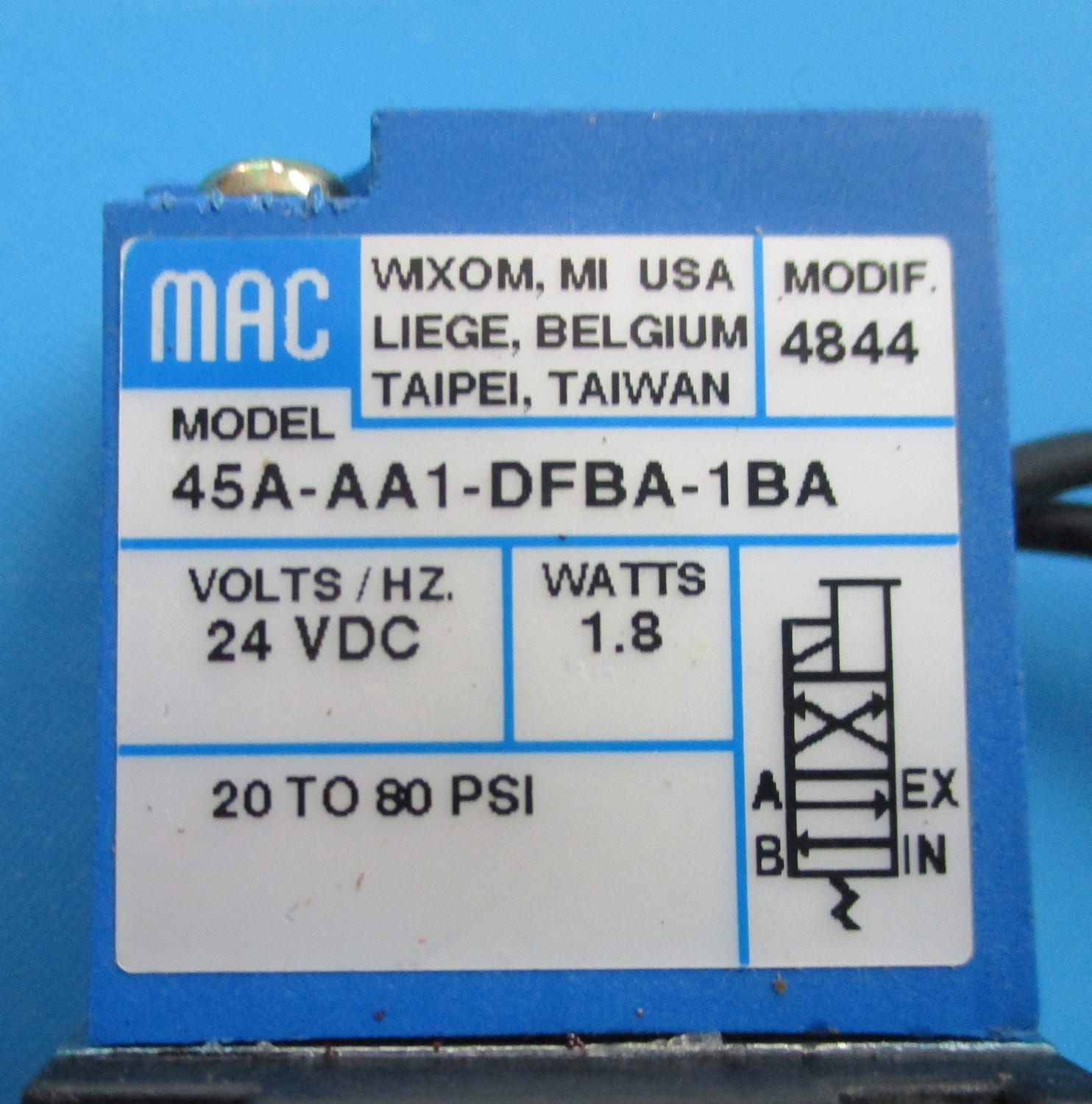

The MAC part number is 45A-AA1-DFBA-1BA.
Additional information
| Weight | .38 lbs |
|---|---|
| Dimensions | 3 × 4 × 2 in |
| Brand |
