Description

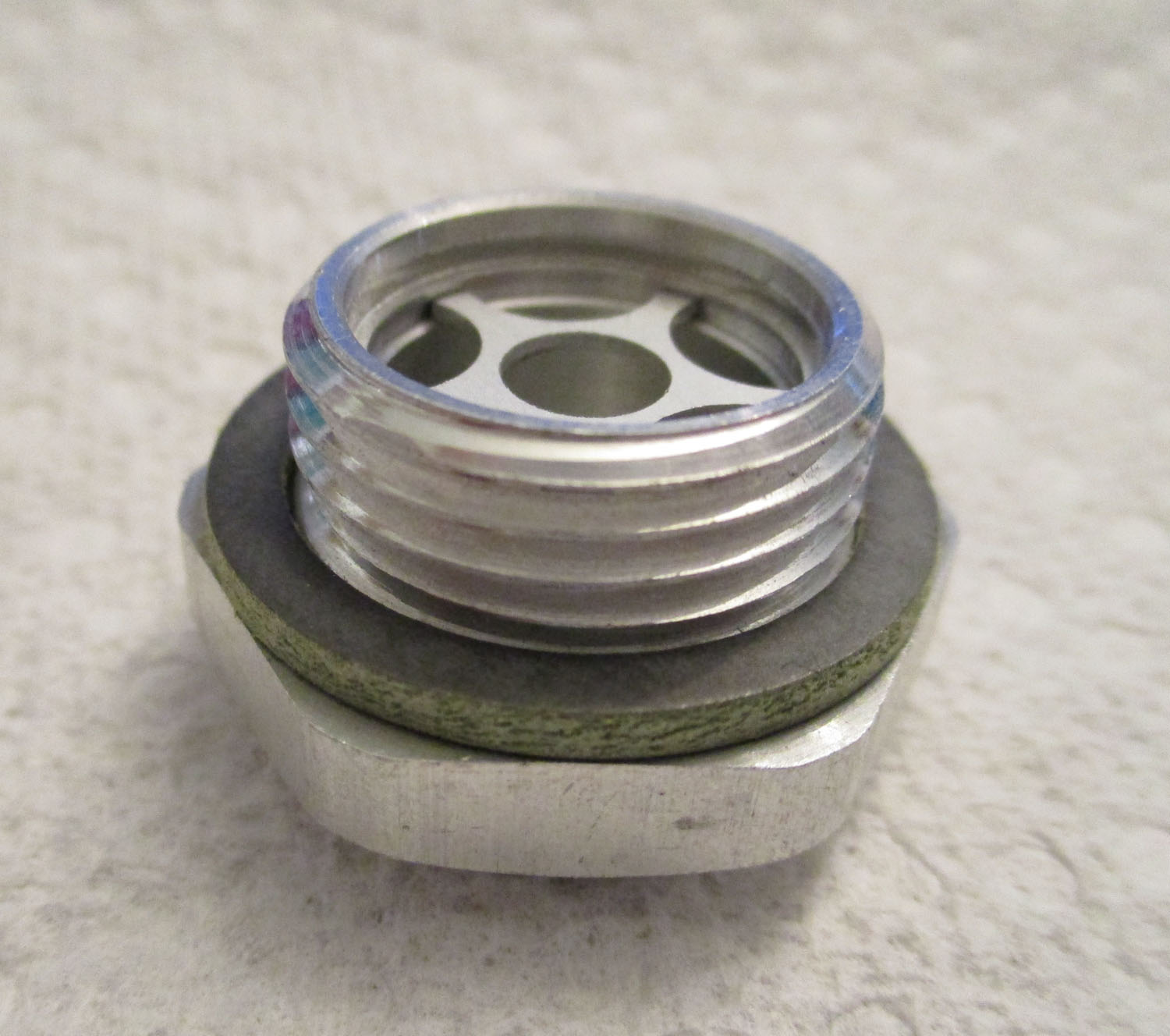

NEW This plastic, glass, and metal Lobe Air oil sight glass has a thread size of 13/16-16. The sight glass measures:
1 1/16″ wide by 11/16″ high overall.
The washer has an outer diameter of 1 1/16″, with an inner diameter of 7/8″, and is 1/16″ thick.
The threaded portion is 3/8″ high, with an outer diameter of 13/16″ and an inner diameter of 11/16″.
NOTE: There is another part with a longer threaded section under the same Schlueter part number. See ad for VSC-000-012.
The Schlueter part number is 48493-3.
Additional information
| Weight | 0.10 lbs |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| Brand |
