Description
NEW This Meltec SP51 milk pump seal kit with carbon contains rubber, Teflon, and stainless steel. Some of the dimensions are as follows:

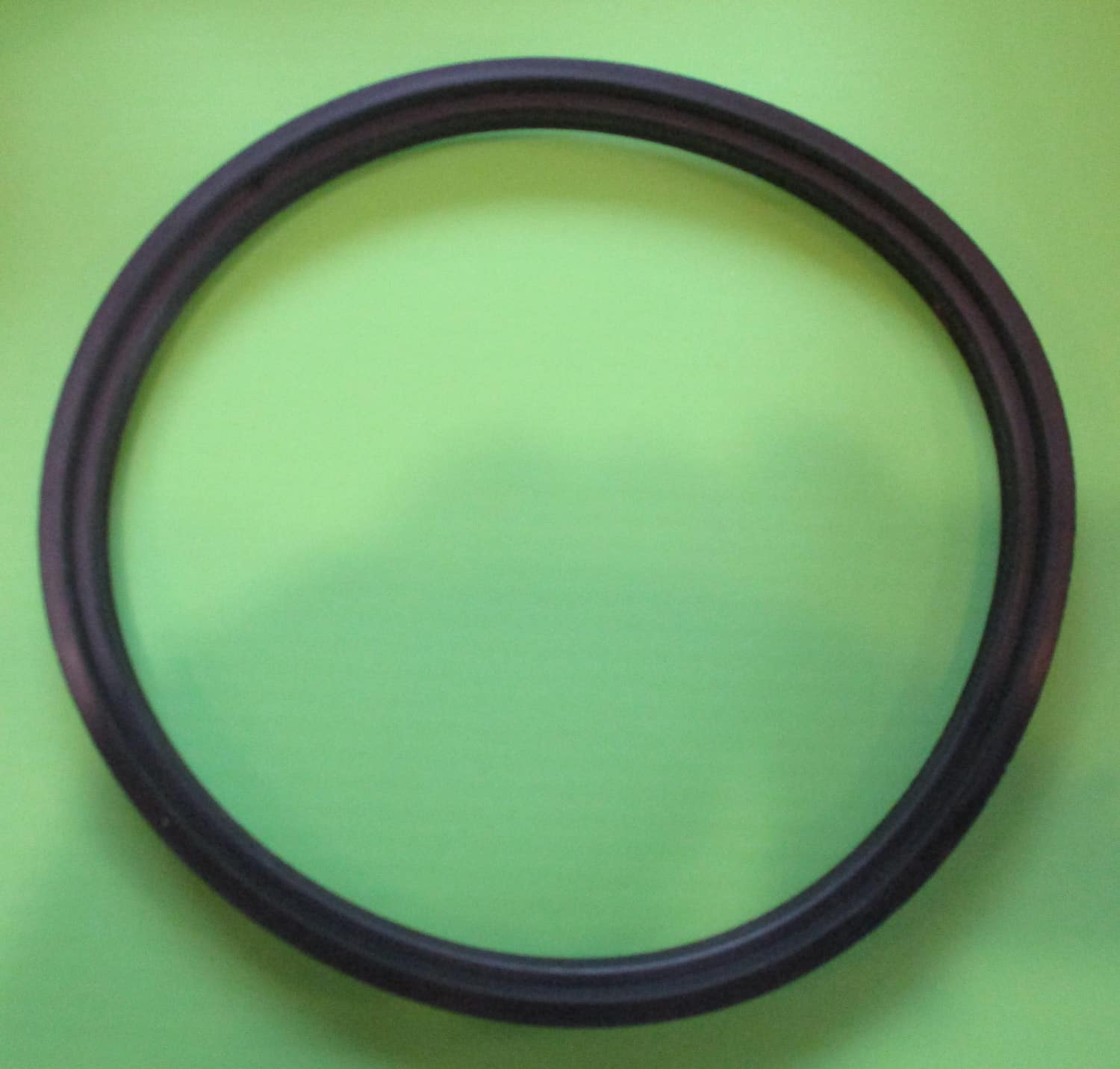

The rubber gasket has a 5 1/2″ outside diameter with a 5″ inside diameter and is 7/16″ thick.
The stainless steel spring is 7/8″ long with a 1 3/16″ outside diameter and a 1″ inside diameter.
The Teflon ring has a 1 7/16″ outside diameter, a 1 1/16″ inside diameter, and is 5/16″ thick.
The rubber ring is 3/8″ thick with a 1 5/8″ outside diameter. The inside diameter is 1 3/8″ for the bottom and 1 1/8″ for the top.
The carbon ring is 3/8″ thick with a 1 5/8″ outside diameter and a 1 3/8″ inside diameter.
The rubber o-ring has a 1 3/16″ outside diameter with a 15/16″ inside diameter and is 1/8″ thick.
The Meltec part number is 4999-9905-020.
Additional information
| Weight | .19 lbs |
|---|---|
| Dimensions | 6 × 6 × 3 in |
| Brand |
