Switch, Push Button Lighted, 24 Volt Main Photo

Switch, Push Button Lighted, 24 Volt

Name: Switch Push Button Lighted 24 Volt
SKU: CMU-000-088N 86ASSW
Price: 125.00 USD
Availability: InStock

$125.00

NEW Switch, Push Button Lighted, 24 Volt

4 in stock

SKU: CMU-000-088N 86ASSWCategories: Tank Accessories

Description

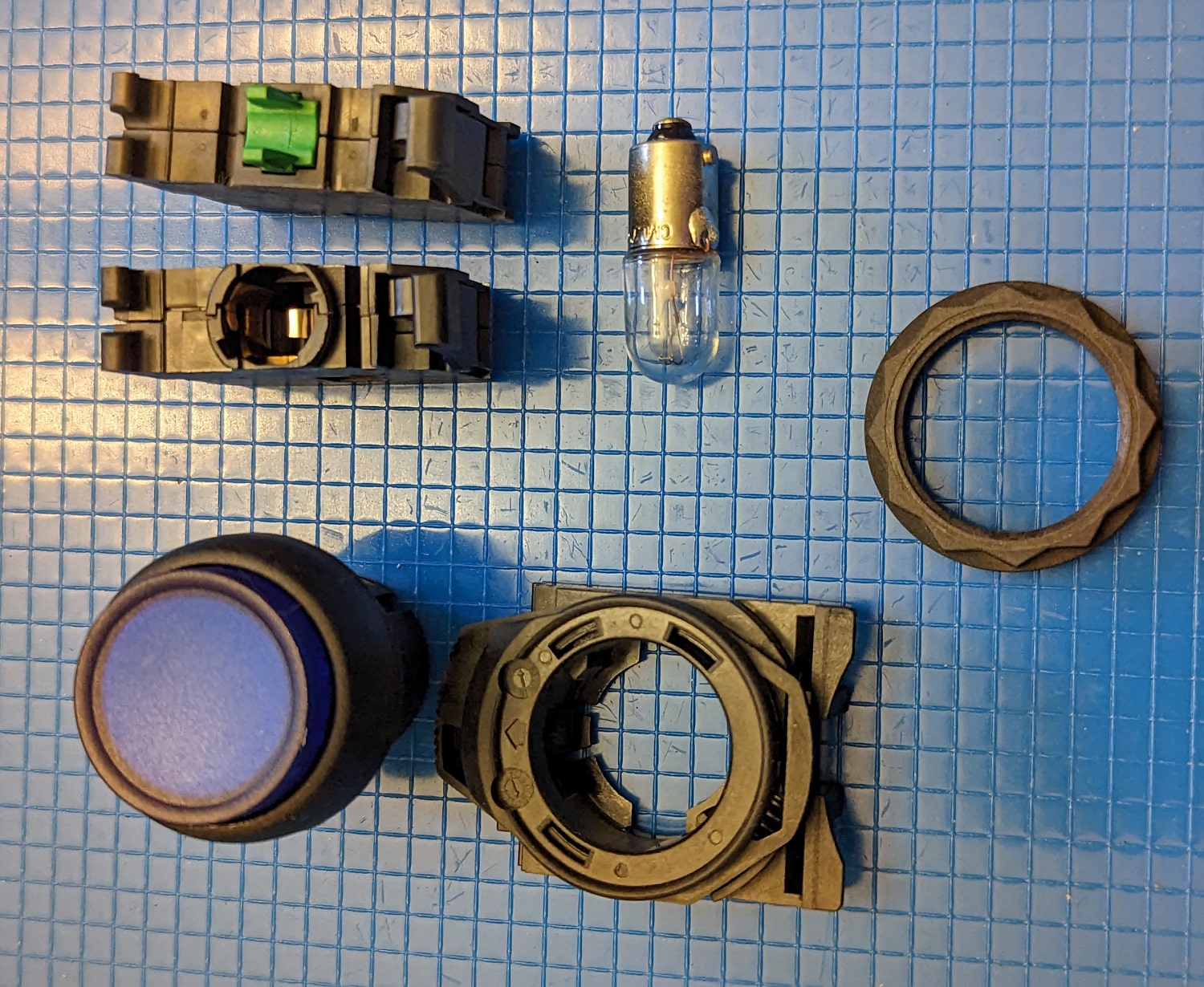

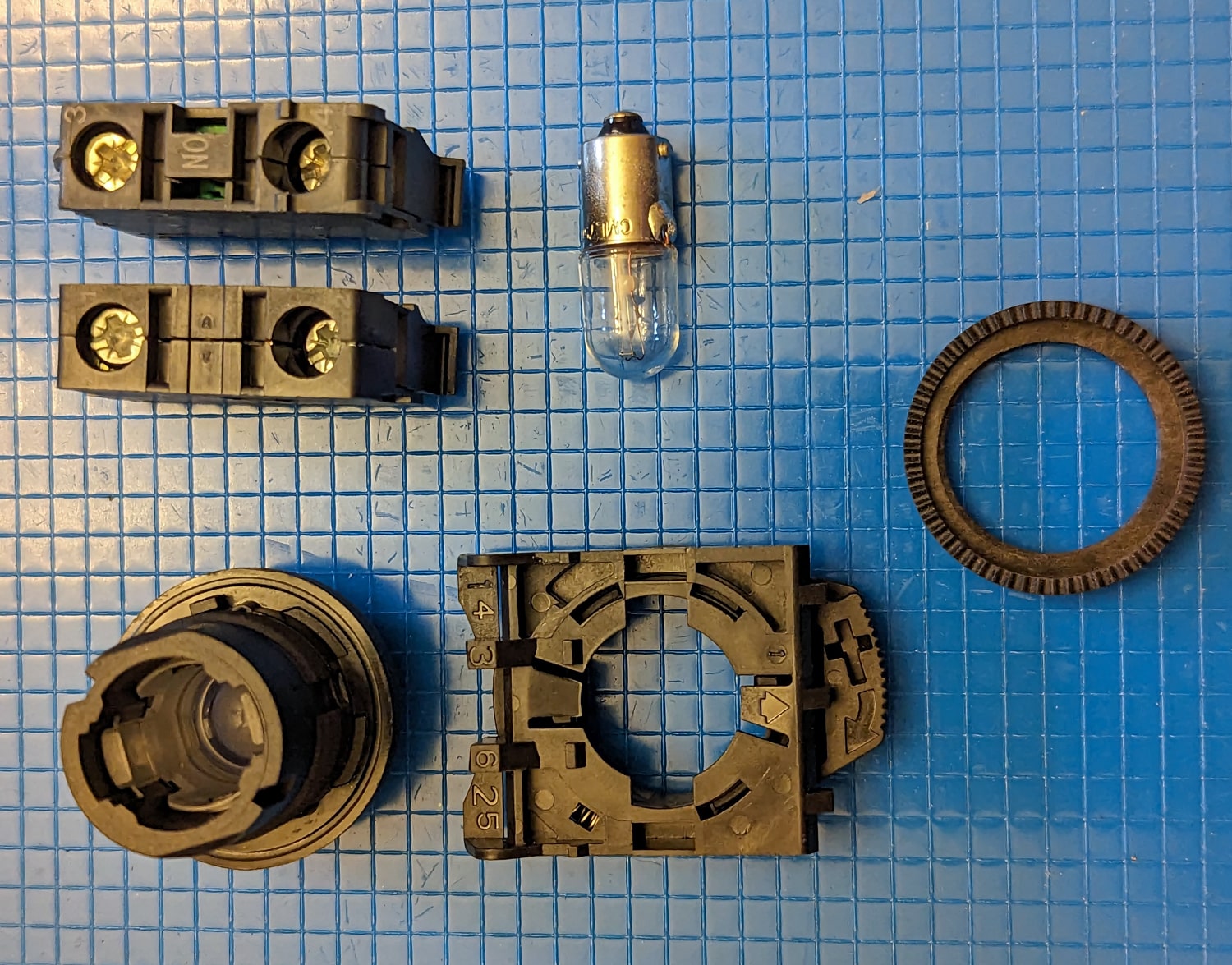

NEW This is an Allen Bradley 24-volt lighted push-button switch kit. When assembled, the product measures 1 1/8″ by 1 9/16″.

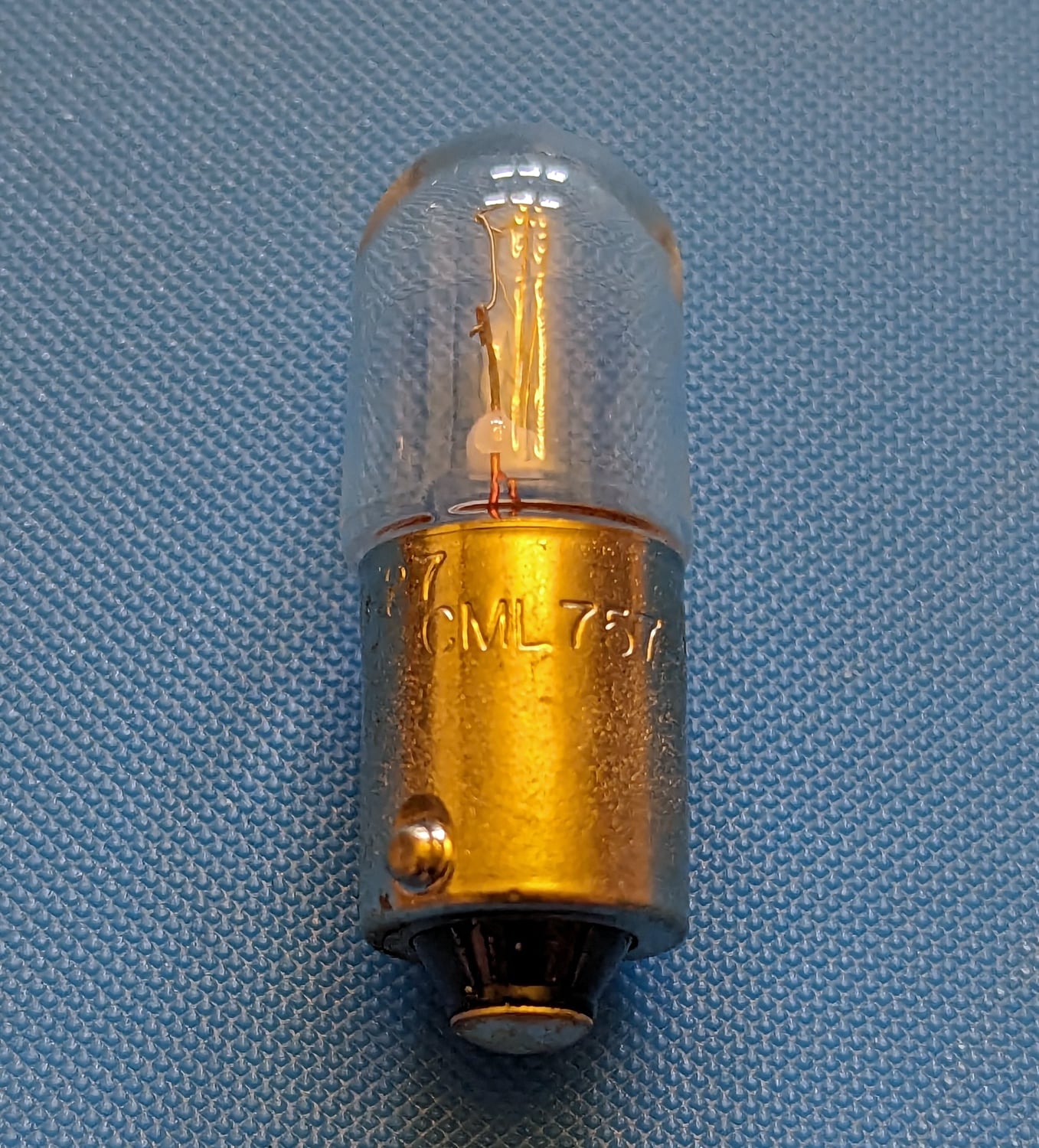

The bulb piece has a length of 1″ and a outer diameter of 1/4″.

The black piece with green measures 1 1/4″ long by 1″ wide by 3/8″ thick.

The black piece without green measures 1 1/4″ long by 1″ wide by 7/16″ thick.

The black ring measures 3/4″ inner diameter and 1 1/8″ outer diameter and 1/4″ thick.

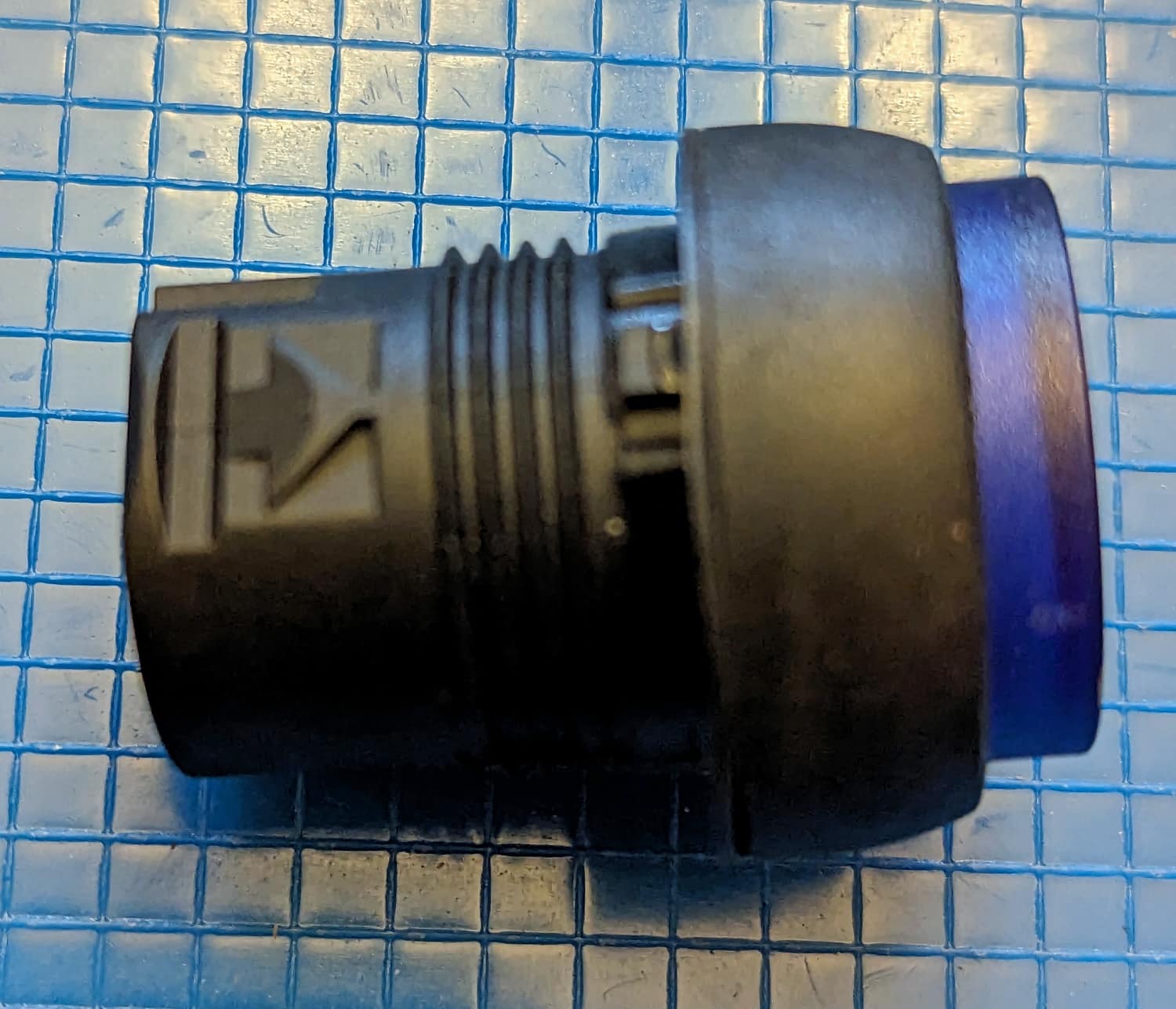

The outer diameter of the top of the blue button part is 1 1/8″ the outer diameter of the bottom of the button part is 13/16″ and the inside diameter of the bottom of the button part is 1/2″.

The last part, the socket, measures 3/4″ inner diameter on top, 5/8″ inner diameter on bottom.

There are switch assembly directions on the bag that the kit comes in.

The Allen Bradley part number is 800F-X10 Seer. A

The Mueller part number is 8822991.

Additional information

Weight	0.19 lbs
Dimensions	4 × 4 × 3 in
Brand	Mueller
