Valve, Hydraulic Check W/Unload

Name: Valve, Hydraulic Check W/Unload - Dairy Train
SKU: GBB-000-055N 67NW
Price: 975.00 USD
Availability: InStock

$975.00

NEW Valve, Hydraulic Check W/Unload

1 in stock

SKU: GBB-000-055N 67NWCategories: Stall Assembly Components

Description

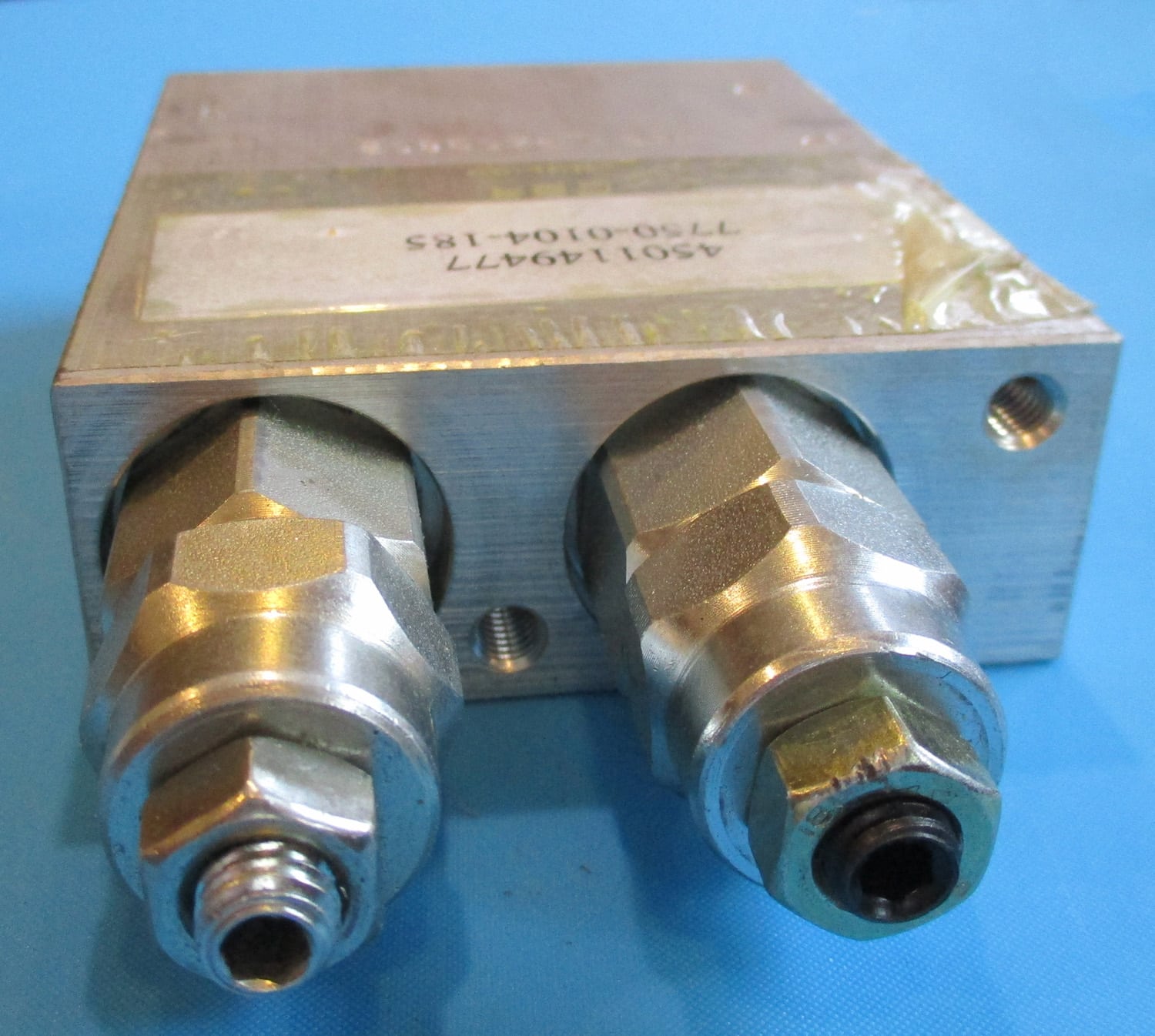

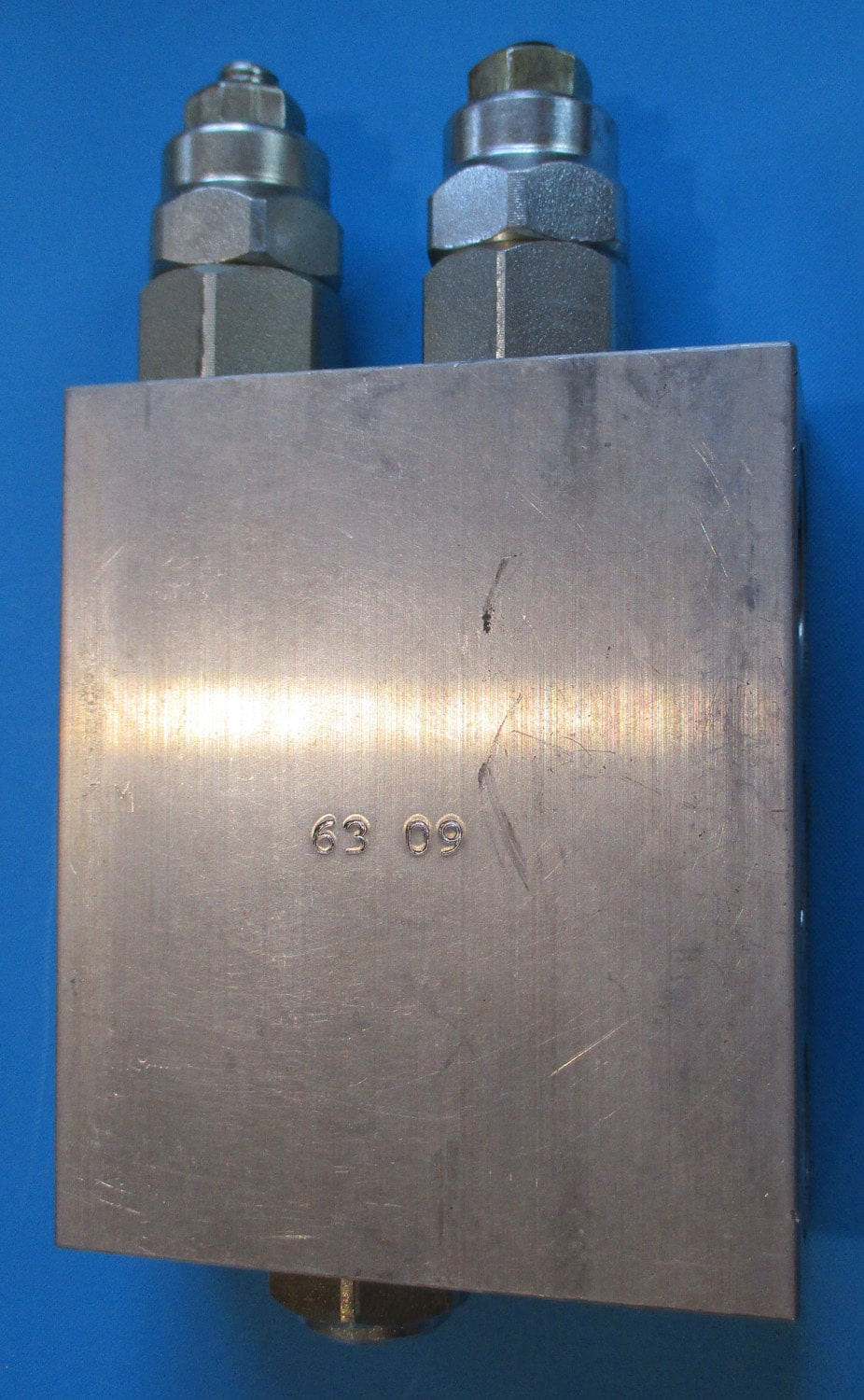

NEW This Surge stainless steel hydraulic check valve is 5 3/4″ long, 3 3/16″ wide, and 1 3/16″ high, overall.

One end has a 3/8″ high connection with a 1/4″ hexagonal opening.

The other end has two 1 5/8″ high connections. Each has a hexagon nut on the end with a 5/16″ outside diameter thread. The thread size is 5/16-24.

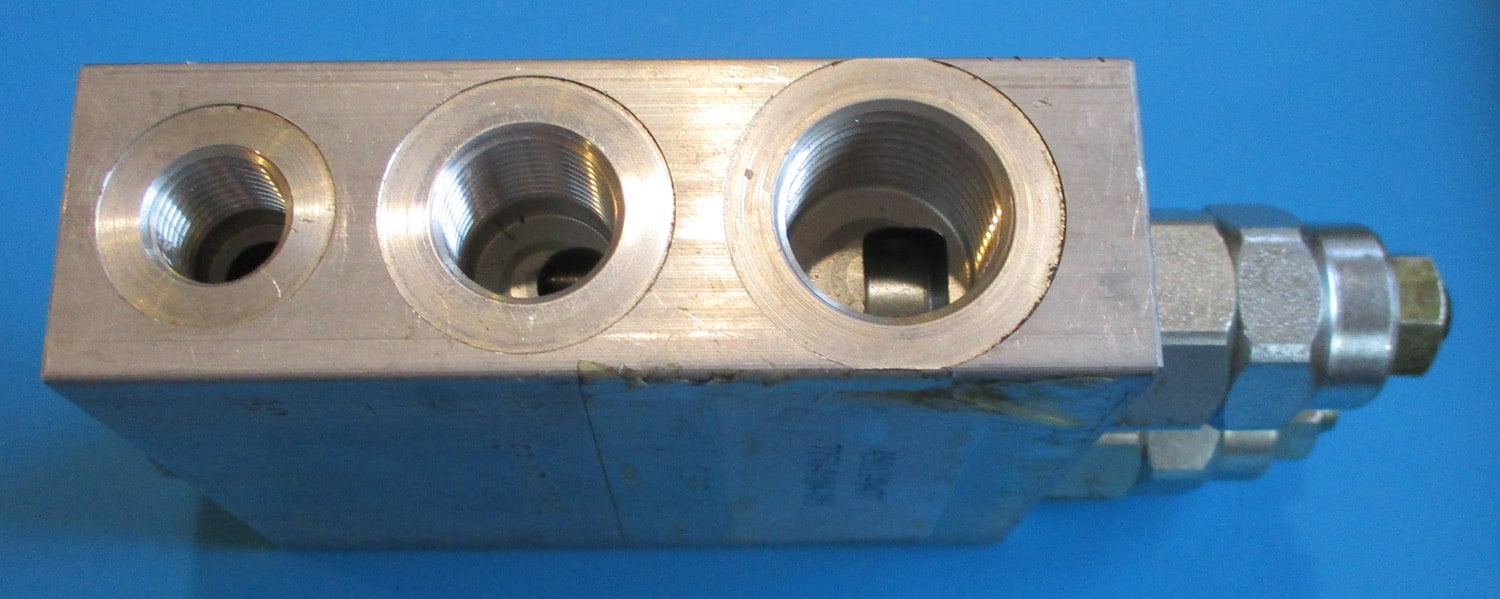

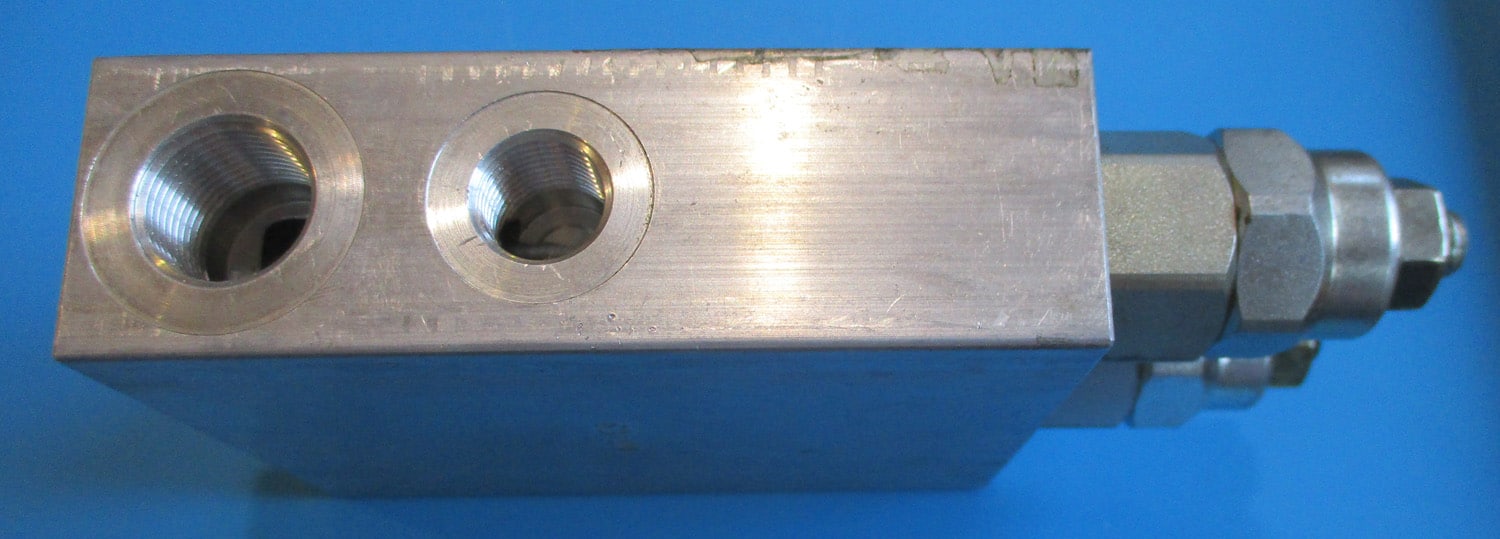

On one side there are three threaded holes. One with a 3/4″ inside diameter, one with a 5/8″ inside diameter, and one with a 7/16″ inside diameter. The other side has two threaded holes. One with a 5/8″ inside diameter and one with a 7/16″ inside diameter.

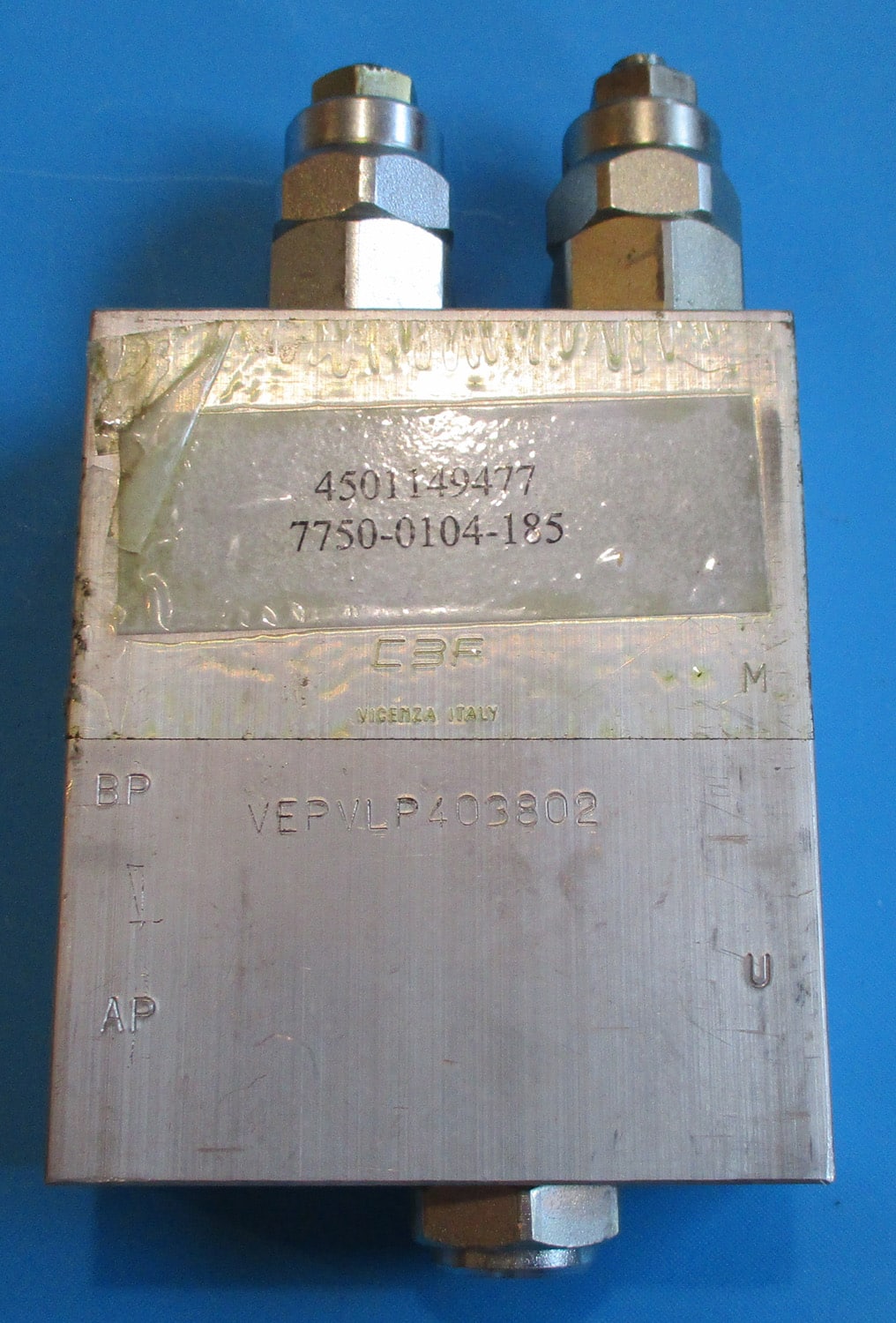

The Surge part number is 7750-0104-185.

Additional information

Weight	2.5 lbs
Dimensions	6 × 4 × 2 in
