Description

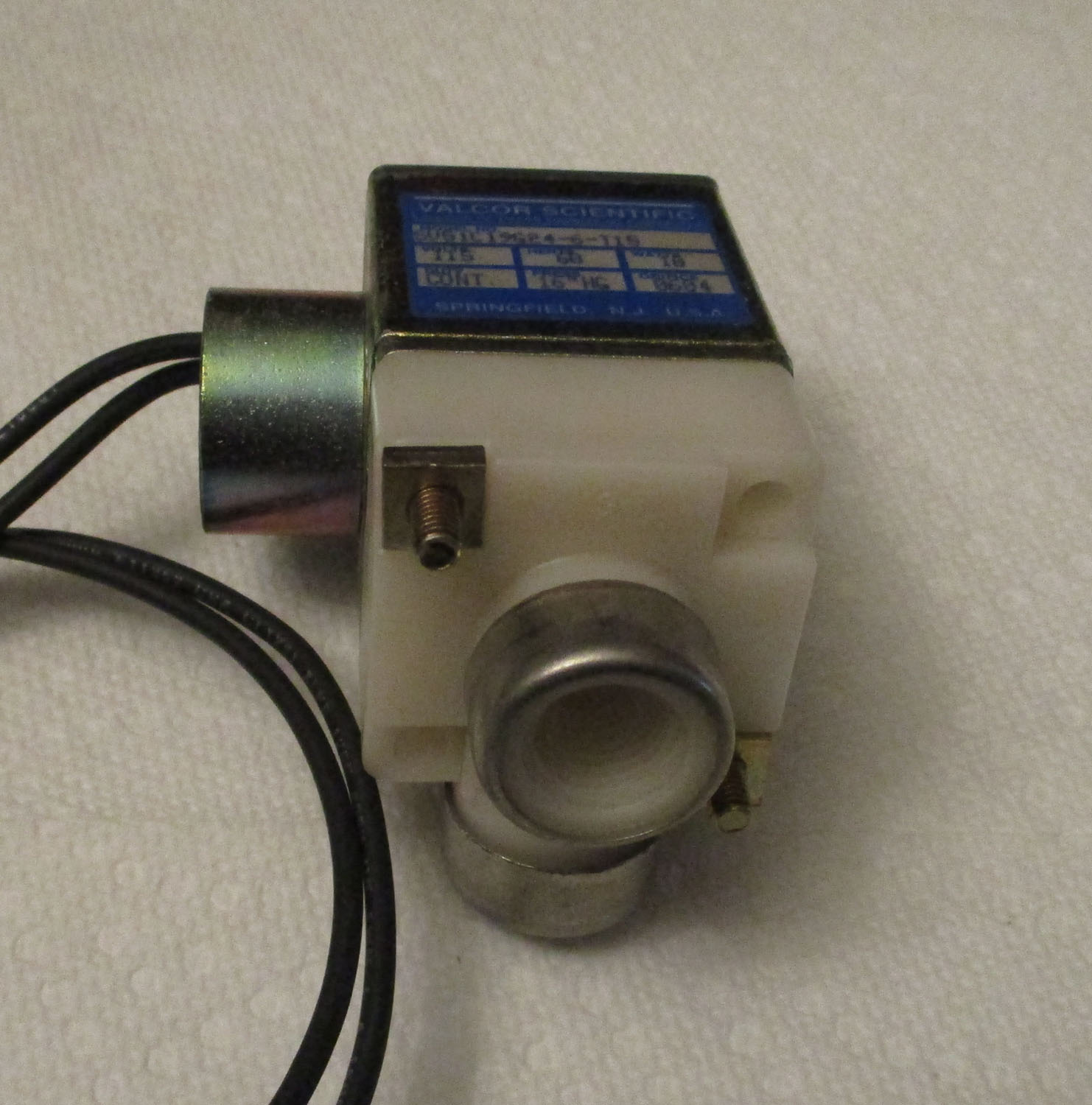

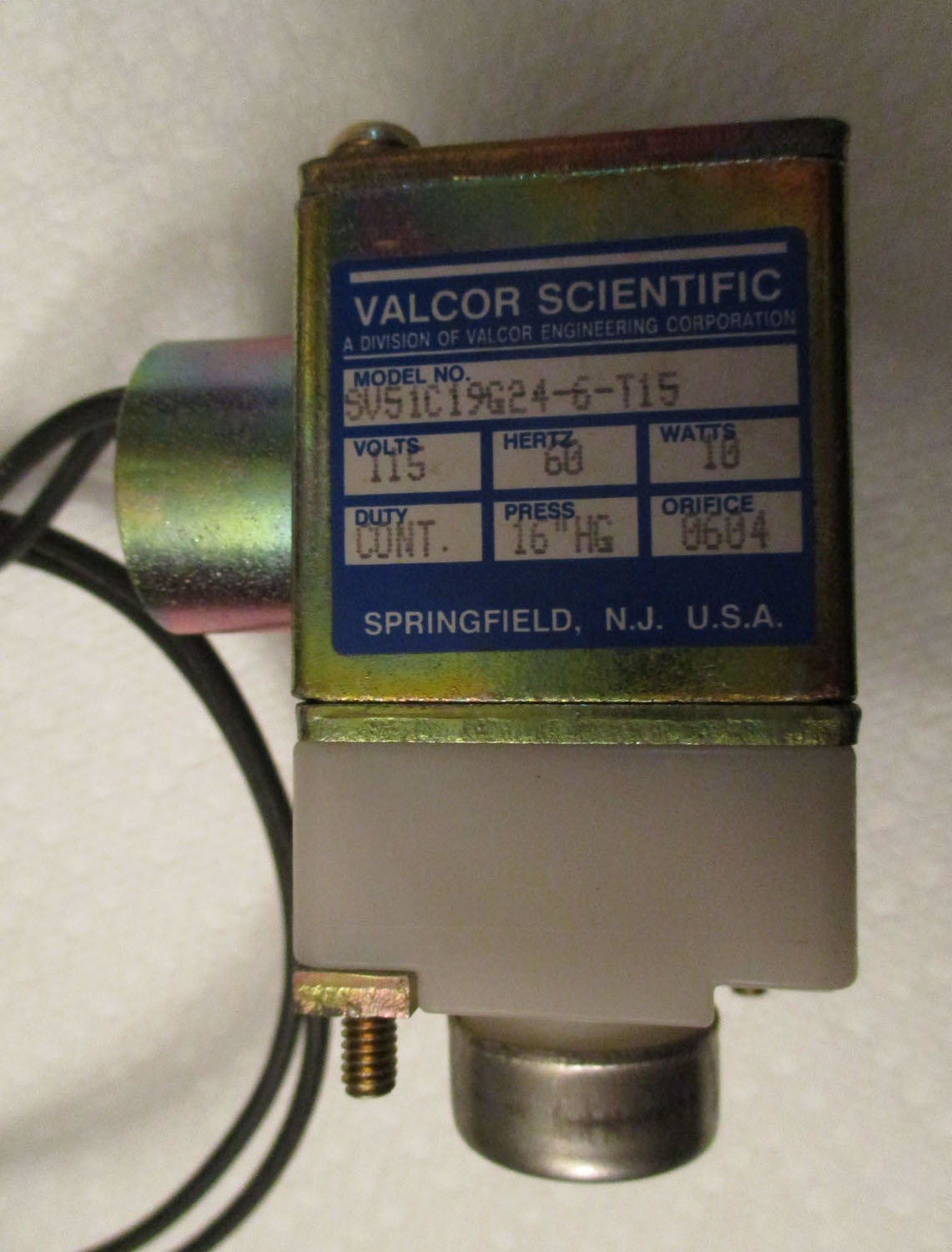

NEW This continuous duty vacuum valve assembly is made of metal, plastic, brass, and rubber. The Surge part number is 7750-0039-684. The indicated specifications are:
115 volts
60 hertz
10 watts
Orifice 0604
16″ pressure of mercury
The measurements are:

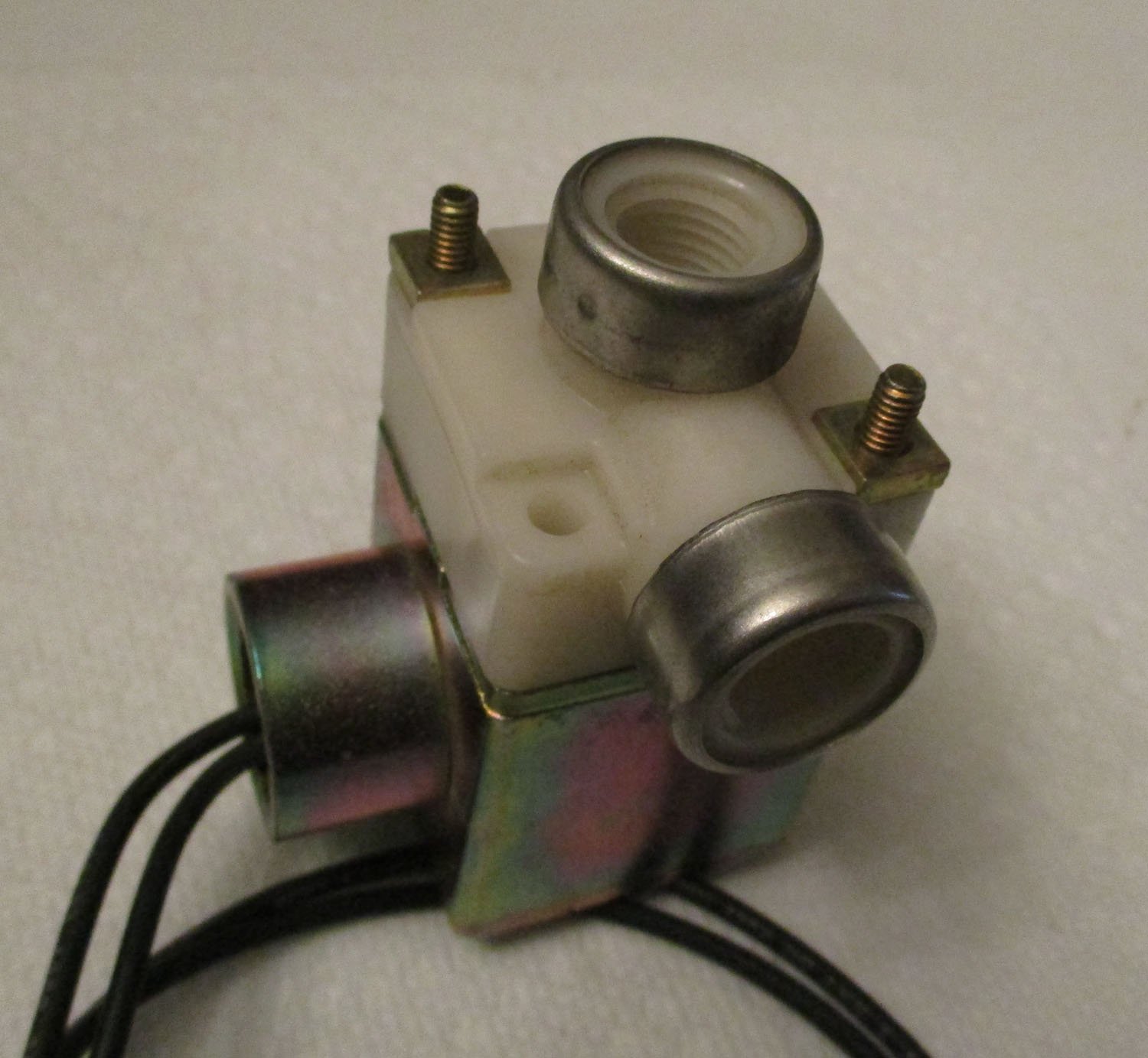

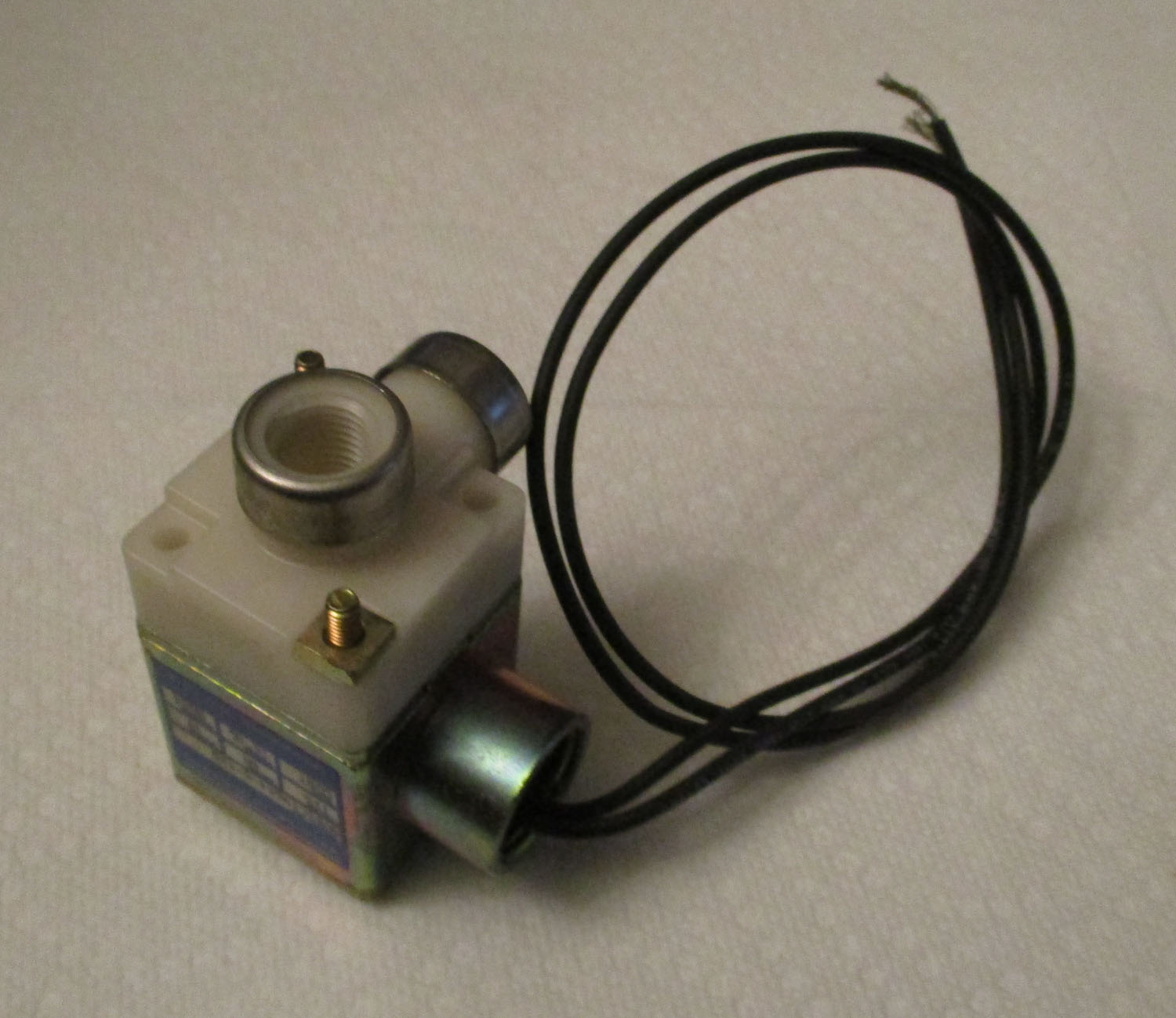

The valve is 3″ tall by 1 13/16″ wide by 2 1/16″ deep overall. The two threaded holes have an outer diameter of 3/4″ with an inner diameter of 3/8″. The threaded hole with the wire has an outer diameter of 7/8″ with an inner diameter of 11/16″. The wire is 18 1/4″ long.

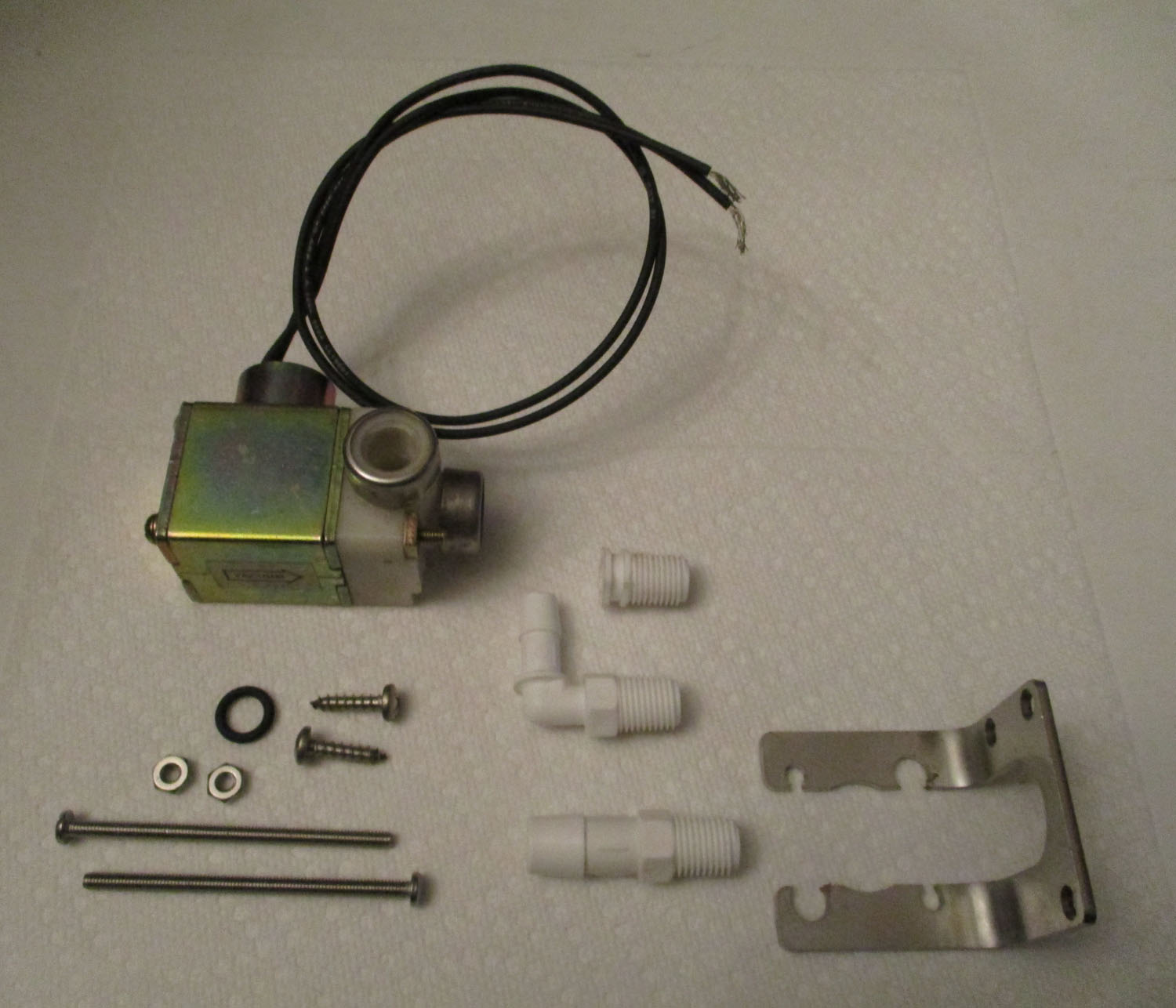

The bracket is 2″ long by 1 5/8″ long by 1 7/8″ wide. The three enclosed holes have an inner diameter of 3/16″. The two largest open holes have an inner diameter of 5/16″ The two smallest open holes have an inner diameter of 3/16″.
The 90° elbow is 1 3/8″ long by 1 1/4″ long. The barbed end has an outer diameter of 1/4″ with an inner diameter of 3/16″. The threaded end has an outer diameter of 7/16″ with an inner diameter of 5/16″.
The straight connection piece is 1 13/16″ long by 1/2″ wide overall. The threaded end has an outer diameter of 7/16″ with an inner diameter of 5/16″. The barbed end has an outer diameter of 7/16″ with an inner diameter of 5/16″.
The short connection piece is 3/4″ long. The threaded end has an outer diameter of 7/16″ with an inner diameter of 5/16″. The other end is 7/16″ wide with an inner diameter of 1/4″.
The two long screws are 2 15/16″ long and have a thread size of #8-32. The two pointed screws are 3/4″ long.
The O ring has an outer diameter of 7/16″ with an inner diameter of 5/16″, and is 1/16″ thick.
The washer is 1/4″ wide and has an inner diameter of 1/8″.
Additional information
| Weight | 2.00 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
