Description

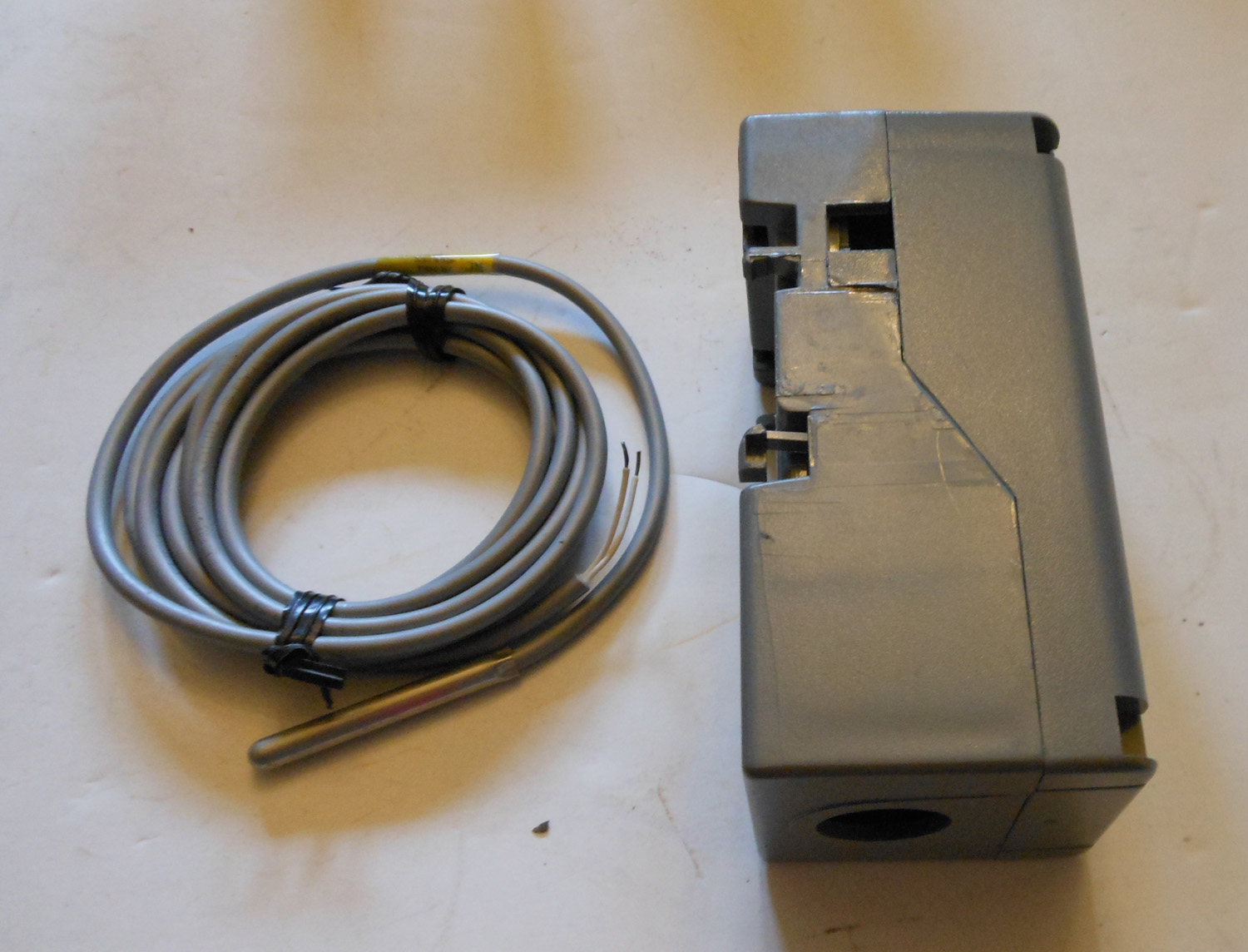

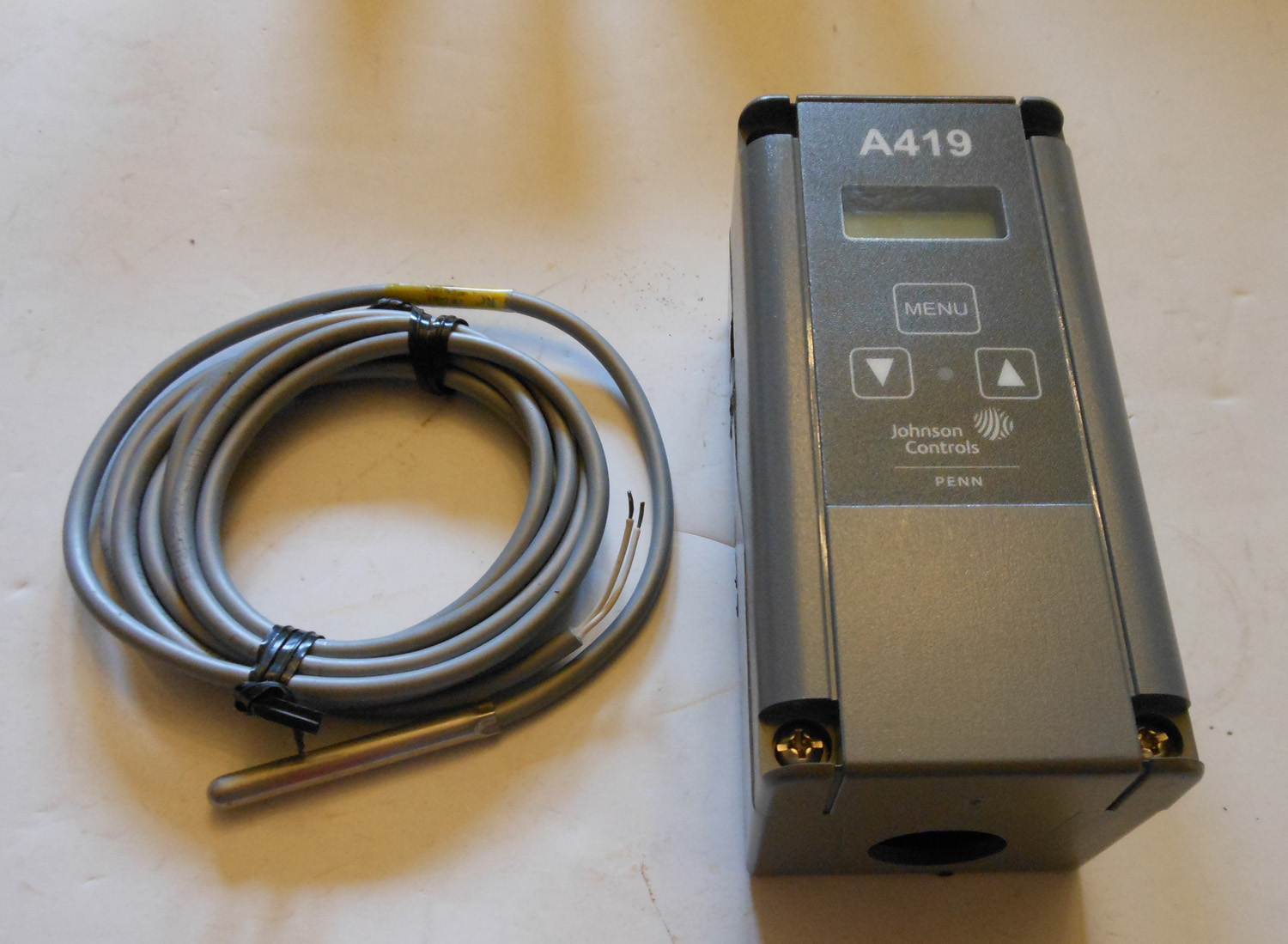

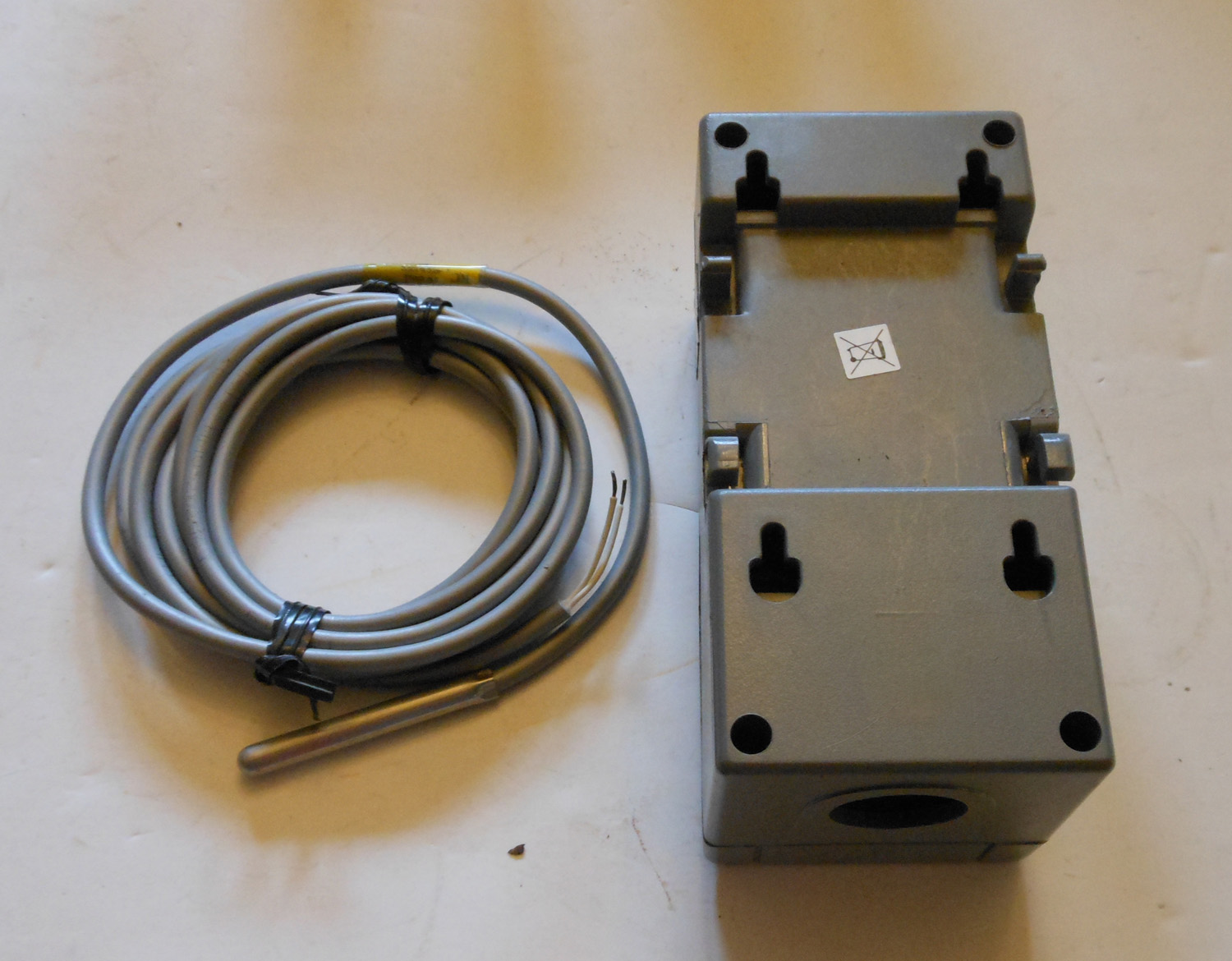

NEW This Johnson Controls plastic and stainless steel single stage electronic temperature controller with NEMA 1 general purpose enclosures and display heating/cooling range -30F to 212F measures, 2 3/8" long by 2 3/8" wide by 5" high. The plastic wrapped wire is approximately 6 1/2 feet long. The A419 series controls are single-stage electronic temperature controls with a Single-Pole, Double-Throw (SPDT) output relay. They feature a lockable front-panel touchpad for setup and adjustment, and a Liquid Crystal Display (LCD) for viewing the temperature and status of other functions. A Light-Emitting Diode (LED) indicates the controls' output relay On/Off status. The specifications are as follows:
| VAC | FLA | LRA | HP | HZ |
| 120 | 16 | 96 | 1 | 60 |
| 240 | 8 | 48 | 1 | 60 |
| FLA | Full Load Amps |
| HZ | Hertz |
| LRA | Locked Rotor Amps |
| HP | Horse Power |
| VAC | Volts AC |
The installation and information sheets are included in the box. The original Johnson Controls part number is: A419ABC-1C.
Additional information
| Weight | 1.00 lbs |
|---|---|
| Brand |
