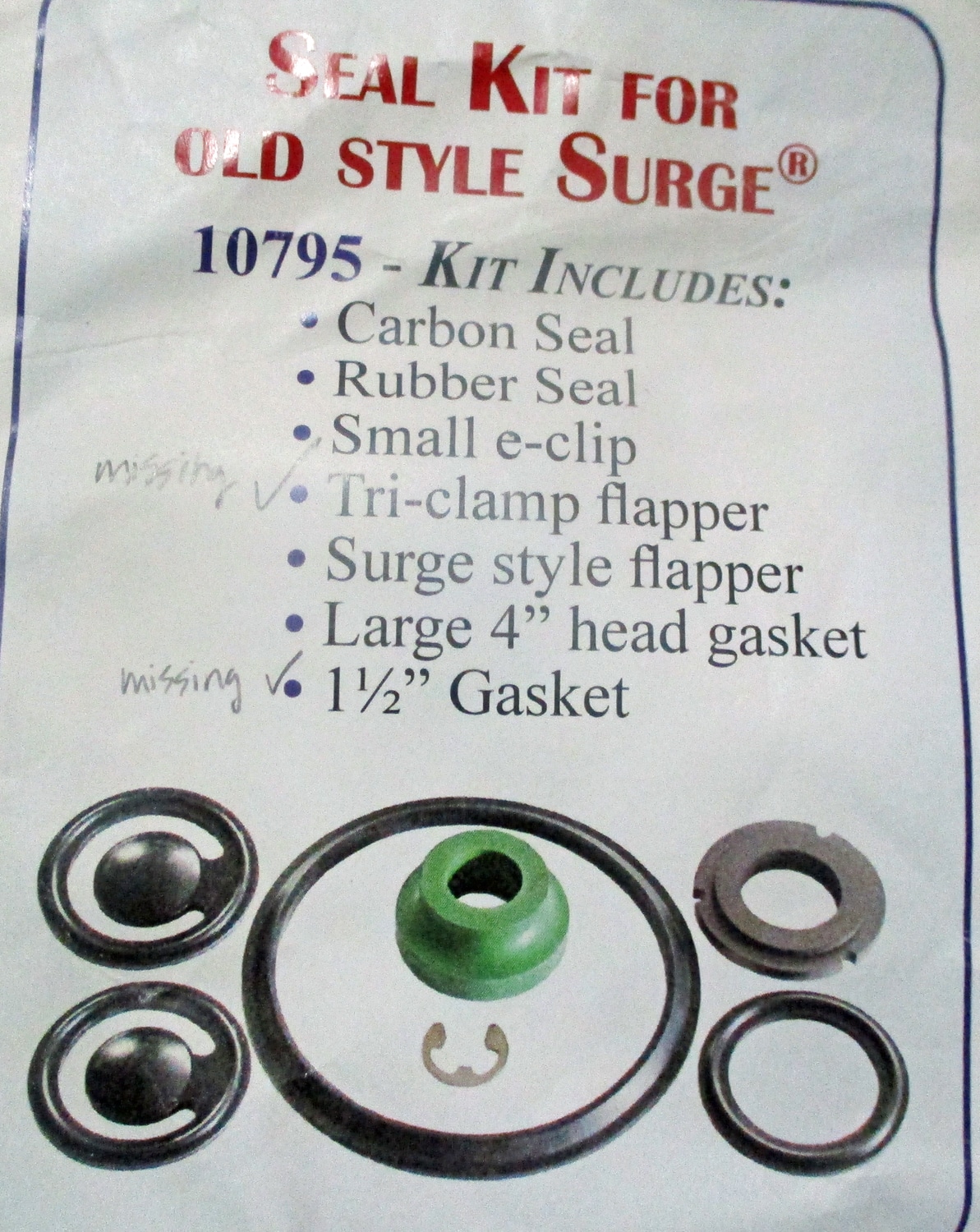

NEW This seal kit for an old style Surge milk pump is made of rubber, carbon, and metal. The kit is missing the Tri-clamp flapper and the 1 1/2″ gasket. The unit measures:

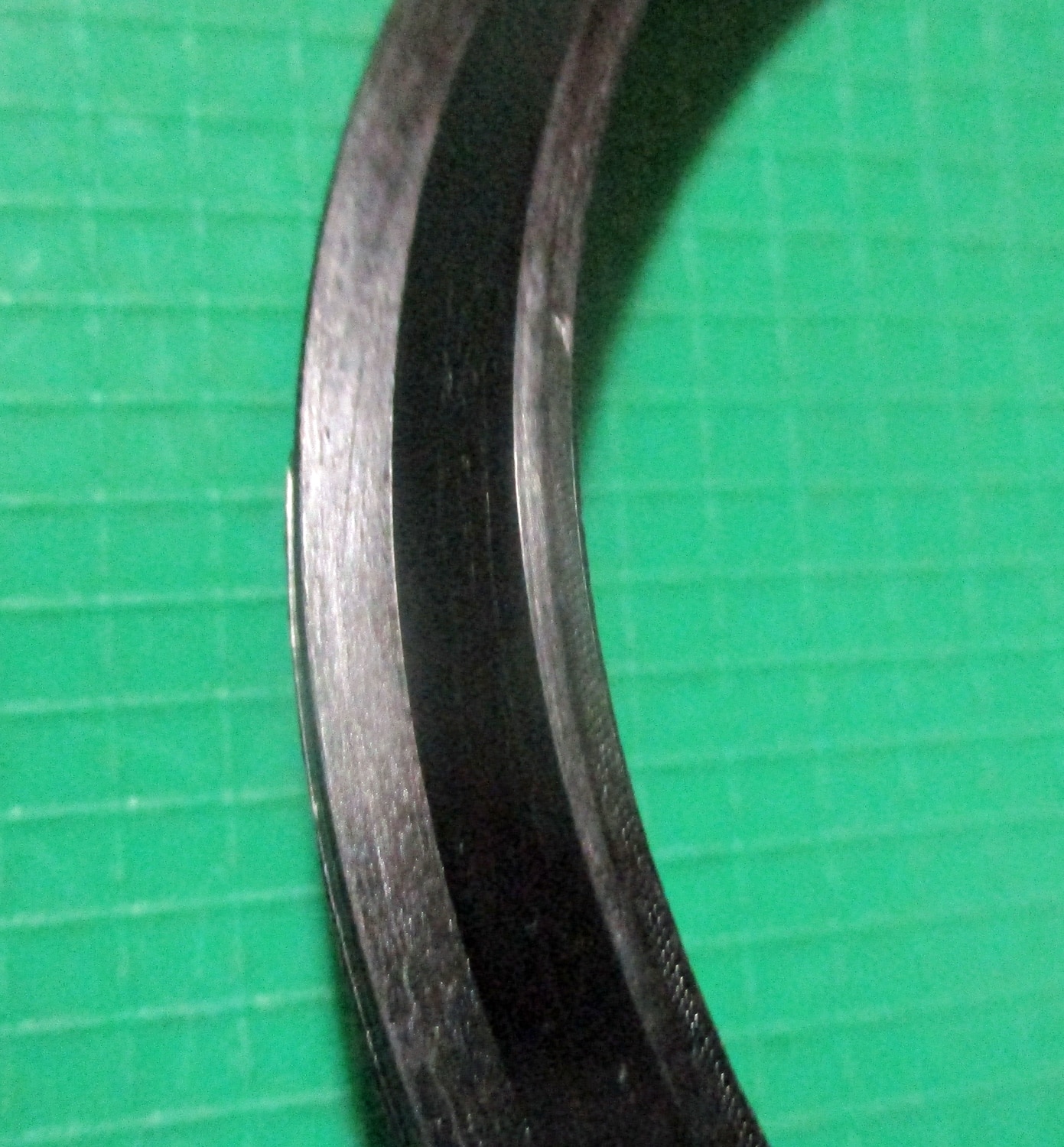

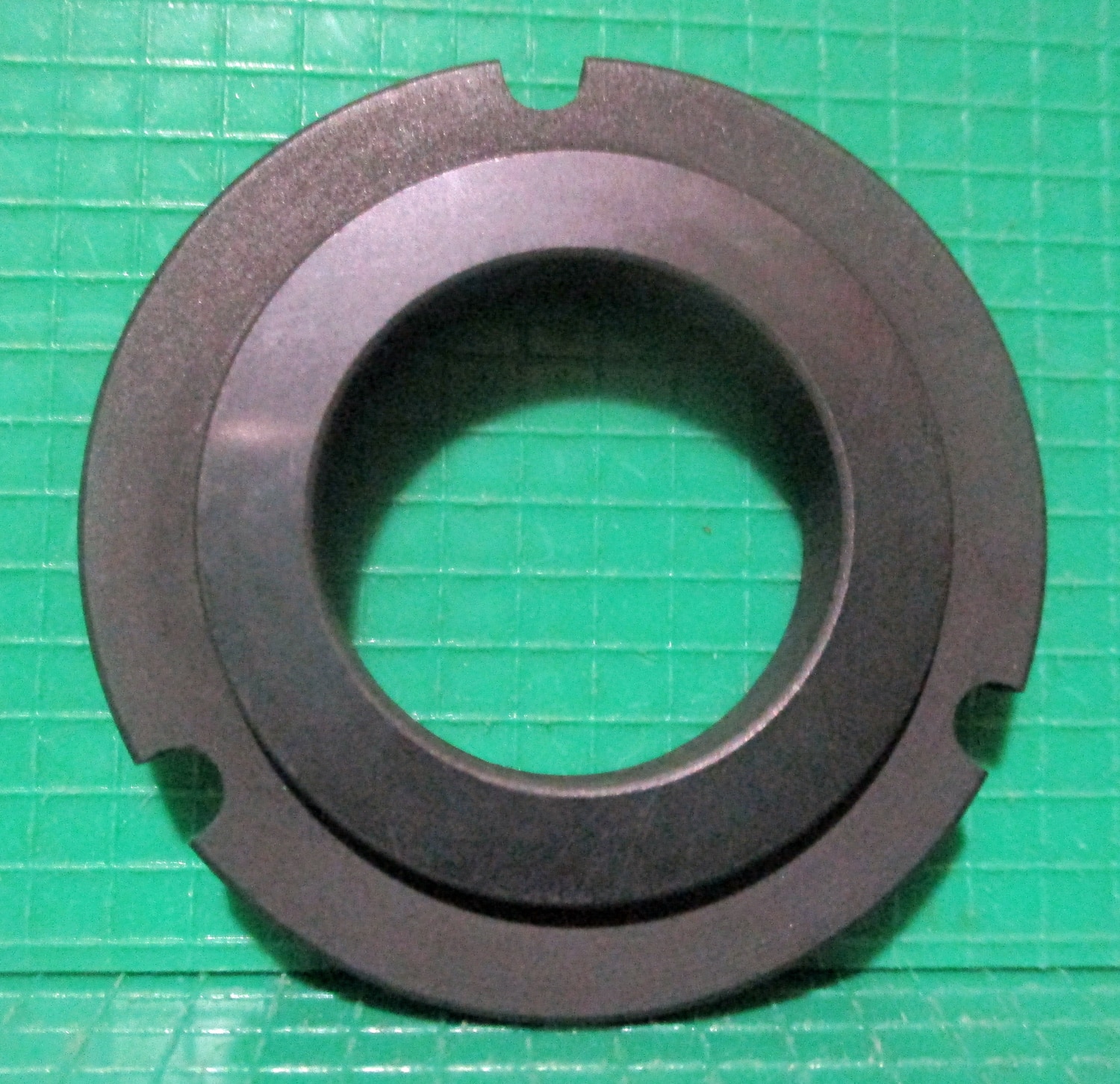

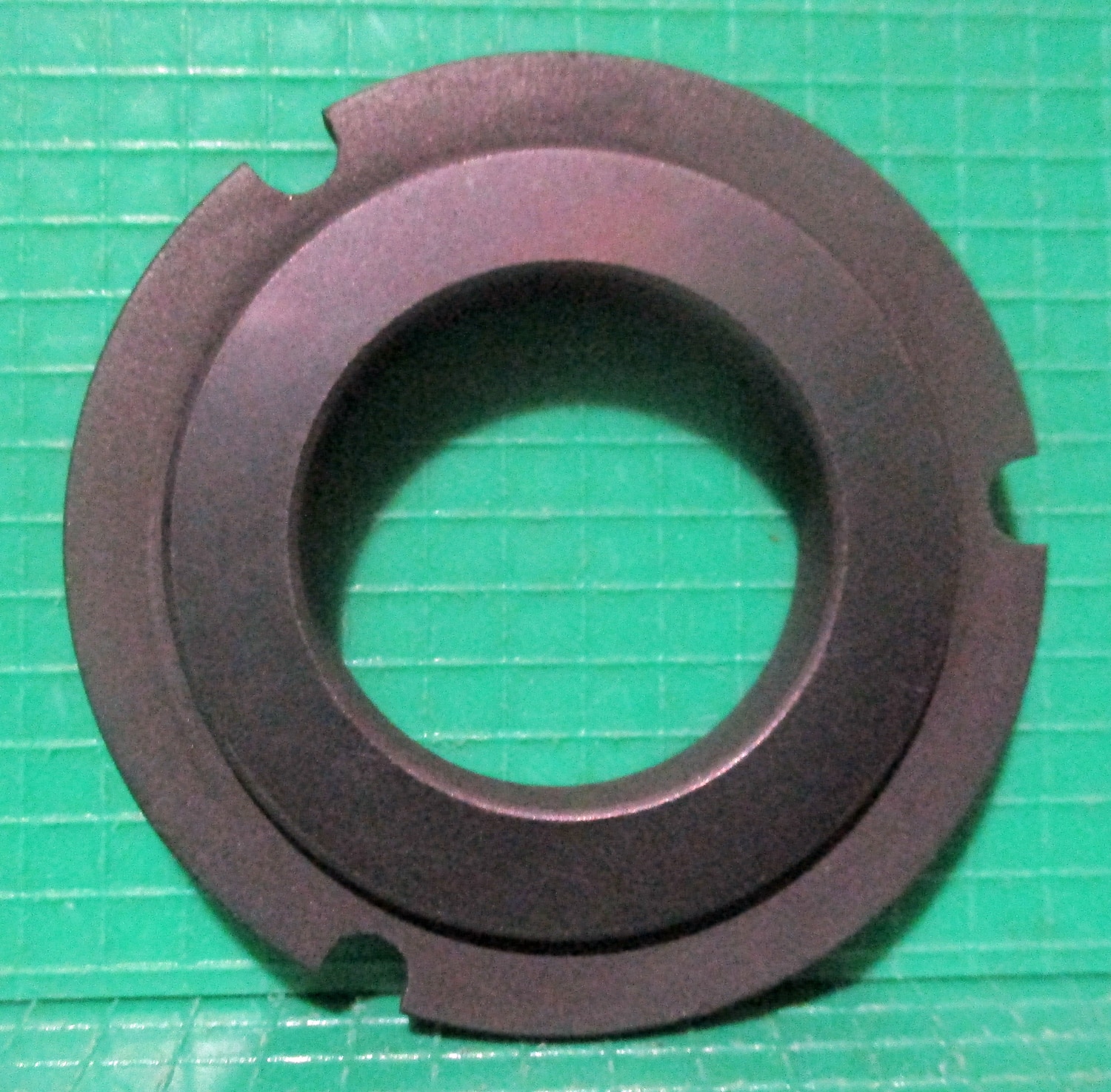

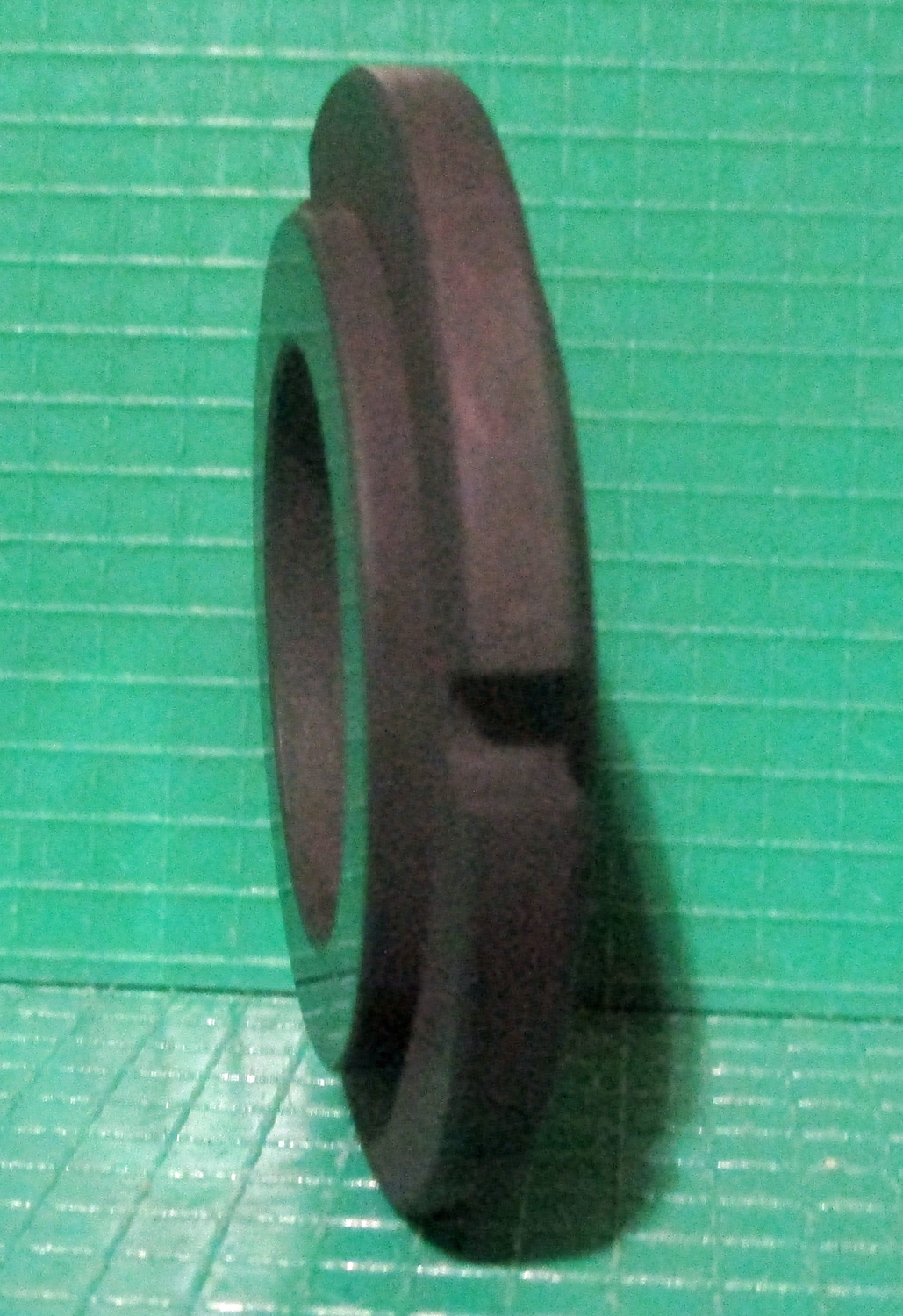

The carbon seal has an outer diameter of 1 7/8″, and an inner diameter of 1″. Is 1/8″ high on the outside, and 5/16″ high on the inside. The notches are 3/16″ wide.

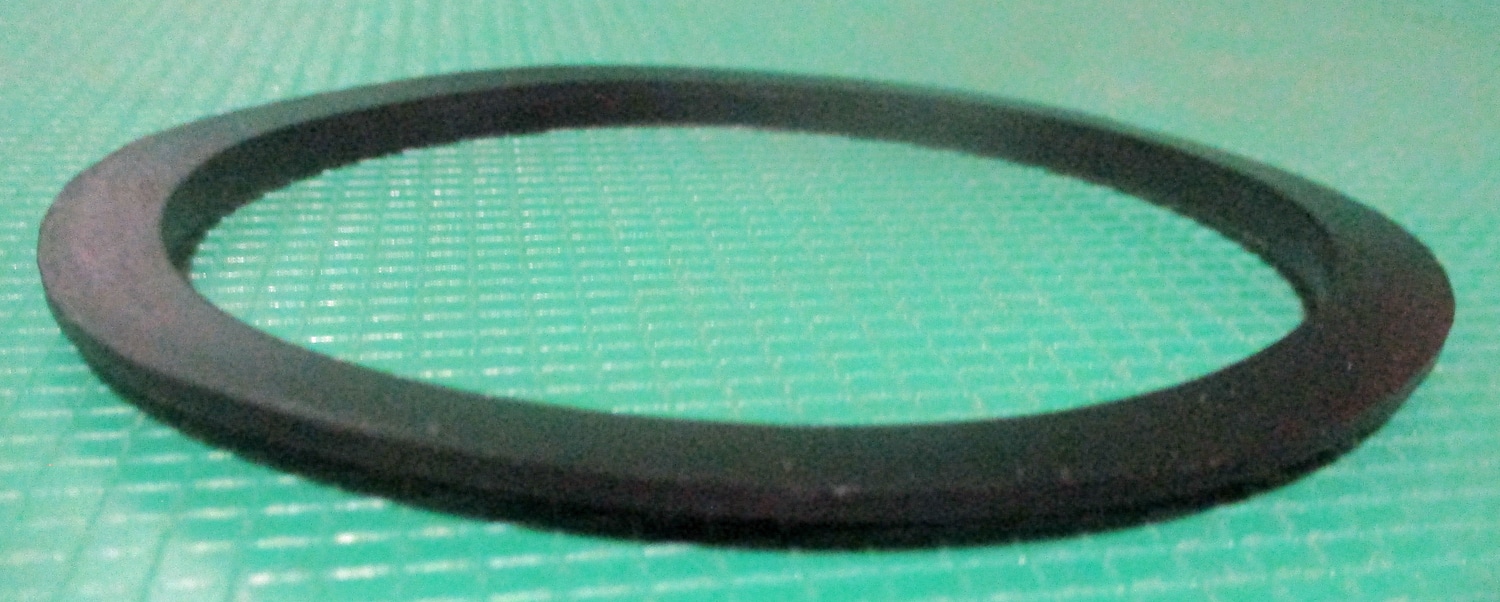

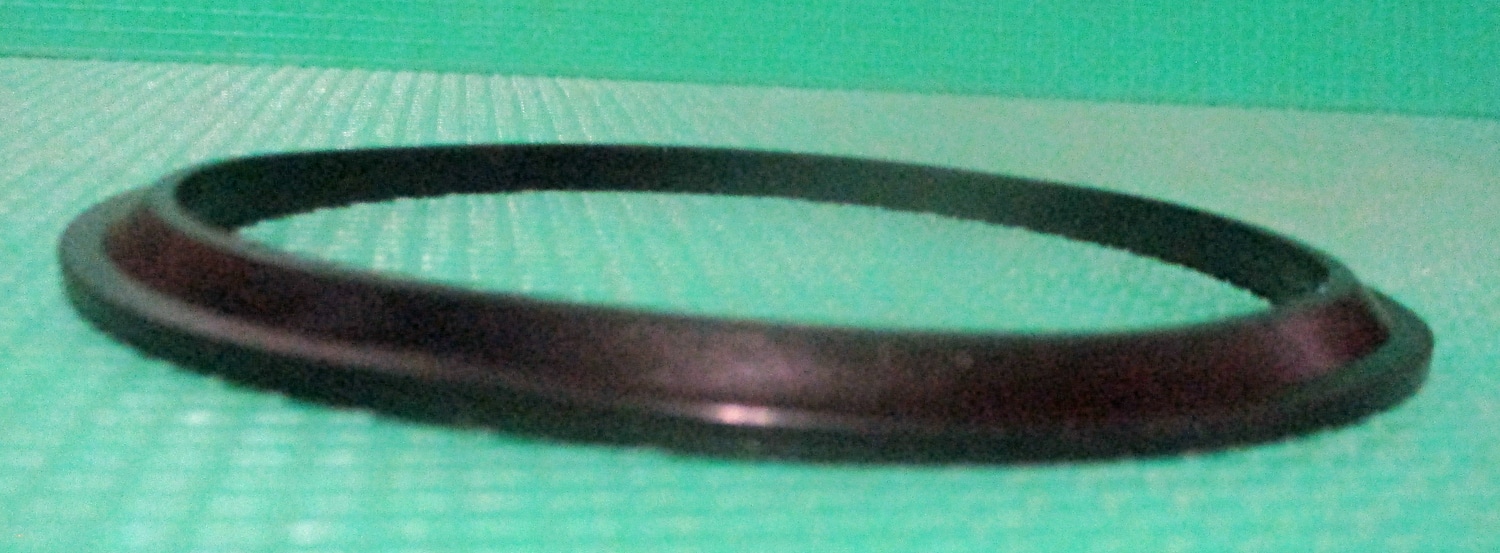

The head gasket has an outer diameter of 4 3/8″, an inner diameter of 3 3/4″, is 1/16″ high to the first level and 3/16″ high overall.
The E-clip has an outer diameter of 3/4″, the opening is 1/2″ across, and is 1/32″ thick.

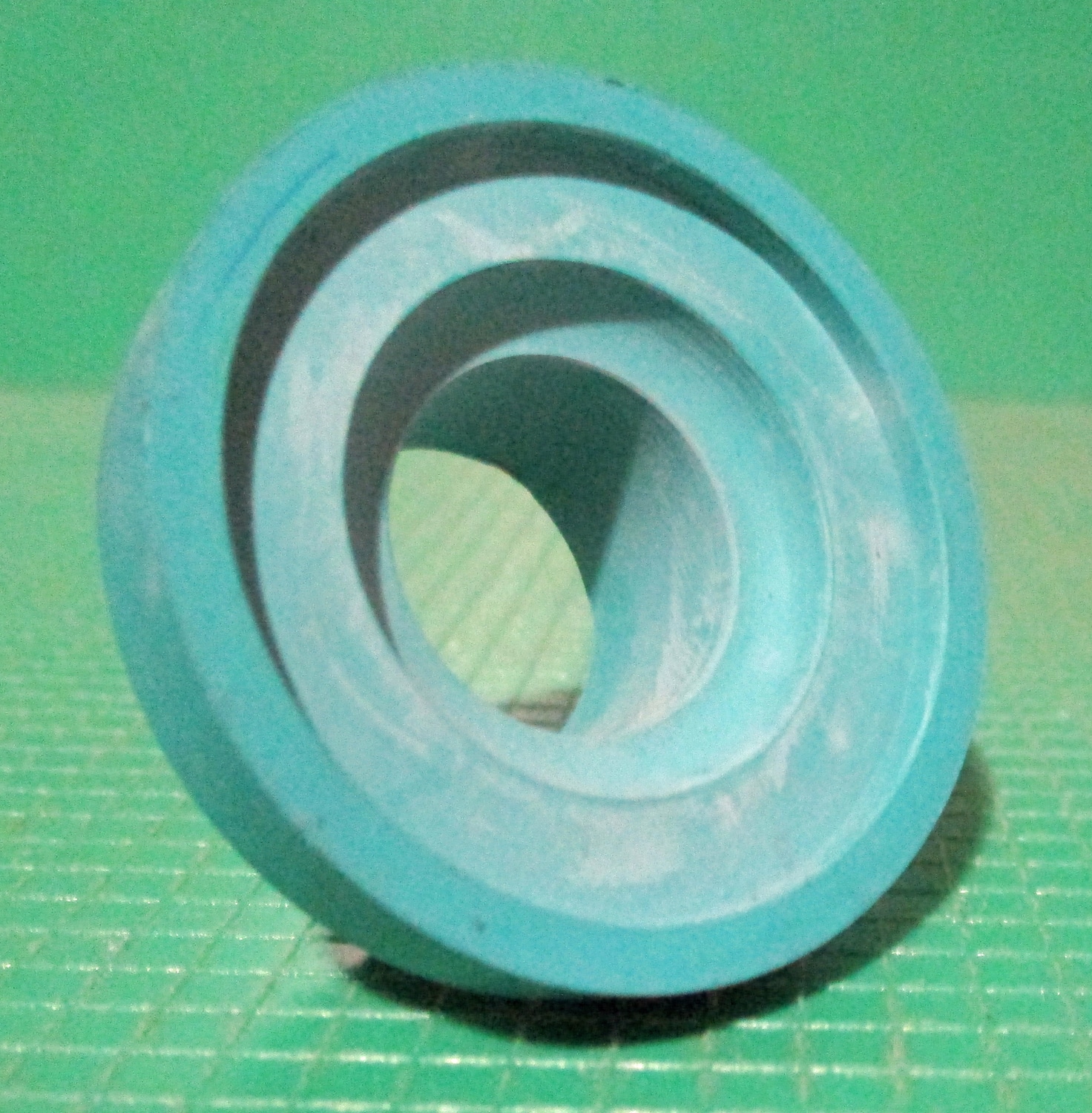

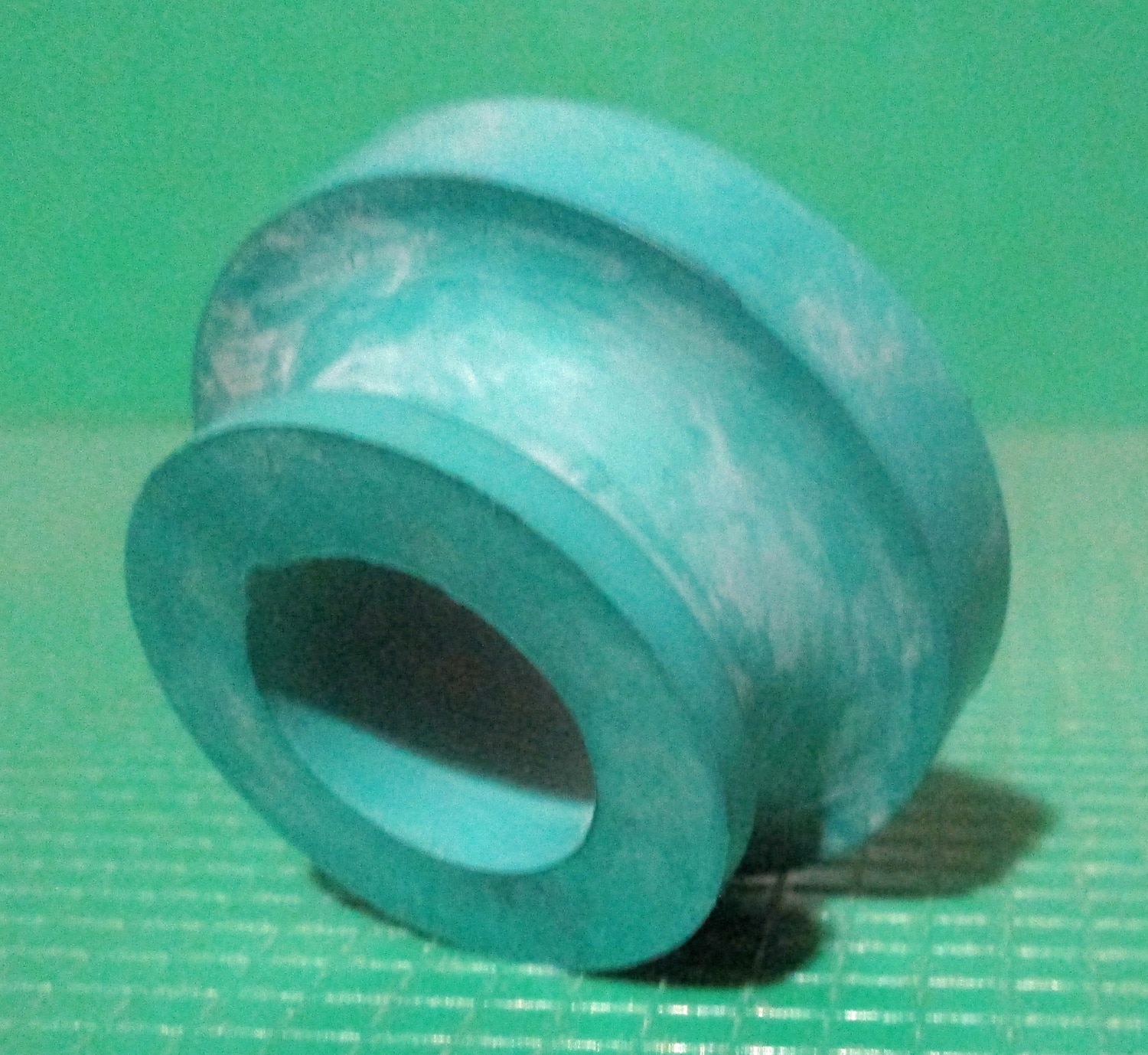

The green seal has an overall outer diameter of 1 5/8″, and is 3/4″ high. The top has an outer diameter of 1 3/16″, and an inner diameter of 3/4″. The inner diameters on the bottom are as follows, the first is 1 1/2″, the second is 1 1/16″, and the center is 3/4″.

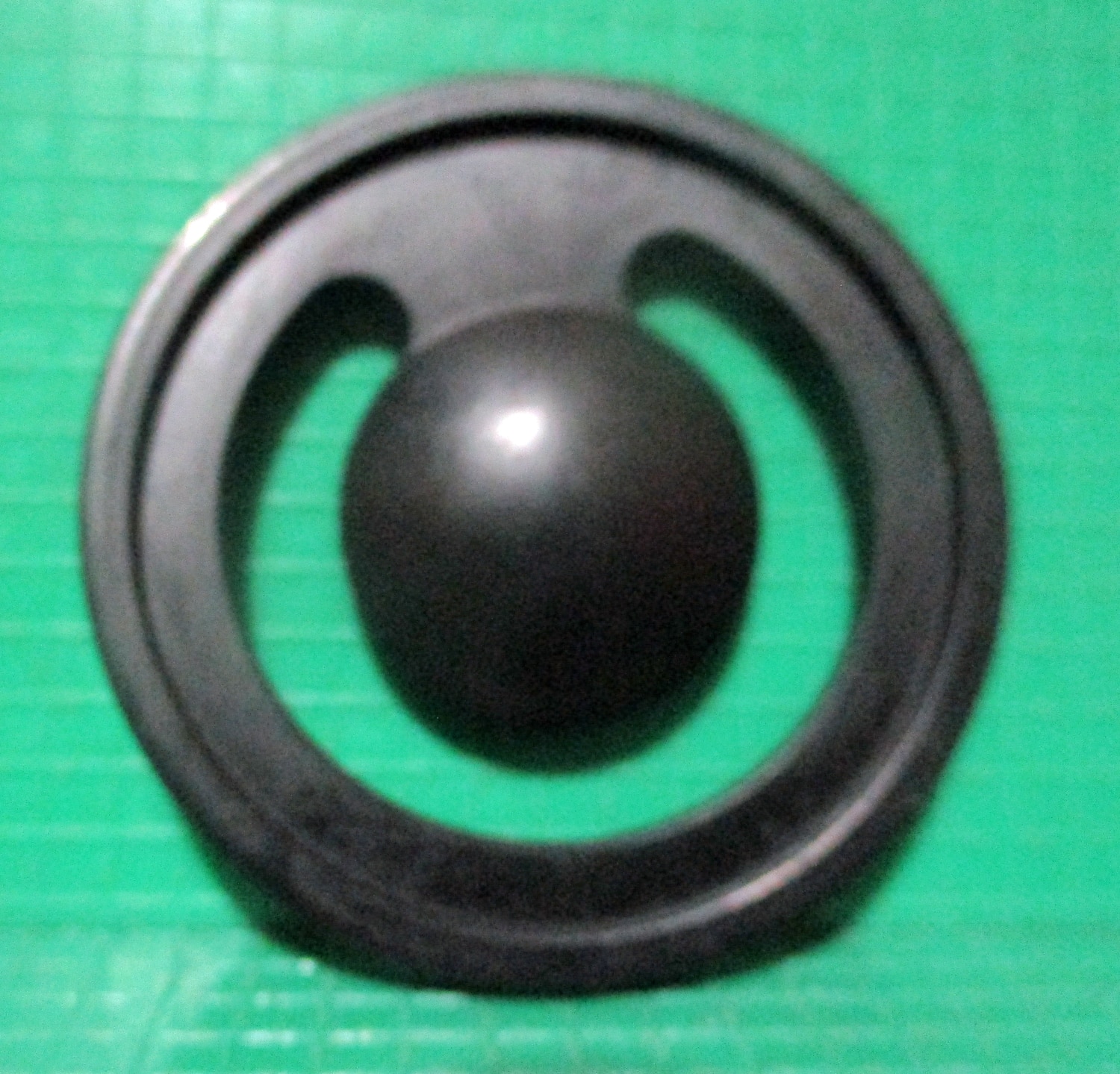

The Surge style flapper has an outer diameter of 1 15/16″, an inner diameter of 1 7/16″, the weight has an outer diameter of 15/16″, and is 3/16″ high.
The E-Zee part number is 10795.
Additional information
| Weight | .13 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Brand |
