Description

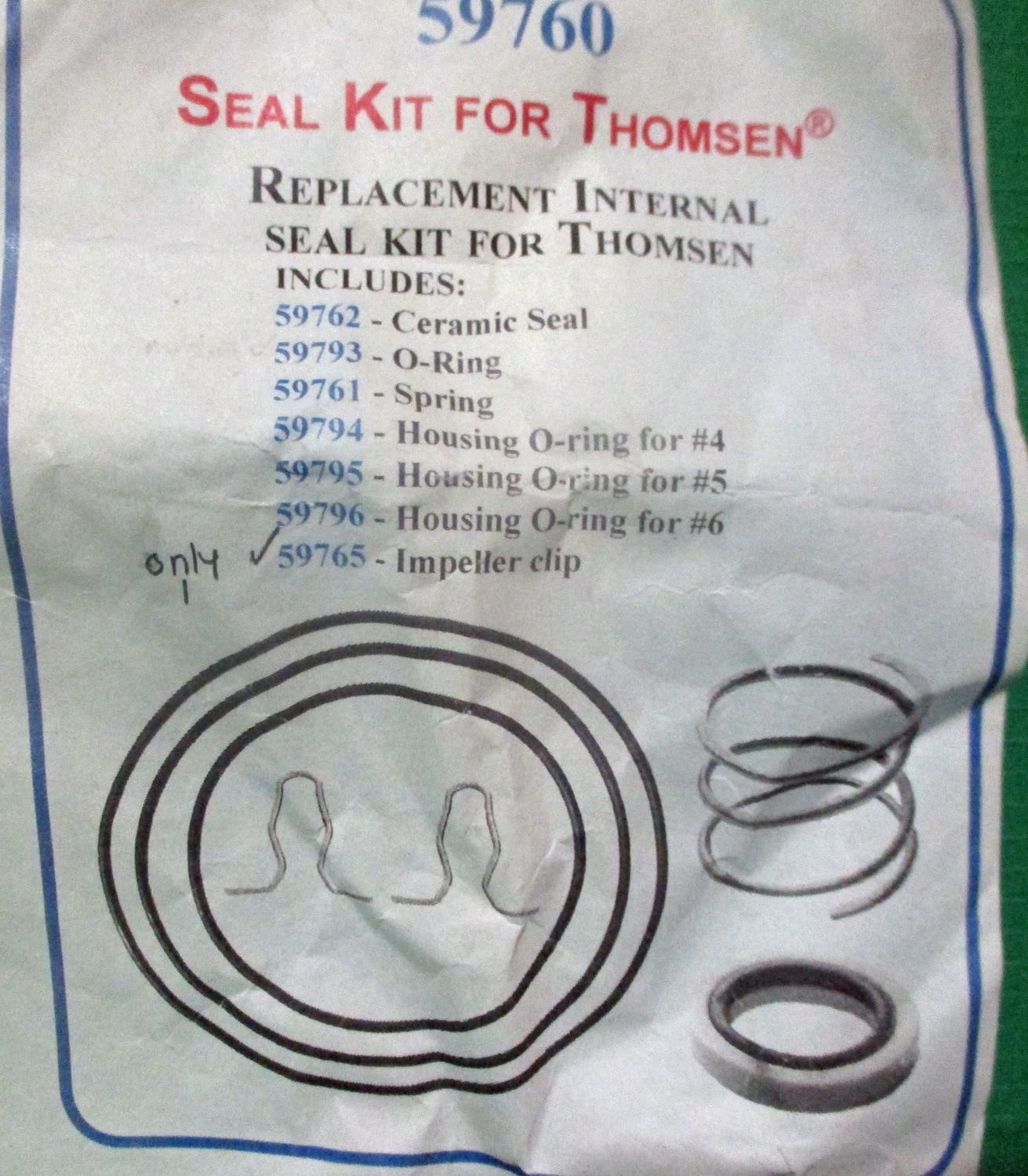

NEW This seal kit for a Thomson pump is made of ceramic, rubber, and metal. The unit is missing one impeller clip. The unit measures:

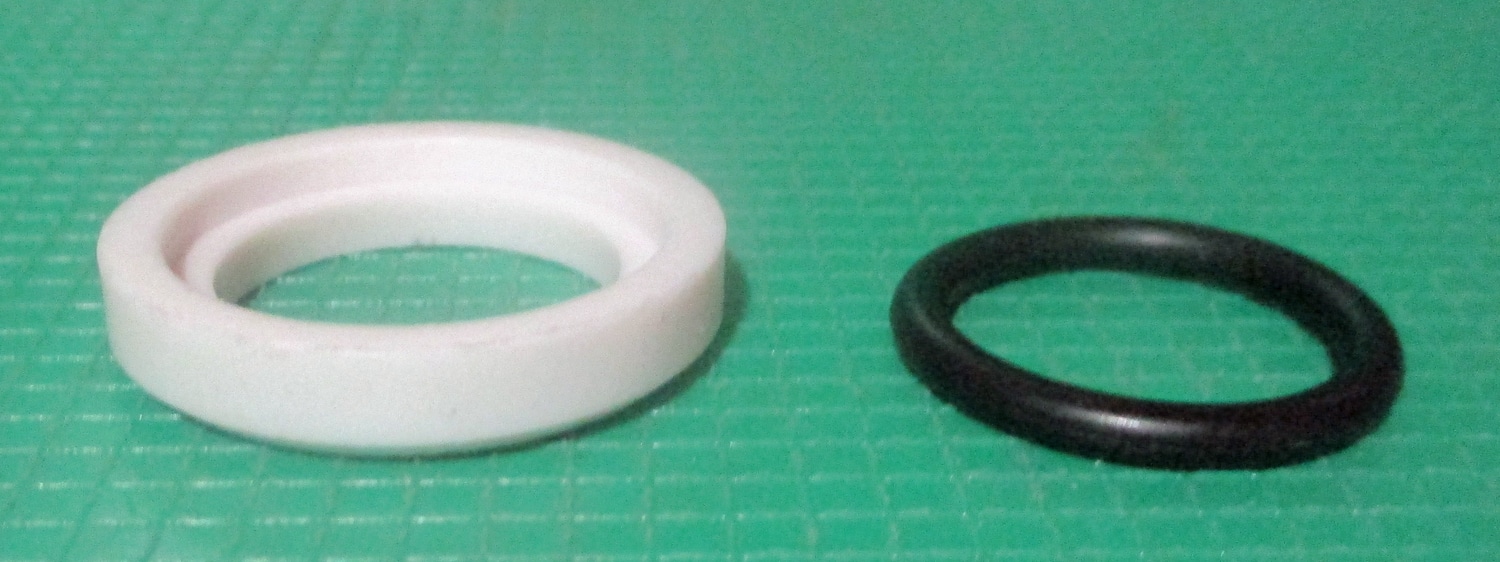

The seal has an outer diameter of 1 1/2″, an inner diameter of 1″, and is 5/16″ high overall. The O-ring that fits in the seal has an outer diameter of 1 3/16″, an inner diameter of 1″, and is 1/8″ thick.
The spring is 1 3/16″ long, has an outer diameter of 1 1/8″, and the wire is 1/16″ thick.
The clip is 1 1/16″ long by 1 5/16″ wide overall, and 1/8″ thick.
The #4 O-ring has an outer diameter of 4 1/4″, an inner diameter of 4″, and is 1/8″ thick.
The #5 O-ring has an outer diameter of 5 1/2″, an inner diameter of 5 1/4″, and is 1/8″ thick.
The #6 O-ring has an outer diameter of 6″, an inner diameter of 5 3/4″, and is 1/8″ thick.
The E-Zee part number is 59760.
Additional information
| Weight | .13 lbs |
|---|---|
| Dimensions | 7 × 7 × 2 in |
| Brand |
