Description

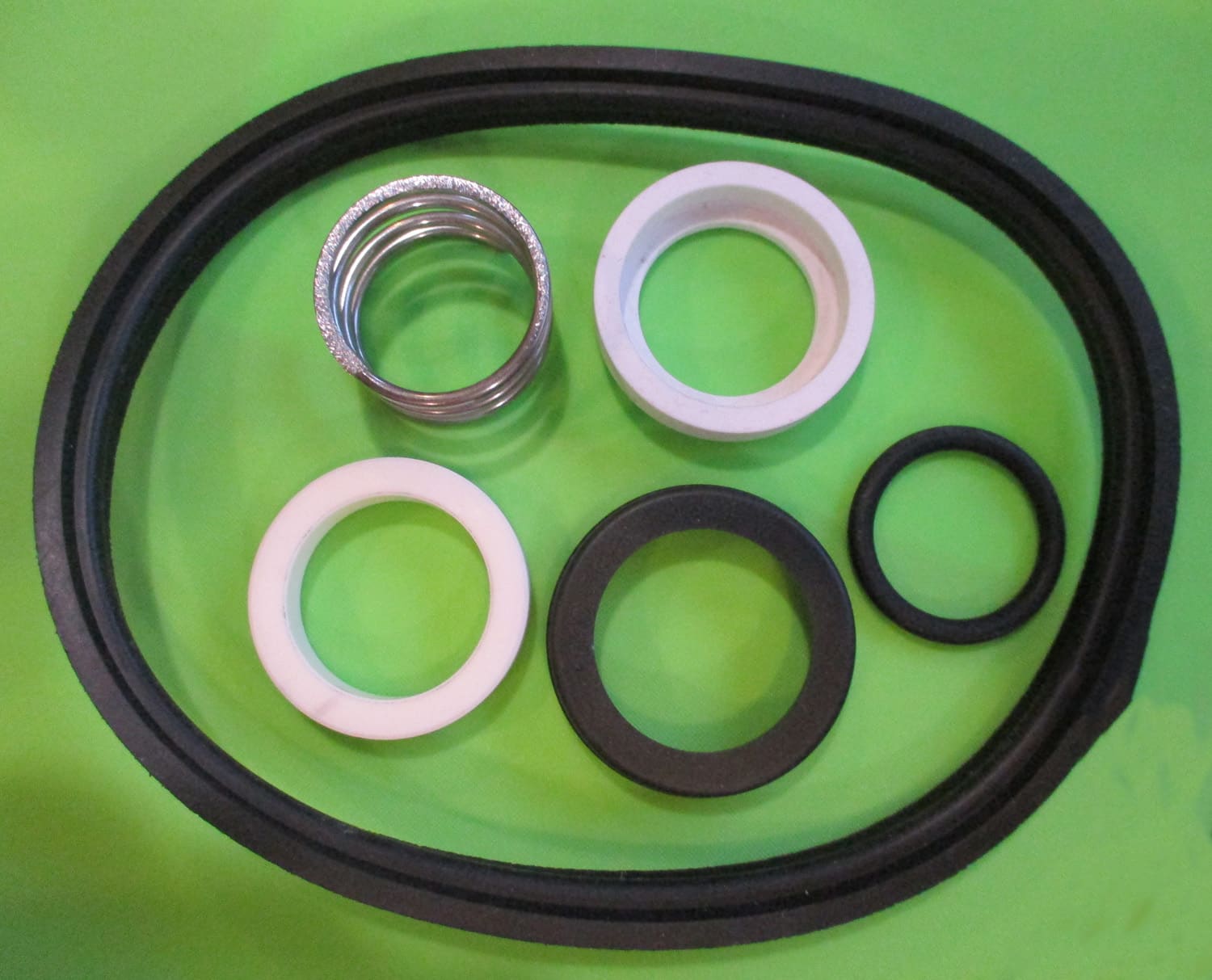

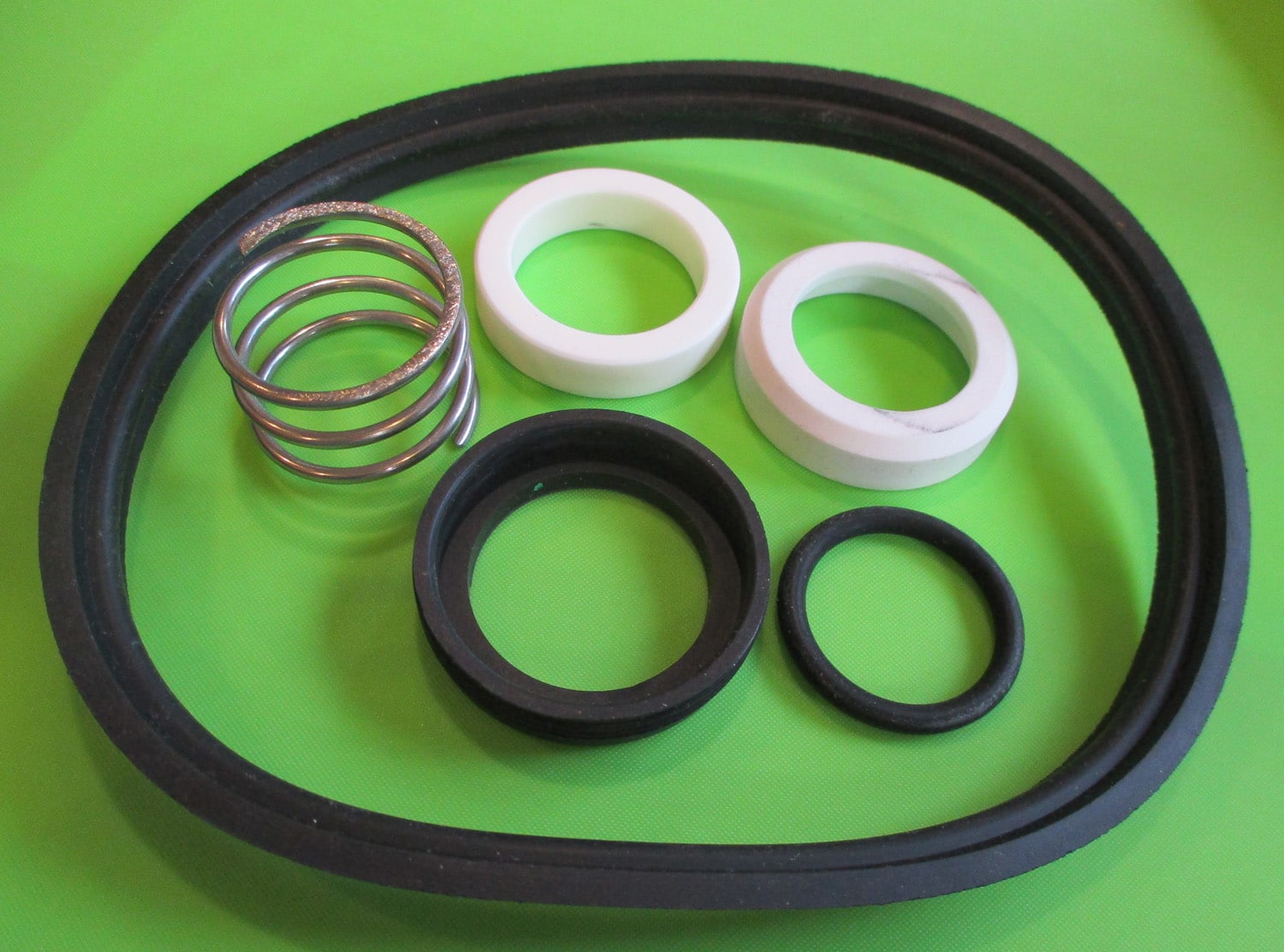

NEW This is a Meltec complete teflon seal kit for the SP51 milk transfer pump. The individual part specifics are as follows:
The large gasket is 3/8″ thick, 5 5/8″ long and 4 3/4″ wide with a 3/32″ bead in the center of one side. The other side is flat.
The stainless steel spring is 7/8″ long with a 1 3/16″ outside diameter and a 1″ inside diameter.
One of the teflon rings has a 1 7/16″ outside diameter with a 1-1/16″ inside diameter and is 5/16″ thick. The other teflon ring is 3/8″ thick with a 1 1/2″ outside diameter and a 1″ inside diameter. One side is flat, the other has a 1/4″ deep groove so that the inside diameter would be 1 1/4″.
The rubber gasket has a 1 5/8″ threaded outside diameter with a 1 1/8″ inside diameter and is 1/4″ thick.
The rubber o ring has a 1 3/16″ outside diameter with a 1″ inside diameter and is 1/8″ thick.
The Meltec part number is 4999-9905-030.
Additional information
Weight | .13 lbs |
---|---|
Dimensions | 6 × 5 × 3 in |
