Description

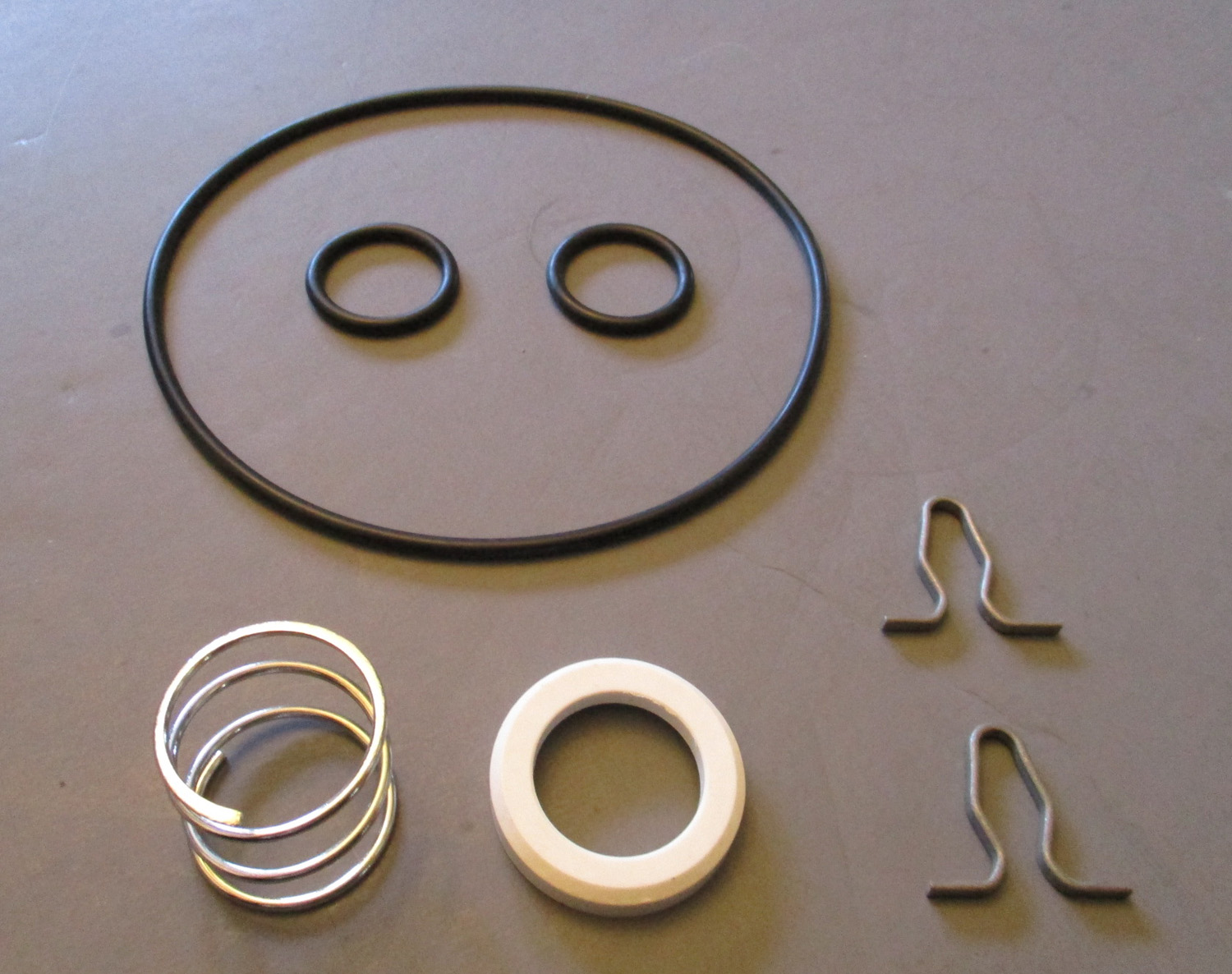

NEW This internal pump, seal assembly is for a #4 LC Thompson pump. The unit is made of rubber, stainless steel, plastic, and metal. The unit measures:

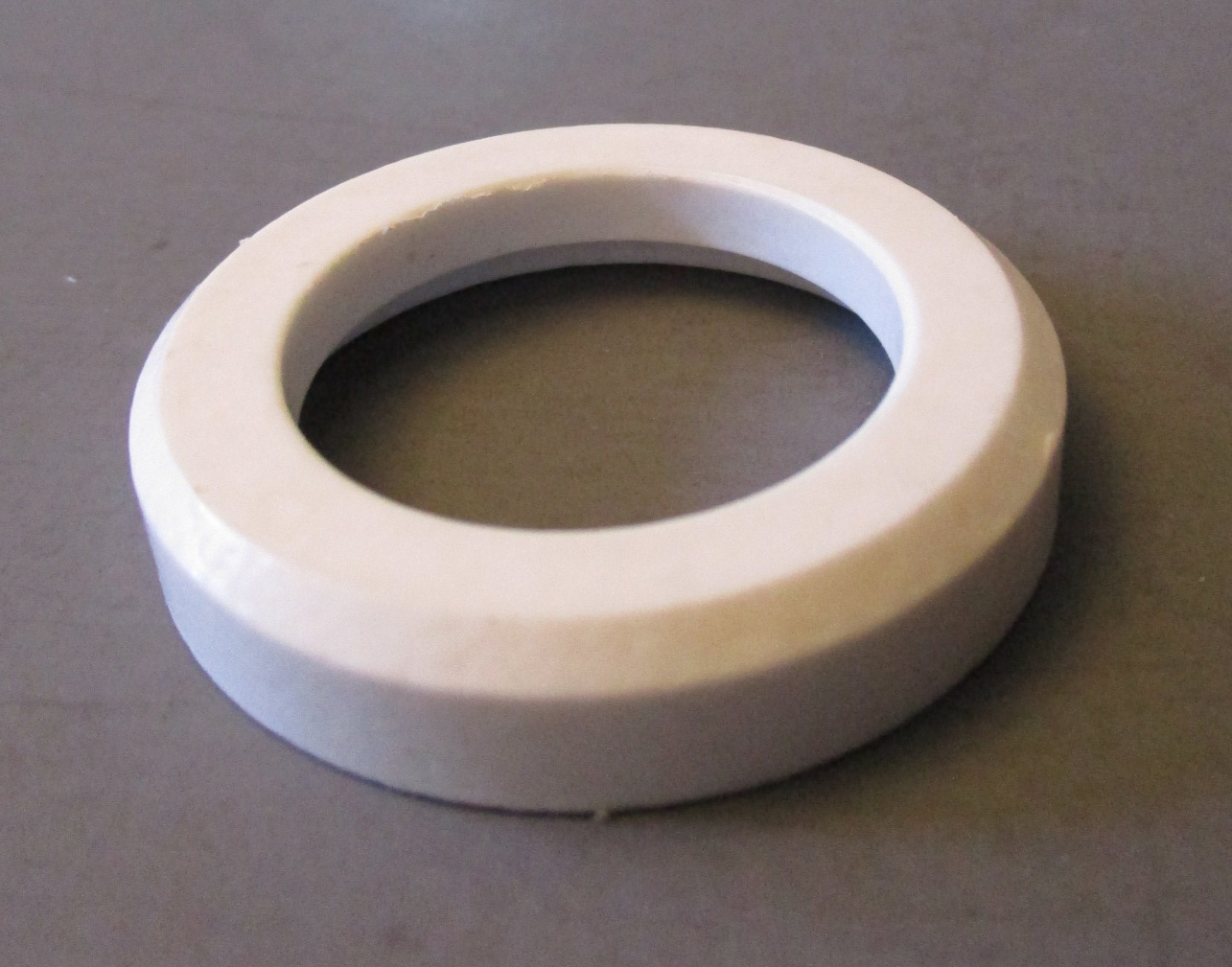

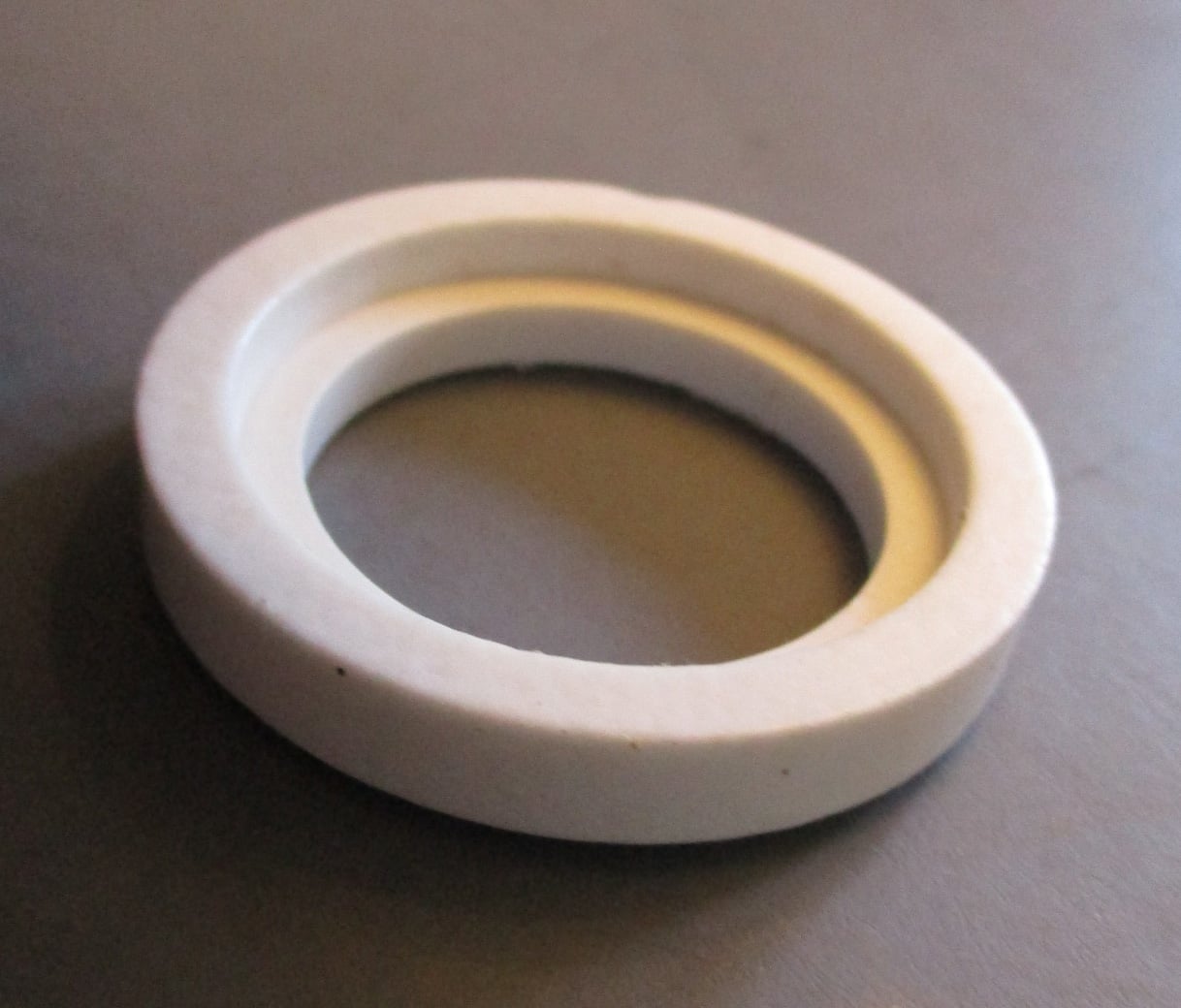

The rotary seal has an outer diameter of 1 1/2″, with an inner diameter of 1″. The overall height of the seal is 5/16″, with the inside of the seal having a height of 3/16″.
The two smaller O rings have an outer diameter of 1 3/16″, with an inner diameter of 15/16″, and are 1/8″ thick.

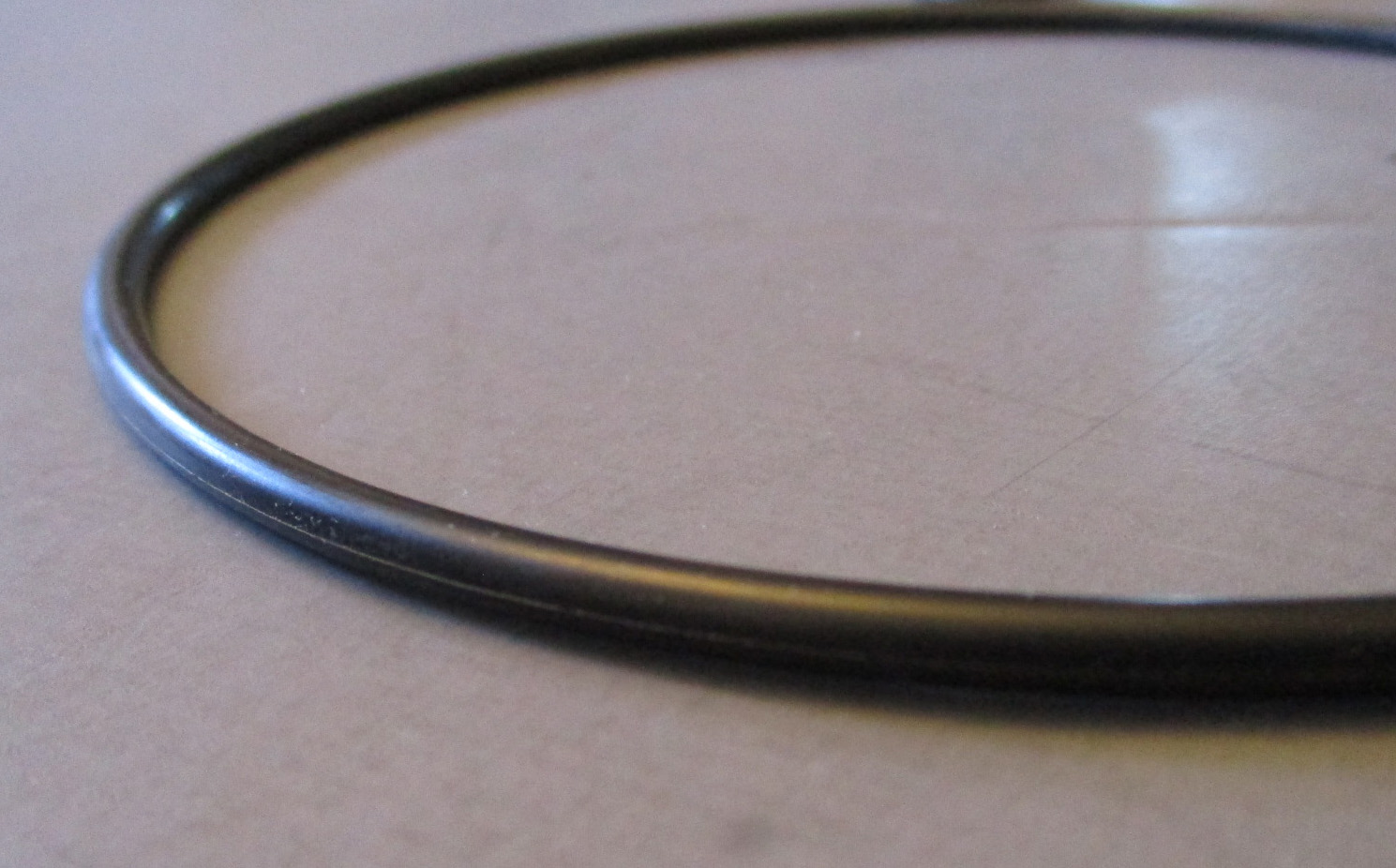

The single larger O ring has an outer diameter of 5 1/4″, with an inner diameter of 5″, and is 1/8″ thick.

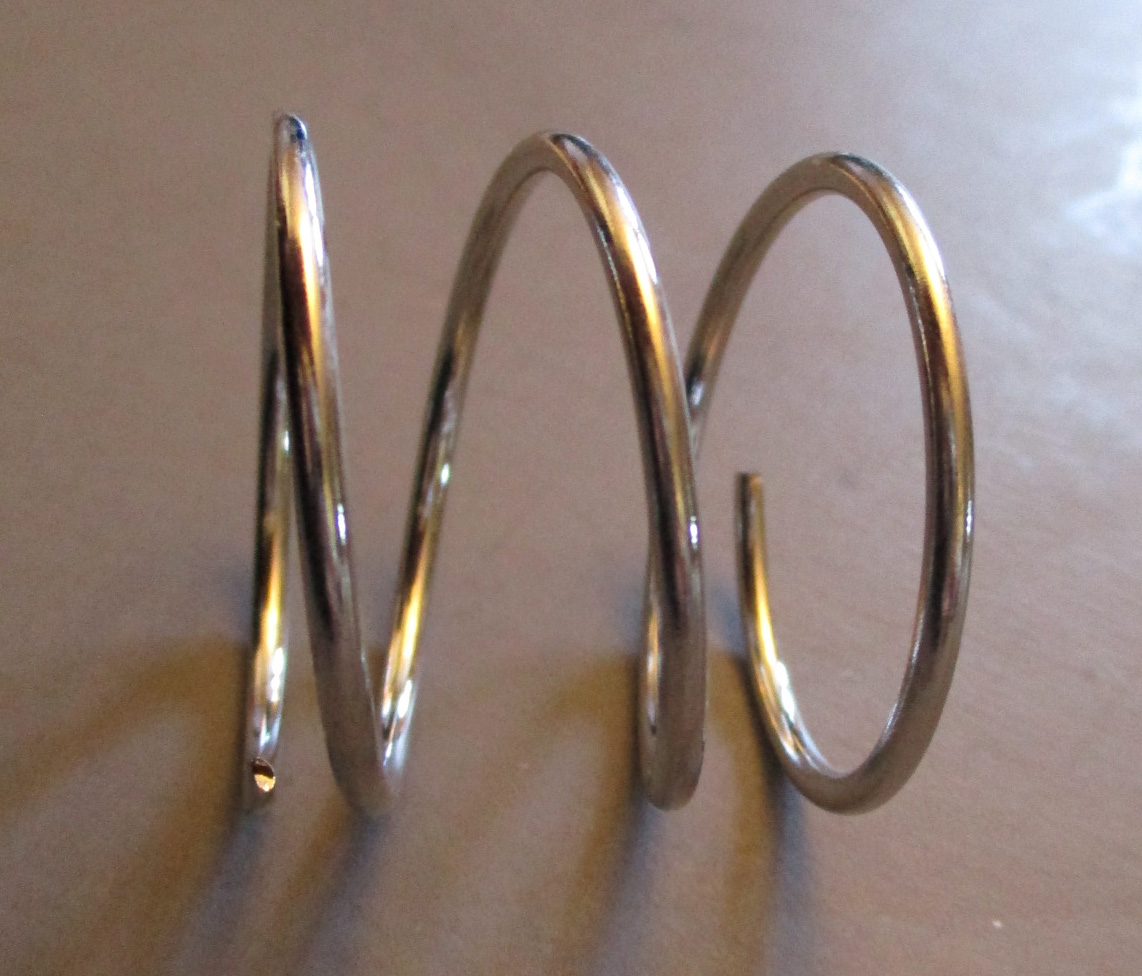

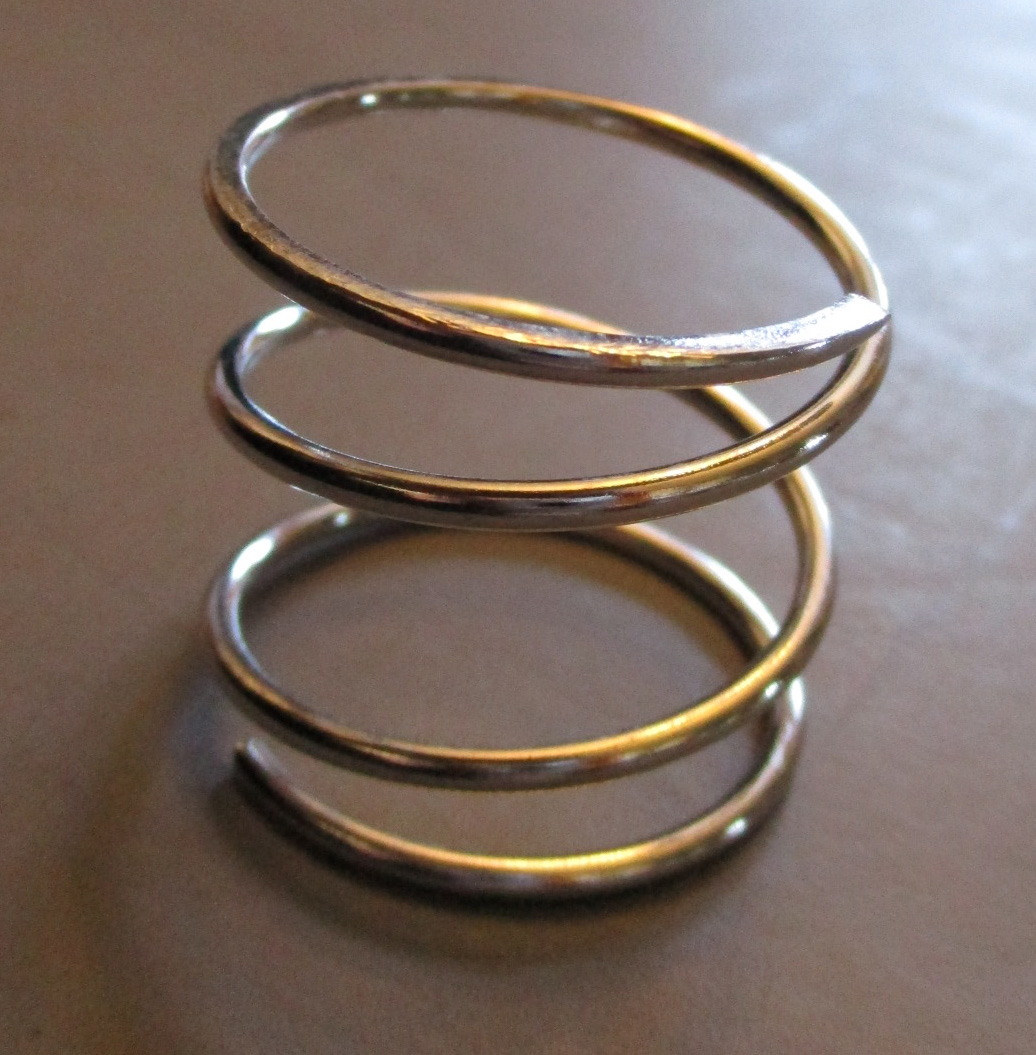

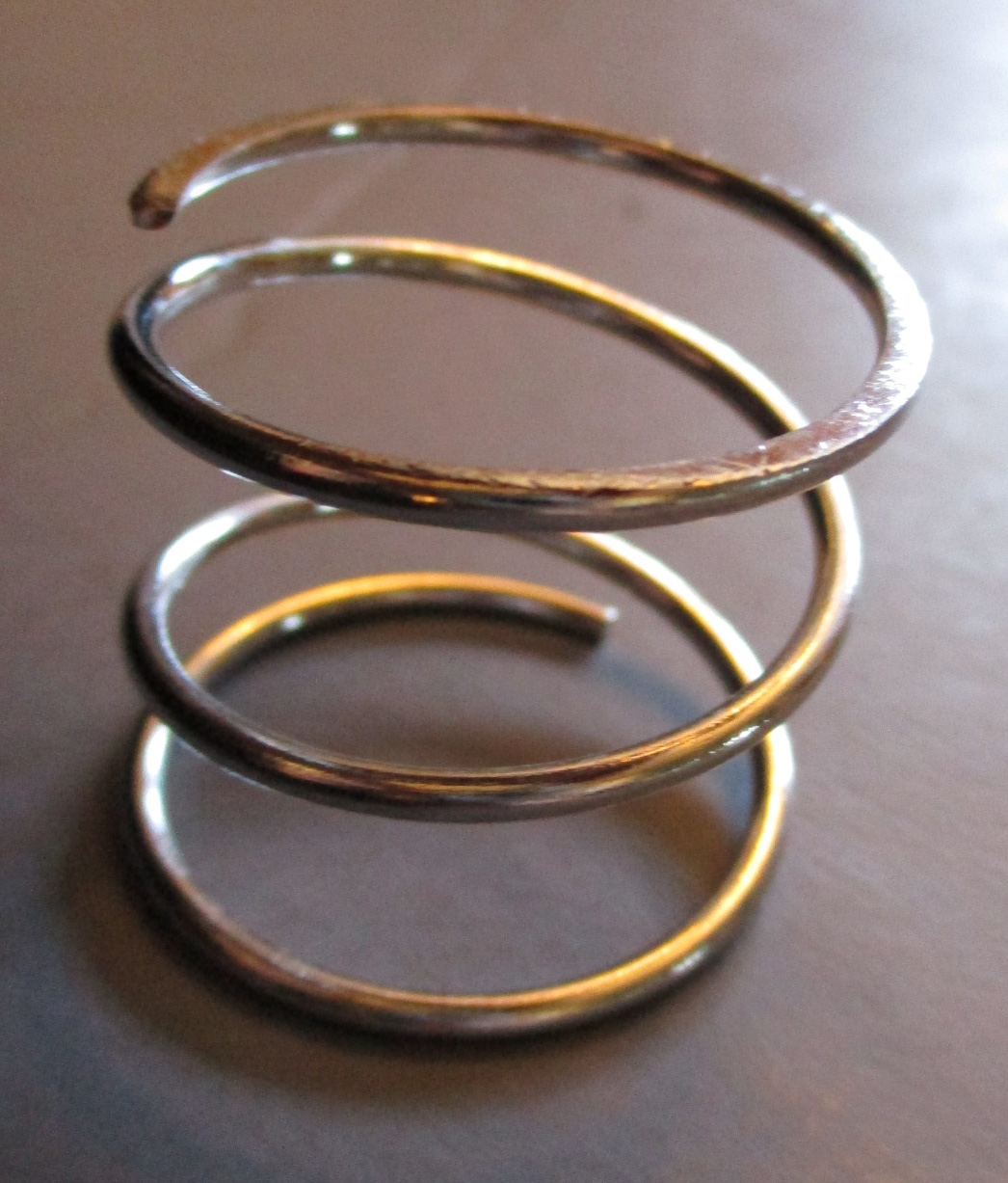

The spring is 1 1/16″ long, with an outer diameter of 1 3/16″, and an inner diameter of 1 1/16″.

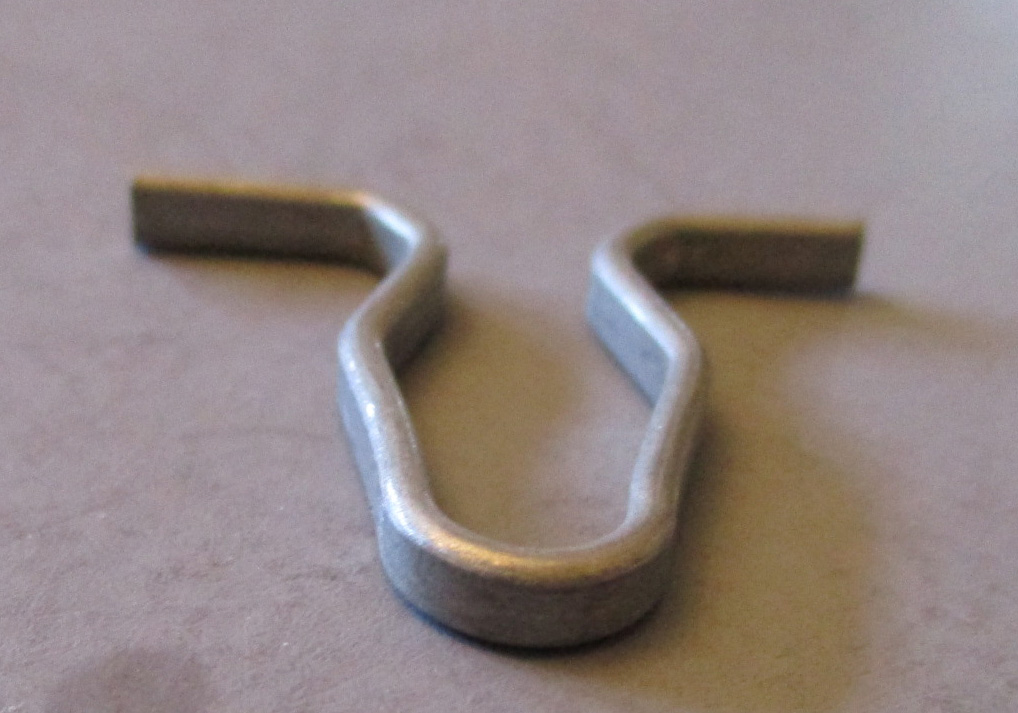

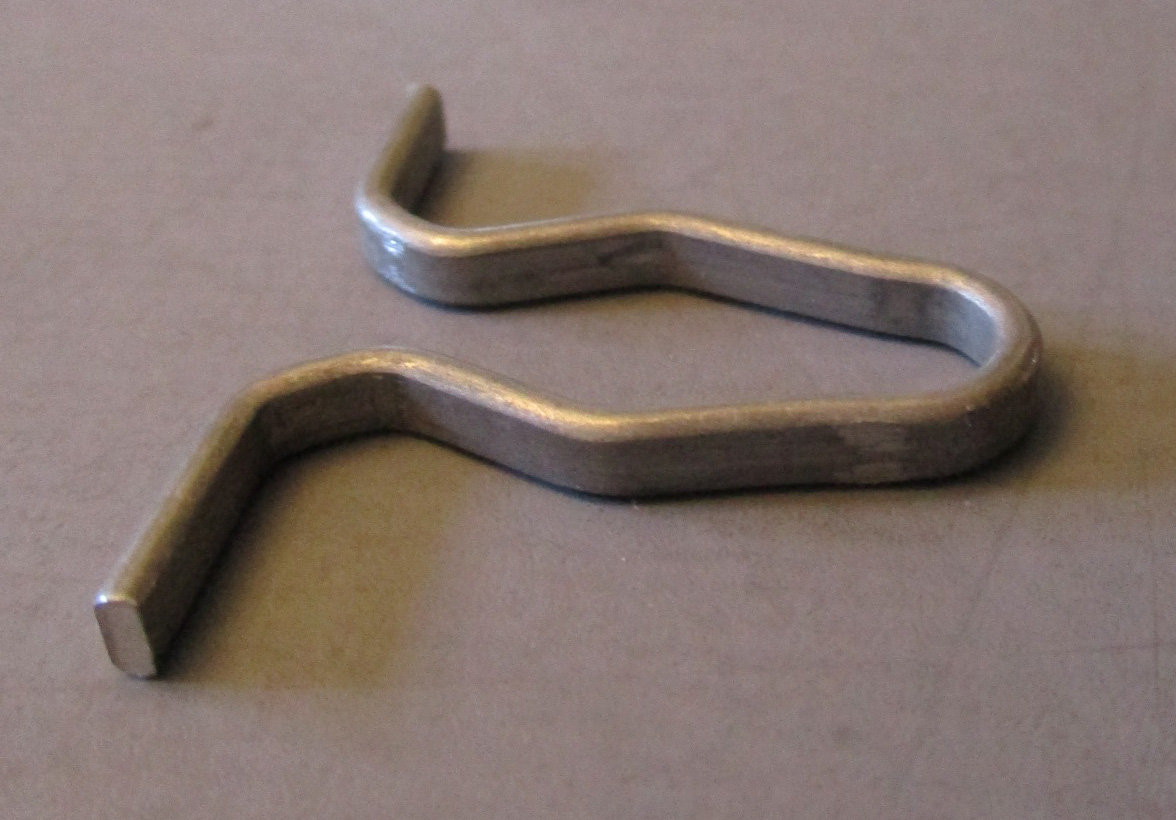

The two clips are 1 1/16″ long, and 1/16″ thick. The top of the clip is 5/16″ wide, the middle 1/2″ wide, and the bottom is 1 3/16″ wide.
The LC Thompson part number is 9356-BO.
Additional information
| Weight | 0.13 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
| Brand |
