Description
NEW This single FPR seal for a Centrifugal pump, is made of silicon carbide, ceramic, and Viton. The pieces measure, from left to right, as shown in the first photo above:

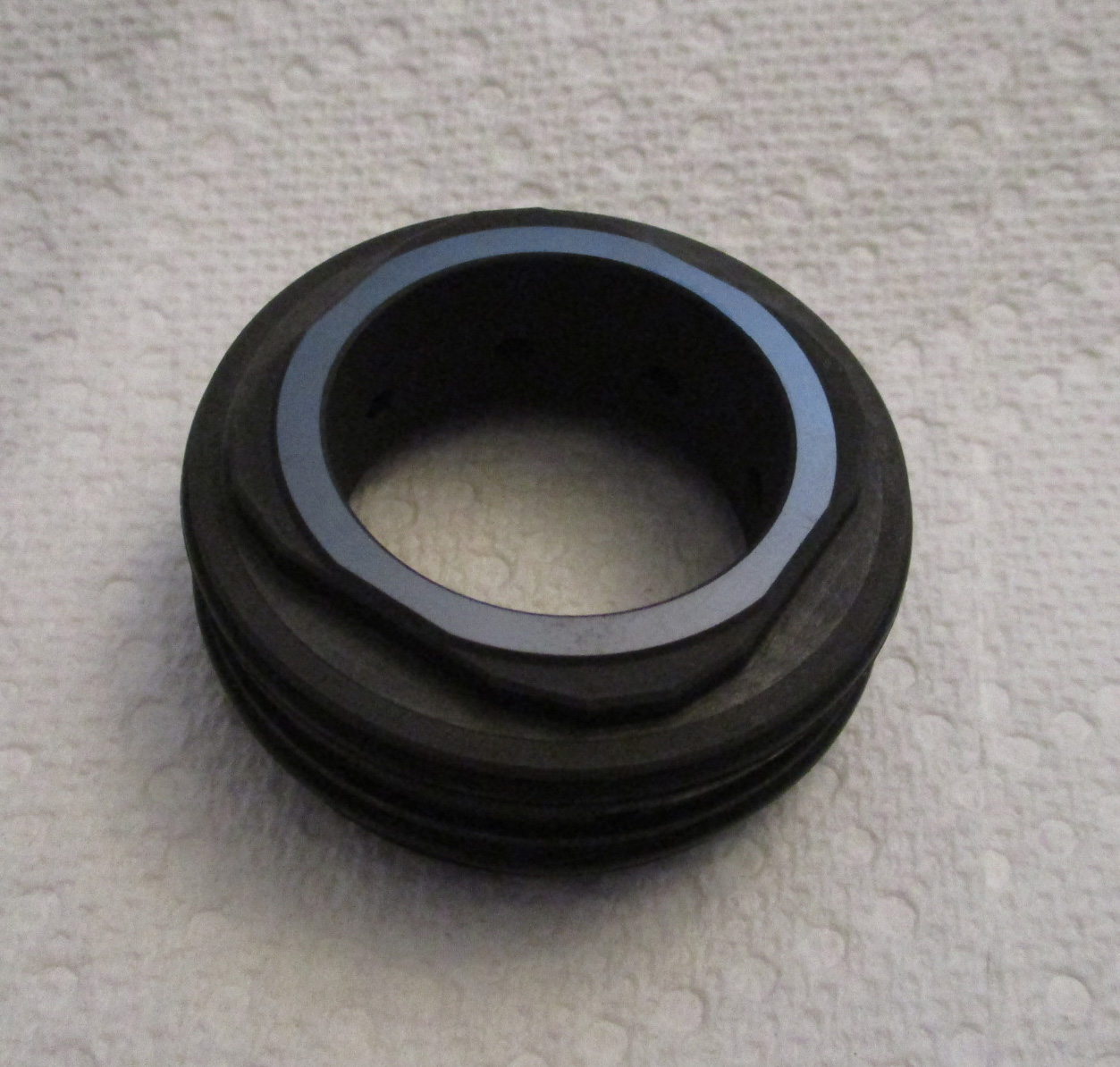

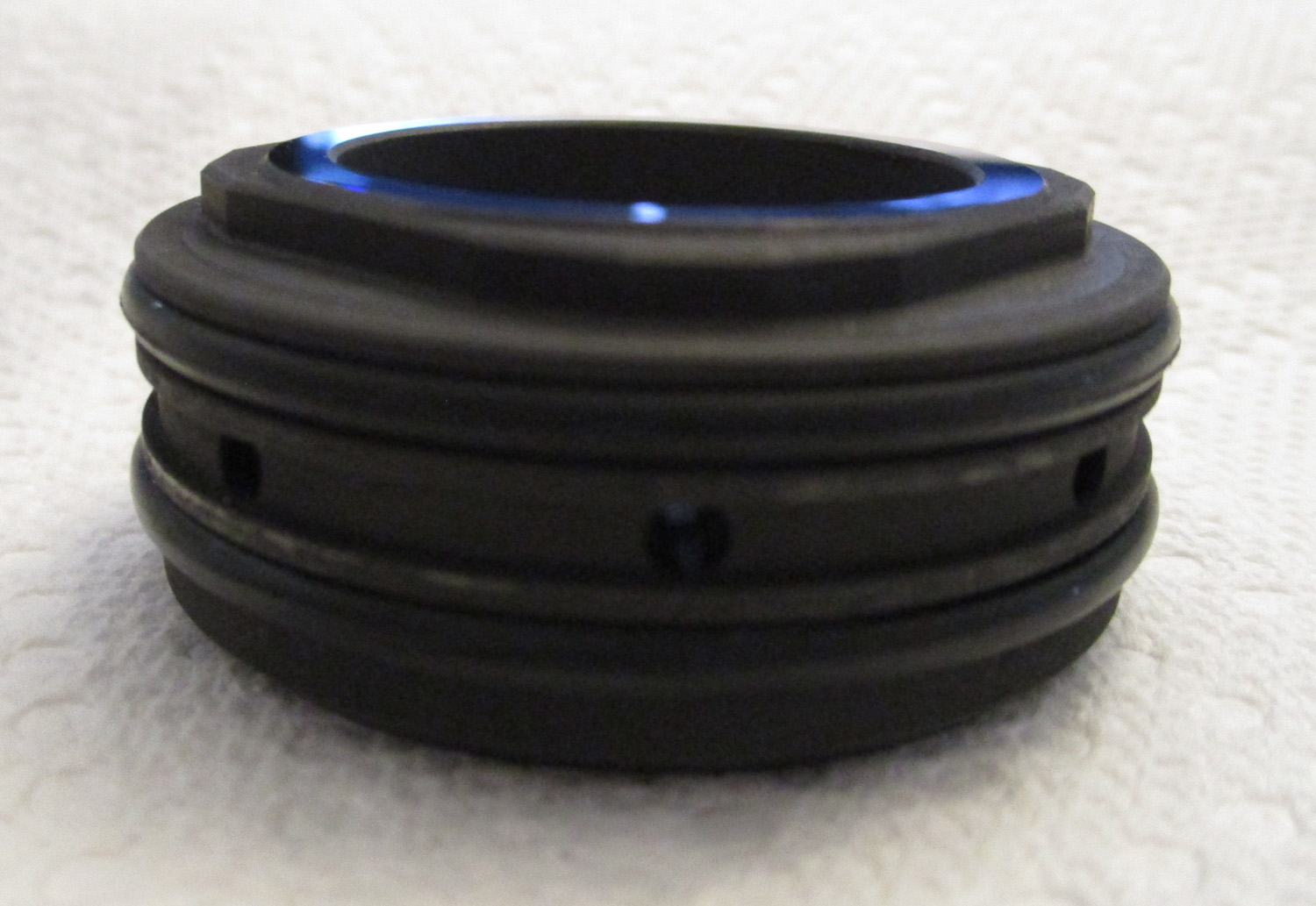

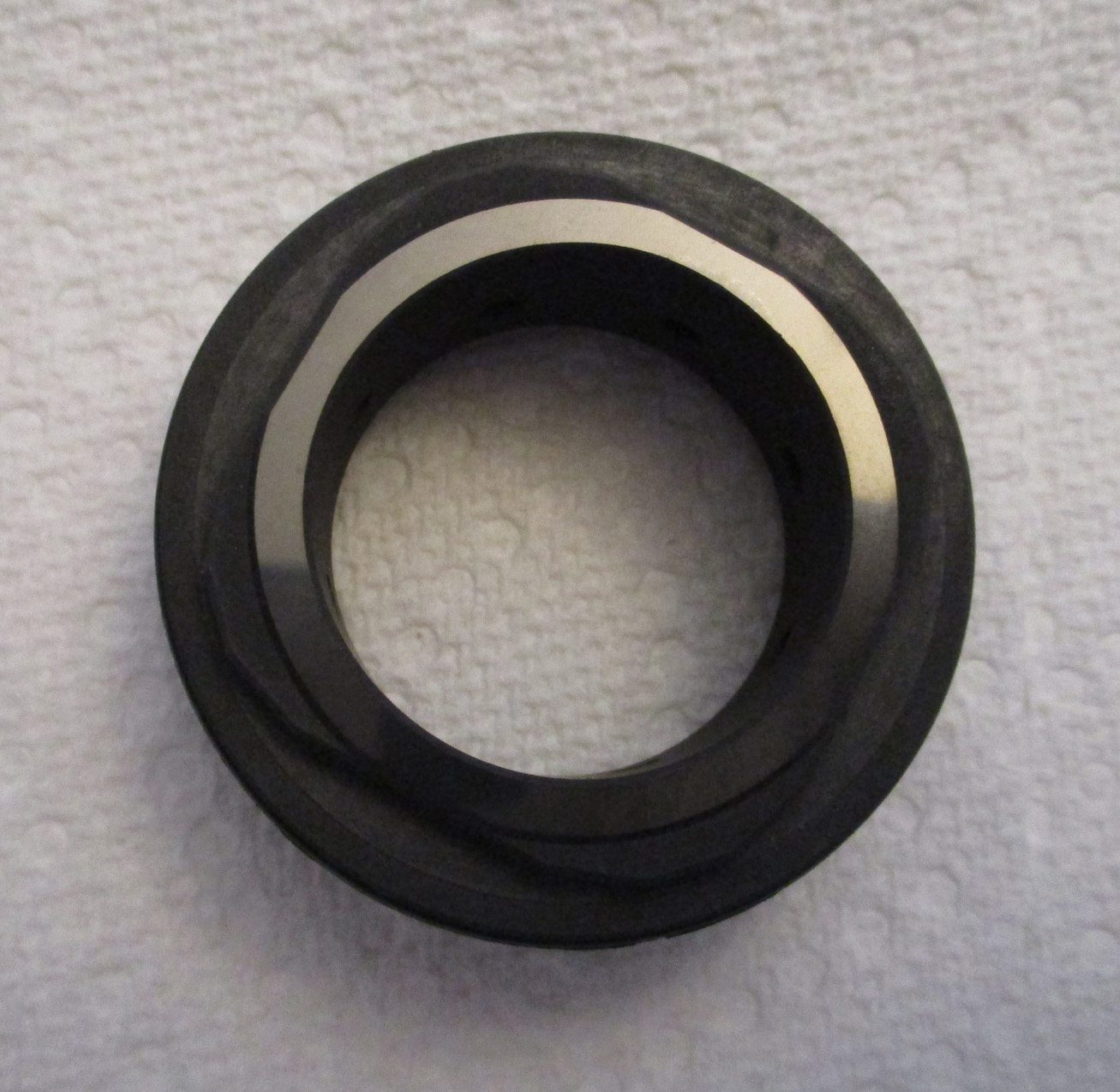

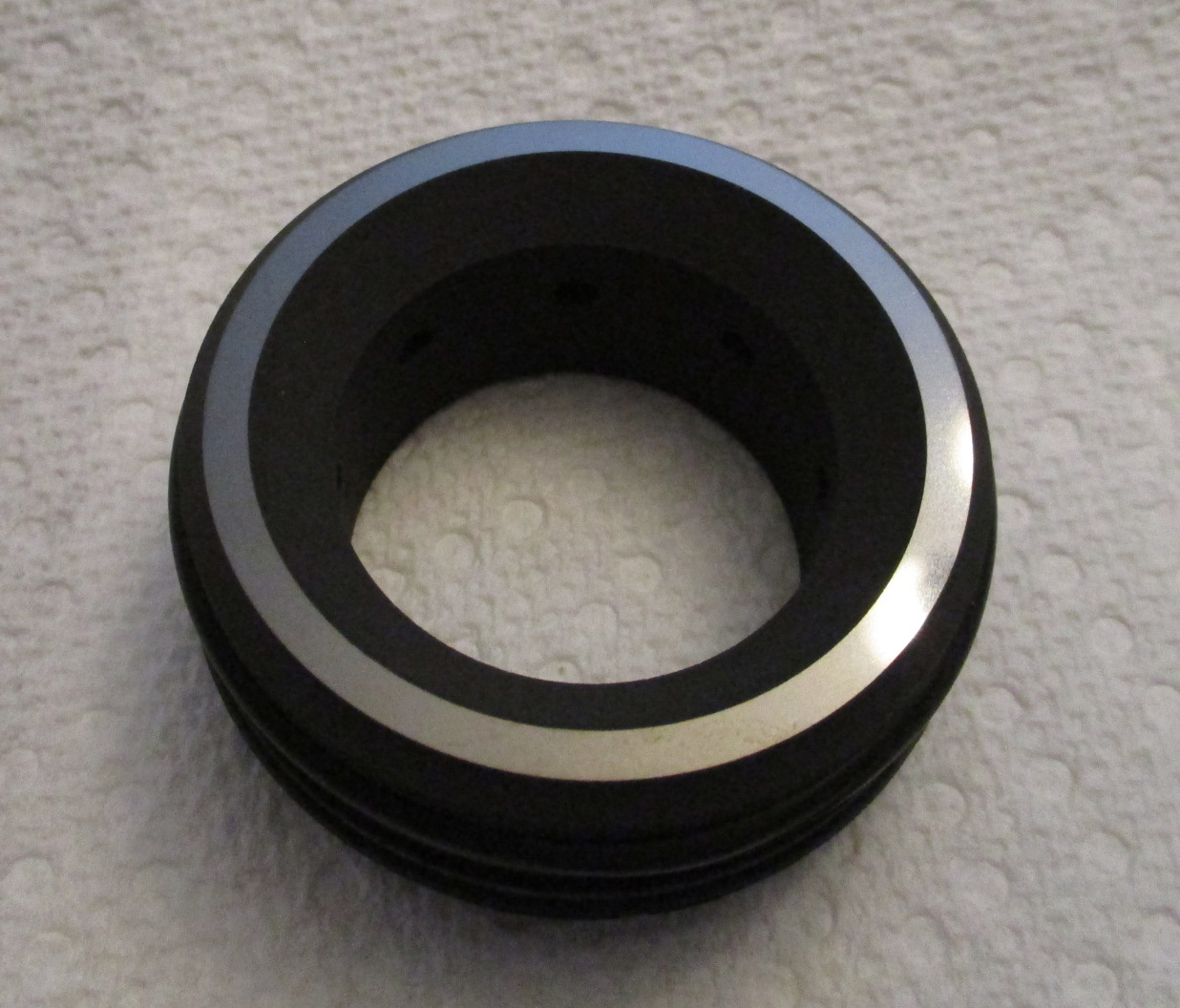

The first seal has an outer diameter of 2″, with an inner diameter of 1 1/4″, and is 13/16″ high.

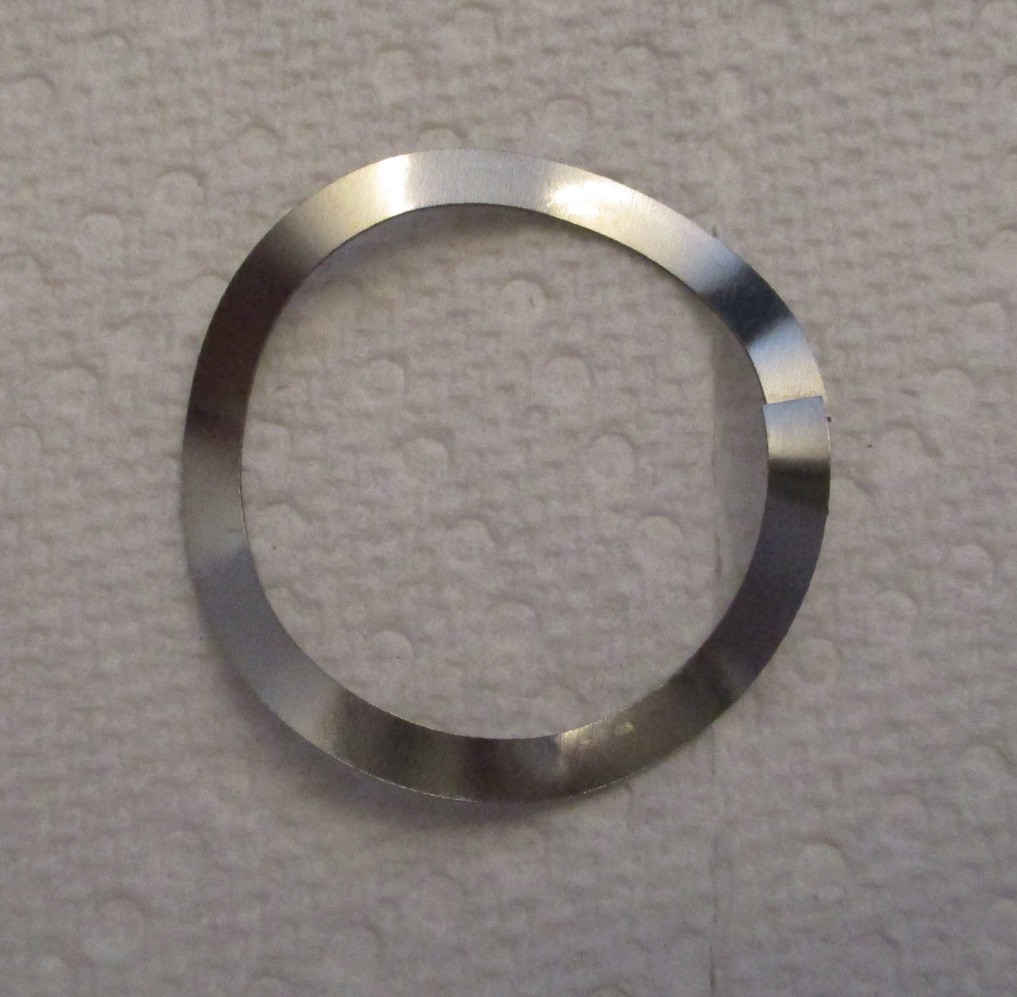

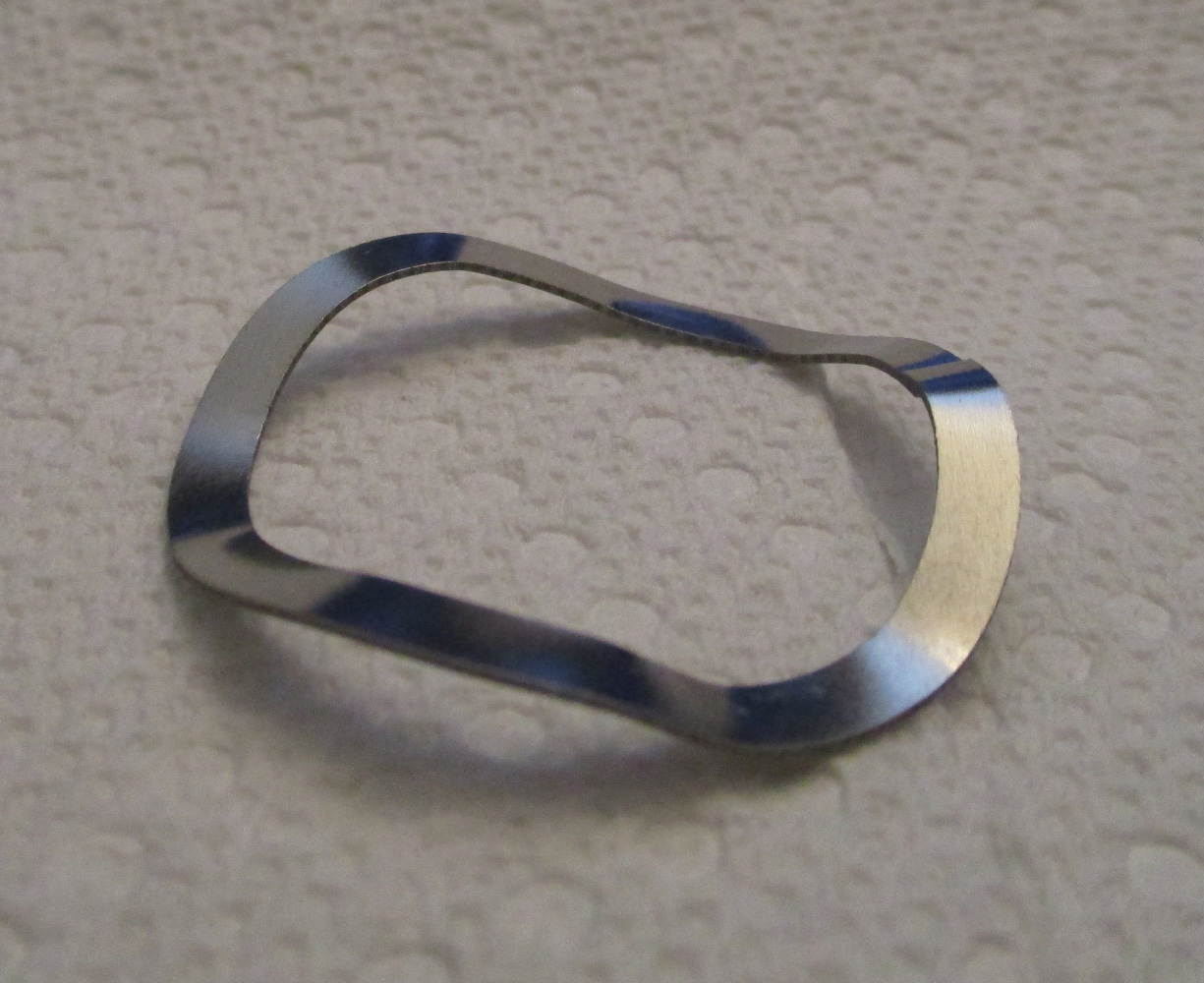

The wave washer has an outer diameter of 1 1/2″, with an inner diameter of 1 1/4″, and is 1/32″ thick.

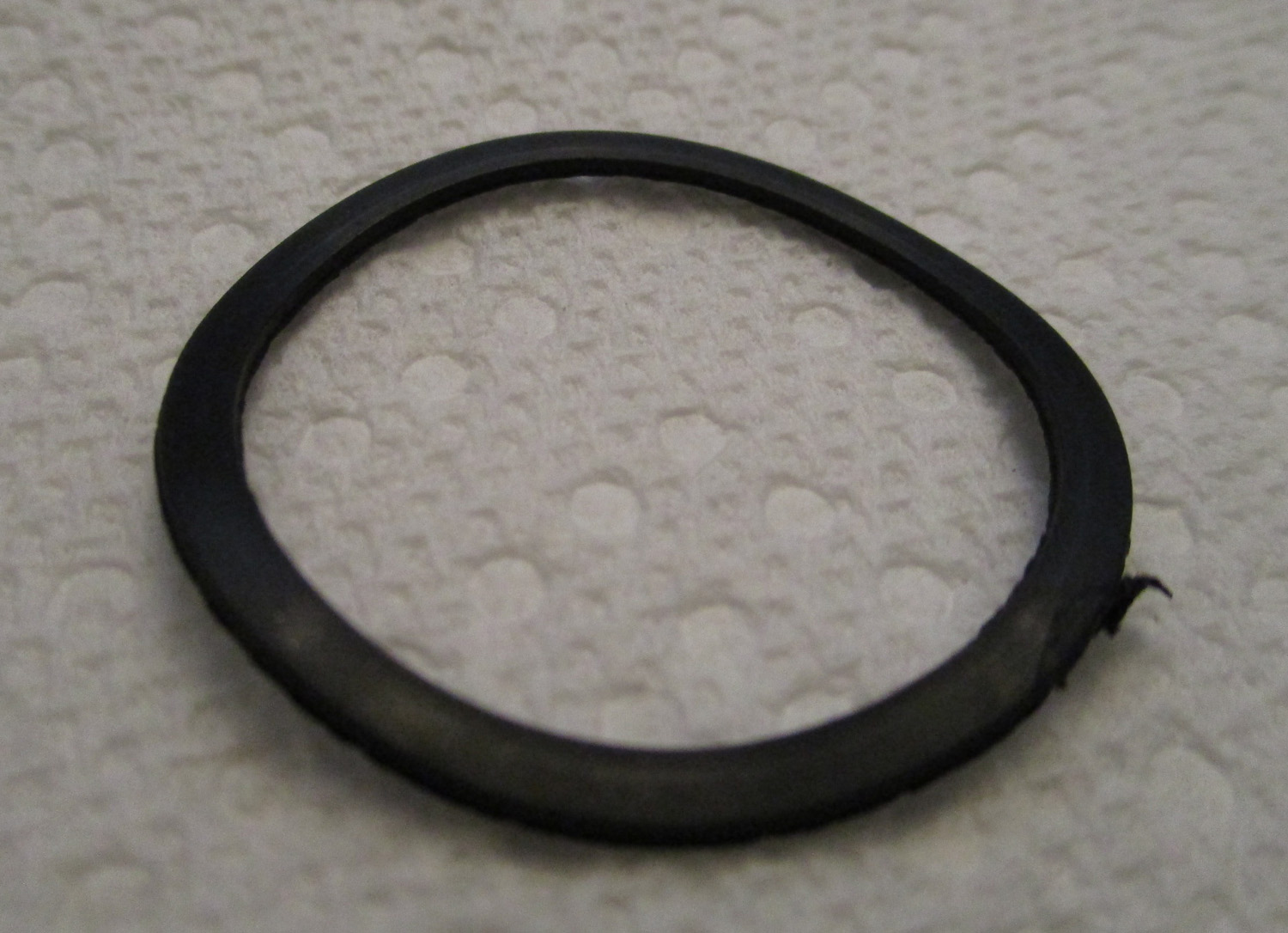

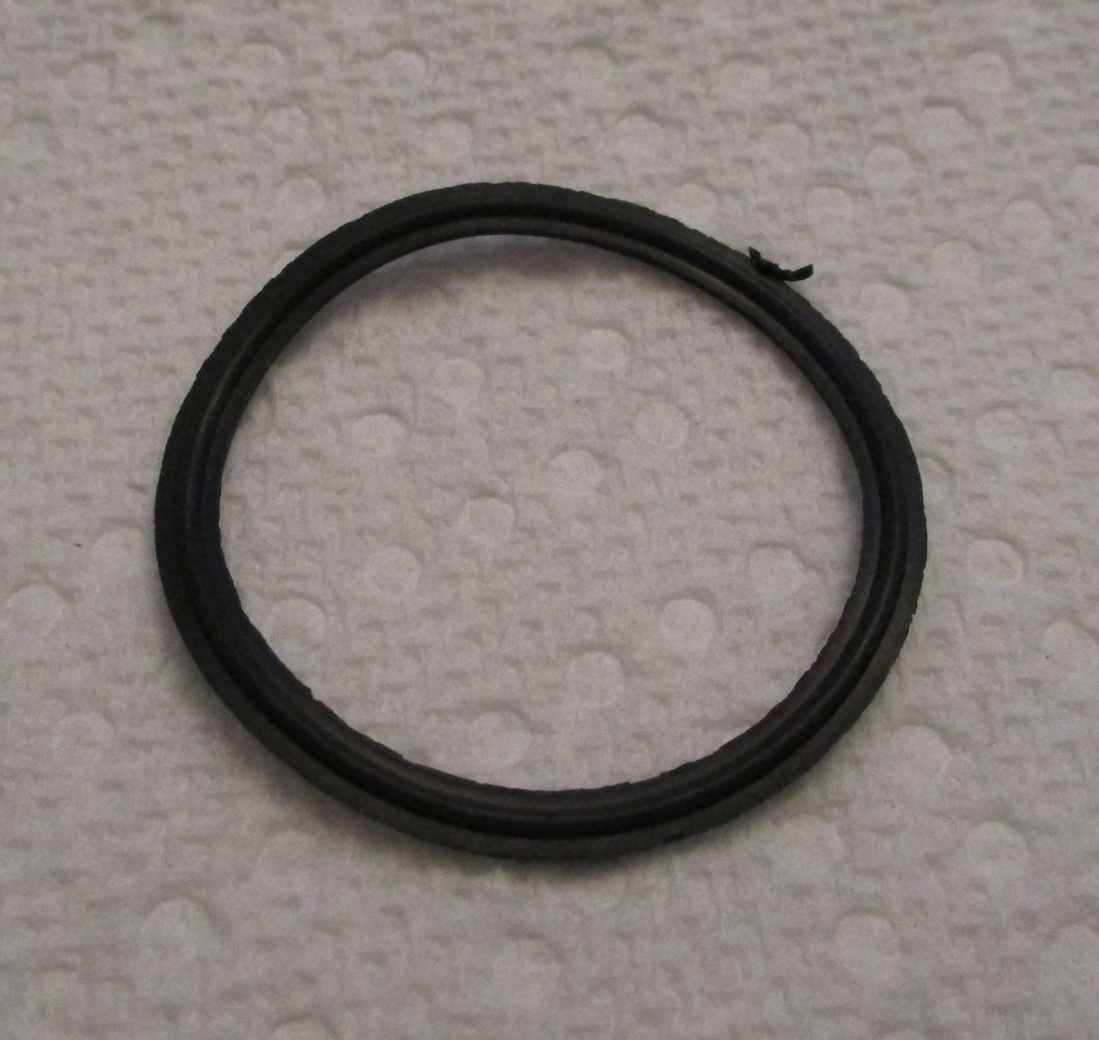

The gasket has an outer diameter of 1 1/2″, with an inner diameter of 1 1/4″, and is 1/16″ high.

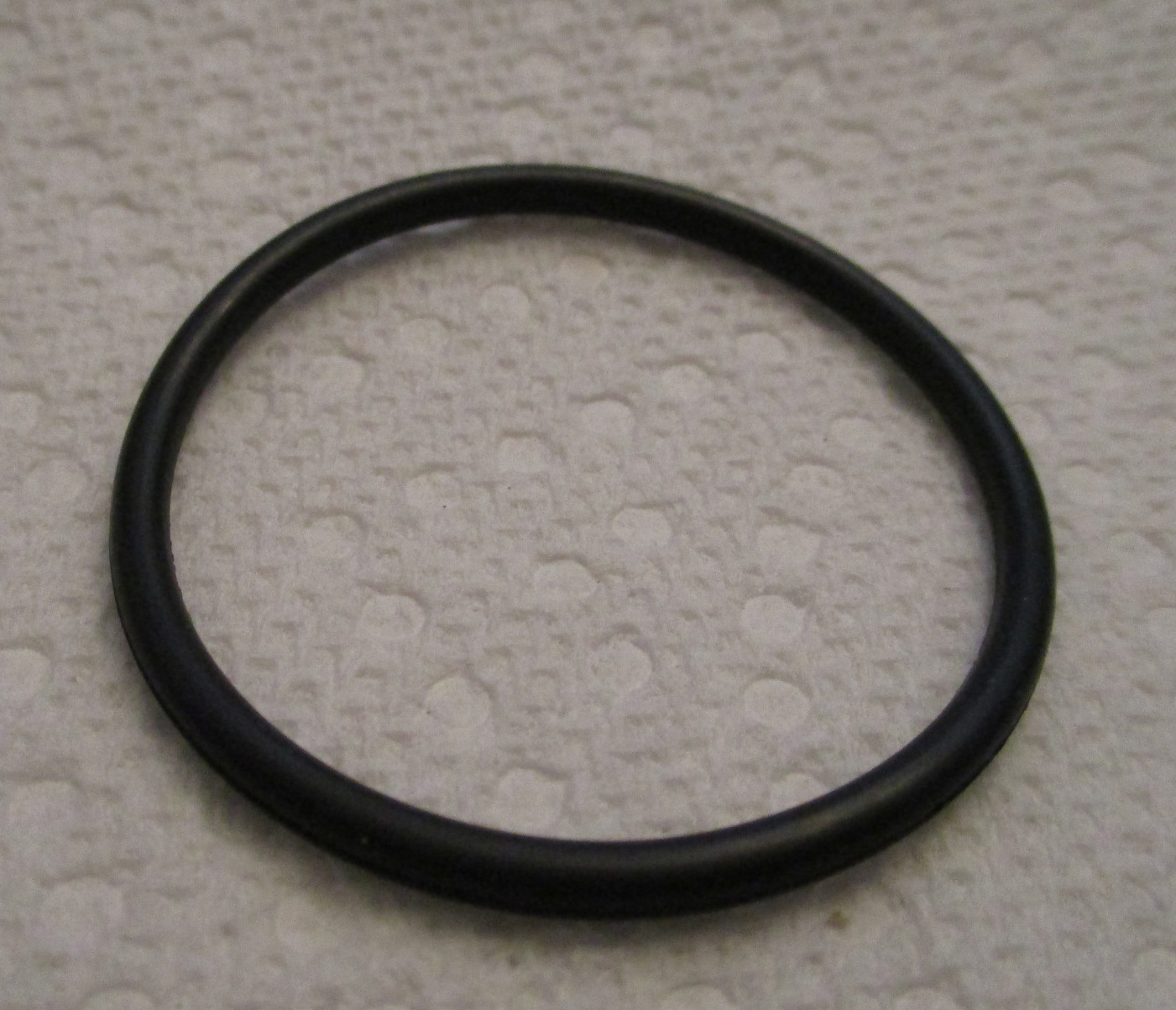

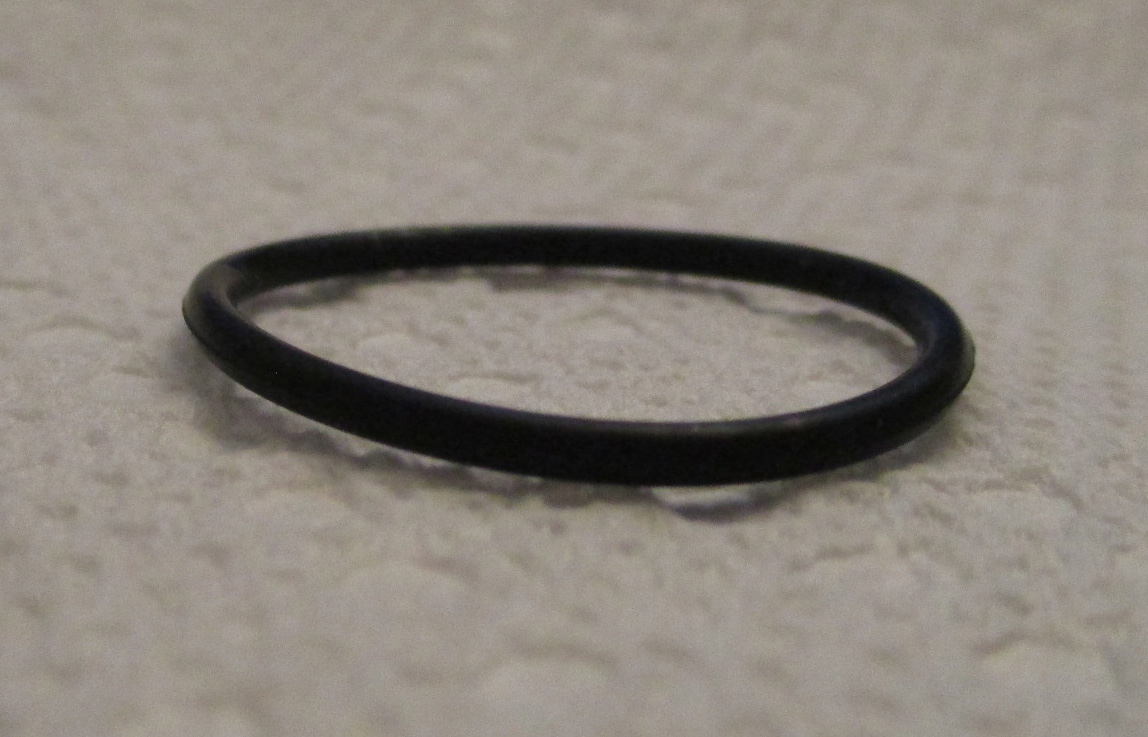

The larger O ring has an outer diameter of 1 3/4″, with an inner diameter of 1 5/8″, and is 1/8″ thick.
The smaller O ring has an outer diameter of 1″, with an inner diameter of 7/8″, and is 1/16″ thick.

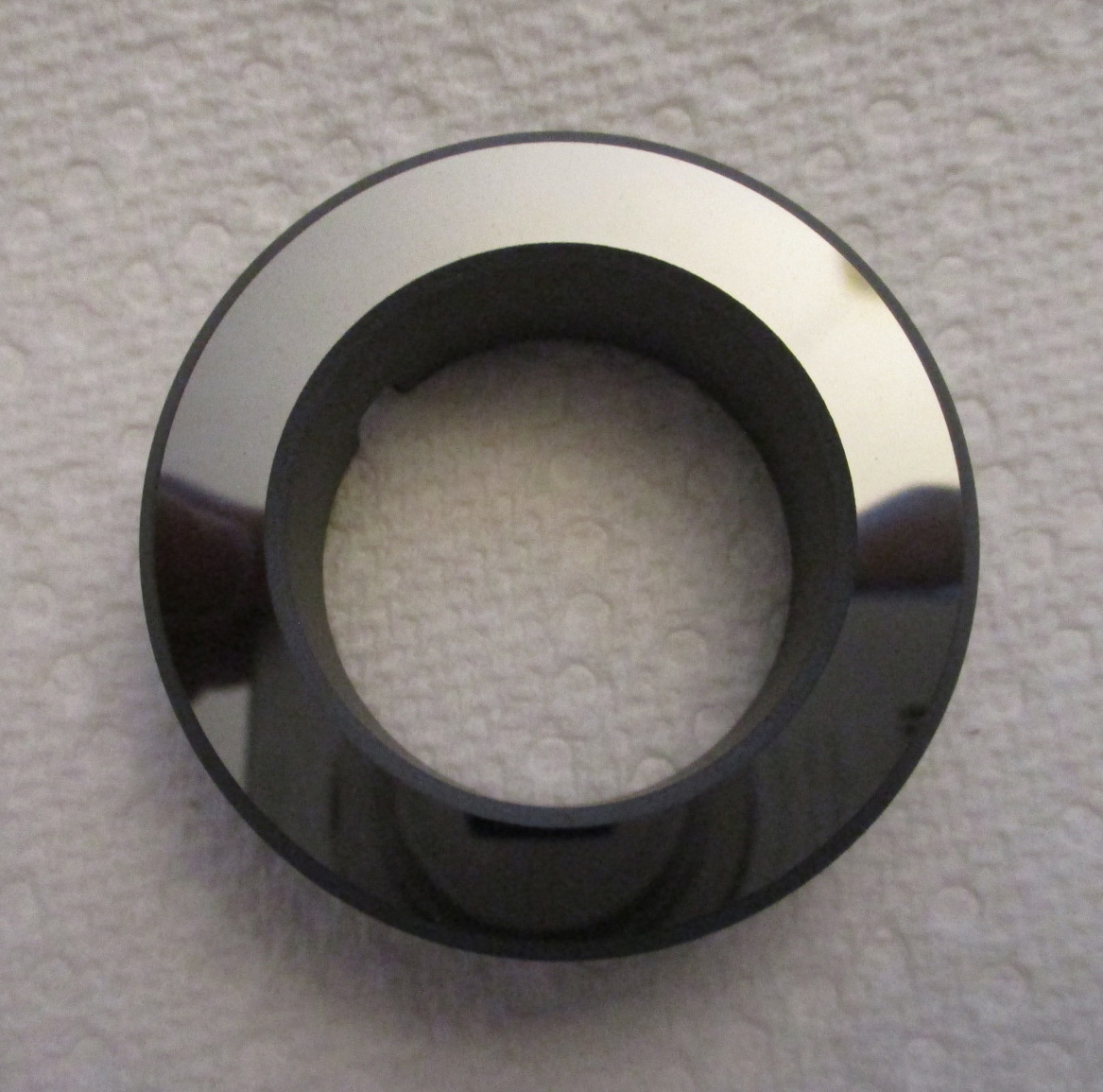

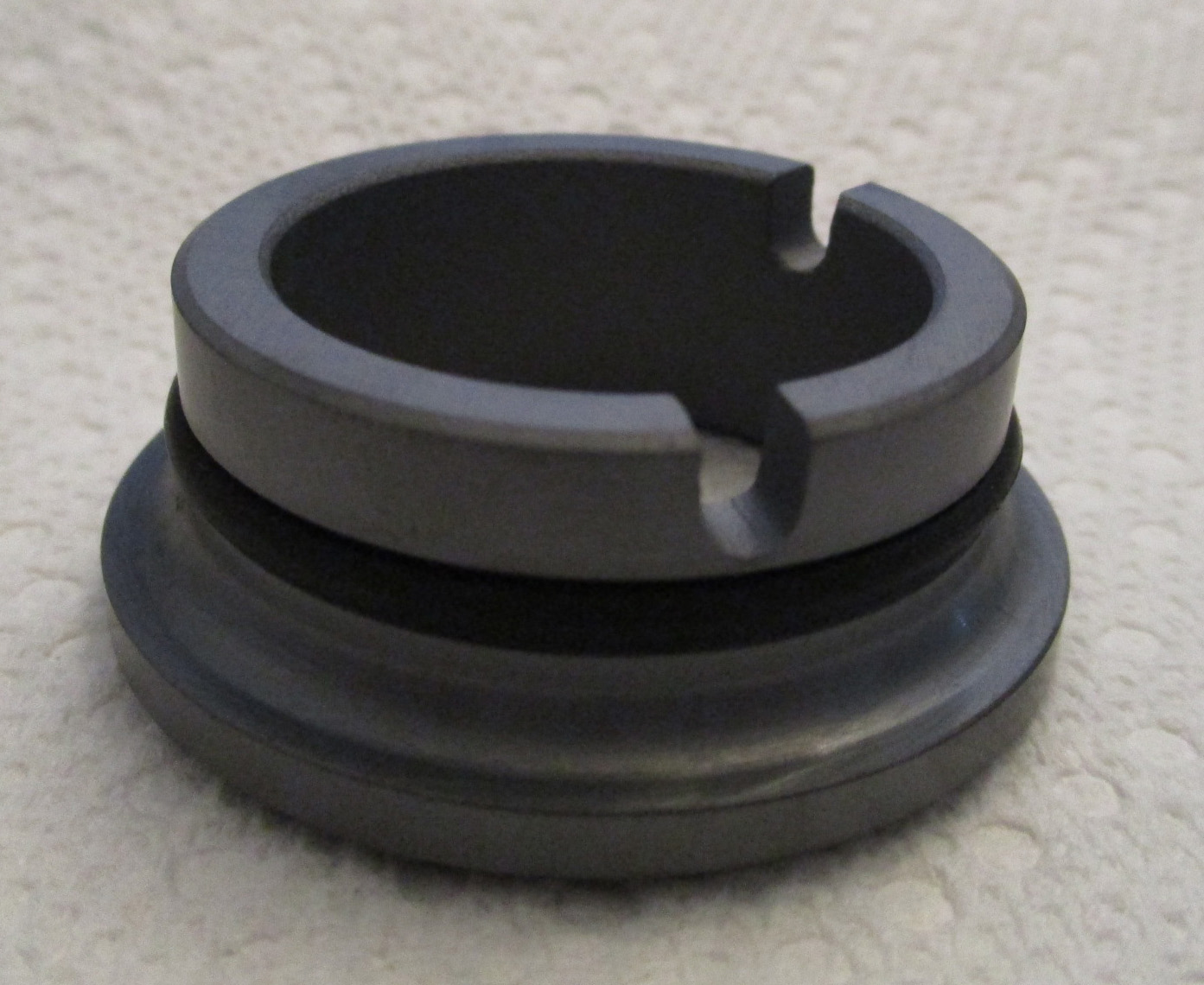

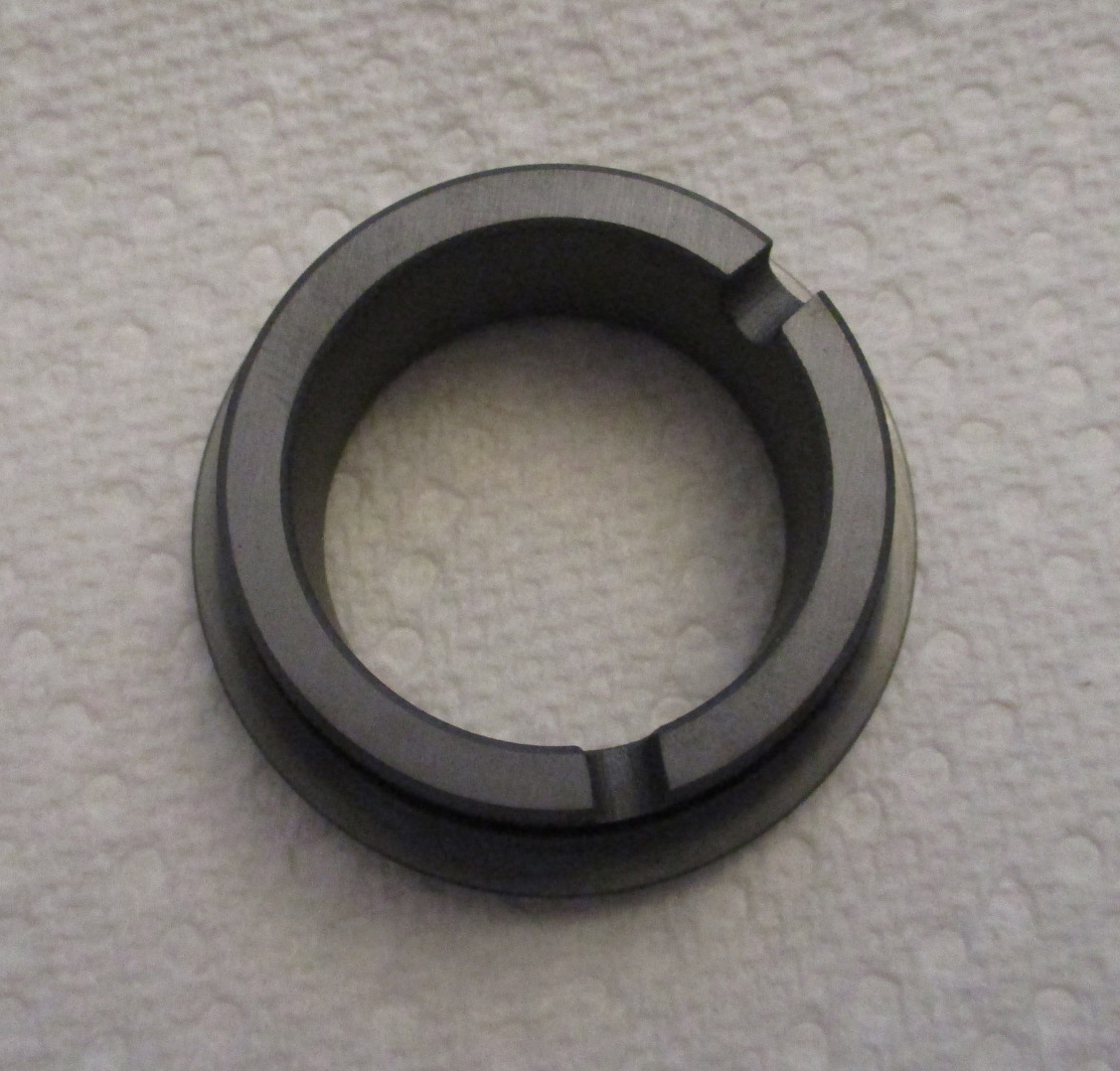

The second seal, on the larger end, has an outer diameter of 1 7/8″, and an inner diameter of 1 1/4″. On the smaller end, the seal has an outer diameter of 1 1/2″, with an inner diameter of 1 1/4″, and is 3/4″ high overall.
The DeLaval part number is unknown. The Fristam number is unknown. The item number is FR1802600651-FTC.
Additional information
| Weight | 0.31 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
| Brand |
